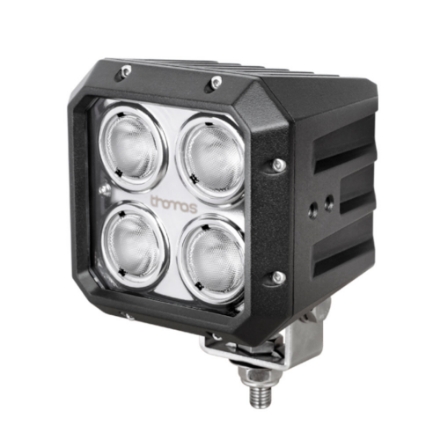

Thomas LED HP-4 Square

Thomas LED HP-4 Square



Very powerful light at 4300 effective lumen! 60° flood beam, 40° Trapezoid, or 20° spot beam.

The quality and output of the Thomas brand are among the best in the industry!

This light uses an integrated DT connector - a cable is included that will connect to the light and ends in bare wires for you to add a connector of your choice.

DT to 9005 and other cables can be ordered on the bottom of the page, and all adapter cables can be ordered here https://www.larsenlights.com/adapter-cables

For install where the light is hanging from the cab, you might need the "JD bracket" This bracket can be used on the HP-4, HP-4 oval, HP-5 & HP-6.  https://www.larsenlights.com/jd-bracket-for-oval-hp-4-light

Specs :

  • THOMAS HP4
  • LED : 4 pcs CREE High Power LEDs
  • Effective Lumen : 4366 / 5700 Kelvin
  • Power used : 46.4 Watt   /   3,4 A @ 13,5 Volt
  • Voltage : 10 - 60 Volt
  • Temperature : -40°F to +140°F
  • Beam :   60°, 40° or 20°
  • Plug : integrated DEUTSCH 2 pin
  • IP : waterproof IP68
  • RFI and EMC filter
  • Warranty : 3 years
  • Size : 103 x 103 x 95 mm (4" x 4" x 3.75")
  • Weight : 2.5 Lb
View as Grid List
Sort by
Display per page

HP-4 60°

LL0426
HP-4 is a 4" LED light made for use on most tractors where a square light is needed. 60 degree light beam, 4366 lumen effective ! Much brighter light than OEM LED lights !
$104.00

HP-4 40°

LL0427
HP-4 is a 4" LED light made for use on most tractors where a square light is needed. 40 degree light beam, 4366 lumen effective ! Much brighter light than OEM LED lights ! Narrow flood - more distance than the 60° flood.
$104.00

HP-4 20°

LL0428
HP-4 is a 4" LED light made for use on most tractors where a square light is needed. 40 degree light beam, 4366 lumen effective ! Much brighter light than OEM LED lights ! Narrow flood - more distance than the 60° flood.
$104.00

Rolled adapter for Thomas LED lights

LL0532
Bracket for some installations of Thomas LED lights. Makes the light fit the OEM "U" clamp on some tractors - 1 7/16 wide.
$3.00

Thomas LED "JD Bracket"

LL0438
Thomas LED "JD Bracket". Needed for installing the Thomas HP-4 and HP-5 on some positions on JD tractors and combines - used for the "hanging" cab lights, eg. front cab lights on combines and "R" series Tractors.
$6.00

Deutsch DT to 2 pin Weather Pack 6" adapter cable

LL0452
Cable for connecting the Thomas HP and the LED-666 Oval / 660 Rectangular to tractors and combines that previously used a weather pack 2 pin connector.
$3.00

Deutsch DT to 880 (H11) and 9005, 6"

LL0451
Cable for connecting the Thomas HP and the LED-550 Oval to tractors and combines that previously used a 9005 bulb. Newer JD (20, 30 and R series and S series combines + other brands where the light replaced used a 9005 bulb.
$3.00
