PAR-36 LED Lights
PAR-36 LED sealed beam replacements and accessories.
Par-36 size LED Light, Available in 60° flood, 40° trapezoid, Hi-Lo beam, and 20°spot. 1400 to 1700 lumen vs. Halogen at 400-800 lumen. This light is 2-3 times better than your old halogen light. Plus you get the nice 5000k white light!
Choose from the standard LED PAR (1400 lumen) or High Output PAR-36 (1700 lumen) We have 80° flood, 40° trapezoid, 20° spot and a duel beam / Hi-Lo model in both the standard PAR-36 and in the High Output (HO) PAR-36.
Fits all brands that use the 4.5” round Par-36 light, tractors, combines and more. Add a new housing and you can use the PAR-36S light anywhere.
"PAR" is an acronym for "Parabolic Aluminized Reflector", this refers to the shape and design of the light bulb. The "36" in the PAR-36 or PAR36 refers to the dimensions of the OD of the bulb in eighths of an inch; thus a PAR36 is 36/8 of an inch in diameter across the face of the bulb, 4.50" (114.3mm) maximum outer diameter.
You need female spade connectors to connect to the light, now included with the lights!
Replaces 4044, 4350, 4405, 4406, 4411, 4414, 4415, 4416, 4422, 4446, 4505, 4509, 4510, 4515, RE19080, RE25126, RE19079 and more. Hi-Lo also available 4440-X
40w Par-36
High power 40 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 4 x 10 watt LED chips. This light will only fit in normal full size housings with rubber grommets due to large cooling fins. Also it will NOT fit in the new plastic housings used on some later model JD's. This light has a temperature sensor that will limit the power of the light if the temperature gets too high. Max effective lumen 2800 - minimum effective lumen 2200.
$34.00
HO Par-36
30 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. Available beam types are 60° flood, 40° beam, Hi-Lo beam, and Spot beam.
$32.00

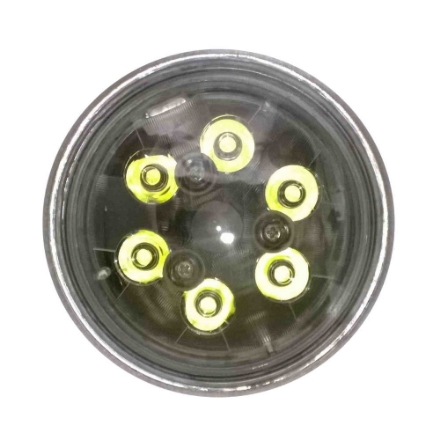

LL0315
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 20° Spot Beam.
$14.00
Par-36
PAR-36 size replacement LED light for the old style sealed beam halogen light. 5-watt CREE LED chips. Actual power use is around 18 watts, effective lumen around 1400, raw lumen around 2200.
$27.00
LL0004
PAR-36 size replacement LED light for the old style sealed beam halogen light. 20° Spot Beam. 1450 lumen, 30 watt rated / 18 watt use.
$10.00
LL0025
PAR-36 size replacement LED light, this model has a lens that looks like the halogen lights, makes it appear as OEM. 60° Flood Beam. 1400 lumen, 30 watt rated / 18 watt use.
$27.00
LL0070
A Round 40-watt CREE LED light. Works as a replacement for Par-36 style lights. Fantastic light output!. 60° Flood beam. Price is for one light only, the 2 lights show the 2 style rubber grommets that are included. This model 408 is the one that looks most like the old halogen.
$54.00
LL0032
Rubber grommet for the PAR-36 size lights. 3 tabs lock onto the OEM Hobbs housing. Not for the front fender lights. Replaces JD part# R42689.
$6.50
LL0034
PAR-36 size rubber housing. Simple rubber housing with a steel mounting bracket.
$8.00
LL0030
A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$18.00
LL0334
The Par-36 light as a combo of the red taillight and white work light. 3 spades on the rear for power connections. 12 volt. Bulb number: 4409X, 4409 Replaces:
AC: 250301, 235583
CASE: A40855
IH: 371461R92 & FITS LIGHT 377102R92
MM: 10p1729, 10p2646, 20-7000652
Oliver: 103593A, 166406A, 20-7000652
White: 10P2646
$35.00

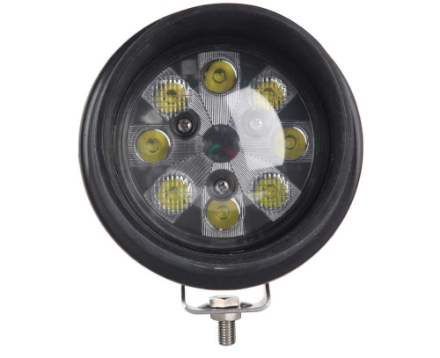

LED-408U
The LED-408U is a complete LED light that can replace OEM PAR-36 style lights. It includes hardware for all 3 locations on a JD SG cab, in front fenders, top of rear fender, and top rear cab. 3200 lumen vs. the OEM lights at 600 lumens. This light uses 3D reflector cups for the best light output.
$58.00
LL0001
LED 2x5 LED light for the top front cab on the 7000-8000 series tractor, and front hood light on older JD’s, 55 and 60 series. 50° beam pattern. 1700 effective lumen.
$29.00
LL0025
PAR-36 size replacement LED light, this model has a lens that looks like the halogen lights, makes it appear as OEM. 60° Flood Beam. 1400 lumen, 30 watt rated / 18 watt use.
$27.00
LL0032
Rubber grommet for the PAR-36 size lights. 3 tabs lock onto the OEM Hobbs housing. Not for the front fender lights. Replaces JD part# R42689.
$6.50
LL0449
Cable for connecting the Thomas HP and the LED-765 Oval / 760 Rectangular to tractors and combines that previously used a weather pack 2 pin connector.
$4.50
LED-760 series
LED-760 is a 4x6 style LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5200-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-660.
$76.00
LL0451
Cable for connecting the Thomas HP and the LED-760/765 lights to tractors and combines that previously used a 9005 bulb. Newer JD (20, 30, and R series and S series combines + other brands where the light replaced used a 9005 bulb.
$3.50
LL0021
27 Watt, 4" Round Led Flood work light. 60° Flood beam.
A very strong built light !
$27.00
LL0034
PAR-36 size rubber housing. Simple rubber housing with a steel mounting bracket.
$8.00
LL0086
24 Watt Oval LED work light. Now includes H11 connector (same as 880 series bulb connector) so the light will plug and play on most tractors and combines using the same size light.
$31.45
LED-765 series
LED-765 is a 4x6 style Oval LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5000-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-665.
$76.00
LL0004
PAR-36 size replacement LED light for the old style sealed beam halogen light. 20° Spot Beam. 1450 lumen, 30 watt rated / 18 watt use.
$10.00
LL0030
A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$18.00
LL0541
LED-91, amber with a built-in resistor. No need for special LED flasher relays! This model fits Sound guard cabs and older Steigers.
$35.00
LL0305
60 watt 4x6 size LED Headlight. Fits many tractors using a 4x6 headlight. JD 6000 and 7000 series tractors, 60 series JD, Older IH and many more.
$63.00
LED-760 series
LED-760 is a 4x6 style LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5200-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-660.
$76.00
LL1046
HD Wi-Fi Camera for Ipad / Android. For use with 12 volt DC power supply or 12 volt battery. Very easy to use. App name "JoyTrip". NOTE - might not work with Samsung phones.
$149.00
LL1045
Rechargeable HD Wi-Fi Camera for Ipad / Android - magnetic base. Very easy to use. NOTE - might not work with Samsung phones.
$169.00
LL0007
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
$32.00
LL0006
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
$32.00
LL0008
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
$34.00
LL0574
LED 2 x 5 LED light for the top front cab on the 55 & 60 series + 6000-7000-8000 series tractor. Flood beam.
$34.00
LL0001
LED 2x5 LED light for the top front cab on the 7000-8000 series tractor, and front hood light on older JD’s, 55 and 60 series. 50° beam pattern. 1700 effective lumen.
$29.00
LL0022
4 x 6 style, 45 watt LED 60° flood light. Flood beam is made in the lens for a wider pattern than the 845-2. Standard bracket.
$44.00
LL0023
4 x 6 style, 45 watt LED 60° flood light. Light beam is created in the reflectors, and a clear lens is used for higher lumen output.
Standard bracket.
$44.00
LL0112
LED Hood Conversion Frame for JD 4050,4250 and 4450.
$100.00
LL0413
Headlight kit for Magnum Tractors. Includes Stainless Steel Hardware, Plug & Play. OEM Replacement. Replaces OEM Part Number: 91971C2 and 91972C2.
$219.00
LL0307
Set of right and left headlight for some CIH tractors, & Sprayers.
$219.00
LL0050
Cab lights for the 9000 series JD combine using a rectangular light on the cab - fits any vehicle using the JD9000 series cab. Use the combo beam for most distance, we suggest 2 combo beam and 4 flood beam for the combines.
$64.00
