50 Series

Info about the kits :

Larsen LED light kits that will fit the 50 series JD. Option 1 & 2 use the standard LED Par-36, the High Output kit's - option 3 & 4 - use the 1700 lumen effective HO PAR-36 LED lights. All kits include 8 Par-36 round lights and a nose cone kit of 3 or 4 lights. Next the 8x50 series tractors.

The LED Par-36 use female spade terminals to connect to the wires (included). 12-24 volt. 3-year warranty. The standard Par-36 halogen is around 400-800 lumen, the standard LED is 1400 lumen each light, and the high output is 1700 lumen effective / 2200 raw. We work with REAL lumen & amp draw, not a calculated number.

Video of install from a customer: Install    and     Lights in use video



Fits:  John Deere, 4040, 4240, 4440, 4640, 4840, 4050, 4250, 4450, 4650, 4850

View as Grid List
Sort by

Larsen LED Option 1, 4050, 4250 & 4450 LED light kit

JD4x50-1
Complete kit that fits the 4050, 4250 and 4450 tractors. Includes 2 Hi-Lo beam, 2 trapezoid beam, 4 flood beam lights & the front 3 grill light conversion.
$456.00

Larsen LED Option 2, 4650 & 4850 LED light kit

JD4x50-2
Complete kit that fits the 4650 & 4850 tractors. Includes 2 Hi-Lo beam, 2 trapezoid beam, 4 flood beam lights & the front 4 grill light conversion.
$491.00

Larsen LED High Output Option 3 for 4050, 4250 & 4450

JD4x50-3 HO
Option 3 for JD 4x40 and 4x50 series tractors. Includes 2 x HO Par-36 Hi-Lo lights, 2 x HO Par-36 Trapezoid lights, 4 x HO Par-36 Flood lights. All Par-36 lights are 1700 effective / 2200 raw lumen output. Includes the nosecone LED conversion kit.
$512.00

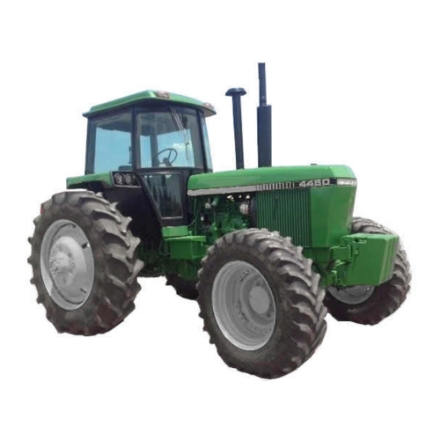

Larsen LED High Output Option 4 for 4650 & 4850 (6 flood)

JD4x50-4 HO
Option 4 for JD 4650 & 4850 tractors. Includes 2 x HO Par-36 Hi-Lo lights, 6 x HO Par-36 Flood lights. All Par-36 lights are 1700 effective / 2200 raw lumen output. Includes the nose cone LED conversion kit.
$547.00

Larsen LED High Output Option 4 for JD 4650 & 4850 kit (2 Hi-Lo , 2 trapezoid, 4 flood)

JD4650 HO
Option 4 for JD 4650 & 4850 tractors. Includes 2 x HO Par-36 Hi-Lo lights, 2 x HO Par-36 Trapezoid lights, 4 x HO Par-36 Flood lights. All Par-36 lights are 1700 effective / 2200 raw lumen output. Includes the nosecone LED conversion kit.
$547.00

Larsen LED JD-8x50 LED light kit with all 12 Par-36 LED lights.

JD8x50
12 Par-36 LED bulbs included in this kit, changes all lights to LED using the existing housings. From 600 lumen/bulb to 1450 lumen/bulb.
$324.00

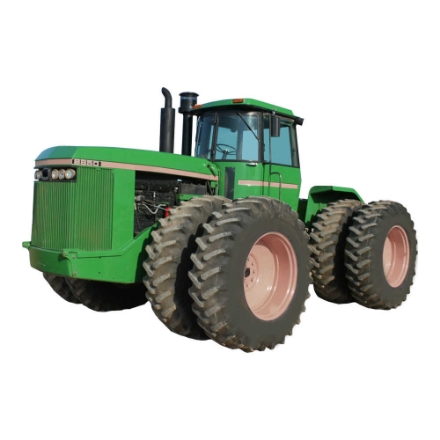

Larsen LED JD-8x50 LED light kit with LED-845 for rear fender

JD-8x50 LED light kit with LED-845
8 High Output Par-36 LED bulbs included in this kit and 4 LED-845 for the rear fender. This will change all front grill lights to Par-36 LED bulbs and the 2 roof lights also to Par-36 LED, and the LED-854 is replacing the 4 rear fender lights.
$452.00

Larsen LED JD-8x50 LED light kit with all 12 Par-36 LED lights High Output

JD8x50 -1
12 Par-36 High Output LED bulbs included in this kit, changes all lights to LED using the existing housings. From 600 lumen/bulb to 1700 lumen/bulb with the High Output Par-36 lights!
$408.00

LED Hood Conversion Kit, LED-3000

LL0112
LED Hood Conversion Kit for JD 4050,4250 and 4450. Removes the old lights in the nosecone and replaces them with 3 x 20 watt LED lights
$270.00 $240.00

LED Hood Conversion Kit, TL2755

TL2755
Kit comes with Led lights, wire harness(plug and play), housing, billet bezel, and all mounting hardware. Everything needed to convert your John Deere Tractor to LED Lighting. Note: This product will only work with tractors with existing front headlight/light bar in the hood. Replaces John Deere Part Number: AL64781
$380.00

TL3000 nose cone kit

TL3000
Kit comes with Led lights, wire harness(plug and play), housing, billet bezel and all mounting hardware.Everything needed to convert your John Deere Tractor to LED Lighting. Tiger lights brand. For John Deere, 1640, 2040, 2140, 2150, 2155, 2240, 2255, 2350, 2355N, 2550, 2855N, 2940, 2950, 2955, 3040, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4230,
$380.00

LED Hood Conversion Kit, LED-4000

LL0108
LED Hood Conversion Kit for JD 4650 and 4850. Removes the old lights in the nosecone and replaces them with 4 x 20 watt LED lights. For JD 4650 & JD 4850
$305.00 $275.00

High Output PAR-36 Flood

LL0006
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam
$34.00

High Output PAR-36 Hi-Lo

LL0008
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam
$34.00

High Output PAR-36 Trapezoid

LL0007
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° trapezoid beam
$34.00

Par-36 Bolt on Housing

LL0030
A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$21.00

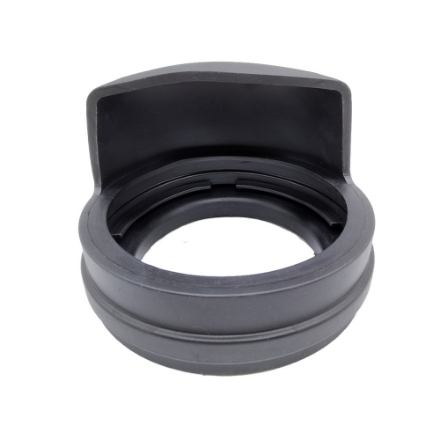

Par-36 Rubber Grommet

LL0032
Rubber grommet for the PAR-36 size lights. 3 tabs lock onto the OEM Hobbs housing. Not for the front fender lights. Need a front fender glare guard grommet ? Find it here : https://www.steinertractor.com/ABC3044-Guide-Glare-Guard-Rubber-Light-Bezel
$5.50

PAR-36 rubber housing

LL0034
PAR-36 size rubber housing. Simple rubber housing with a steel mounting bracket.
$7.00

PAR-36, 24 watt Hi-Lo

LL0005
PAR-36 size (4.5" Round) LED light. This is a Hi-Lo version of the light. Now as 24 watts. Not DOT approved.
$27.00

PAR-36, 4.5 LED light, Flood beam

LL0002
PAR-36 size replacement LED light for the old style sealed beam halogen light. 5 watt CREE LED chips. Actual use is around 18 watt, effective lumen around 1450, raw lumen around 2200. 60° Flood Beam. 1450 lumen, 30 watt rated / 18 watt use. 60° flood.
$27.00

PAR-36, 4.5 LED light, Fluted Flood lens

LL0025
PAR-36 size replacement LED light, this model has a lens that looks like the halogen lights, makes it appear as OEM. 60° Flood Beam. 1400 lumen, 30 watt rated / 18 watt use.
$27.00

PAR-36, 4.5" LED 30 watt 40° Trapezoid beam.

LL0003
PAR-36 size replacement LED light for the old style sealed beam halogen light. Trapezoid Beam. 1450 lumen, 30 watt rated / 18 watt use. Trapezoid beam.
$27.00

PAR-36, 4.5" LED light. 20° Spot

LL0004
PAR-36 size replacement LED light for the old style sealed beam halogen light. 20° Spot Beam. 1450 lumen, 30watt rated / 18 watt use.
$27.00

Electronic LED flasher relay

LL0466
If you replace your stock flashers with LED flashers, you might need a new flasher relay or a set of resistors in order for the flashers to flash normally.
$13.50

LED-0091 with built in resistor, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series, and some CIH / Steiger

LL0541
LED-0091, amber with a built-in resistor. No need for special LED flasher relays! This model fits Sound Guard Cabs, and 4wd Steiger. Availability : Winter 2020/2021.
$35.00

LED-0091, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series

LL0326
This model fits Sound Guard Cabs, and 4wd Steiger. Includes Stainless Steel Hardware.
$29.00

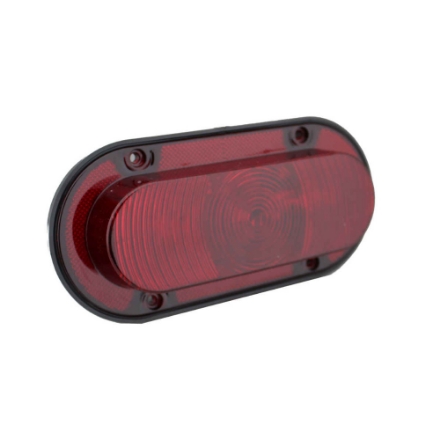

LED-0092, LED Red Oval Tail Light.

LL0325
LED Tail Light for John Deere Tractors. Plug & Play. OEM Replacement: John Deere: AR78825, RE39223
$29.00

Resistor, set of 2

LL0464
If you replace your stock flashers with LED flashers, you might need a set of resistors or a LED flasher relay in order for the flashers to flash normally. If possible use the LED flasher relay instead of the resistors. Find it further down on this page.
$10.00

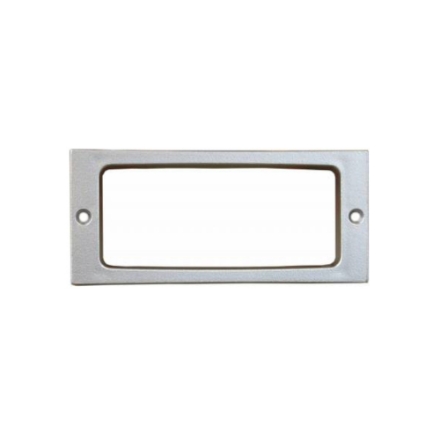

Bezel

LL0559
$18.00
