9x70 Series

Larsen LED kit made to fit JD 9x70 Series

Note that the lights are BRIGHT  -  you have to adjust the lights you do not blind oncoming traffic at night.

The kits below will convert most lights on a 9x70 series combine with oval cab lights. If you have a late model 9x60, this kit will work.

There are 3 options for the 60 & 70 series combines, option 1 is for combines with all halogen lights, option 2 is for combines with factory HID (2 HID lights), option 3 will convert the 6 top cab lights to complete LED lights.

Included in option 1 (If you want Thomas LED lights for the 6 cab lights - use option 4) :

4 x LED-666 Oval flood lights with JD bracket and 9005 connectors, 2 x LED-666 Oval Trapezoid lights with JD bracket and 9005 connectors, 2 x LED-824 S-3 Lower cab stubble lights, & 1 x LED-824-S3 for the unload auger light.

Add extra lights as needed.

A total of 13 lights can be converted to LED. .

Included in option 2 for combines with factory HID (If you want Thomas LED lights for the 4 cab lights use option 5) :

4 x LED-666 Oval flood lights with JD bracket and 9005 connectors, 2 x LED-824 S-3 Lower cab stubble lights, & 1 x LED-824-S3 for the unload auger light.

Add extra lights as needed.

A total of 11 lights can be converted to LED.

Include in Option 3 (If you want Thomas LED lights for the 6 cab lights - use option 6) :

4 x LED-666 Oval flood lights, 2 x LED-666 Oval trapezoid lights.

Lights used in this kit: LED-824-S3  LED-666 or Thomas HP5   JD Bracket for HP-5    DT to 9005 adapter





JD, STS, SH, 9470, 9560, 9570, 9650, 9660, 9670, 9750, 9760, 9770, 9860, 9870.

View as Grid List
Sort by

Larsen LED kit made to fit JD 9x60 - 9x70 Option 1

JD 9x60 - 9x70 Option 1
For JD combines with oval headlights, no factory HID, this kit can convert most of the OEM halogen lights to LED. Basic kit consists of 6 top cab lights and 2 lower cab lights + 1 unload auger light. Select extra lights as needed.
$540.00

Larsen LED kit made to fit JD 9x60 - 9x70 Option 2 - for combines with factory HID in the 2 center lights

JD 9x60 - 9x70 Option 2
For JD combines with oval headlights and 2 factory HID lights, this kit can convert most of the OEM halogen lights to LED. Basic kit consists of 4 LED cab lights and 2 lower cab lights + 1 unload auger light. Select extra lights as needed.
$392.00

Larsen LED kit made to fit JD 9x60 - 9x70 Option 3

JD 9x60 - 9x70 Option 3
For JD combines with oval headlights, this kit will convert the 6 cab lights to LED.
$444.00

Larsen LED kit made to fit JD 9x60 - 9x70 Kit Option 4, Thomas LED on cab

JD 9x60 - 9x70 Kit Option 4
For JD combines with oval headlights lights, this kit can convert most of the OEM halogen lights to LED. The basic kit consists of 6 LED cab lights and 2 lower cab lights + 1 unload auger light. Select extra lights as needed.
$834.00

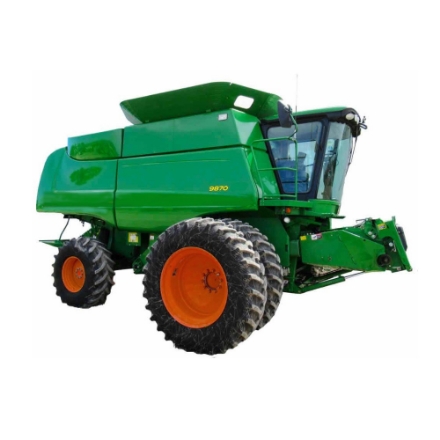

Larsen LED kit made to fit JD 9x60 - 9x70 Kit Option 5, Thomas LED on cab - for combines with factory HID in the 2 center lights.

JD 9x60 - 9x70 Kit Option 5
For JD combines with oval headlights and 2 factory HID lights, this kit can convert most of the OEM halogen lights to LED. Basic kit consists of 4 LED cab lights and 2 lower cab lights + 1 unload auger light. Select extra lights as needed.
$588.00

Larsen LED kit made to fit JD 9x60 - 9x70 Option 6 with Thomas HP5 lights

JD 9x60 - 9x70 Option 6
For JD combines with oval headlights, this kit will convert the 6 cab lights to LED using the 5000 lumen Thomas HP-5 led lights, and includes a LED-827 light for the unload auger.
$770.00

LED-9000 Side / headland light - for JD 9000 and S series combines

LL0054
An LED replacement light for JD combines with the rectangular row finder light that is mounted in the grain tank, right and left side. The price is for one light. It comes with a steel frame that bolts onto the light to make the light seal better when installed in place of the OEM light.
$70.00

LED-666 Oval LED Light

LED-666 series
The LED-666 Series of lights are all 60 watt CREE LED lights. The light can be ordered as a side mount or a bottom mount light, 25, 40, 60 or 80 degree beam pattern. Integrated Deutsch connector, and included is an adaptor cable for 880 series and 9005 bulb connectors.
$74.00

HP-4 Oval, 40° Trapezoid

LL0430
HP-4 Oval, 40° Trapezoid light, If used on the hanging cab lights on an "R"/20/30 series JD, please order the "R" series bracket. Also needed for the 60/70/S series combine cab lights.
$104.00

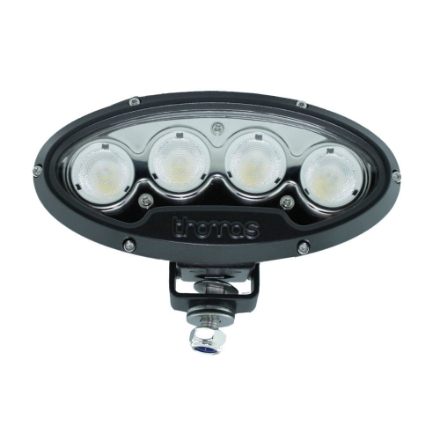

HP-4 Oval, 60° Flood

LL0429
HP-4 Oval, 60° Flood light, If used on the hanging cab lights on a "R"/20/30 series JD, please order the "R" series bracket. Also needed for the 60/70/S series combine cab lights.
$104.00

Hp-5 Flood 60°

LL0423
HP-5 - Oval 5000 lumen LED work light. 60° Flood beam
$114.00

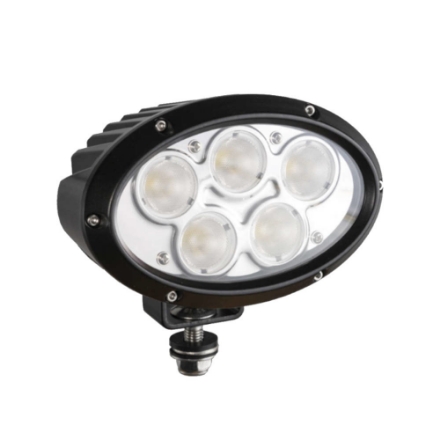

Hp-5 Trapezoid 40°

LL0424
HP-5 - Oval 5000 lumen LED work light. 40° beam
$114.00

LED 824-S3 Oval with H11 / 880 connector

LL0086
24 Watt Oval LED work light. Now includes H11 connector (same as 880 series bulb connector) so the light will plug and play on most tractors and combines using the same size light.
$32.00

LED-827 flood

LL0525
The LED-827 flood is an oval 27 watt 2100 lumen flood light that works well on smaller tractors and on combines for stubble, discharge, and auger light. Comes with an H11 / 880 series connector, this is the connector commonly used on this size light, and is the same connector as used on a 885 or 886 bulb. (880 series bulbs)
$36.00
