PreviousLED-6060
NextLED-630
LED-6075 60°
LED-6075 60° LED-6075 80° LED-6075 40° LED-6075 20° LED-6075 LED-6075

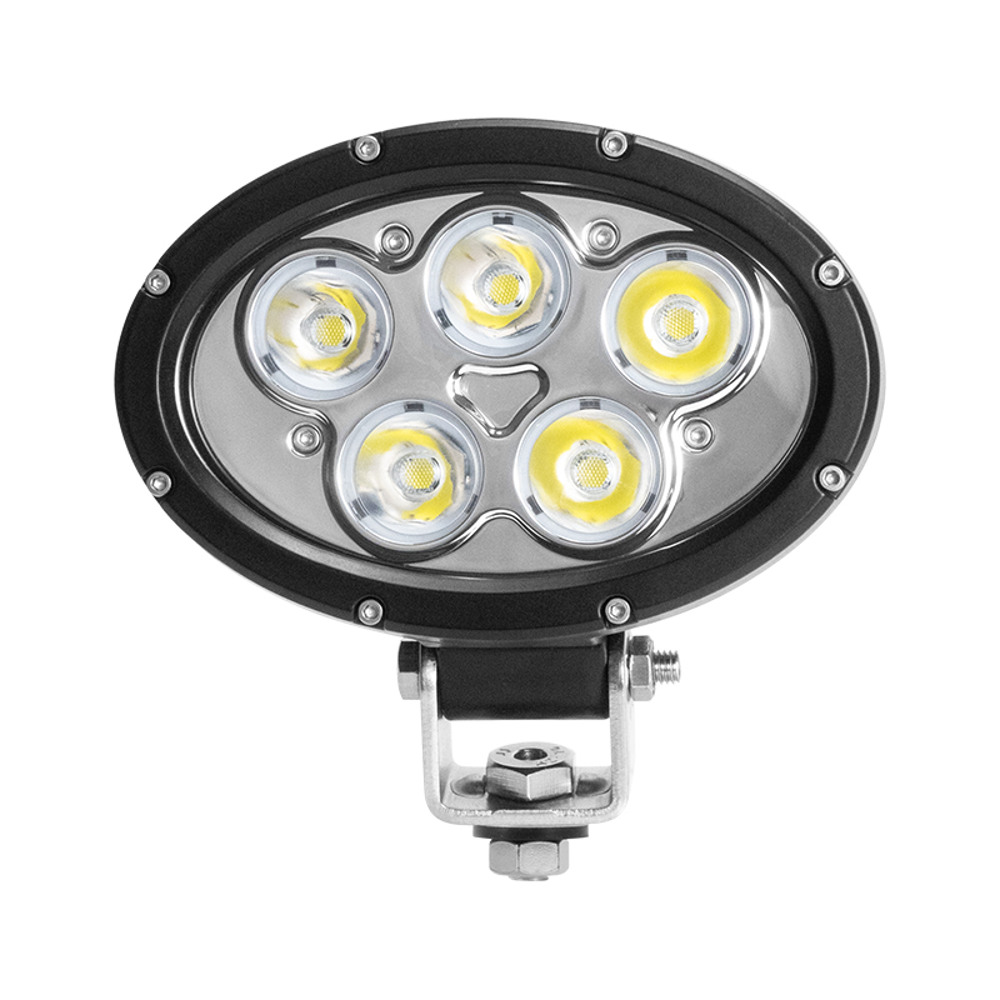

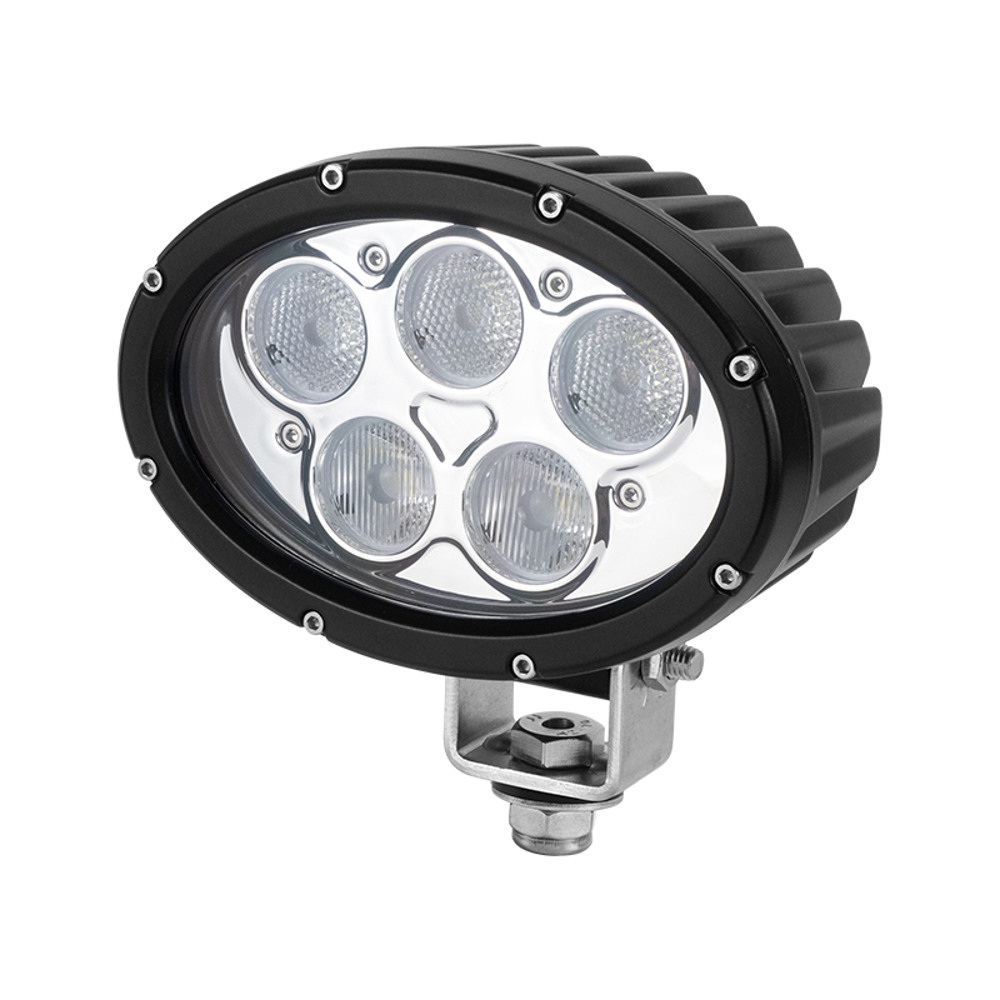

LED-6075 Oval LED Light

Be the first to review this product
LED-6075 Oval LED Light . This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power. Select from 20° / 40° / 60° / 80° beam types. If used on a JD combine, please add adapter wire LL0451.
Manufacturer: Larsen Lights
Picture of LED-6075 80° wide flood
LED-6075 80° wide flood
LED-6075 80° flood beam. When you need the light pattern to cover a large area close up.
SKU: LL0763
343 in stock
$98.00
+ -
Picture of LED-6075 60° flood beam
LED-6075 60° flood beam
LED-6075 60° flood beam. Most used type - universal flood light.
SKU: LL0762
544 in stock
$98.00
+ -
Picture of LED-6075 40° beam
LED-6075 40° beam
LED-6075 40° beam. Use when you need to reach the far away corners.
SKU: LL0761
148 in stock
$98.00
+ -
Picture of LED-6075 20° beam
LED-6075 20° beam
LED-6075 20° beam. Distance light.
SKU: LL0760
17 in stock
$98.00
+ -
Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

LED-6075 Oval LED Light



The effective power is 60~62W, and effective lumens 6000~6200lm.

Adapter cables are available for many applications. Includes pigtail only.

If used on a JD combine, please add adapter wire LL0451.

  • Watt: 75 watt - 5 x 15 Watt Luminus chips
  • Power used: 60W / 4.8A @ 12.5 Volt
  • Lumen: 7500 Raw, 6000 Effective
  • Kelvin: 5500K
  • Beam: 80° wide flood, 60° flood, 40° beam, and 20° distance beam.
  • Volt: 10-30 volt
  • IP: 68 - (water resistant in water to a maximum depth of 1.5 metres for up to 30 minutes)
  • Lens: Scratch and UV Resistant Hardcoated Polycarbonate
  • Material: Diecast Aluminum Housing, 304SS Hollow Screw
  • Plug: Integrated Deutsch 2 pin
  • RFI and EMC filter
  • Lifetime: >30000 hours
  • Size : 6 1/8 x 4 7/8 x 3 1/4 inch (base light without bracket)
  • Weight: 3.0 LB
  • Warranty: 5 years

SKU #: 20° LL0760, 40° LL0761, 60° LL0762, 80° LL0763

HP-5, HP5, oval, 86044306 Buhler Versatile, 87475205, LED6075,

LED-6075 Oval LED Light



The effective power is 60~62W, and effective lumens 6000~6200lm.

Adapter cables are available for many applications. Includes pigtail only.

If used on a JD combine, please add adapter wire LL0451.

  • Watt: 75 watt - 5 x 15 Watt Luminus chips
  • Power used: 60W / 4.8A @ 12.5 Volt
  • Lumen: 7500 Raw, 6000 Effective
  • Kelvin: 5500K
  • Beam: 80° wide flood, 60° flood, 40° beam, and 20° distance beam.
  • Volt: 10-30 volt
  • IP: 68 - (water resistant in water to a maximum depth of 1.5 metres for up to 30 minutes)
  • Lens: Scratch and UV Resistant Hardcoated Polycarbonate
  • Material: Diecast Aluminum Housing, 304SS Hollow Screw
  • Plug: Integrated Deutsch 2 pin
  • RFI and EMC filter
  • Lifetime: >30000 hours
  • Size : 6 1/8 x 4 7/8 x 3 1/4 inch (base light without bracket)
  • Weight: 3.0 LB
  • Warranty: 5 years

SKU #: 20° LL0760, 40° LL0761, 60° LL0762, 80° LL0763

HP-5, HP5, oval, 86044306 Buhler Versatile, 87475205, LED6075,

Product tags
Use On Below Models (Click to expand)
John Deere
Combine
9540iWTS Eff. S/N 078556, Cab Lamp 9540WTS Eff. S/N 078556, Cab Lamp 9560 S/N 715601->, Cab Lamp 9560iWTS Eff. S/N 078556, Cab Lamp 9560SH Eff. S/N 715101, Cab Lamp 9560STS S/N 715301->, Cab Lamp 9560WTS Eff. S/N 078556, Cab Lamp 9570STS Upper Fascia lamp 9580iWTS Eff. S/N 078556, Cab Lamp 9580WTS Eff. S/N 078556, Cab Lamp 9640iWTS Eff. S/N 078556, Cab Lamp 9640WTS Eff. S/N 078556, Cab Lamp 9660 S/N 715201->, Cab Lamp 9660iWTS Eff. S/N 078556, Cab Lamp 9660STS S/N 715601->, Cab Lamp 9660WTS S/N 078556->, Cab Lamp 9670STS Upper Fascia lamp 9680iWTS S/N 078556->, Cab Lamp 9680WTS S/N 078556->, Cab Lamp 9760STS S/N 715401->, Cab Lamp 9770STS Upper Fascia lamp 9780CTS S/N 078556->, Cab Lamp 9780iCTS S/N 078556->, Cab Lamp 9860STS S/N 715601->, Cab Lamp 9870STS Upper Fascia lamp C670 Upper Fascia lamp S550 Upper Fascia lamp S650 Upper Fascia lamp S660 Upper Fascia lamp S670 Upper Fascia lamp S670 Hillmaster Upper Fascia lamp S680 Upper Fascia lamp S680 Hillmaster Upper Fascia lamp S690 Upper Fascia lamp S690 Hillmaster Upper Fascia lamp S760 Upper Fascia lamp S770 Upper Fascia lamp S780 Upper Fascia lamp S790 Upper Fascia lamp T550 Upper Fascia lamp, Prior to Model Year 2011 T560 Upper Fascia lamp, Prior to Model Year 2011 T660 Upper Fascia lamp, Prior to Model Year 2011 T670 Upper Fascia lamp, Prior to Model Year 2011 W540 Upper Fascia lamp, Prior to Model Year 2011 W550 Upper Fascia lamp, Prior to Model Year 2011 W650 Upper Fascia lamp, Prior to Model Year 2011 W660 Upper Fascia lamp, Prior to Model Year 2011
Cotton Picker
7660 Upper Fascia lamp 7760 Upper Fascia lamp 9996 Eff. S/N 020001, Cab Lamp CP690 Upper Fascia lamp
Cotton Stripper
7460 Eff. S/N 20001, Cab Lamp CS690 Upper Fascia lamp
Harvester
3510 Cab Lamp 3520 Cab Lamp 7180 Cab Lamp 7200 Eff. S/N 508100, Cab Lamp 7250 Cab Lamp 7280 Cab Lamp 7300 Eff. S/N 508100, Cab Lamp 7350 Cab Lamp 7380 Cab Lamp 7400 Eff. S/N 508100, Cab Lamp 7450 Cab Lamp 7480 Cab Lamp 7550 Cab Lamp 7580 Cab Lamp 7700 Eff. S/N 508100, Cab Lamp 7750 Cab Lamp 7780 Cab Lamp 7800 Eff. S/N 508100, Cab Lamp 7850 Cab Lamp 7950 Cab Lamp 7980 Cab Lamp 8100 Cab Lamp 8200 Cab Lamp 8300 Cab Lamp 8400 Cab Lamp 8500 Cab Lamp 8600 Cab Lamp 8700 Cab Lamp 9600 Cab Lamp 9700 Cab Lamp 9800 Cab Lamp 9900 Cab Lamp
Sprayer
R4023 Cab Front & Rear, Mid-Body, Fender Rear R4030 Cab Front & Rear, Mid-Body, Fender Rear R4038 Cab Front & Rear, Mid-Body, Fender Rear R4045 Cab Front & Rear, Mid-Body, Fender Rear
Tractor
5090R Cab Front & Rear, Mid-Body, Fender Rear 5100R Cab Front & Rear, Mid-Body, Fender Rear 5115R Cab Front & Rear, Mid-Body, Fender Rear 5125R Cab Front & Rear, Mid-Body, Fender Rear 6105R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6110R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6115R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6120R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6125R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6130R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6140R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6145R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6150R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6150RH Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6155R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6155RH Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6170R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6175R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6190R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6195R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6210R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6215R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 7200R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7210R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7215R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7230R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7250R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7260R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7270R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7280R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7290R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7310R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8225R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8235R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8245R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8260R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8270R Cab Front & Rear, Mid-Body, Fender Rear 8285R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8295R Cab Front & Rear, Mid-Body, Fender Rear 8295RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8310R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8310RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8320R Cab Front & Rear, Mid-Body, Fender Rear 8320RT Cab Front & Rear, Mid-Body, Fender Rear 8335R Cab Front & Rear, Mid-Body, Fender Rear 8335RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8345R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8345RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8360R Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8360RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8370R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8370RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 9360R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9370R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9410R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9420R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9460R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9460RT Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9470R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9470RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9510R Cab Front & Rear, Mid-Body, Fender Rear 9510RT Cab Front & Rear, Mid-Body, Fender Rear 9520R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9520RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9520RX Cab Front & Rear, Mid-Body, Fender Rear 9560R Cab Front & Rear, Mid-Body, Fender Rear 9560RT Cab Front & Rear, Mid-Body, Fender Rear 9570R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9570RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9570RX Cab Front & Rear, Mid-Body, Fender Rear 9620R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9620RX Cab Front & Rear, Mid-Body, Fender Rear
Windrower
4895 Eff. S/N 320001, Cab Lamp 4995 Eff. S/N 320001, Cab Lamp A400 Cab Lamp D450 Cab Lamp R450 Cab Lamp
Versatile
Sprayer
SP235 Cab Front & Rear, Fender Rear SP275 Cab Front & Rear, Fender Rear SX240 Cab Front & Rear, Fender Rear SX280 Cab Front & Rear, Fender Rear
Tractor
260 Cab Front & Rear, Fender Rear 265 Cab Front & Rear, Fender Rear 270 Cab Front & Rear, Fender Rear 275 Cab Front & Rear, Fender Rear 290 Cab Front & Rear, Fender Rear 295 Cab Front & Rear, Fender Rear 300 Cab Front & Rear, Fender Rear 305 Cab Front & Rear, Fender Rear 310 Cab Front & Rear, Fender Rear 315 Cab Front & Rear, Fender Rear 320 Cab Front & Rear, Fender Rear 335 Fender Rear 340 Cab Front & Rear, Fender Rear 350 Cab Front & Rear, Fender Rear 360 Fender Rear 365 Fender Rear 370 Cab Front & Rear, Fender Rear 375 Cab Front & Rear, Fender Rear 380 Cab Front & Rear, Fender Rear 395 Cab Front & Rear, Fender Rear 400 Cab Front & Rear, Fender Rear 405 Cab Front & Rear, Fender Rear 425 Cab Front & Rear, Fender Rear 430 Cab Front & Rear, Fender Rear 450 Cab Front & Rear, Fender Rear 460 Cab Front & Rear, Fender Rear 500 Cab Front & Rear, Fender Rear 520 Cab Front & Rear, Fender Rear 550 Cab Front & Rear, Fender Rear 570 Cab Front & Rear, Fender Rear 575 Eff. S/N 704000, Cab Front & Rear, Fender Rear 610 Cab Front & Rear, Fender Rear 620 Cab Front & Rear, Fender Rear
