HP-5

Hp-5

Be the first to review this product

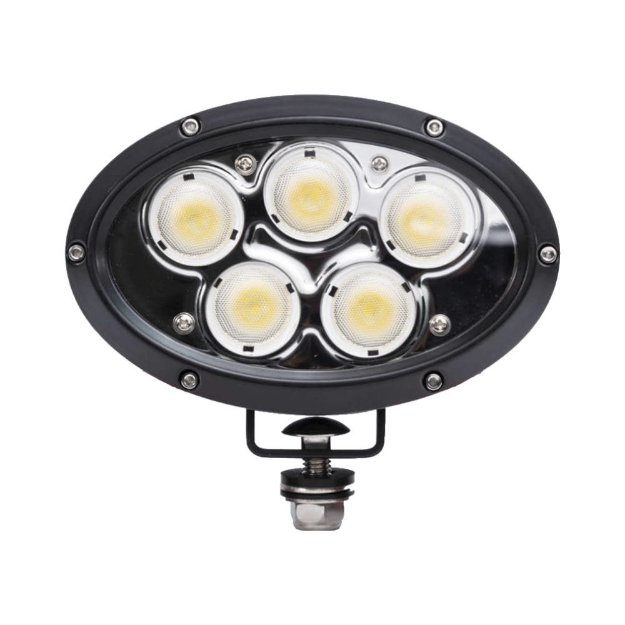

HP-5 - Oval 5000 lumen LED work light. 20°, 40° or 60° beam.

Manufacturer: Thomas LED

HP-5

Hp-5 Flood 60°

HP-5 - Oval 5000 lumen LED work light. 60° Flood beam

SKU: LL0423

Availability:

376 in stock

$129.00

Qty:

+ -

HP-5

Hp-5 40° beam

HP-5 - Oval 5000 lumen LED work light. 40° beam

SKU: LL0424

Availability:

190 in stock

$129.00

Qty:

+ -

HP-5

Hp-5 Spot 20°

HP-5 - Oval 5000 lumen LED work light. Spot beam

SKU: LL0425

Availability:

46 in stock

$129.00

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

Hp-5

Very powerful light at 5000 effective lumen!

Fits JD combines and Challenger tractors + many more.

The quality and output of the Thomas brand are among the best in the industry!

This light uses an integrated DT connector - a cable is included that will connect to the light and ends in bare wires for you to add a connector of your choice.

All adapter cables can be ordered here https://www.larsenlights.com/adapter-cables

For install where the light is hanging from the cab, you might need the "JD bracket" This bracket can be used on the HP-4, HP-4 oval, HP-5 & HP-6. https://www.larsenlights.com/jd-bracket-for-oval-hp-4-light

Spec's:

LED 5 pieces CREE High Power LEDs
Lumens effectively 5000
Color temperature 5700 Kelvin
Power 60 watts
Power consumption 5.0 A at 12 volts
Input voltage 10 - 60 volts
20°, 40° or 60° beam.
Operating temperature -40 ° C to + 85 ° C
Plug integrated Deutch DT 2 pin plug
Material housing made of aluminum, front pane made of unbreakable polycarbonate
IP protection class waterproof IP68
Size : 130 x 102 x 94 mm (5.11" x 4.02" x 3.7")

HP-5, HP5, oval, 86044306 Buhler Versatile, 87475205

Hp-5

Very powerful light at 5000 effective lumen!

Fits JD combines and Challenger tractors + many more.

The quality and output of the Thomas brand are among the best in the industry!

This light uses an integrated DT connector - a cable is included that will connect to the light and ends in bare wires for you to add a connector of your choice.

All adapter cables can be ordered here https://www.larsenlights.com/adapter-cables

For install where the light is hanging from the cab, you might need the "JD bracket" This bracket can be used on the HP-4, HP-4 oval, HP-5 & HP-6. https://www.larsenlights.com/jd-bracket-for-oval-hp-4-light

Spec's:

LED 5 pieces CREE High Power LEDs
Lumens effectively 5000
Color temperature 5700 Kelvin
Power 60 watts
Power consumption 5.0 A at 12 volts
Input voltage 10 - 60 volts
20°, 40° or 60° beam.
Operating temperature -40 ° C to + 85 ° C
Plug integrated Deutch DT 2 pin plug
Material housing made of aluminum, front pane made of unbreakable polycarbonate
IP protection class waterproof IP68
Size : 130 x 102 x 94 mm (5.11" x 4.02" x 3.7")

HP-5, HP5, oval, 86044306 Buhler Versatile, 87475205

Product tags

Flood (52)
,
hp-5 (4)

Use On Below Models (Click to expand)

John Deere

Combine: 9540iWTS Eff. S/N 078556, Cab Lamp 9540WTS Eff. S/N 078556, Cab Lamp 9560 S/N 715601->, Cab Lamp 9560iWTS Eff. S/N 078556, Cab Lamp 9560SH Eff. S/N 715101, Cab Lamp 9560STS S/N 715301->, Cab Lamp 9560WTS Eff. S/N 078556, Cab Lamp 9570STS Upper Fascia lamp 9580iWTS Eff. S/N 078556, Cab Lamp 9580WTS Eff. S/N 078556, Cab Lamp 9640iWTS Eff. S/N 078556, Cab Lamp 9640WTS Eff. S/N 078556, Cab Lamp 9660 S/N 715201->, Cab Lamp 9660iWTS Eff. S/N 078556, Cab Lamp 9660STS S/N 715601->, Cab Lamp 9660WTS S/N 078556->, Cab Lamp 9670STS Upper Fascia lamp 9680iWTS S/N 078556->, Cab Lamp 9680WTS S/N 078556->, Cab Lamp 9760STS S/N 715401->, Cab Lamp 9770STS Upper Fascia lamp 9780CTS S/N 078556->, Cab Lamp 9780iCTS S/N 078556->, Cab Lamp 9860STS S/N 715601->, Cab Lamp 9870STS Upper Fascia lamp C670 Upper Fascia lamp S550 Upper Fascia lamp S650 Upper Fascia lamp S660 Upper Fascia lamp S670 Upper Fascia lamp S670 Hillmaster Upper Fascia lamp S680 Upper Fascia lamp S680 Hillmaster Upper Fascia lamp S690 Upper Fascia lamp S690 Hillmaster Upper Fascia lamp S760 Upper Fascia lamp S770 Upper Fascia lamp S780 Upper Fascia lamp S790 Upper Fascia lamp T550 Upper Fascia lamp, Prior to Model Year 2011 T560 Upper Fascia lamp, Prior to Model Year 2011 T660 Upper Fascia lamp, Prior to Model Year 2011 T670 Upper Fascia lamp, Prior to Model Year 2011 W540 Upper Fascia lamp, Prior to Model Year 2011 W550 Upper Fascia lamp, Prior to Model Year 2011 W650 Upper Fascia lamp, Prior to Model Year 2011 W660 Upper Fascia lamp, Prior to Model Year 2011

Cotton Picker: 7660 Upper Fascia lamp 7760 Upper Fascia lamp 9996 Eff. S/N 020001, Cab Lamp CP690 Upper Fascia lamp

Cotton Stripper: 7460 Eff. S/N 20001, Cab Lamp CS690 Upper Fascia lamp

Harvester: 3510 Cab Lamp 3520 Cab Lamp 7180 Cab Lamp 7200 Eff. S/N 508100, Cab Lamp 7250 Cab Lamp 7280 Cab Lamp 7300 Eff. S/N 508100, Cab Lamp 7350 Cab Lamp 7380 Cab Lamp 7400 Eff. S/N 508100, Cab Lamp 7450 Cab Lamp 7480 Cab Lamp 7550 Cab Lamp 7580 Cab Lamp 7700 Eff. S/N 508100, Cab Lamp 7750 Cab Lamp 7780 Cab Lamp 7800 Eff. S/N 508100, Cab Lamp 7850 Cab Lamp 7950 Cab Lamp 7980 Cab Lamp 8100 Cab Lamp 8200 Cab Lamp 8300 Cab Lamp 8400 Cab Lamp 8500 Cab Lamp 8600 Cab Lamp 8700 Cab Lamp 9600 Cab Lamp 9700 Cab Lamp 9800 Cab Lamp 9900 Cab Lamp

Sprayer: R4023 Cab Front & Rear, Mid-Body, Fender Rear R4030 Cab Front & Rear, Mid-Body, Fender Rear R4038 Cab Front & Rear, Mid-Body, Fender Rear R4045 Cab Front & Rear, Mid-Body, Fender Rear

Tractor: 5090R Cab Front & Rear, Mid-Body, Fender Rear 5100R Cab Front & Rear, Mid-Body, Fender Rear 5115R Cab Front & Rear, Mid-Body, Fender Rear 5125R Cab Front & Rear, Mid-Body, Fender Rear 6105R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6110R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6115R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6120R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6125R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6130R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6140R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6145R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6150R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6150RH Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6155R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6155RH Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6170R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6175R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6190R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6195R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6210R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6215R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 7200R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7210R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7215R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7230R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7250R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7260R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7270R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7280R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7290R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7310R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8225R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8235R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8245R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8260R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8270R Cab Front & Rear, Mid-Body, Fender Rear 8285R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8295R Cab Front & Rear, Mid-Body, Fender Rear 8295RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8310R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8310RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8320R Cab Front & Rear, Mid-Body, Fender Rear 8320RT Cab Front & Rear, Mid-Body, Fender Rear 8335R Cab Front & Rear, Mid-Body, Fender Rear 8335RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8345R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8345RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8360R Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8360RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8370R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8370RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 9360R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9370R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9410R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9420R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9460R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9460RT Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9470R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9470RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9510R Cab Front & Rear, Mid-Body, Fender Rear 9510RT Cab Front & Rear, Mid-Body, Fender Rear 9520R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9520RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9520RX Cab Front & Rear, Mid-Body, Fender Rear 9560R Cab Front & Rear, Mid-Body, Fender Rear 9560RT Cab Front & Rear, Mid-Body, Fender Rear 9570R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9570RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9570RX Cab Front & Rear, Mid-Body, Fender Rear 9620R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9620RX Cab Front & Rear, Mid-Body, Fender Rear

Windrower: 4895 Eff. S/N 320001, Cab Lamp 4995 Eff. S/N 320001, Cab Lamp A400 Cab Lamp D450 Cab Lamp R450 Cab Lamp

Versatile

Sprayer: SP235 Cab Front & Rear, Fender Rear SP275 Cab Front & Rear, Fender Rear SX240 Cab Front & Rear, Fender Rear SX280 Cab Front & Rear, Fender Rear

Tractor: 260 Cab Front & Rear, Fender Rear 265 Cab Front & Rear, Fender Rear 270 Cab Front & Rear, Fender Rear 275 Cab Front & Rear, Fender Rear 290 Cab Front & Rear, Fender Rear 295 Cab Front & Rear, Fender Rear 300 Cab Front & Rear, Fender Rear 305 Cab Front & Rear, Fender Rear 310 Cab Front & Rear, Fender Rear 315 Cab Front & Rear, Fender Rear 320 Cab Front & Rear, Fender Rear 335 Fender Rear 340 Cab Front & Rear, Fender Rear 350 Cab Front & Rear, Fender Rear 360 Fender Rear 365 Fender Rear 370 Cab Front & Rear, Fender Rear 375 Cab Front & Rear, Fender Rear 380 Cab Front & Rear, Fender Rear 395 Cab Front & Rear, Fender Rear 400 Cab Front & Rear, Fender Rear 405 Cab Front & Rear, Fender Rear 425 Cab Front & Rear, Fender Rear 430 Cab Front & Rear, Fender Rear 450 Cab Front & Rear, Fender Rear 460 Cab Front & Rear, Fender Rear 500 Cab Front & Rear, Fender Rear 520 Cab Front & Rear, Fender Rear 550 Cab Front & Rear, Fender Rear 570 Cab Front & Rear, Fender Rear 575 Eff. S/N 704000, Cab Front & Rear, Fender Rear 610 Cab Front & Rear, Fender Rear 620 Cab Front & Rear, Fender Rear
