LED-20 flood

2 review(s) | Add your review

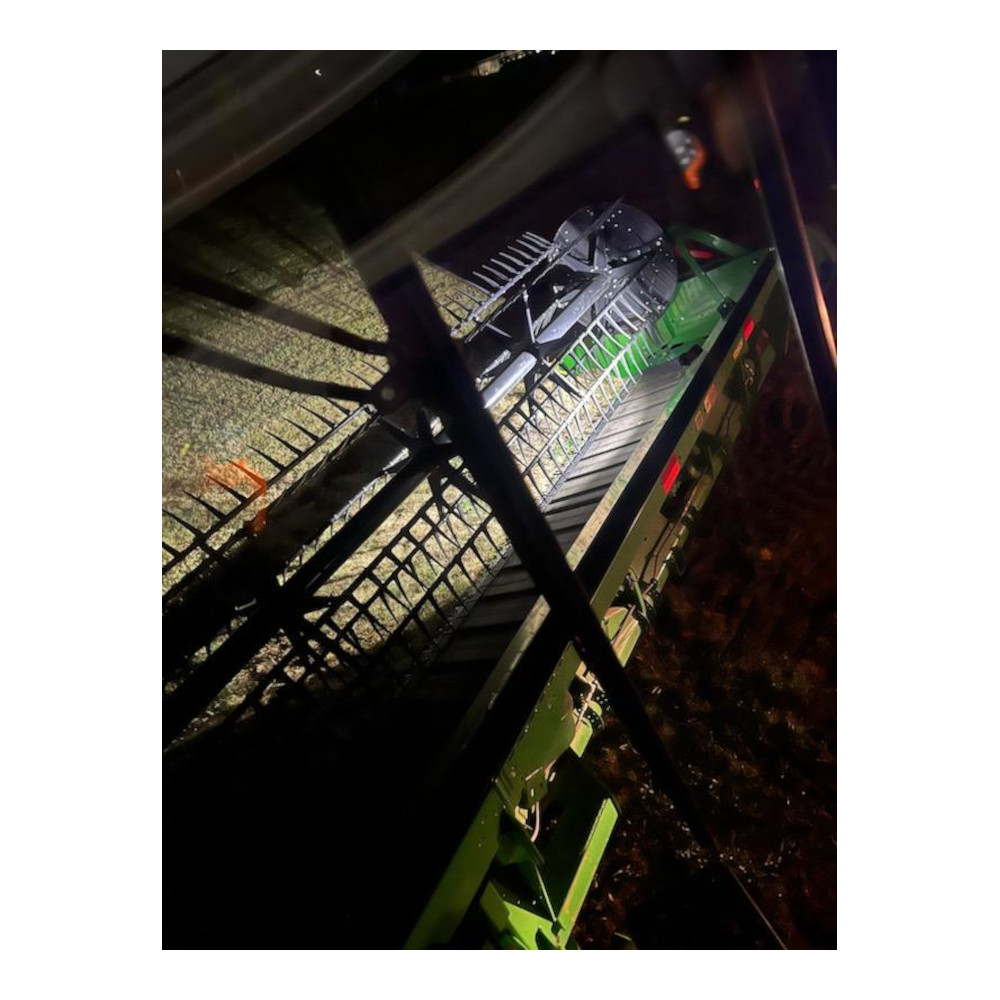

The LED-20 is a very small light, but with 2 10 watt CREE led chips, it has a great light output. So small it fits almost anywhere. Excellent on combine headers for stubble light.

Manufacturer: Larsen Lights

SKU: LL0106

Availability:

398 in stock

$34.00

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-20

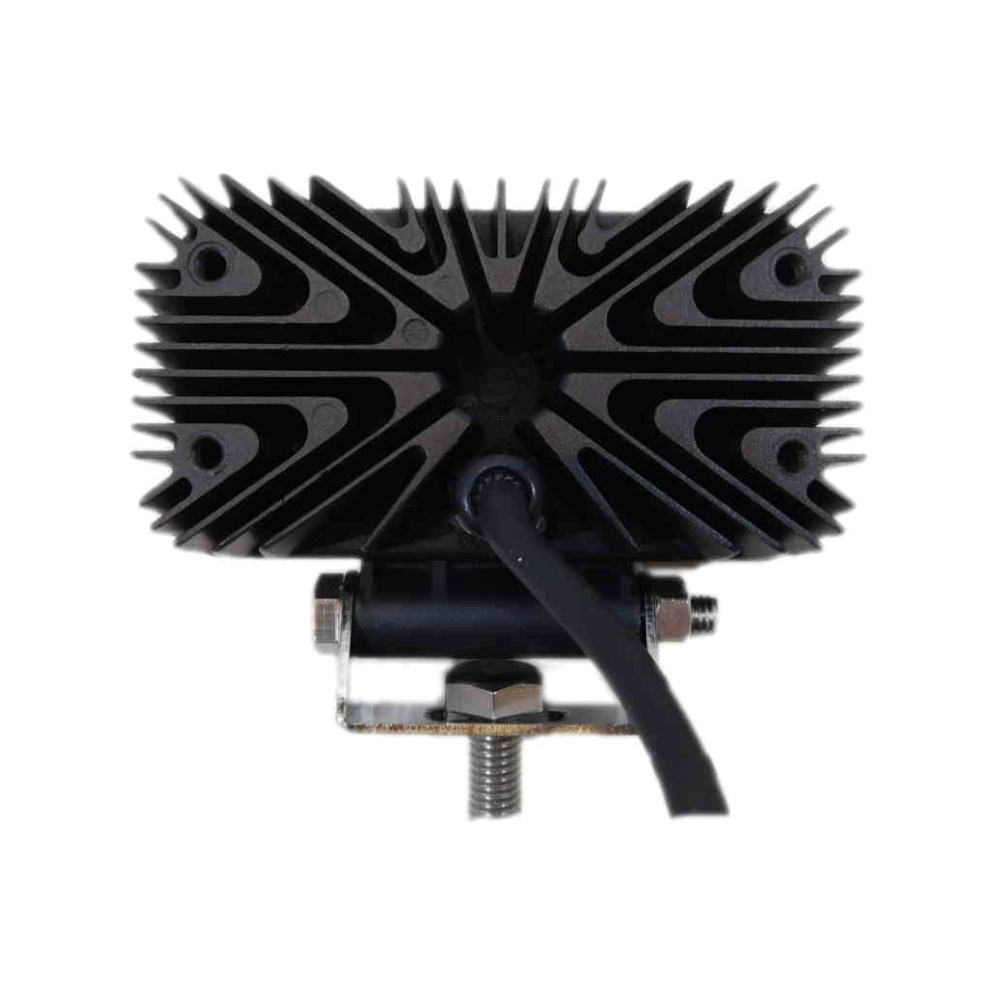

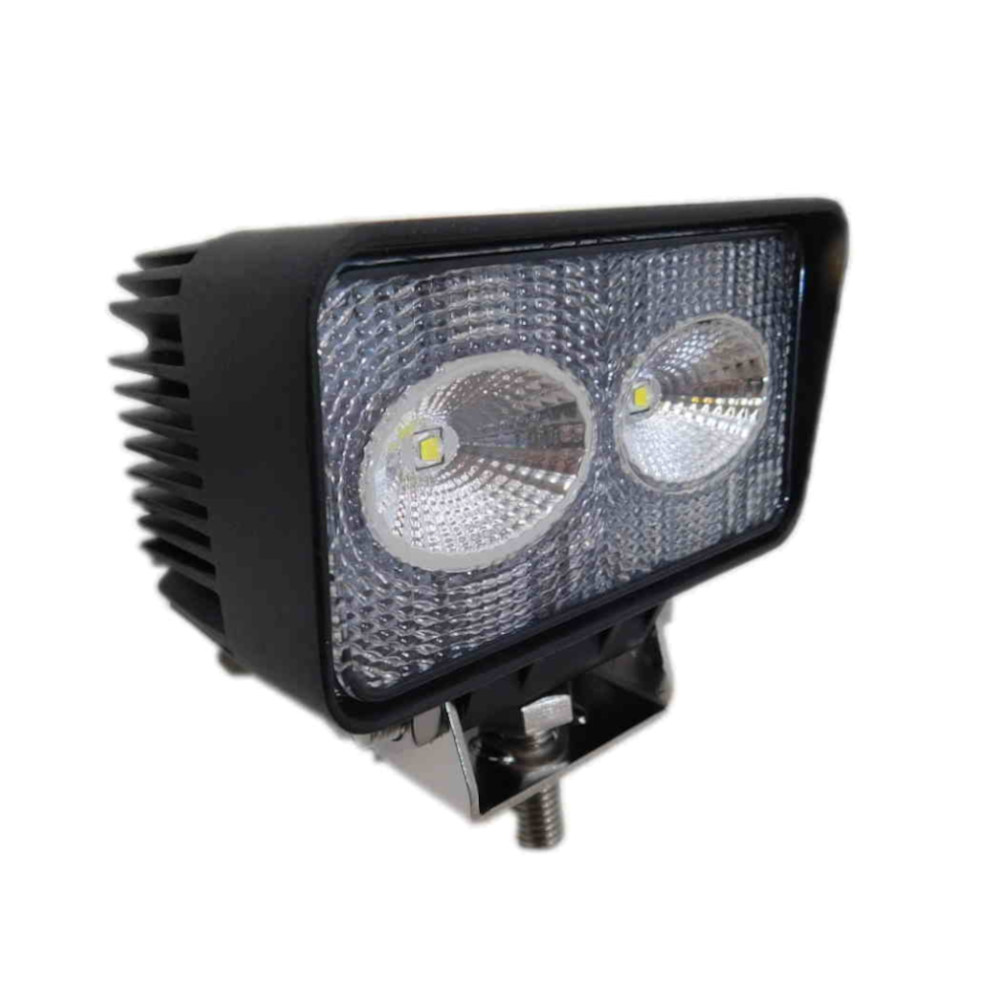

The LED-20 is a small rectangular LED light, but with 2 x 10 watt CREE LED chips, the lumens reach 1700 ! 90° flood beam. Mount it anywhere you need extra light, the small size makes it fit almost anywhere.

Use for : Grain tank, Stubble light, Grain cart and much more.

Specifications :

. LED Power: 20Watt CREE LED 2 x 10W/PC

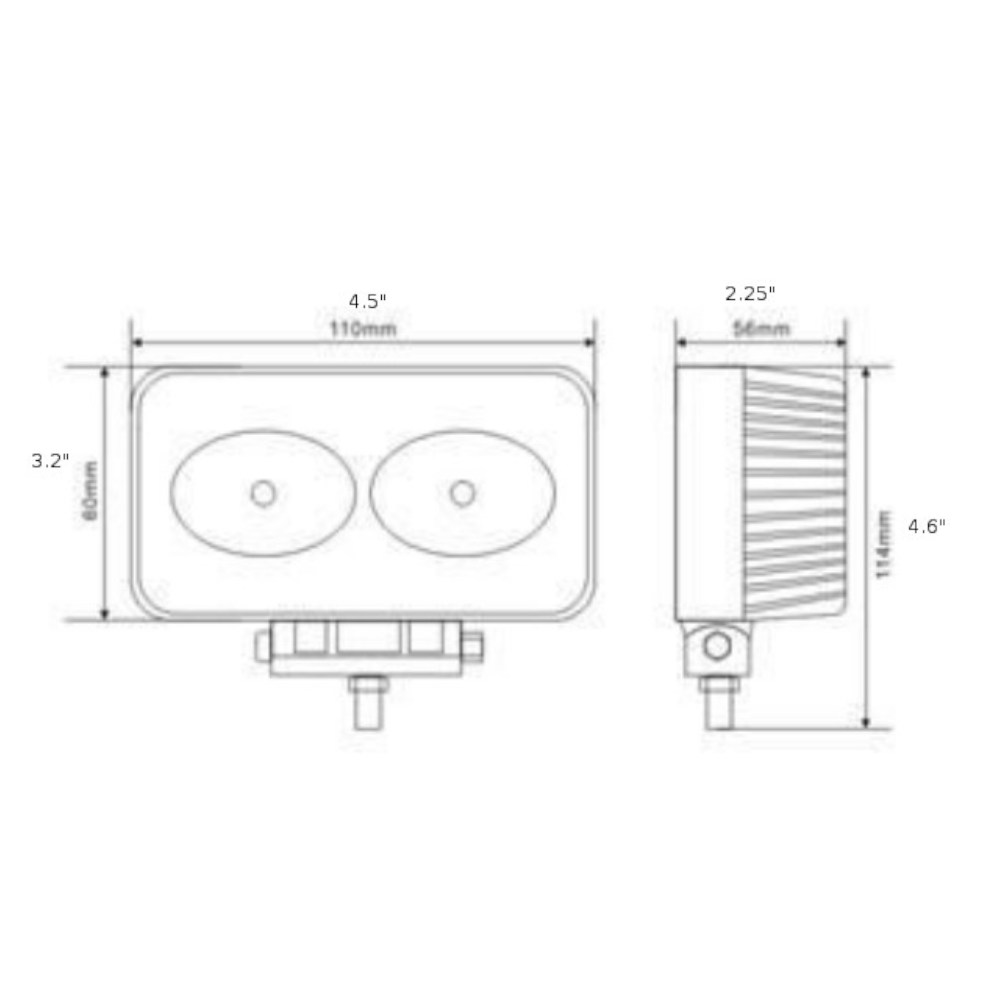

. Size : 4.3 x 3.5 x 2.2 (width x height with stand x depth)

. Operating Volt: 10-30Volt DC

. Lumen : 1700 Raw, 1520 Effective

. Power use: 1.4 amp @ 12V – 17 watt

. Color temperature: 6000K

. Operation temperature -40°C~60°C

. Beam: 90°flood beam

. Material:diecast aluminum housing,stainless steel bracket

. Lens: PMMA

. Housing color: Black

. Life time: >30000h

. Certificate : IP67, CE, ROHS

LED20, LED-20

LED-20

Use for : Grain tank, Stubble light, Grain cart and much more.

Specifications :

. LED Power: 20Watt CREE LED 2 x 10W/PC

. Size : 4.3 x 3.5 x 2.2 (width x height with stand x depth)

. Operating Volt: 10-30Volt DC

. Lumen : 1700 Raw, 1520 Effective

. Power use: 1.4 amp @ 12V – 17 watt

. Color temperature: 6000K

. Operation temperature -40°C~60°C

. Beam: 90°flood beam

. Material:diecast aluminum housing,stainless steel bracket

. Lens: PMMA

. Housing color: Black

. Life time: >30000h

. Certificate : IP67, CE, ROHS

LED20, LED-20

Product tags

90° flood (3)

Use On Below Models (Click to expand)

Case IH

Combine: 1420 Stubble, Grain tank, - no connector inc. 1440 Stubble, Grain tank, - no connector inc. 1460 Stubble, Grain tank, - no connector inc. 1480 Stubble, Grain tank, - no connector inc. 1482 Stubble, Grain tank, - no connector inc. 1620 Stubble, Grain tank, - no connector inc. 1622 Stubble, Grain tank, - no connector inc. 1640 Stubble, Grain tank, - no connector inc. 1644 Stubble, Grain tank, - no connector inc. 1660 Stubble, Grain tank, - no connector inc. 1666 Stubble, Grain tank, - no connector inc. 1670 Stubble, Grain tank, - no connector inc. 1670 Hillside Stubble, Grain tank, - no connector inc. 1680 Stubble, Grain tank, - no connector inc. 1682 Stubble, Grain tank, - no connector inc. 1688 Stubble, Grain tank, - no connector inc. 2144 Stubble, Grain tank, - no connector inc. 2166 Stubble, Grain tank, - no connector inc. 2188 Stubble, Grain tank, - no connector inc. 2344 Stubble, Grain tank, - no connector inc. 2366 Stubble, Grain tank, - no connector inc. 2377 Stubble, Grain tank, - no connector inc. 2388 Stubble, Grain tank, - no connector inc. 2577 Stubble, Grain tank, - no connector inc. 2588 Stubble, Grain tank, - no connector inc. 5088 Stubble, Grain tank, - no connector inc. 5130 Stubble, Grain tank, - no connector inc. 6088 Stubble, Grain tank, - no connector inc. 6130 Stubble, Grain tank, - no connector inc. 7010 Stubble, Grain tank, - no connector inc. 7088 Stubble, Grain tank, - no connector inc. 7120 Stubble, Grain tank, - no connector inc. 7130 Stubble, Grain tank, - no connector inc. 7230 Stubble, Grain tank, - no connector inc. 8010 Stubble, Grain tank, - no connector inc. 8120 Stubble, Grain tank, - no connector inc. 8230 Stubble, Grain tank, - no connector inc. 9010 Stubble, Grain tank, - no connector inc. 9120 Stubble, Grain tank, - no connector inc. 9230 Stubble, Grain tank, - no connector inc.

John Deere

Combine: 6600 Stubble, Grain tank, - no connector inc. 6620 Stubble, Grain tank, - no connector inc. 7700 Stubble, Grain tank, - no connector inc. 7720 Stubble, Grain tank, - no connector inc. 8820 Stubble, Grain tank, - no connector inc. 9400 Stubble, Grain tank, - no connector inc. 9400 Stubble, Grain tank, - no connector inc. 9410 Stubble, Grain tank, - no connector inc. 9500 Stubble, Grain tank, - no connector inc. 9510 Stubble, Grain tank, - no connector inc. 9550 Stubble, Grain tank, - no connector inc. 9550SH Stubble, Grain tank, - no connector inc. 9560 Stubble, Grain tank, - no connector inc. 9560SH Stubble, Grain tank, - no connector inc. 9560STS Stubble, Grain tank, - no connector inc. 9560WTS Stubble, Grain tank, - no connector inc. 9570STS Stubble, Grain tank, - no connector inc. 9580WTS Stubble, Grain tank, - no connector inc. 9600 Stubble, Grain tank, - no connector inc. 9610 Stubble, Grain tank, - no connector inc. 9650 Stubble, Grain tank, - no connector inc. 9650CTS Stubble, Grain tank, - no connector inc. 9650STS Stubble, Grain tank, - no connector inc. 9660 Stubble, Grain tank, - no connector inc. 9660CTS Stubble, Grain tank, - no connector inc. 9660iWTS Stubble, Grain tank, - no connector inc. 9660STS Stubble, Grain tank, - no connector inc. 9660WTS Stubble, Grain tank, - no connector inc. 9670STS Stubble, Grain tank, - no connector inc. 9680iWTS Stubble, Grain tank, - no connector inc. 9680WTS Stubble, Grain tank, - no connector inc. 9750STS Stubble, Grain tank, - no connector inc. 9750WTS Stubble, Grain tank, - no connector inc. 9760STS Stubble, Grain tank, - no connector inc. 9770STS Stubble, Grain tank, - no connector inc. 9780CTS Stubble, Grain tank, - no connector inc. 9780iCTS Stubble, Grain tank, - no connector inc. 9860STS Stubble, Grain tank, - no connector inc. 9870STS Stubble, Grain tank, - no connector inc. S550 Stubble, Grain tank, - no connector inc. S650 Stubble, Grain tank, - no connector inc. S660 Stubble, Grain tank, - no connector inc. S670 Stubble, Grain tank, - no connector inc. S670 Hillmaster Stubble, Grain tank, - no connector inc. S680 Stubble, Grain tank, - no connector inc. S680 Hillmaster Stubble, Grain tank, - no connector inc. S690 Stubble, Grain tank, - no connector inc. S690 Hillmaster Stubble, Grain tank, - no connector inc. S760 Stubble, Grain tank, - no connector inc. S770 Stubble, Grain tank, - no connector inc. S780 Stubble, Grain tank, - no connector inc. S785 Stubble, Grain tank, - no connector inc. S790 Stubble, Grain tank, - no connector inc.

Existing reviews

very nice light

From: mike Totten Date: 2/18/2016 6:00 PM

Installed 1 on the back of a jd 2440 in place of the factory par 36 halogen on the rear fender, makes barn work much easier at night. The light covers an extremely wide area and actually shines a good distance to the rear. Quality seems very good.

Was this review helpful? Yes No (2/0)

LED 20 flood puts factory light to shame

From: Guest Date: 11/22/2018 6:25 PM

Mounted 2 on the back of the cab to replace the factory 35 watt lights.
These are like sunlight compared to the moonlight! I can finally see some
distance back and to the sides! Waiting to use them in snow blowing and
see the driveway markers so the tractor doesn't slip down an 8 foot drop
I need to order another set for the front of the cab, although it may be
the LED-624's with the 60 degree flood coverage. Great light for the money!

Was this review helpful? Yes No (1/0)
