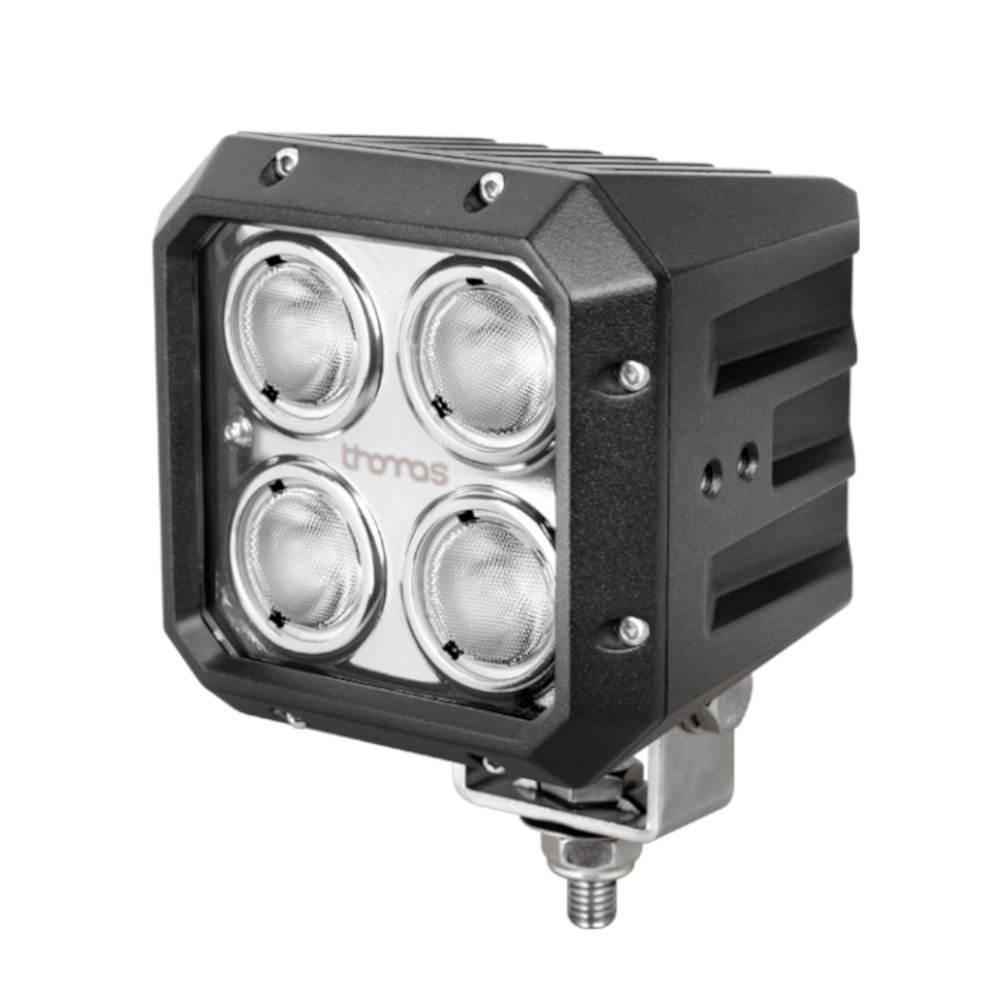

HP-4 Square

Be the first to review this product

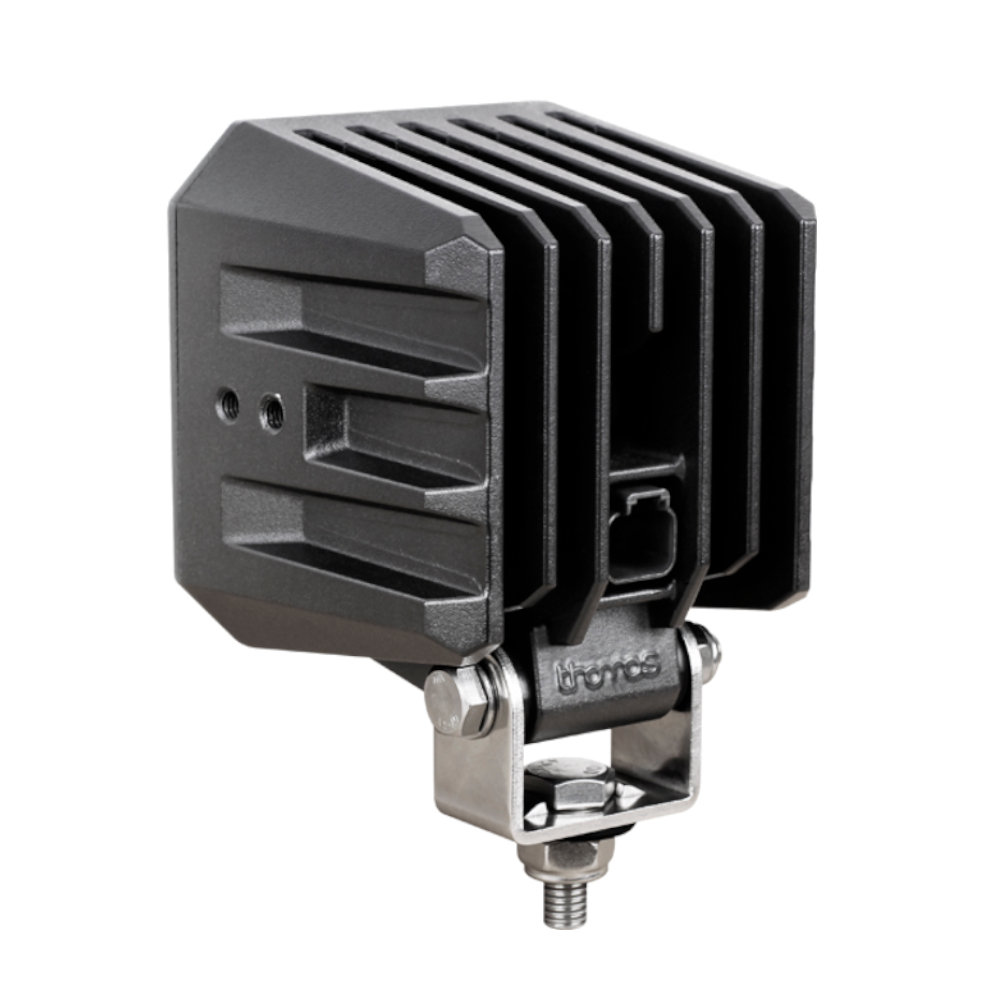

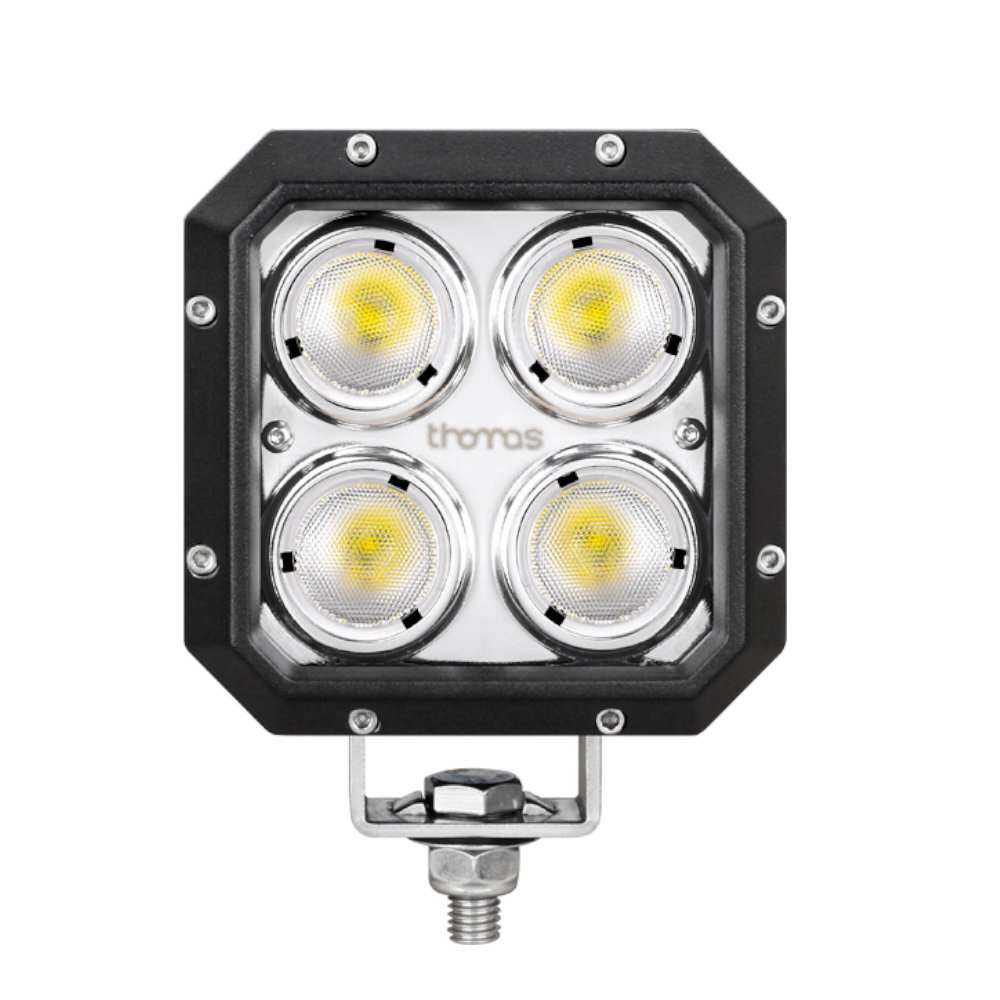

HP-4 is a 4" LED light made for use on most tractors where a square light is needed. 20, 40 or 60 degree light beam, 4366 lumens effective! Much brighter light than OEM LED lights! .

Manufacturer: Thomas LED

HP-4 60°

HP-4 is a 4" LED light made for use on most tractors where a square light is needed. 60 degree light beam, 4366 lumens effective! Much brighter light than OEM LED lights! Find brackets and adapter cables on the bottom of the page.

SKU: LL0426

Availability:

262 in stock

$112.00

Qty:

+ -

HP-4 40°

HP-4 is a 4" LED light made for use on most tractors where a square light is needed. 40 degree light beam, 4366 lumen effective ! Much brighter light than OEM LED lights ! Narrow flood - more distance than the 60° flood. Find brackets and adapter cables on the bottom of the page.

SKU: LL0427

Availability:

69 in stock

$112.00

Qty:

+ -

HP-4 20°

HP-4 is a 4" LED light made for use on most tractors where a square light is needed. 40 degree light beam, 4366 lumens effective! Much brighter light than OEM LED lights! Narrow flood - more distance than the 60° flood. Find brackets and adapter cables on the bottom of the page.

SKU: LL0428

Availability:

26 in stock

$112.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

HP-4 Square

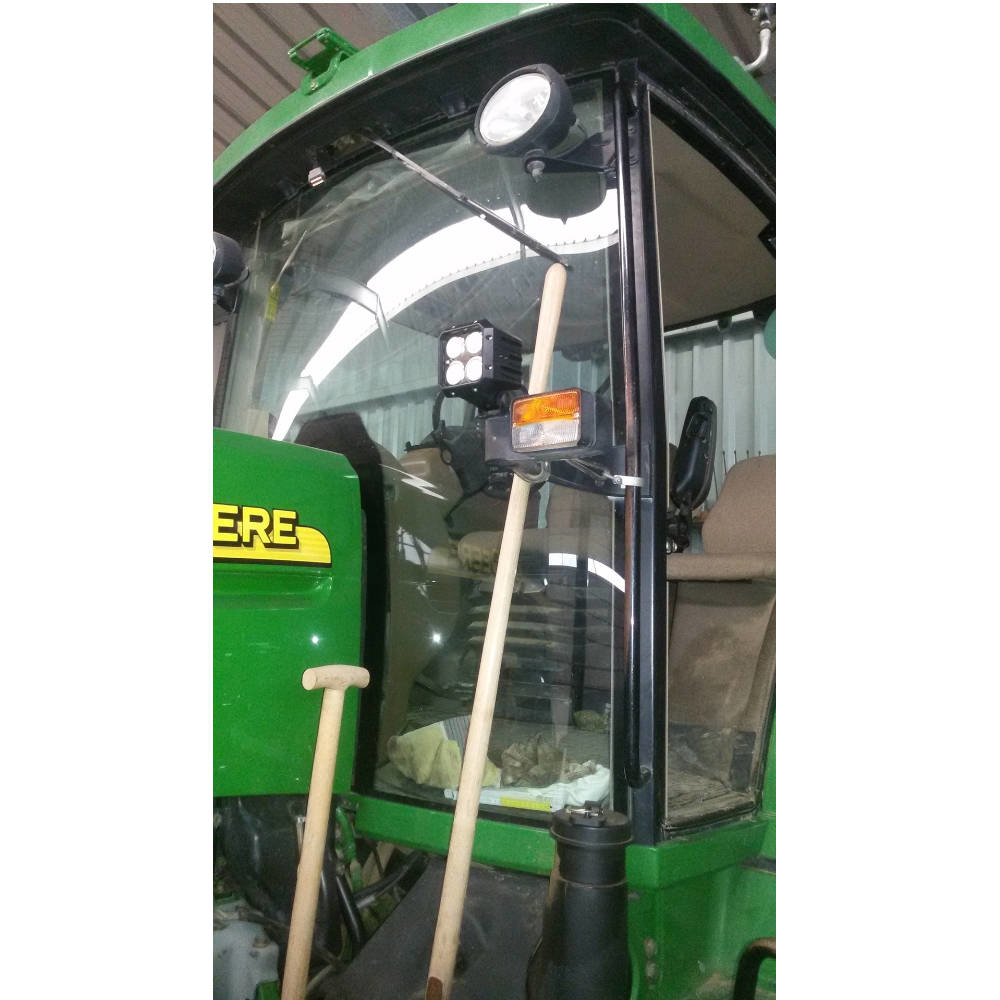

This light is made so it can be used on the JD "R" series tractors, even the cab mounted lights can be replaced using the special "R" series bracket. (order separately)

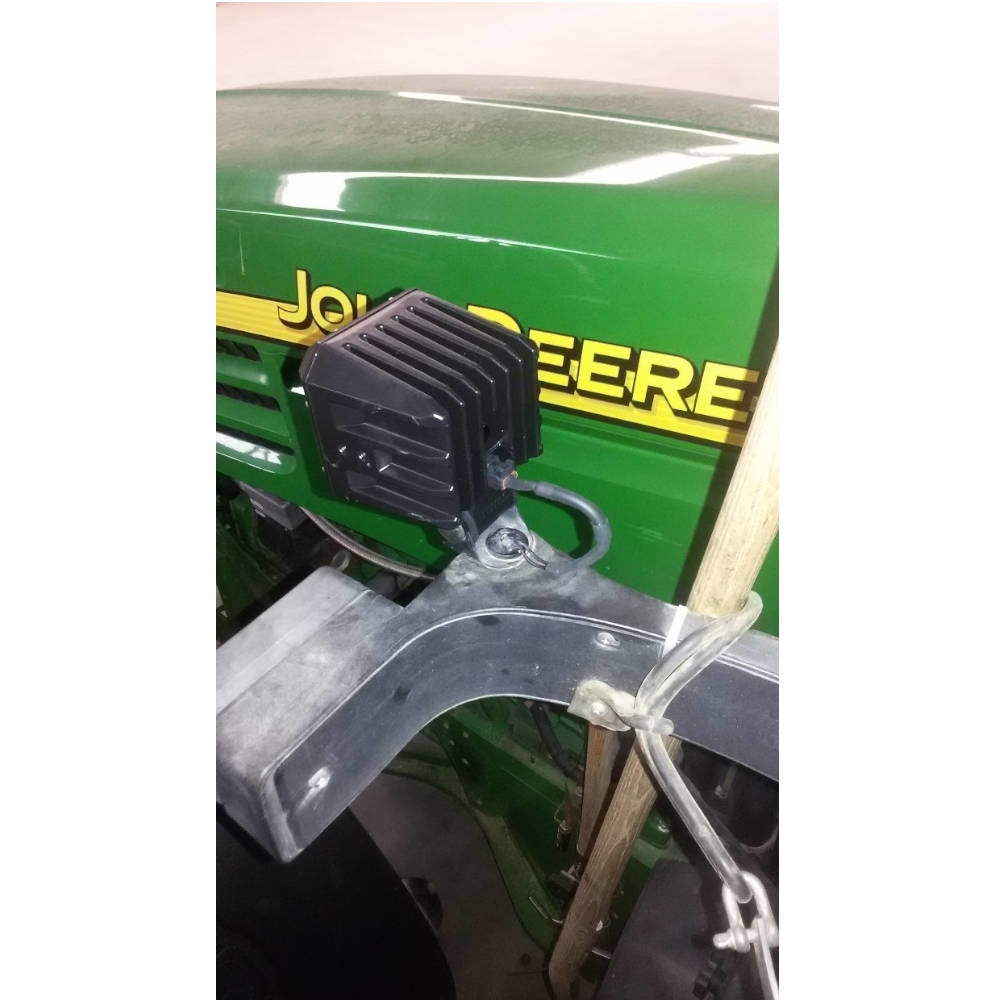

Use the standard bracket for mounting onto fender and all other locations.

Specs :

THOMAS HP4

LED : 4 pcs CREE High Power LEDs

Effective Lumen : 4366 / 5700 Kelvin

Power used : 46.4 Watt / 3,4 A @ 13,5 Volt

Voltage : 10 - 60 Volt

Temperature : -40°F to +140°F

Beam : 20°, 40° or 60°

Plug : integrated DEUTSCH 2 pin

IP : waterproof IP68

RFI and EMC filter

Warranty : 3 years

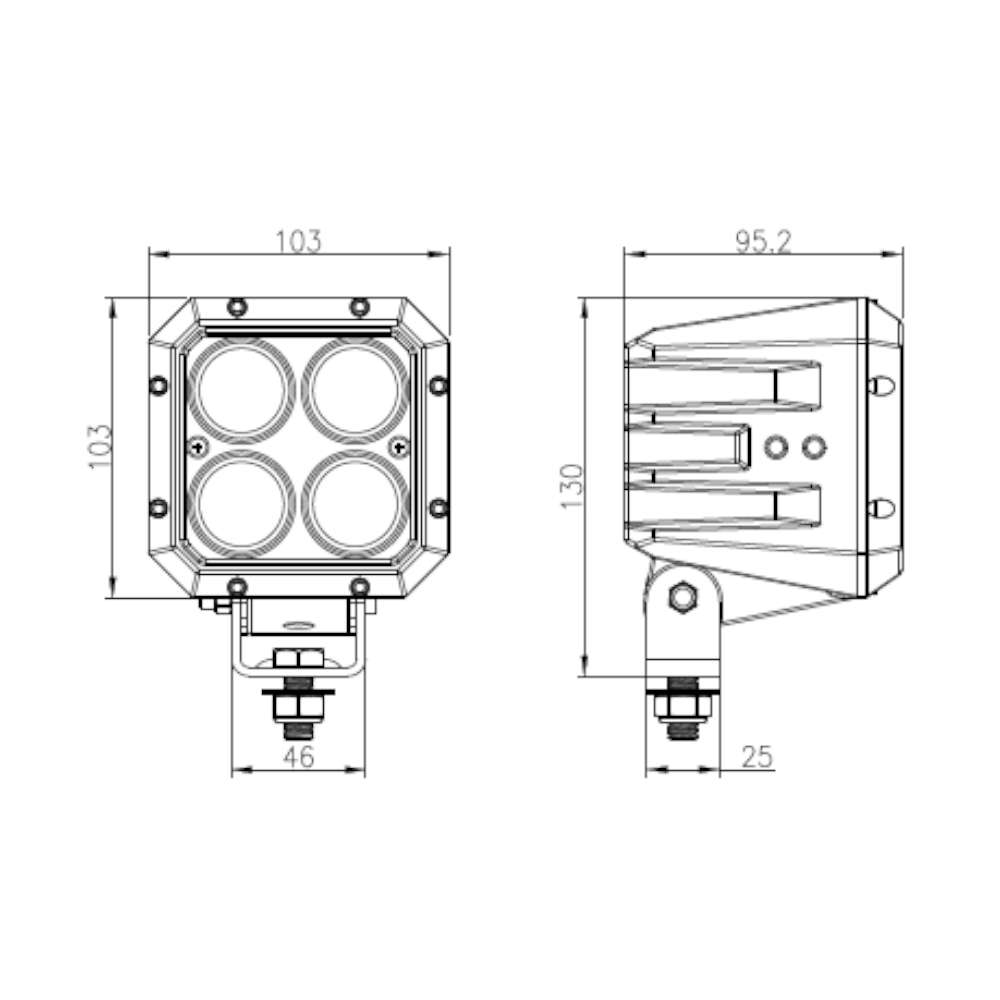

Size : 103 x 103 x 95 mm (4" x 4" x 3.75")

Weight : 2.5 Lb

HP-4 Square

This light is made so it can be used on the JD "R" series tractors, even the cab mounted lights can be replaced using the special "R" series bracket. (order separately)

Use the standard bracket for mounting onto fender and all other locations.

Specs :

THOMAS HP4

LED : 4 pcs CREE High Power LEDs

Effective Lumen : 4366 / 5700 Kelvin

Power used : 46.4 Watt / 3,4 A @ 13,5 Volt

Voltage : 10 - 60 Volt

Temperature : -40°F to +140°F

Beam : 20°, 40° or 60°

Plug : integrated DEUTSCH 2 pin

IP : waterproof IP68

RFI and EMC filter

Warranty : 3 years

Size : 103 x 103 x 95 mm (4" x 4" x 3.75")

Weight : 2.5 Lb

Product tags

60° flood (25)
,
JD (114)
,
hp-4 (4)

Use On Below Models (Click to expand)

John Deere

Tractor: 6603 Rear cab light 6605 Rear cab light
