LED-603 Amber with red tail light - set of 2 - right and left side.

Be the first to review this product

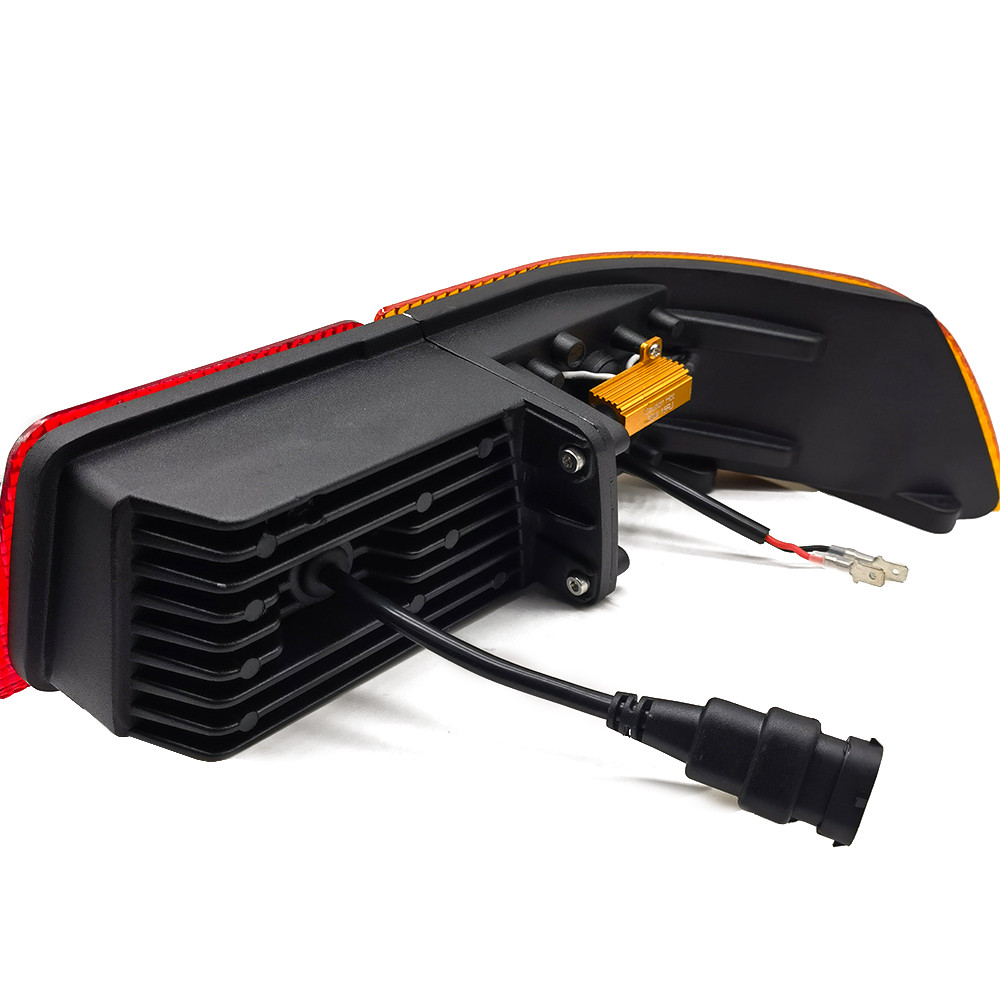

LED-603 Amber with red light - set of 2 - right and left side. The light will bolt right into the factory light housing. This light is the corner fender amber flasher with an attached red light. The amber light has a built-in resistor to work with the original factory flasher. Replaces Case/IH Part Number: 357540A1 & 357541A1. Right and left lights are included. Now made with tail light and stop light. Note: Red light will require splicing.

SKU: LL0603

Availability:

45 in stock

$162.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-603 Amber with red tail light - set of 2 - right and left side.

Rear fender LED light.

Light will bolt right into the factory light housing. The amber light has a built-in resistor to work with the original factory flasher.

Note: Red light will require splicing.

Black wire = Ground, White wire = Tail light, Red wire = Stop light.

Power: 70 Watt (40W LED Amber Light+30W LED Red Tail Light)
Operating Operation temperature: -40°C~60°C
Volt: 9-30Volt DC
Beam: Flood
Material: diecast aluminum housing
Lens: Polycarbonate
Housing color: Black
Waterproof: IP67
Size: 12.5"*6.5"*3.5"

HA87415023 KIT, HA87415023, LED603, TL6145L, TL6145R,, TL6145, LED-547, LED547

LED-603 Amber with red tail light - set of 2 - right and left side.

Rear fender LED light.

Light will bolt right into the factory light housing. The amber light has a built-in resistor to work with the original factory flasher.

Note: Red light will require splicing.

Black wire = Ground, White wire = Tail light, Red wire = Stop light.

Power: 70 Watt (40W LED Amber Light+30W LED Red Tail Light)
Operating Operation temperature: -40°C~60°C
Volt: 9-30Volt DC
Beam: Flood
Material: diecast aluminum housing
Lens: Polycarbonate
Housing color: Black
Waterproof: IP67
Size: 12.5"*6.5"*3.5"

HA87415023 KIT, HA87415023, LED603, TL6145L, TL6145R,, TL6145, LED-547, LED547

Product tags

flasher (16)

Use On Below Models (Click to expand)

Case

Backhoe: 580M 580SM 580SM+ 590SM 590SM+

Case IH

Tractor: JX100U JX70U JX80U JX90U MX210 MX230 MX255 MX285 MXM120 MXM130 MXM140 MXM155 MXM175 MXM190 MXU100 MXU110 MXU115 MXU125 MXU135
