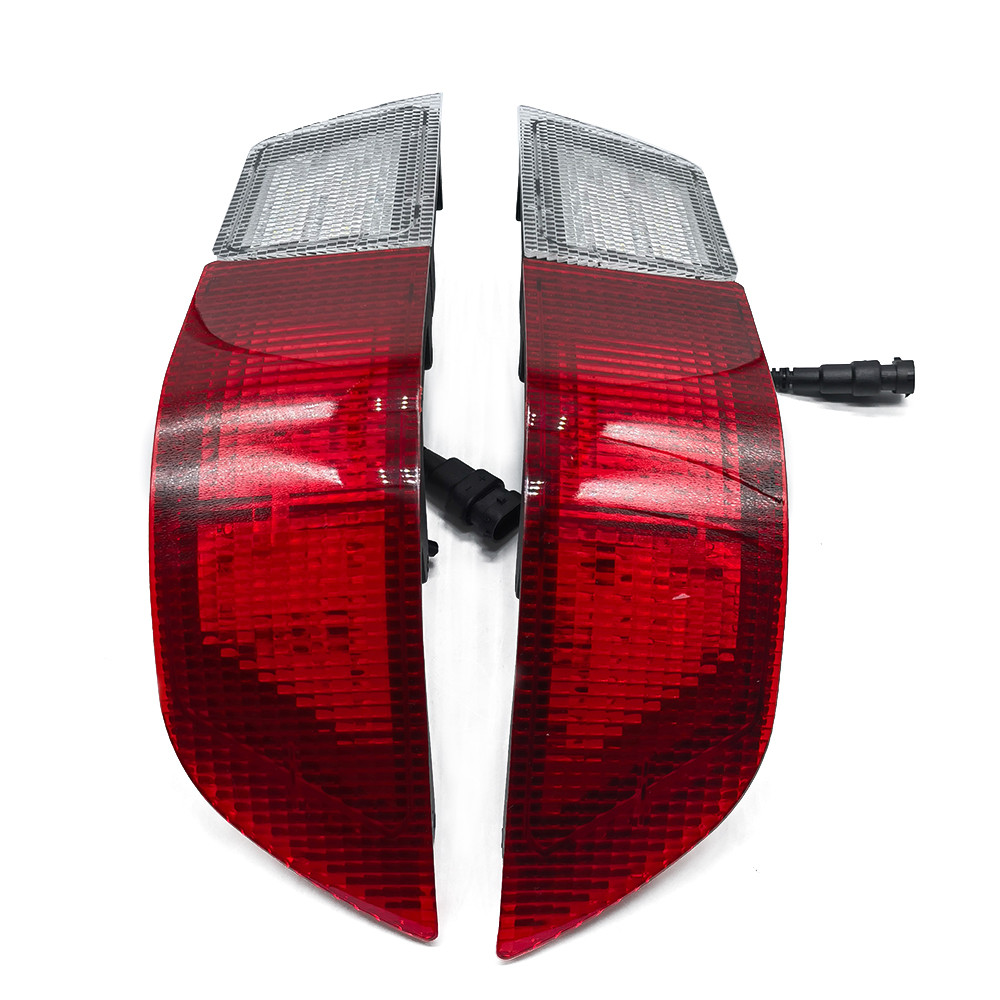

LED-601 White with red light - set of 2 - right and left side.

Be the first to review this product

LED-601 White with red light - set of 2 - right and left side. Light will bolt right into factory light housing. This light is the corner fender red light with an attached white work light. Right and left light are included. Now made with tail light and stop light. Note: Red light will require splicing. Replaces Case/IH Part Number: 279221A1 & 279222A1.

Manufacturer: Larsen Lights

SKU: LL0601

Availability:

21 in stock

Inbound QTY: 45 ETA around 3/15/2025.

$162.00

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-601 White with red light - set of 2 - right and left side.

Rear fender LED light.

Light will bolt right into the factory light housing. Note: Red light will require splicing.

Black wire = Ground, White wire = Tail light, Red wire = Stop light.

Power: 70 Watt (40W LED Work Light+30W LED Tail Light)
Operating Operation temperature: -40°C~60°C
Volt: 9-30Volt DC
Beam: Flood
Material: diecast aluminum housing
Lens: Polycarbonate
Housing color: Black
Waterproof: IP67
Size: 12.5"*6.5"*3.5"

TL6140R, TL6140L, TL6140, LED601, LED-547, LED547

LED-601 White with red light - set of 2 - right and left side.

Rear fender LED light.

Light will bolt right into the factory light housing. Note: Red light will require splicing.

Black wire = Ground, White wire = Tail light, Red wire = Stop light.

Power: 70 Watt (40W LED Work Light+30W LED Tail Light)
Operating Operation temperature: -40°C~60°C
Volt: 9-30Volt DC
Beam: Flood
Material: diecast aluminum housing
Lens: Polycarbonate
Housing color: Black
Waterproof: IP67
Size: 12.5"*6.5"*3.5"

TL6140R, TL6140L, TL6140, LED601, LED-547, LED547

Product tags

flasher (19)

Use On Below Models (Click to expand)

Case IH

Tractor: MX180 (PRIOR TO P.I.N. JJA0105000) 01/00 12/02 MX200 (P.I.N. JJA0105000 & AFTER) 01/99 12/02 MX220 (P.I.N. JJA0105000 & AFTER) 01/99 12/02 MX240 (P.I.N. JJA0105000 & AFTER) 01/99 12/02 MX270 (P.I.N. JJA0105000 & AFTER) 01/99 12/02
