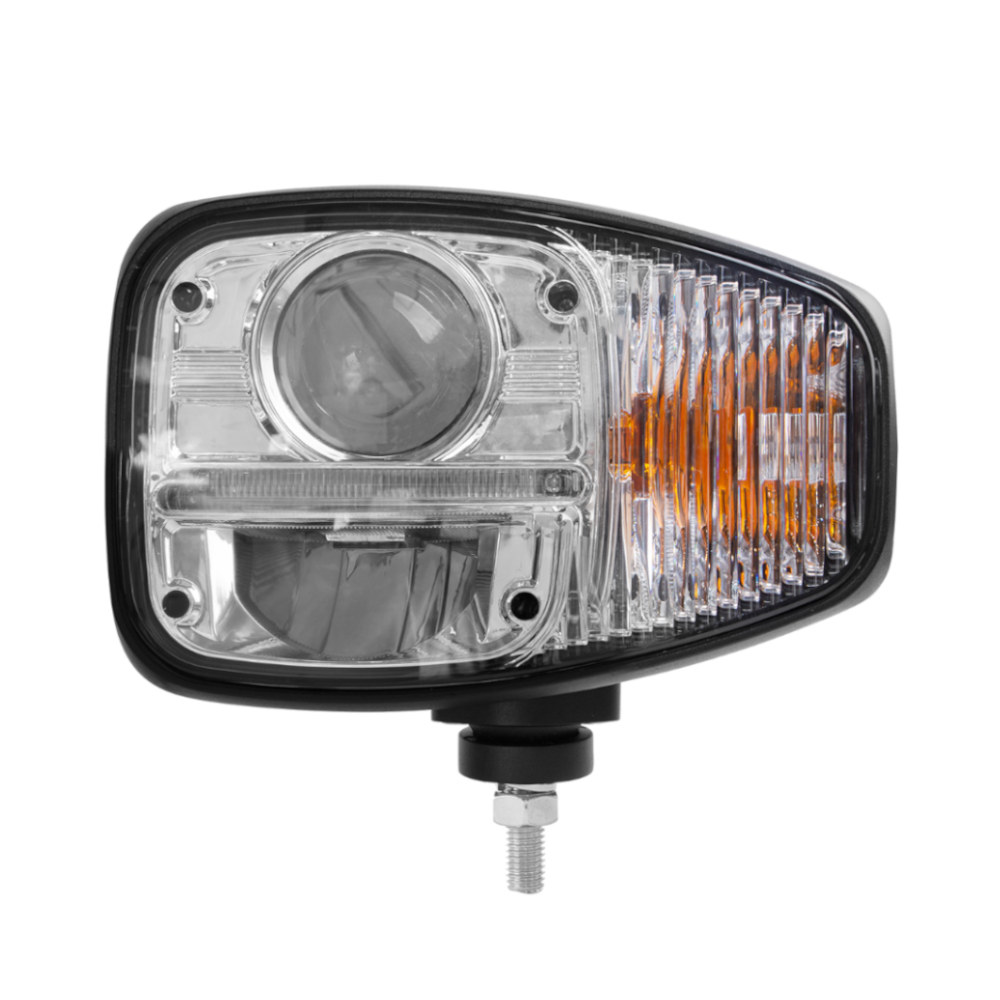

LED-9102 Hi-Lo headlight with turn signal. Set of Right & Left.

Be the first to review this product

Manufacturer: Larsen Lights

SKU: LL0565

Availability:

6 in stock

$169.00

Qty:

+ -

Product Files

Pinout

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-9102 Hi-Lo headlight with turn signal. Set of Right & Left.

. High Beam: 30W LED
. Low Beam: 30W LED
. DRL: 10W LED
. 10 - 30 volt
. Turn signal: 12W LED. 50,000 hours lifespan
. Waterproof & Dustproof: IP68
. Durable UV Polyester powder coating
. Die-cast aluminum housing
. Durable polycarbonate lens
. Overvoltage protection
. Overheat protection
. Size 9" x 6" + mount - see pictures

Pinout on pigtail:

1) Low beam, “+” Brown wire is positive.

2) High beam, “+” Red wire is positive.

3) Amber beam, “+” Blue wire is positive.

4) Day running light, “+” White wire is positive.

5) Black wire is shared negative/ground

LED9102, snowplow, LED-9127, LED9127, LED-9102

LED-9102 Hi-Lo headlight with turn signal. Set of Right & Left.

Pinout on pigtail:

1) Low beam, “+” Brown wire is positive.

2) High beam, “+” Red wire is positive.

3) Amber beam, “+” Blue wire is positive.

4) Day running light, “+” White wire is positive.

5) Black wire is shared negative/ground

LED9102, snowplow, LED-9127, LED9127, LED-9102

Use On Below Models (Click to expand)

John Deere

Wheel Loader: 244J
