LED-4014

LED-4014

Be the first to review this product

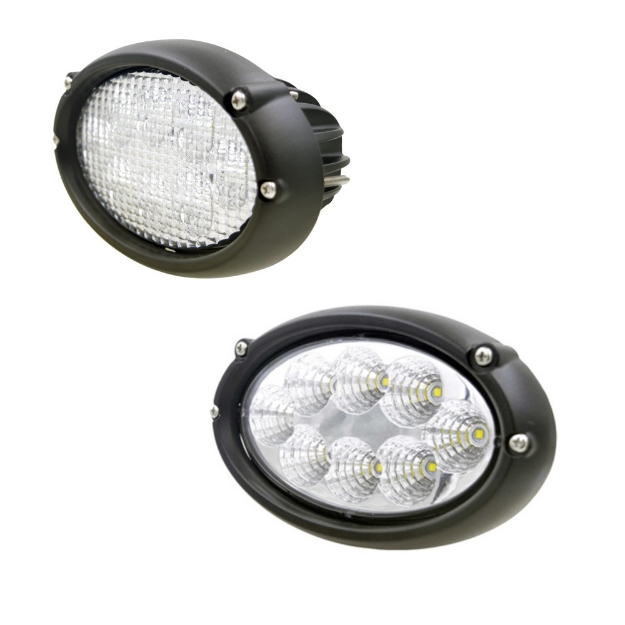

LED-4014 - 25° Distance light or 60° flood flush mount cab Light. This light is a LED light for Challenger & Massey Ferguson tractors. Uses the original mounting bracket on the tractor. DT connectors included. Replaces OEM Part Numbers: 3786665m93, 3786664m92.

Manufacturer: Larsen Lights

LED-4014

LED-4014 Flood

LED-4014 Flood, Oval LED Flush Mount Cab Light. This light is a LED light for Challenger & Massey Ferguson tractors. Uses original mounting bracket on the tractor. DT connector included. Replaces OEM Part Numbers: 3786665m93, 3786664m92. You might need adapter LL0451 for the Gleaner combines.

SKU: LL0330

Availability:

72 in stock

$50.00

Qty:

+ -

LED-4014

LED-4014 25° Distance light

LED-4014 25° Distance light, Oval LED Flush Mount Cab Light. This light is a LED light for Challenger & Massey Ferguson tractors. Uses the original mounting bracket on the tractor. DT connectors included. Replaces OEM Part Numbers: 3786665m93, 3786664m92.

SKU: LL0572

Availability:

23 in stock

$50.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-4014

Details:

CREE LED 5 watt x 8 = 40 watt
Light Pattern: 25° spot or 60° flood
Amps used: 2.8. Watt used 34
Dimensions: 7.25" x 3.25" x 3.25"
Bolt hole spacing center to center: 5 7/8"
Voltage: 9 to 32
Lumen Rating: 3000
2 pin DT compatiable connector

TL7090, TL 7090, LED4014

LED-4014

Details:

CREE LED 5 watt x 8 = 40 watt
Light Pattern: 25° spot or 60° flood
Amps used: 2.8. Watt used 34
Dimensions: 7.25" x 3.25" x 3.25"
Bolt hole spacing center to center: 5 7/8"
Voltage: 9 to 32
Lumen Rating: 3000
2 pin DT compatiable connector

TL7090, TL 7090, LED4014

Use On Below Models (Click to expand)

Challenger

Combine: 520C 540C 540E 550C 560C 560E 660B 670B 680B

Tractor: MT425B MT445B MT445D MT455B MT455D MT465B MT465D MT475B MT475D MT485D MT495D MT515D MT515E MT525B MT525D MT535B MT535D MT545B MT545D MT545E MT555B MT555D MT555E MT565B MT565D MT565E MT575B MT575D MT575E MT585B MT585D MT585E MT595B MT595D MT635B MT645B MT645C MT645D MT645E MT655B MT655C MT655D MT665B MT665E MT675C MT675D MT675E MT685C MT685D MT685E

Windrower: WR9740 WR9760 WR9770 WR9840 WR9860 WR9870

Fendt

Combine: 9300R 9350R 9390R 9460R 9480R

Gleaner

Combine: A66 A76 A86 R66 R76 S67 S68 S77 S78 S88

Massey Ferguson

Combine: 9520 9530 9540 9545 9550 9560 9565 9695 9795 9895 T7 WR9740 WR9760 WR9770 WR9840 WR9860 WR9870

Tractor: 5425 5435 5445 5450 5455 5460 5465 5470 5475 5480 5609 5610 5611 5612 5613 5709 5710 5711 5712 5713 6350 6360 6445 6455 6465 6475 6480 6485 6490 6495 6497 6499 6614 6615 6616 6712 6713 6714 6715 6716 6718 7465 7475 7480 7485 7490 7495 7497 7499 7615 7618 7714 7715 7716 7718

Versatile

Sprayer: SP235 SP275 SX240 SX280

Tractor: 190 220 250 260 265 270 275 290 295 300 305 310 315 320 335 350 360 365 370 400
