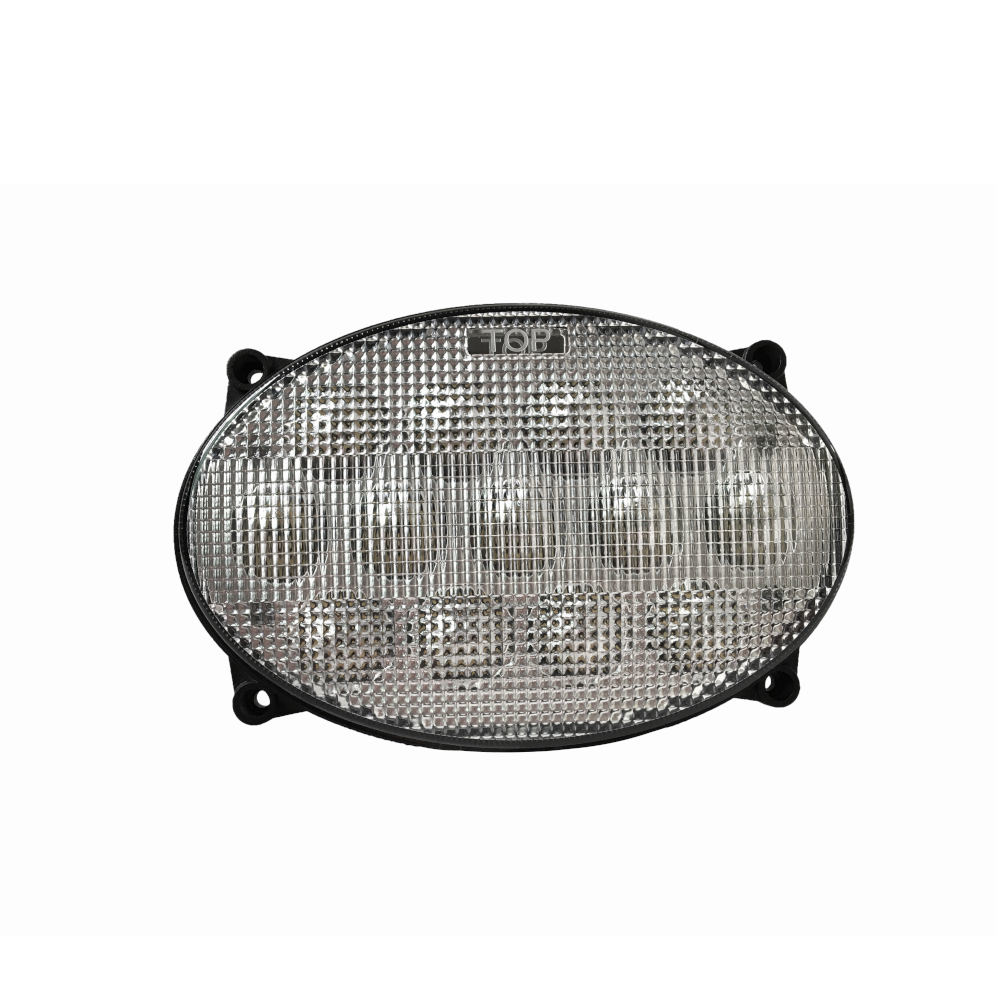

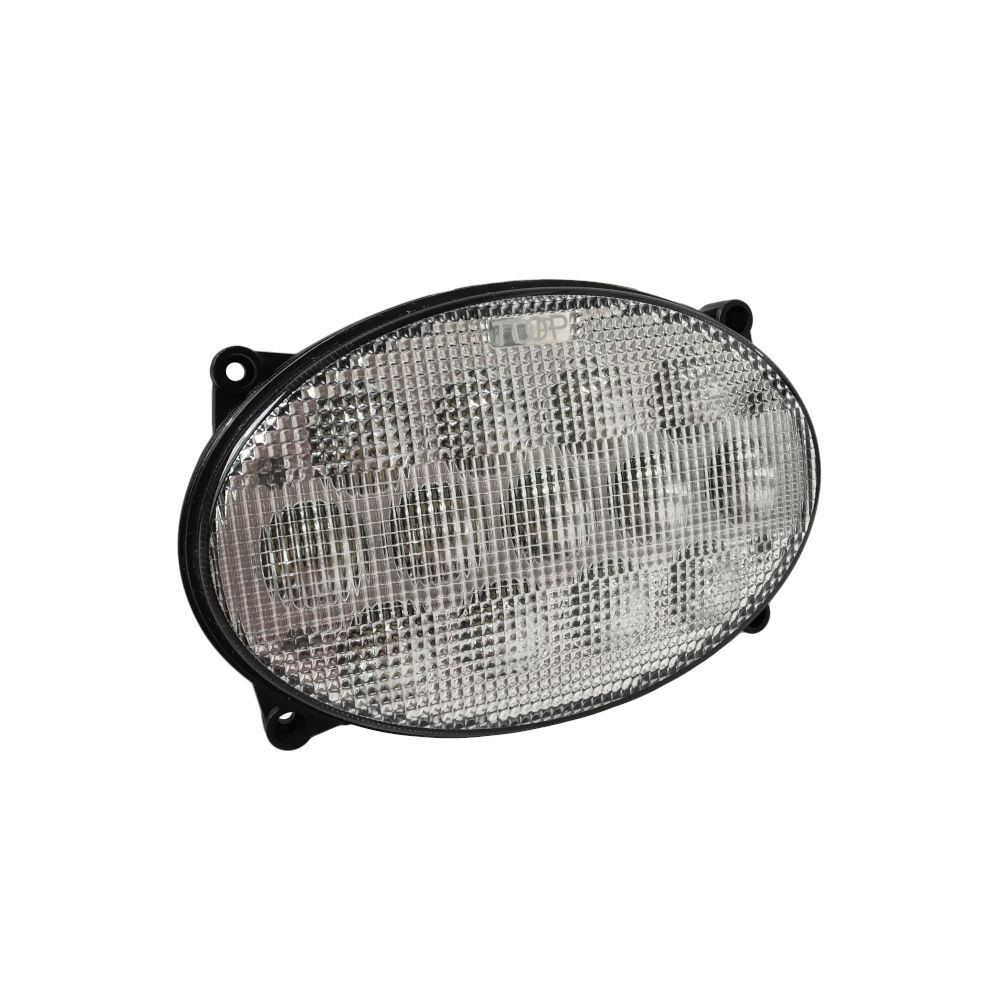

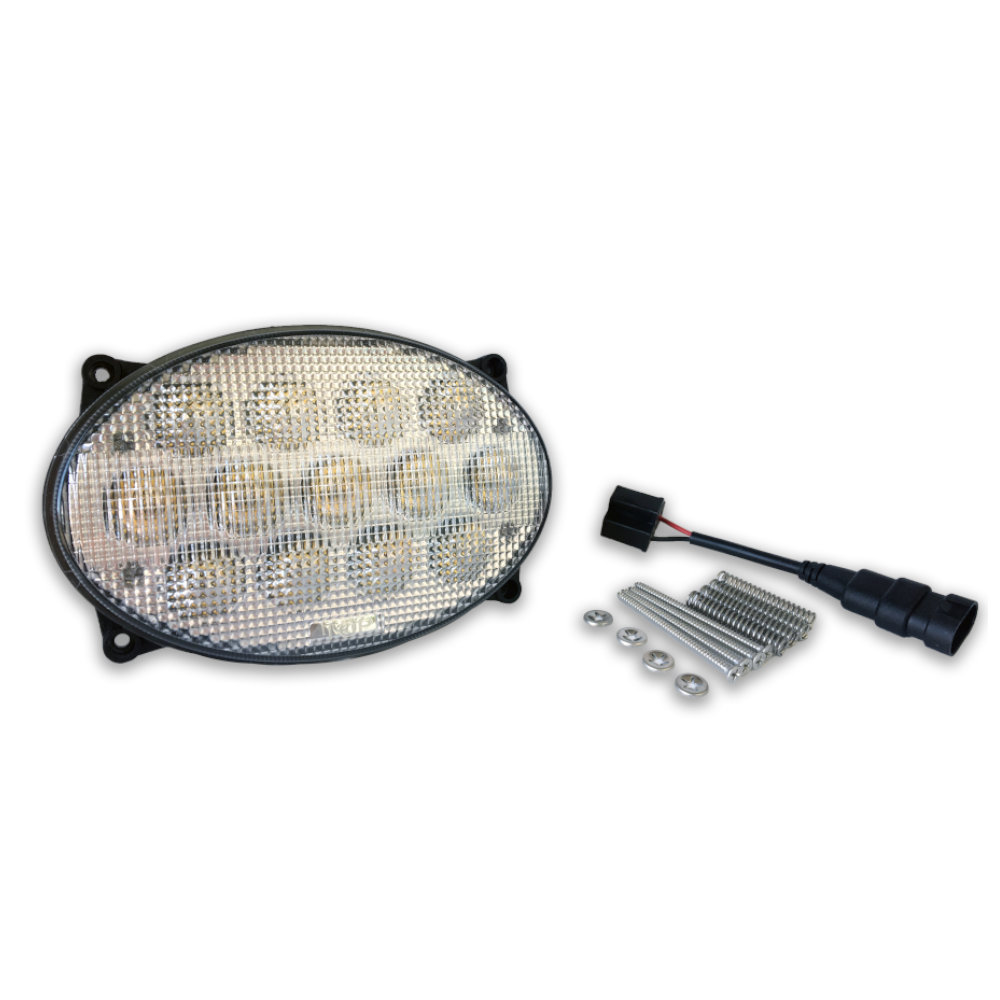

LED-9652 Hi-Lo

LED-9652 Hi-Lo, LED Oval Headlight fits into the hood of John Deere Tractors. This light will work for High/Low Beams and High Beams, Uses Original Mount and Wiring, Plug and Play. Replaces OEM Part Number John Deere: RE181963, RE181964, RE205360
Availability: In stock
SKU: LL0521
$59.00
Notes:
  • All prices in US $. If importing into Canada there will be brokerage cost collected by UPS.
Full Description

LED-9652 Hi-Lo


LED Oval Headlight fits into the hood of John Deere Tractors. This light will work for High/Low Beams and High Beams, Uses Original Mount and Wiring, Plug and Play.
Note: For John Deere Tractors 8120 thru 8530, this light will only fit the lower lights in the screen. For models 7630-7920 this will replace the main headlights.

Specification:

• Operating Voltage: 9-32V DC
• 65W, 13pcs*5w CREE LEDs
• Beam: Hilo beam
• Dimensions:7.12” x 4.75” x 3”
• Light output about 5000 lumen
• Color temperature: 6000K
• Lens material: Durable PC
• Waterproof rate: IP67

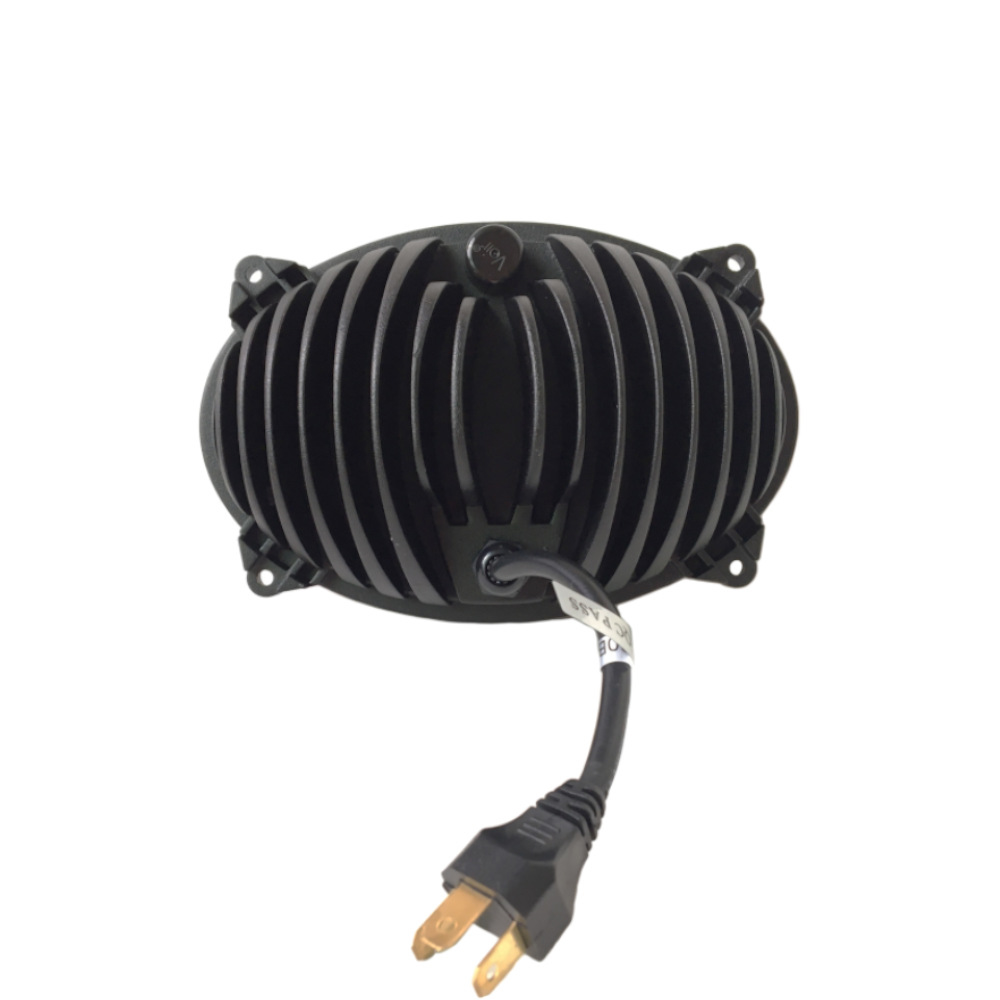

• H4 connector

Fit:
Replaces OEM Part Number John Deere: RE181963, RE181964, RE205360

John Deere Tractors: 7630, 7720, 7730, 7820, 7830, 7920, 7930, 8120, 8130, 8220, 8230, 8230T, 8245R, 8270R, 8295R, 8320, 8320R, 8330, 8330T, 8345R, 8420, 8430, 8430T, 8520, 8530

John Deere Sprayers: 4720, 4730, 4830

LED9652
LED-9652 Hi-Lo - QrCodeImage
