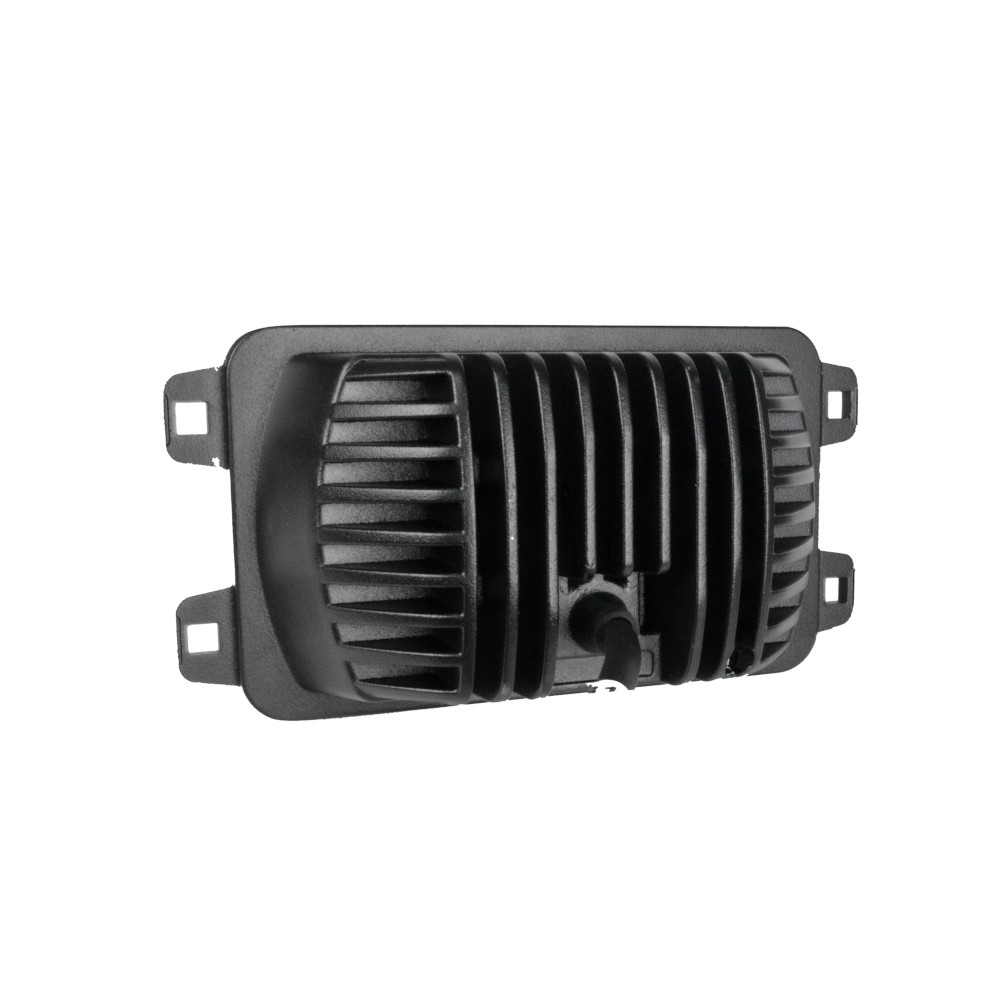

LED-4643 Hi-Lo

Be the first to review this product

LED-4643 Hi-Lo, LED Headlight for compact & sub-compact John Deere Tractors. High/Low beam, Uses Original Mount and Wiring, Plug and Play. headlights. Replaces JD Part Number LVA14946 .

Manufacturer: Larsen Lights

SKU: LL0596

Availability:

51 in stock

$61.00

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-4643 Hi-Lo

LED-4643, LED Headlight for compact & sub-compact John Deere Tractors. High/Low beam, Uses Original Mount and Wiring. Plug and Play. Replaces JD Part Number LVA14946 .

Details:

. LED Power: 40 Watt Cree LED 5W/PC
. Operating Volt: 10-30 Volt DC
. Light Output: Low beam 1600 Lumen, high beam 3200 Lumen
. Color Temperature: 5000~5500K
. Operation Temperature: -40℃~80℃
. Waterproof Rate: IP68
. Beam: Hi-Lo beam
. Material: diecast aluminum housing
Supplied with H4 connector
. LENS: PC
. Housing Color: black
. Life Time: about 50,000 hours
. EMC: ECE R10, CISPR25 CLASS 4

TL5100, TL 5100, LED4643

LED-4643 Hi-Lo

LED-4643, LED Headlight for compact & sub-compact John Deere Tractors. High/Low beam, Uses Original Mount and Wiring. Plug and Play. Replaces JD Part Number LVA14946 .

Details:

TL5100, TL 5100, LED4643

Product tags

JD (114)
,
hi-lo (42)

Use On Below Models (Click to expand)

John Deere

Tractor: 1023E 1025R 1026R 1050 2025R 2027R 2032R 2036R 2038R 2320 2520 260 2720 3025D 3025E 3032E 3033R 3035D 3036E 3036EN 3038E 3038R 3043D 3045R 3320 3520 3720 4044R 4049M 4049R 4052R 4066M 4066R 4320 4520 4720 5045E 5050E 5055E 5058E 5060E 5060EN 5065E 5067E 5070E 5075E 5075EN 5075M 5078E 5080E 5080EN 5085E 5085M 5090E 5090EL 5090M 5100E 5100M 5100MH 5100ML 5115M 5115ML 54D 60D 6100E 6105D 6105E 6105EH 6110E 6115D 6115E 6120E 6120EH 6125E 6130D 6130E 6135E 6140D 6403 850 950
