LED-415, made to fit JD "R" series tractors

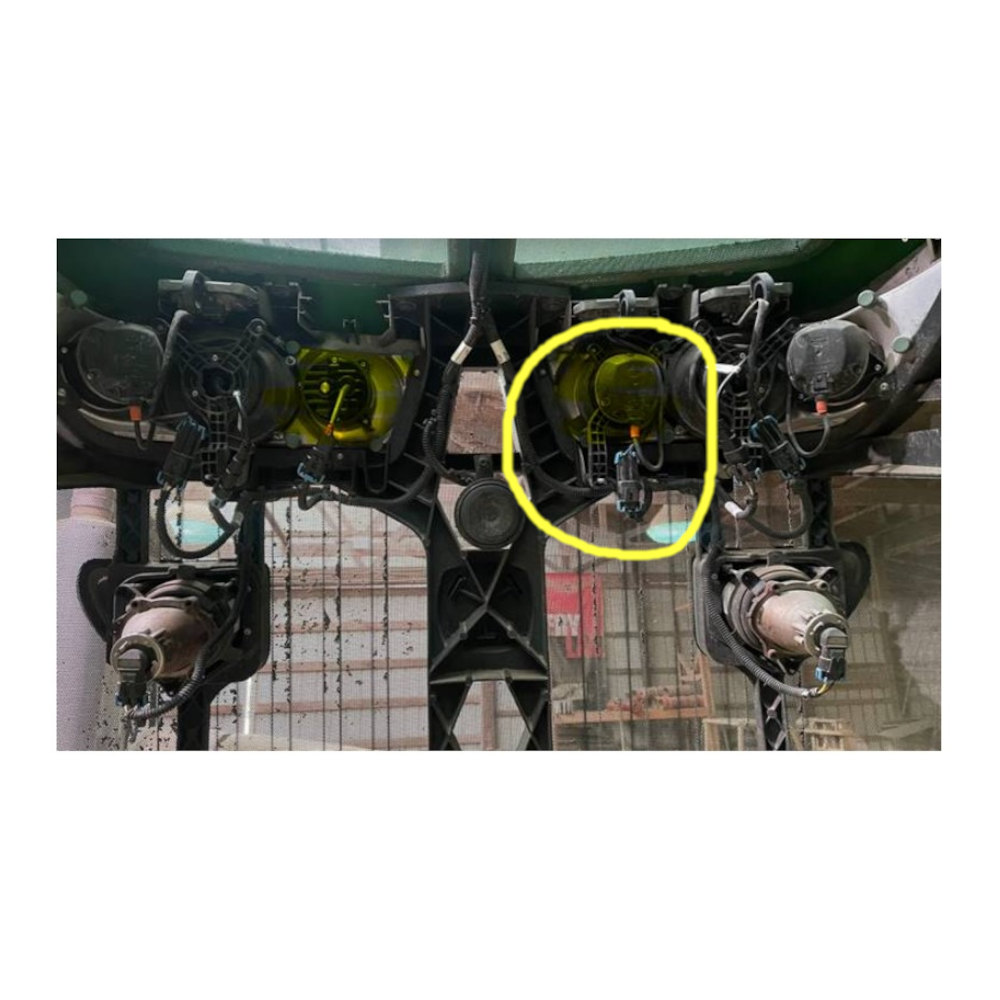

LED-415 is a 3" LED light with 3 mounting "arms" for replacing the smaller grill light on some JD "R" series tractors and some sprayers. (For headlights assemblies with 3 or 4 lights on each side) This is the 1st light to the right of the center grill (looking forward) Only 1 is used.
Manufacturer: Larsen Lights
SKU: LL0667
Out of stock
Inbound QTY: 64 ETA around 3/29/2025.
$66.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

LED-415



Watt : 40 Watt - 4 x 10 Watt OSRAM
Power used: 32W / 2.56A @ 12.5 Volt
Lumen: 4000 Raw, 3300 Effective
Kelvin: 5500K
Beam:  20° Spot Beam
Volt: 10-30 volt
IP: 68 - (water resistant in fresh water to a maximum depth of 1.5 metres for up to 30 minutes)
Lens: Polycarbonate
Material: Diecast Aluminum Housing
RFI and EMC filter
Lifetime: >30000 hours
Size : 3.3 x 3.3 x 3 inch
Weight: 1.1 LB
Warranty : 5 years

Built-in DT with 9005 & H11 connector

HP1, HP-1, RHP1

LED-415



Watt : 40 Watt - 4 x 10 Watt OSRAM
Power used: 32W / 2.56A @ 12.5 Volt
Lumen: 4000 Raw, 3300 Effective
Kelvin: 5500K
Beam:  20° Spot Beam
Volt: 10-30 volt
IP: 68 - (water resistant in fresh water to a maximum depth of 1.5 metres for up to 30 minutes)
Lens: Polycarbonate
Material: Diecast Aluminum Housing
RFI and EMC filter
Lifetime: >30000 hours
Size : 3.3 x 3.3 x 3 inch
Weight: 1.1 LB
Warranty : 5 years

Built-in DT with 9005 & H11 connector

HP1, HP-1, RHP1
