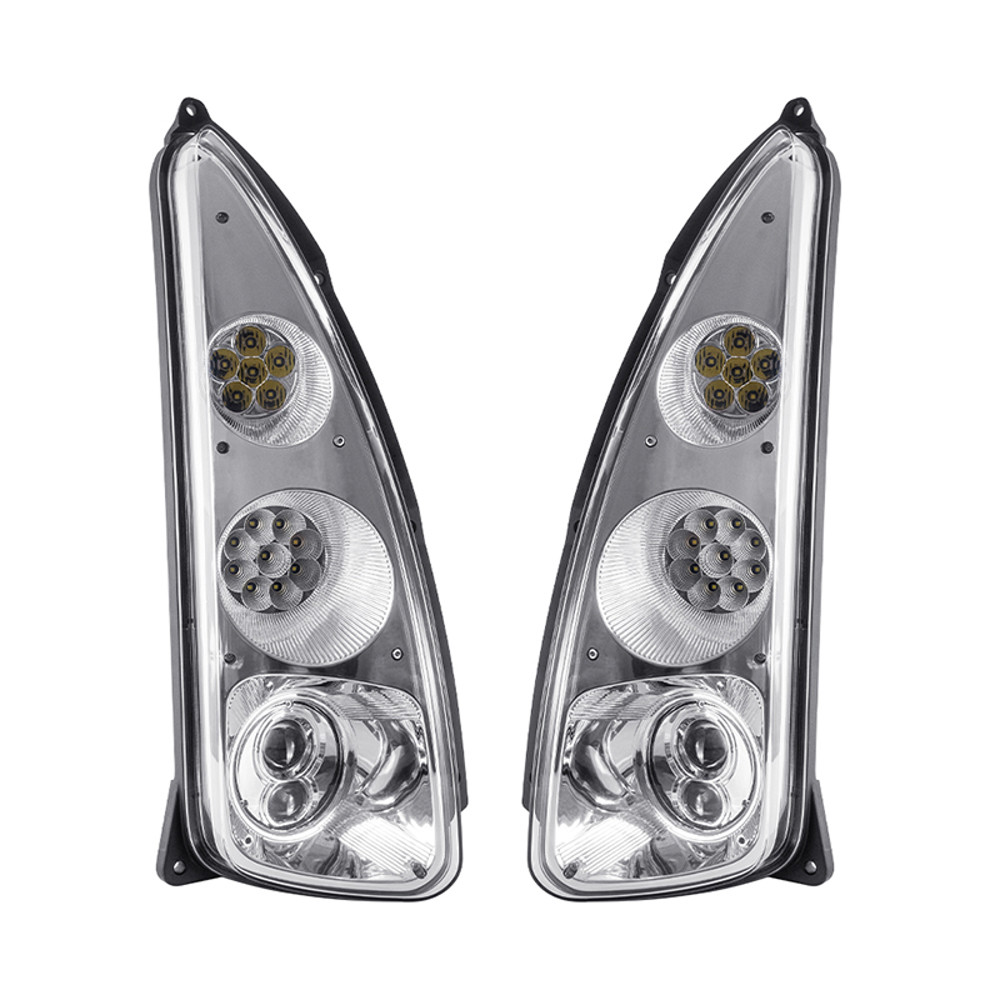

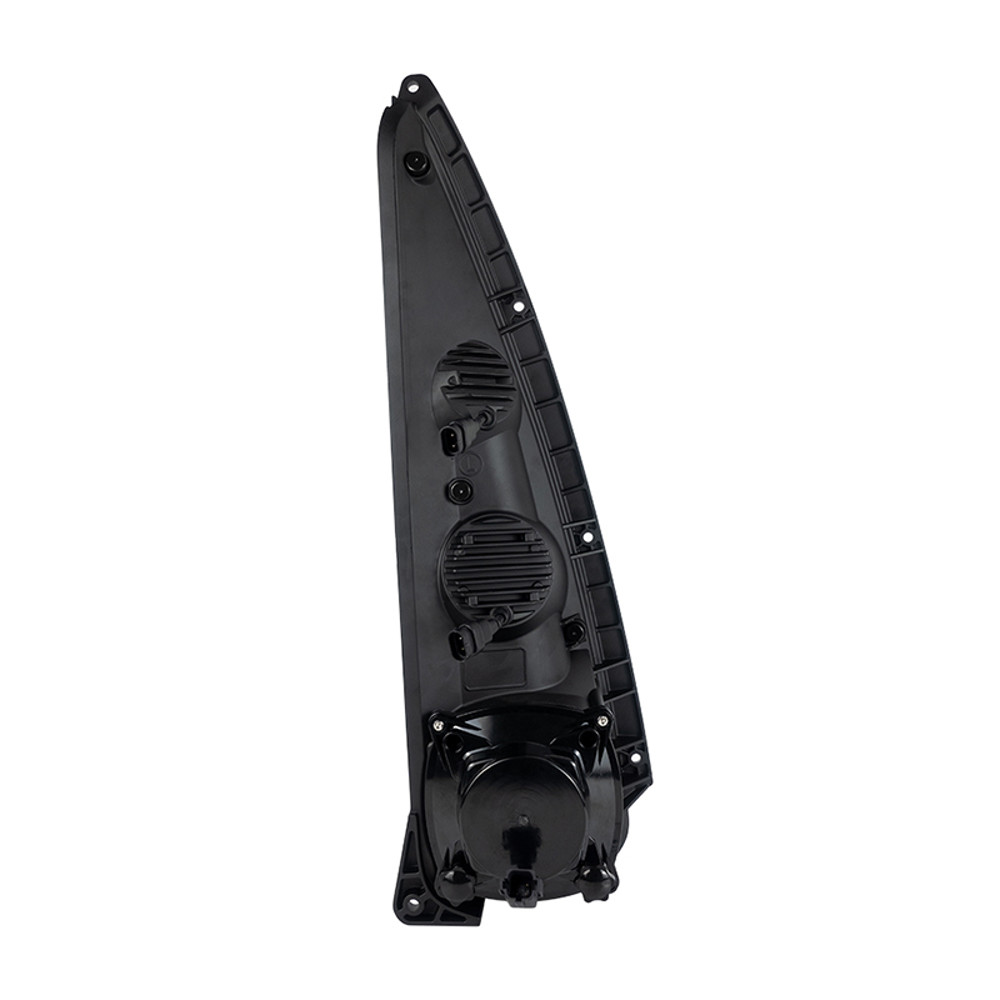

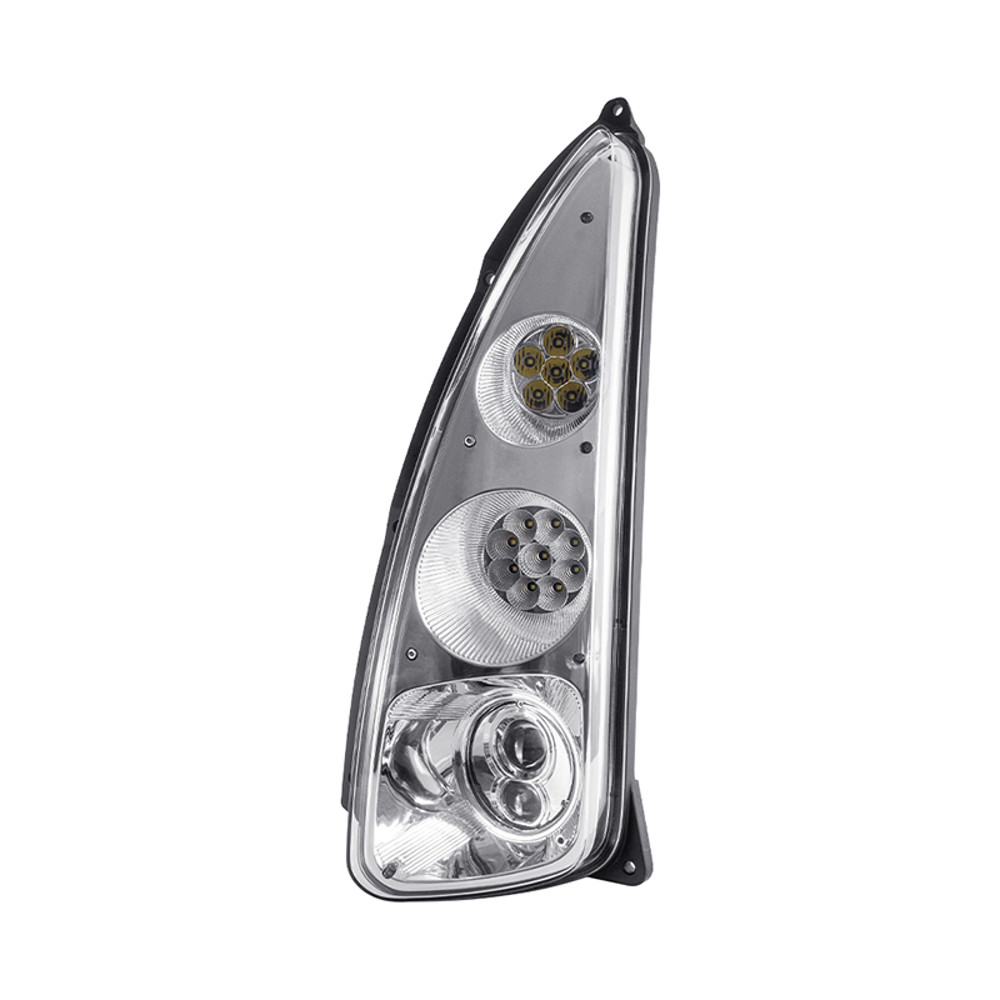

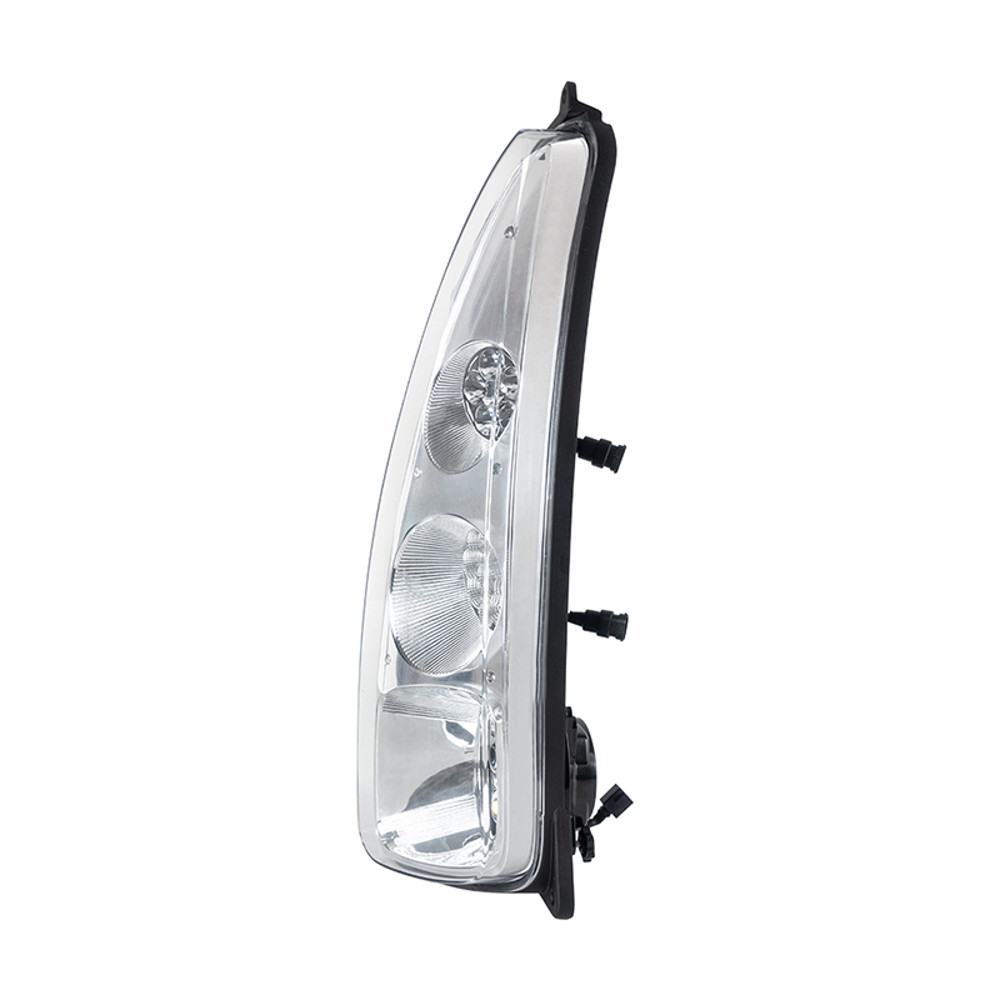

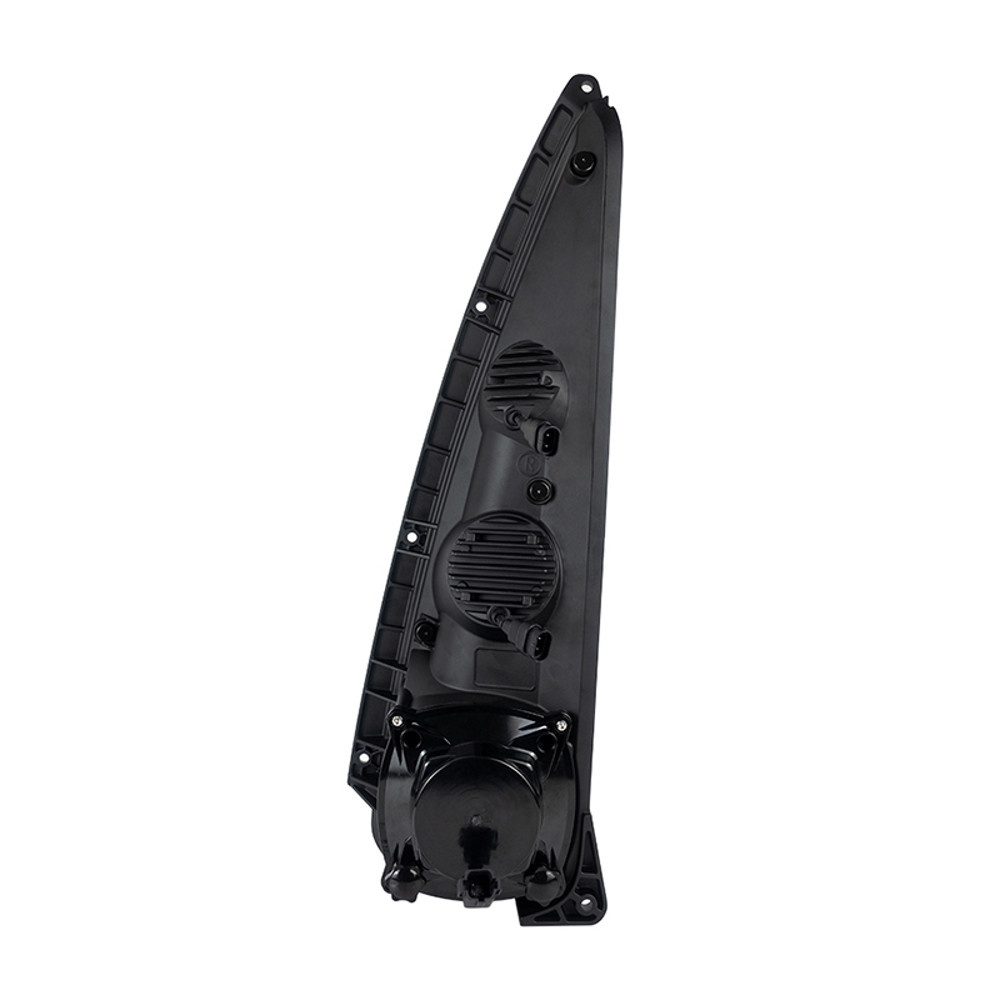

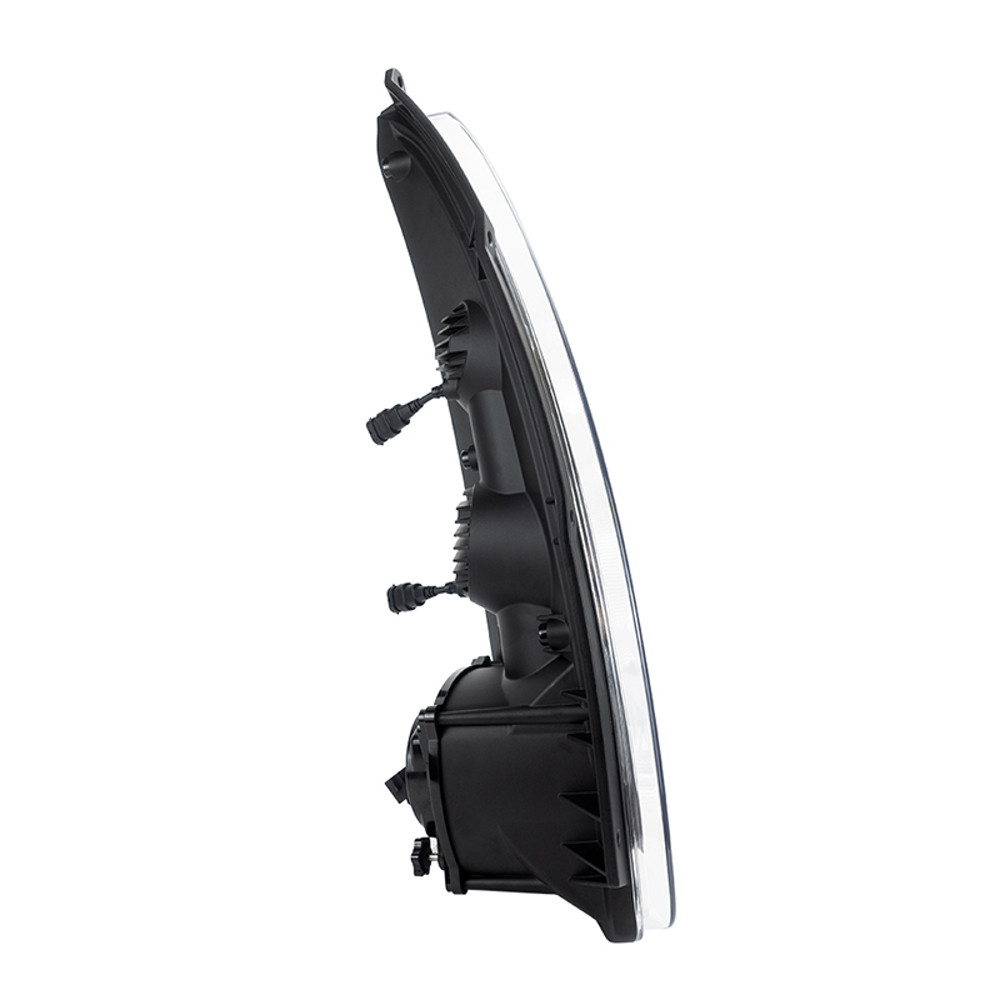

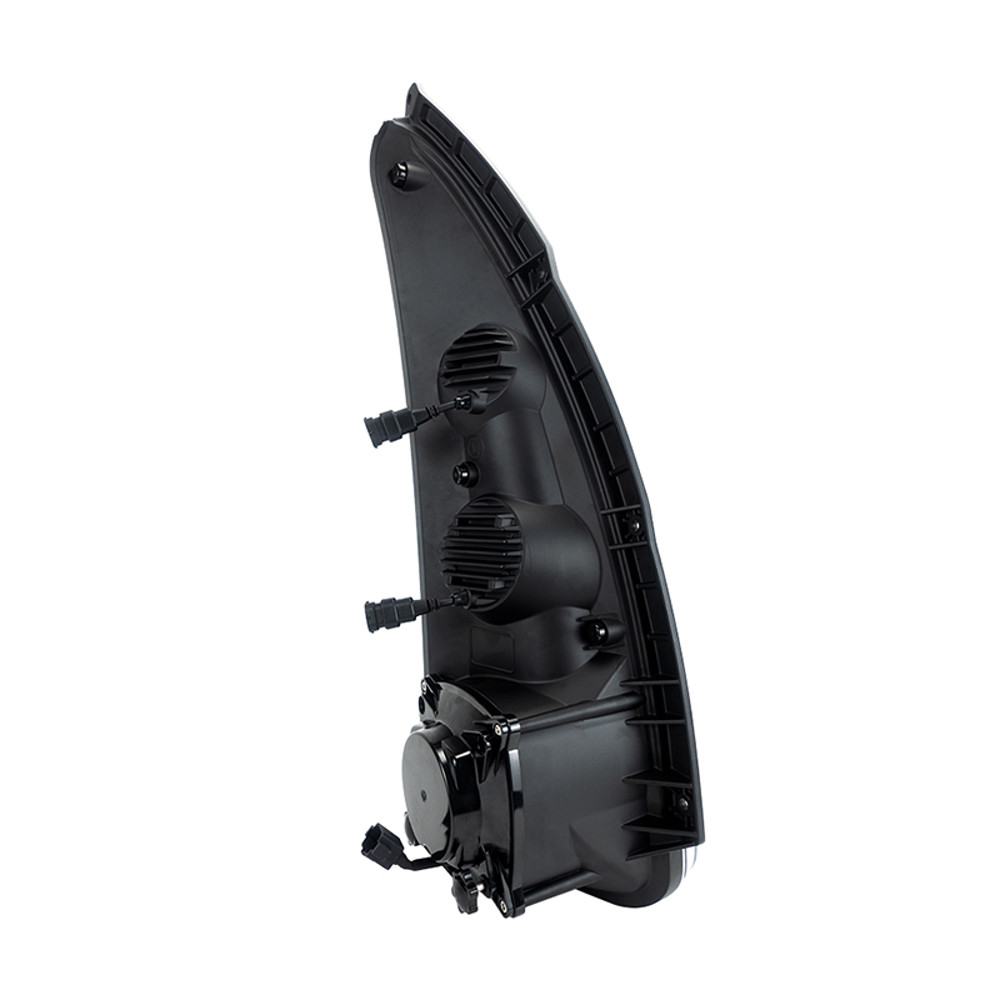

LED-1201 - Headlight set for some NH T / TG models

LED-1201 - Headlight set for some T / TG models. Replace your old yellow halogen headlights with LED headlights - cheaper than new OEM halogen headlights, and much brighter.
SKU: LL0627
Out of stock
$494.00
+ -
Notes:

Currently out of LED-765 60°, stock ETA 2-28. We take orders, but shipping will be delayed. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

LED-1201 - Headlight set for some T / TG models



  • LED Power: 200 Watt (Top 60W + Middle 90W + Bottom 50W)
  • Operating Volt: 10-30 Volt DC
  • Beam Pattern: Trapezoid + Flood + High Beam + Adjustable Low Beam
  • Light Output: 4800lm+6300lm+1400lm (high)+750lm (low)
  • Color Temperature: 5500K
  • Operation Temperature: -40℃~80℃
  • Waterproof Rate: IP68
  • Material: diecast aluminum housing, stainless steel bracket
  • LENS: PC
  • Housing Color: black
  • Life Time: about 50,000 hours
  • EMC: ECE R10, CISPR25 CLASS 4

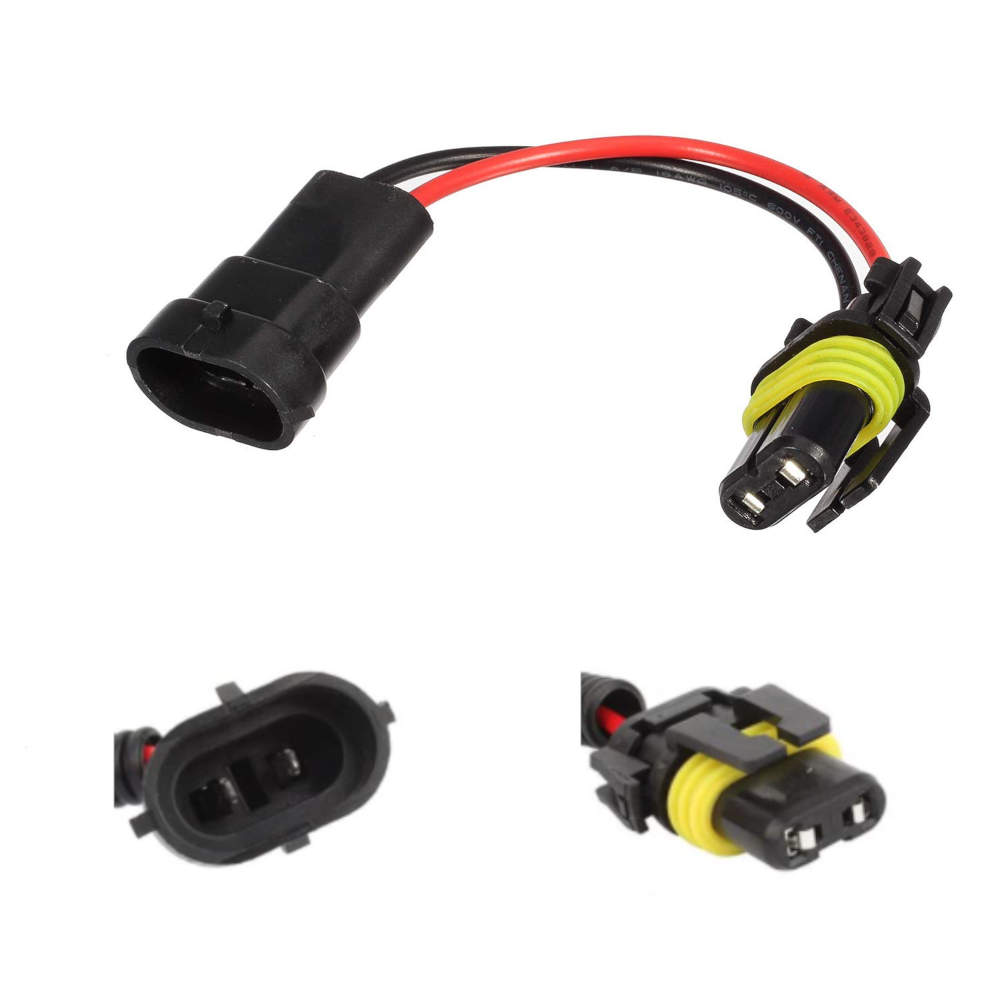

  • Plug and play

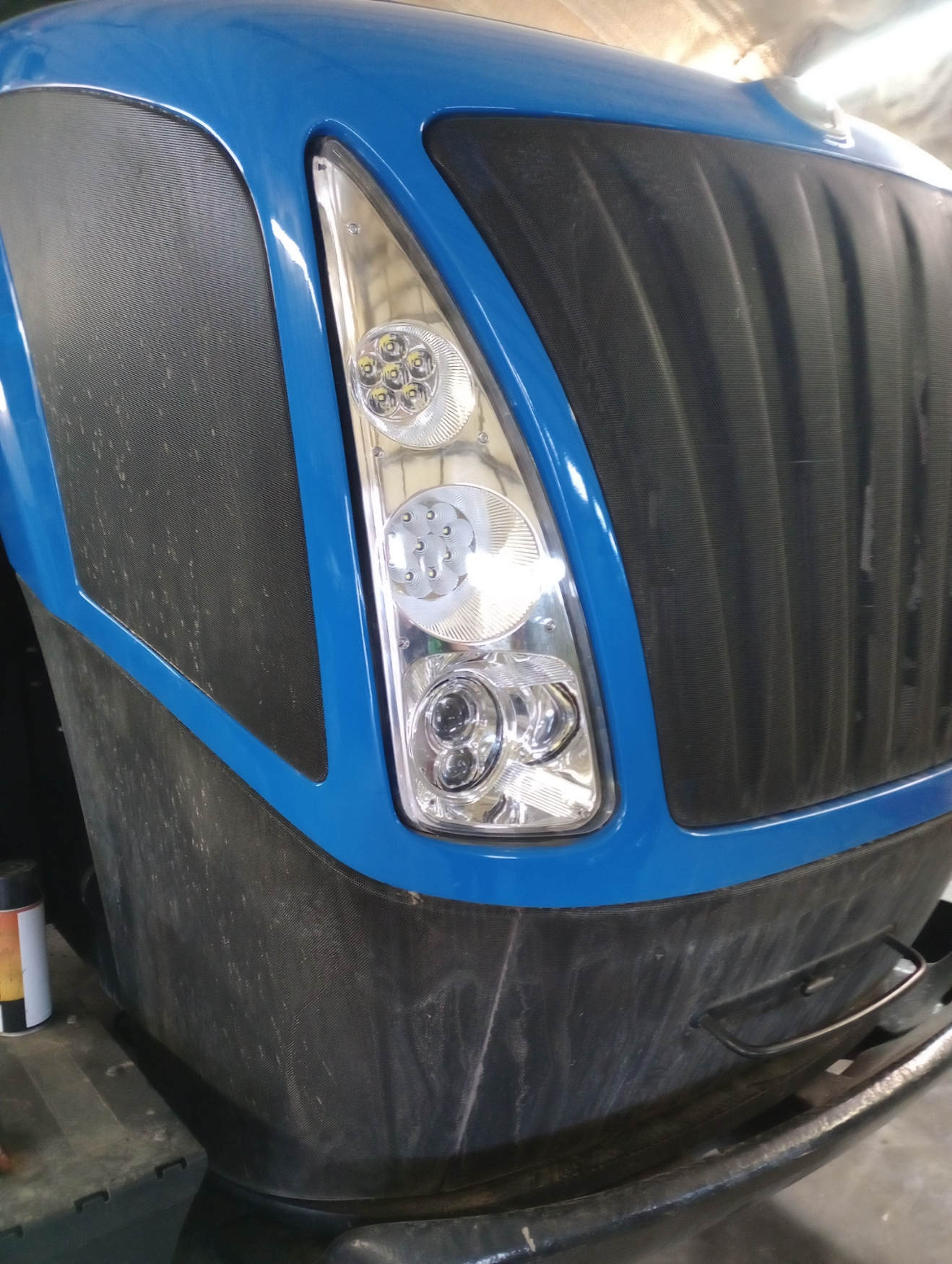

When installing please try the light without the seal first, make sure all contact points touch, then install the seal on the light and do the final install. Do not overtighten the nuts as you can pull them out of the fiberglass resin in the hood. If there is no contact with the mounting points, check if there is any part of the fiberglass that is touching the light, and if needed shave it off..

LED1201, HF87529726 KIT, HF87529726, 84367882, 84367883, 84283084, 84283085, 84283087, 84283088, 84283089, 84283090, 87529724, 87529725, 87529727, 87529729

LED-1201 - Headlight set for some T / TG models



  • LED Power: 200 Watt (Top 60W + Middle 90W + Bottom 50W)
  • Operating Volt: 10-30 Volt DC
  • Beam Pattern: Trapezoid + Flood + High Beam + Adjustable Low Beam
  • Light Output: 4800lm+6300lm+1400lm (high)+750lm (low)
  • Color Temperature: 5500K
  • Operation Temperature: -40℃~80℃
  • Waterproof Rate: IP68
  • Material: diecast aluminum housing, stainless steel bracket
  • LENS: PC
  • Housing Color: black
  • Life Time: about 50,000 hours
  • EMC: ECE R10, CISPR25 CLASS 4
  • Plug and play

When installing please try the light without the seal first, make sure all contact points touch, then install the seal on the light and do the final install. Do not overtighten the nuts as you can pull them out of the fiberglass resin in the hood. If there is no contact with the mounting points, check if there is any part of the fiberglass that is touching the light, and if needed shave it off..

LED1201, HF87529726 KIT, HF87529726, 84367882, 84367883, 84283084, 84283085, 84283087, 84283088, 84283089, 84283090, 87529724, 87529725, 87529727, 87529729
