LED-6050 Hi-Lo, Agco Tractor Headlight

Replaces Agco Part Number: 1693944M93, 3713799M91, 3809345M91, 3809346M91 Applications in: Agco, Agco Allis, Agco White, Challenger, and Massey Ferguson. Spacing between the 2 mounting holes is 3 15/16".
SKU: LED-6050 set
*
$0.00
Notes:
  • All prices in US $. If importing into Canada there will be brokerage cost collected by UPS. Check the "Canada/World" link on the homepage. Please be aware that shipping carriers are unable to deliver within the normal time frame due to Covid19- expect delays.
Full Description

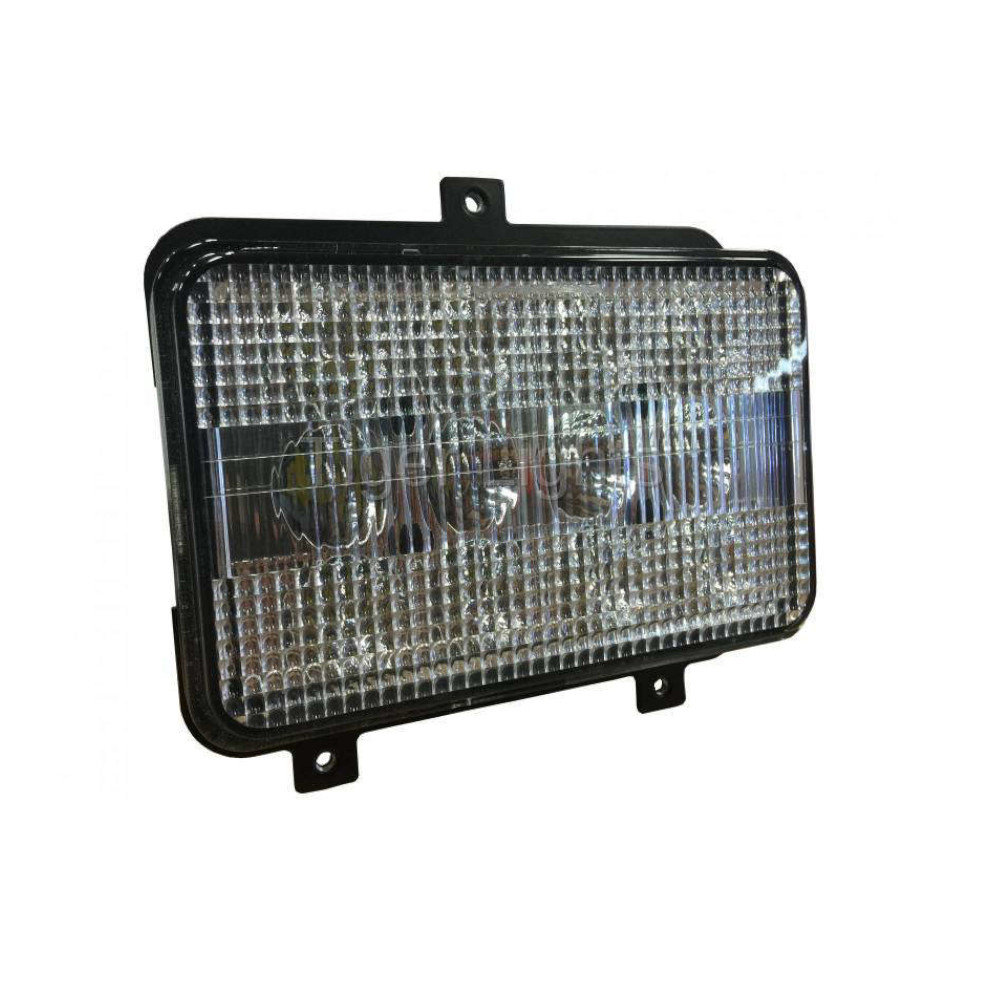

LED-6050 Hi-Lo, Agco Tractor Headlight.



Spacing between the 2 mounting holes is 3 15/16"

Uses Original Mount and Wiring, High/Low Beam. Includes Connector and Stainless Steel Hardware.

Replaces Agco Part Number: 1693944M93, 3713799M91, 3809345M91, 3809346M91
Applications in: Agco, Agco Allis, Agco White, Challenger, and Massey Ferguson

Specs :

Hi-Lo light beam

LED Power: 12 CREE LED x 5 watts each

Operating Volt: 10-30Volt DC

Lumen: 3500 raw

Power rated: 60 watt - 5 amp

Power used : 35 watt / 2.9 amp @ 12 volt

Lens: PMMA

Color Temp: 6000k

Material: die-cast aluminum housing

Beam: Hi-Lo

Size : 105mm x 160mm x 61mm (4.13" x 6.3" x 2.4")



 Replaces Agco Part Number:  1693944M93, 3713799M91, 3809345M91, 3809346M91

TL6050, TL 6050, LED6050



LED-6050 Hi-Lo, Agco Tractor Headlight - QrCodeImage
