JD R series
JD R series JD Bracket HP-5 EHP-4 Flush Mount EHP-4 Flush Mount DT to 9005 adaptor EHP-4 installed Thomas JDD84 LED-510 JDD 84-3 LED-3301A Front Placement placement left headlight placement right headlight Placement Placement Sleeve install JD bracket Sleeve install JD bracket

Larsen LED kit for JD 9xxx R series - Thomas LED

Be the first to review this product
JD 9xxx R series LED light upgrade. Lights used are the EHP-4 (4300lm) and HP-5 (5000lm). Choose to replace 2 or 4 fender lights (2 if you have OEM HID Xenon lights, and want to keep them). Add the headlights if needed. Base kit with 4 fender lights equals 55800 effective lumens.
SKU: JD9xxx R-Thomas
*
$0.00
+ -
Product Files
Install Instructions
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

Larsen LED kit for JD 9xxx R series - Thomas LED

JD 9xxx R series LED light upgrade. Lights used are the HP-4 (4300lm) and HP-5 (5000lm). Choose to replace 2 or 4 fender lights (2 if you have OEM HID Xenon lights, and want to keep them). Base kit with 4 fender lights equals 55800 effective lumens.

Add the headlights and flashers if needed.

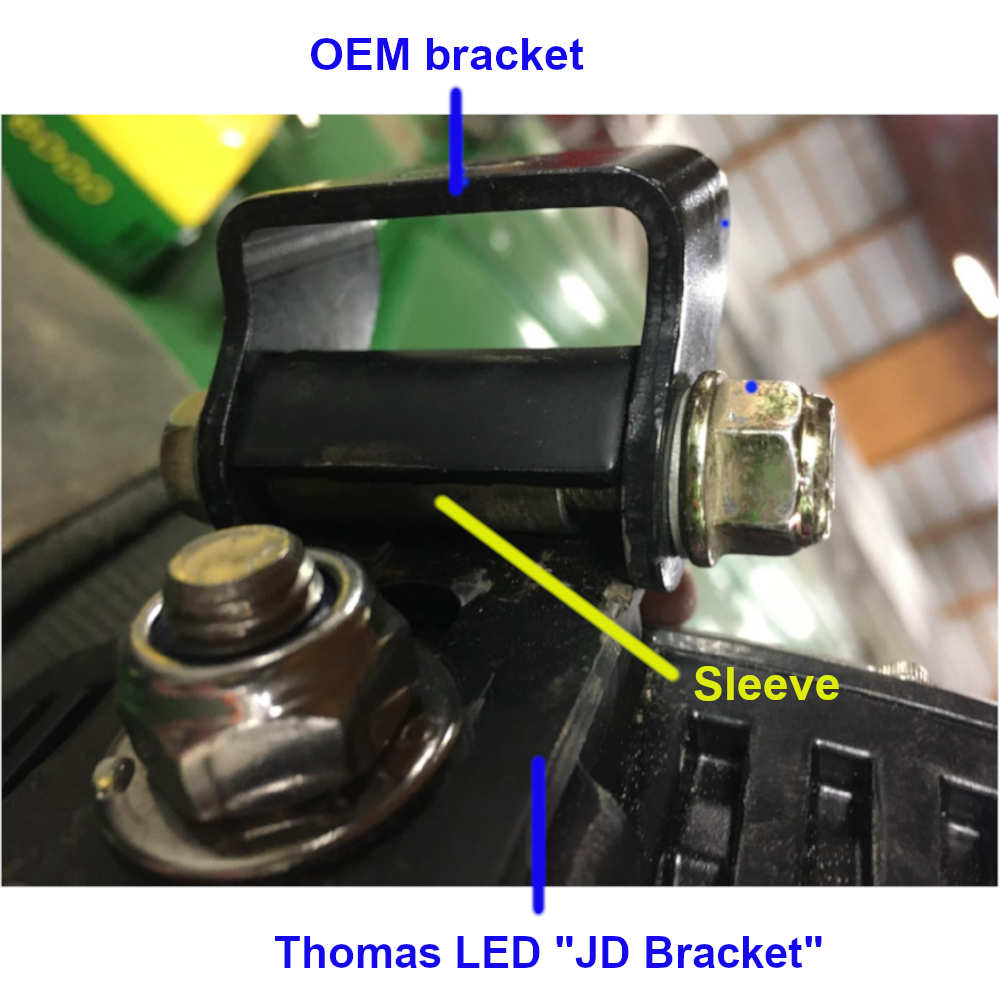

The sleeves shown in the last few pictures are for the top front cab lights. Used to remove some of the slack when using the Thomas "JD Rotate" bracket on this tractor model.

Lights used in this kit can be found in "Related Products"

Larsen LED kit for JD 9xxx R series - Thomas LED

JD 9xxx R series LED light upgrade. Lights used are the HP-4 (4300lm) and HP-5 (5000lm). Choose to replace 2 or 4 fender lights (2 if you have OEM HID Xenon lights, and want to keep them). Base kit with 4 fender lights equals 55800 effective lumens.

Add the headlights and flashers if needed.

The sleeves shown in the last few pictures are for the top front cab lights. Used to remove some of the slack when using the Thomas "JD Rotate" bracket on this tractor model.

Lights used in this kit can be found in "Related Products"

Product tags
Use On Below Models (Click to expand)
Write your own review
*
*
  • Bad
  • Excellent
Related products / Used in kit
EHP-4

EHP-4 Oval, 60° Flood (Flush mount)

LL0444
EHP-4 Oval, 60° Flood light, for the built-in "flush-mounted" lights on the "R" series JD tractors and sprayers.
$112.00
EHP-4

EHP-4 Oval, 40° beam (Flush mount)

LL0443
EHP-4 Oval, 40° light, for the built-in "flush-mounted" lights on the "R" series JD tractors and sprayers.
$112.00
HP-4 oval

HP-4 Oval, 20° Spot

LL0431
HP-4 Oval, 20° Spot light. If used on the hanging cab lights on an "R"/20/30 series JD, please order the "R" series bracket. Also needed for the 60/70/S series combine cab lights. For Challenger tractors, the side mount bracket might be needed. Find those and adapter cables on the bottom of the page.
$112.00
JD Bracket on HP-4

Thomas LED "JD Bracket"

LL0438
Thomas LED "JD Bracket". Needed for installing the Thomas HP-4 and HP-5 on some positions on JD tractors and combines - used for the "hanging" cab lights, eg. front cab lights on combines and "R" series Tractors.
$7.00
HP-5

Hp-5 Flood 60°

LL0423
HP-5 - Oval 5000 lumen LED work light. 60° Flood beam
$126.00
EHP-4

EHP-4 Oval, Amber flasher

LL0531
EHP-4 Oval, Amber flasher for the built-in "flush-mounted" lights on the "R" series JD tractors and sprayers.
$99.00
Picture of LED-510 - for JD "R" series headlights

LED-510 - for JD "R" series headlights

LL0550
This is the large light in the grill (the center light of the 3 lights on each side) on the newer models of JD "R" series tractors.
$69.00
JDD84

JDD84 – made to fit JD "R" series tractors and sprayers. Thomas LED.

LL0538
JDD84 60° is a 3" LED light for replacing the smaller grill light on some JD "R" series tractors and sprayers. (For headlights assemblies with 3 lights on each side) If you are replacing factory HID lights, you will need adapter cable LL0591 - Adapter 9005 male to H11/ 880 female. JD part # AL209455
$78.00
JDD84-3

JDD84-3 made to fit JD "R" series tractors

LL0612
JDD84-3 is a 3" LED light with 3 mounting "arms" for replacing the smaller grill light on some JD "R" series tractors. (For headlights assemblies with 3 or 4 lights on each side) This is the 1st light to the right of the center grill (looking forward) Only 1 is used.
$95.50
Picture of LED-3301A, Low beam for JD 9xxx R series

LED-3301A, Low beam for JD 9xxx R series

LL0600
LED-3301A, Low beam for JD 9xxx R series
$62.00

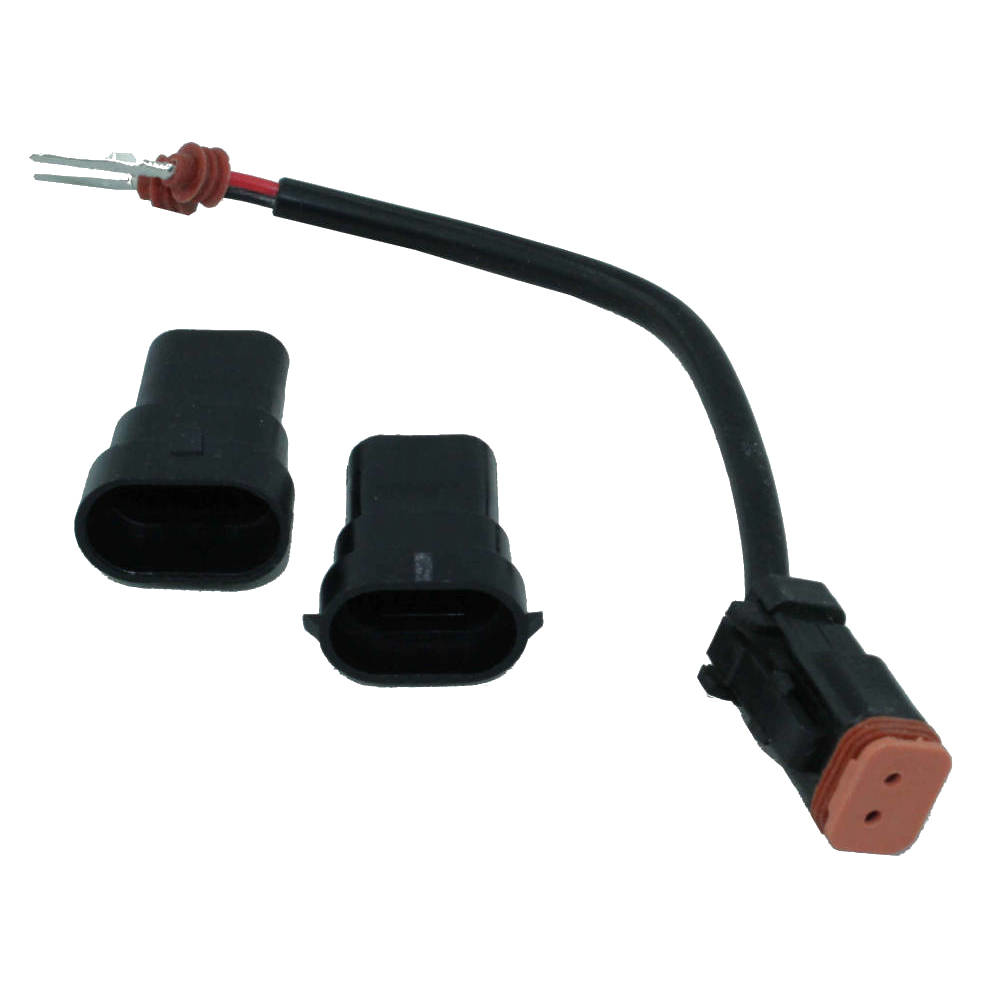

Deutsch DT compatible to 880 (H11) and 9005, 6"

Deutsch DT compatible to 880 (H11) and 9005, 6"

LL0451
Cable for connecting the Thomas HP and the LED-760/765 lights to tractors and combines that previously used a 9005 bulb. Newer JD (20, 30, and R series and S series combines + other brands where the light replaced used a 9005 bulb.
$3.00
Sleeves for Rotate bracket

Sleeves for installing Thomas lights on the front top cab, used with the "Rotate Bracket" to install the light into the JD OEM bracket.

LL0585
Sleeves for installing Thomas lights on the front top cab, used with the "Rotate Bracket" to install the light into the JD OEM bracket.
$1.00
LED-2207

LED-2207 Amber clearance light for JD

LL0549
LED-2207 Amber clearance light for JD
$38.00
