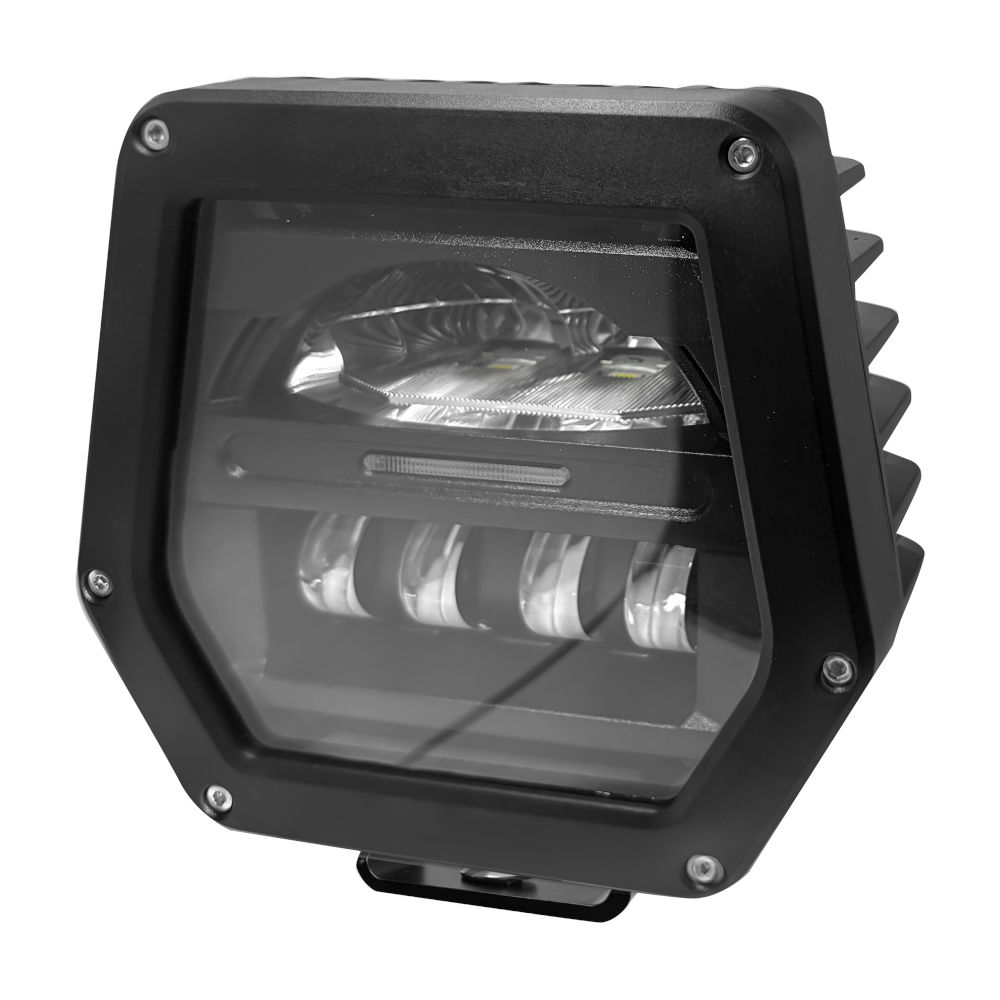

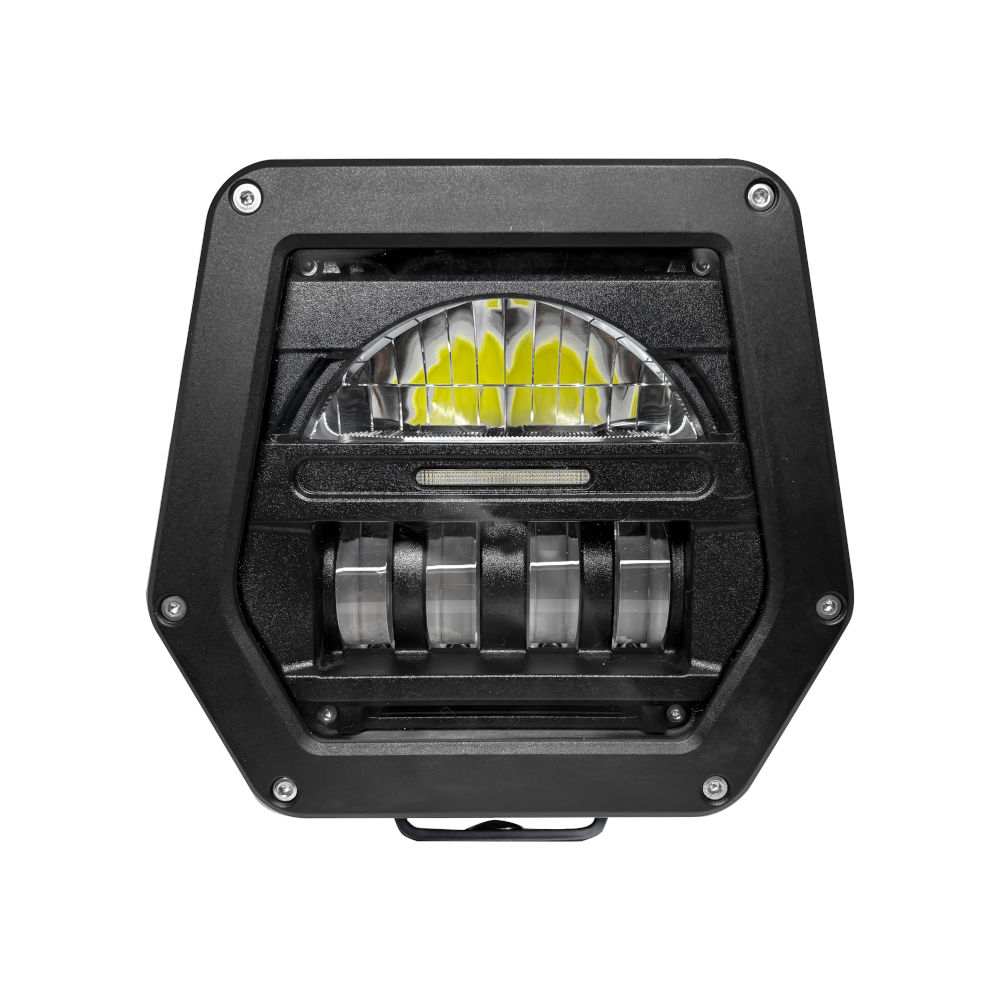

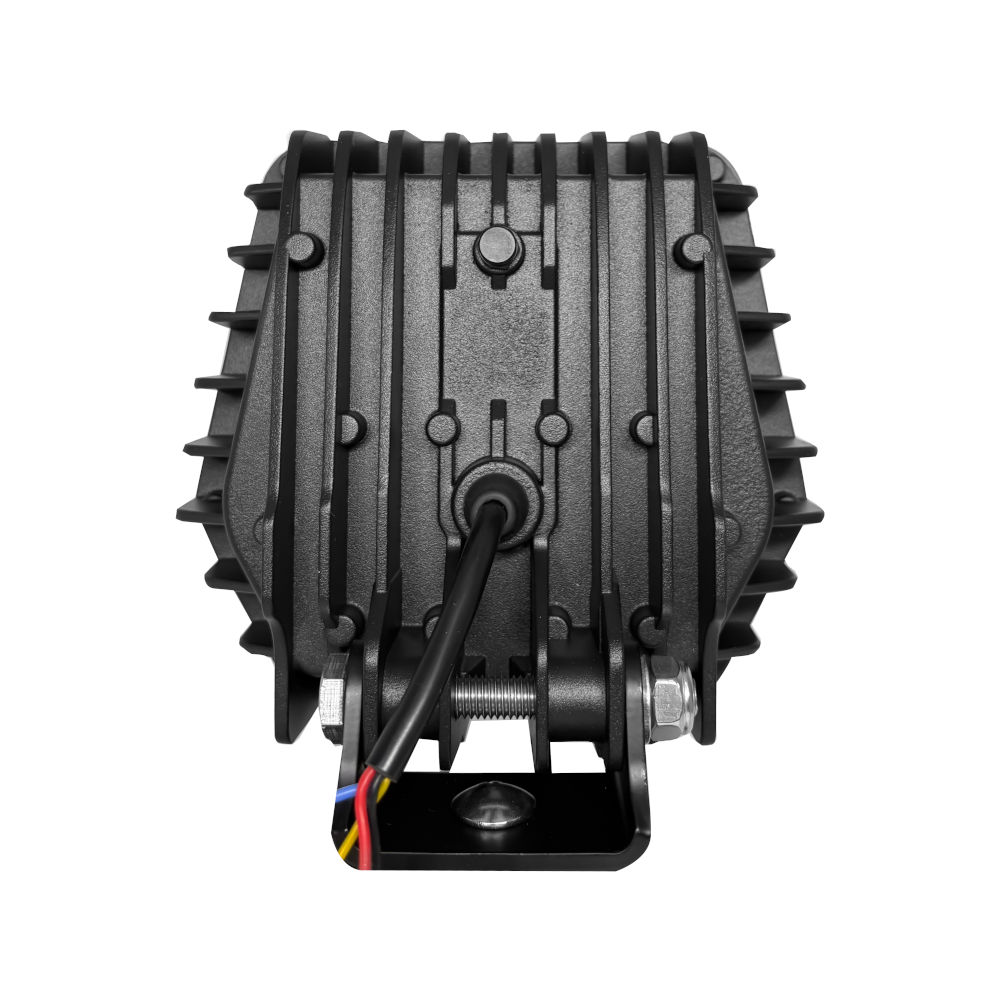

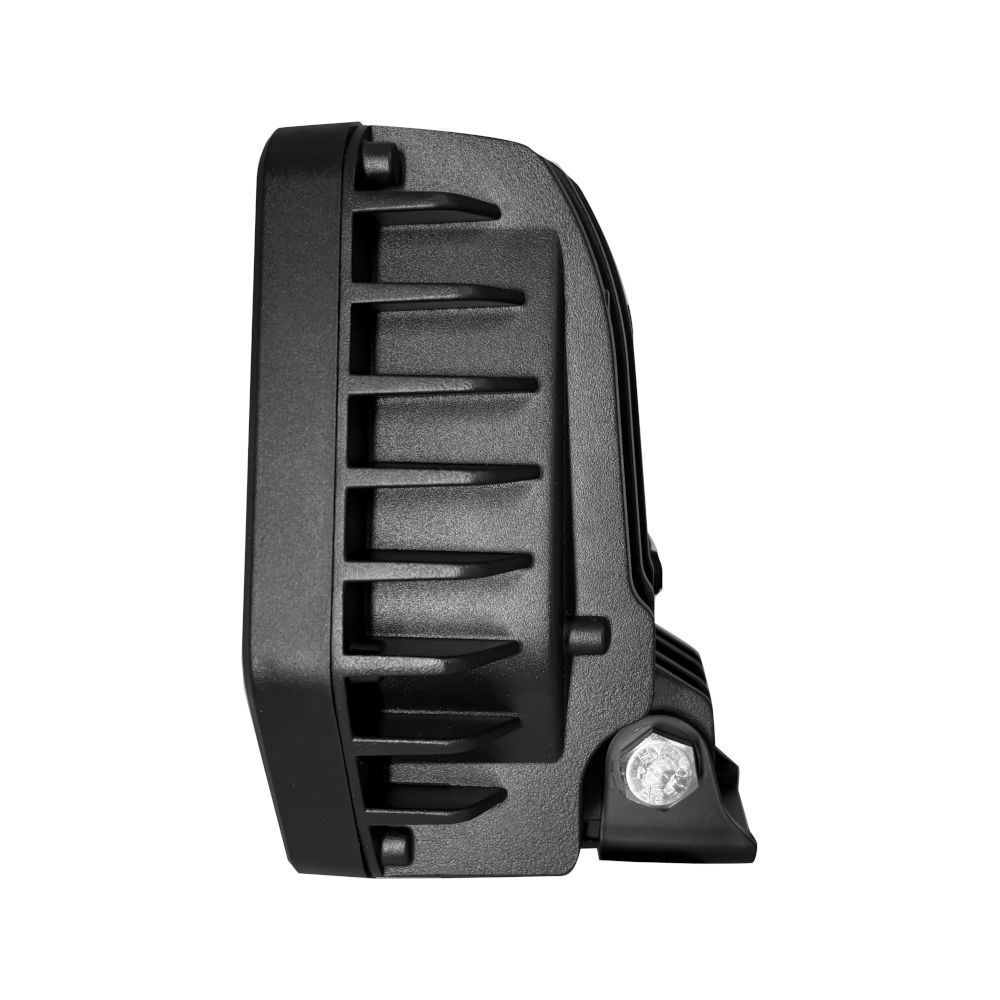

LED-7821 Hi-Lo is a light that matches the OEM lights on some JD R tractors. Replaces OEM# RE593798
Manufacturers: Larsen Lights , Eagle
SKU: LL0658
5 in stock
$99.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

LED-7821 Hi-Lo

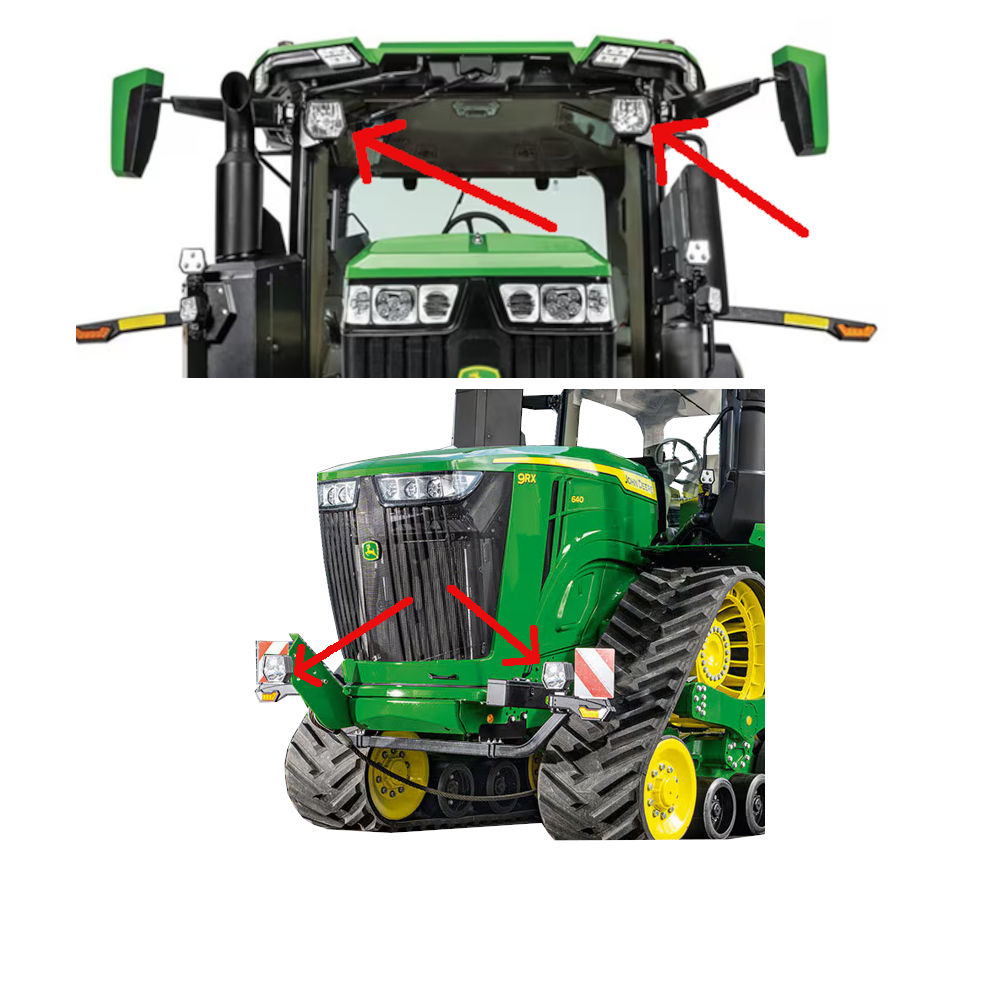

LED-7821 Hi-Lo is a light that matches the OEM lights on some JD R tractors.

Replaces OEM# RE593798

  • Power (Theoretical): - Low Beam: 40W
  • High & Low Beam: 70W- Position Light: 3W(0.5Wx 6 LED) Actual Power Consumption: - Low Beam: 35W
  • High & Low : 55W- Position Light: 2.5WWhite/Amber Raw/Effective Lumen: - Low Beam: 3840 / 1600 lm- High & Low: 6000 / 3600 lmDual-color Position Light: White/Amber Voltage: DC10-30V Waterproof: IP69K
  • EMC: CISPR 25 Class 3 Operation Temp.: -40°C ~ +80°C
  • Housing: Die-cast AluminumFront Cover:
  • Polycarbonate Bezel: Matt-black Optics: Polycarbonate (L) / PMMA (H), Hard-coated Lens
  • Connector: External Delphi 12129615 Socket, Separate Wires for Position Mount: Pedestal, M10x30,
  • Steel Hardware w/ Anti- corrosion Coating (Black)

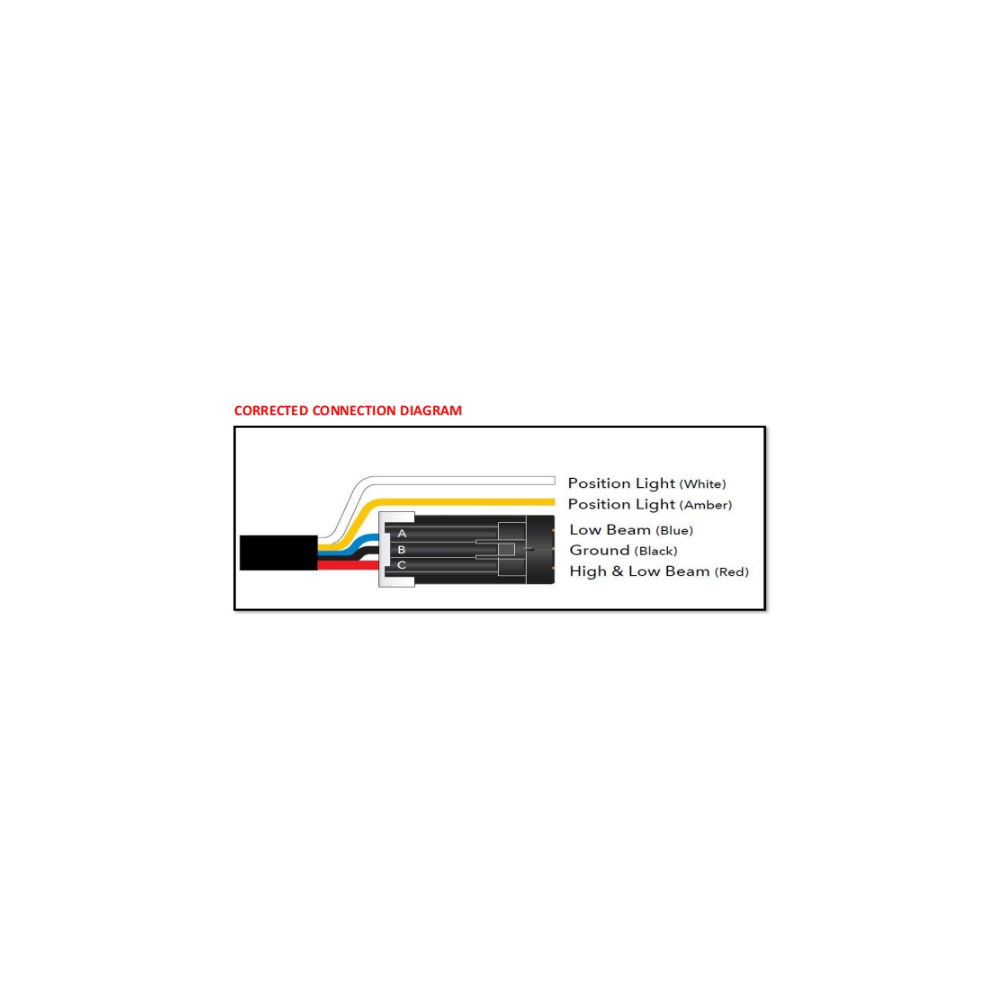

  • Wiring: Black: Ground Blue: Low Beam. Red: High/Low Beam, White: Position Light, 6000K Yellow: Position Light, Amber
  • Certification: ECE R149 for HB & LB, LB is R149 Class DS, Symmetrical LowBeamECE R148 for Position Light (White only) ECE R10, CE, UKCA, RoHS, REACH
  • OEM Reference: RE593798
