LED-9307 Headlight set.

Set of right and left headlights for most of the 2008 and newer CIH tractors, & Sprayers. Now with a built-in side light for extra light to the sides. Replaces CIH part #87309029 & 87309030

Manufacturer: Larsen Lights

SKU: LL0568

Availability:

40 in stock

$459.00

Qty:

+ -

Product Files

Install Instructions

LED-9307 & 9308 install

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-9307 for Case IH, Headlight kit,

Set of right and left headlights for most of the 2008 and newer CIH tractors, & Sprayers. Now with a built-in side light for extra light to the sides.

Product Specs

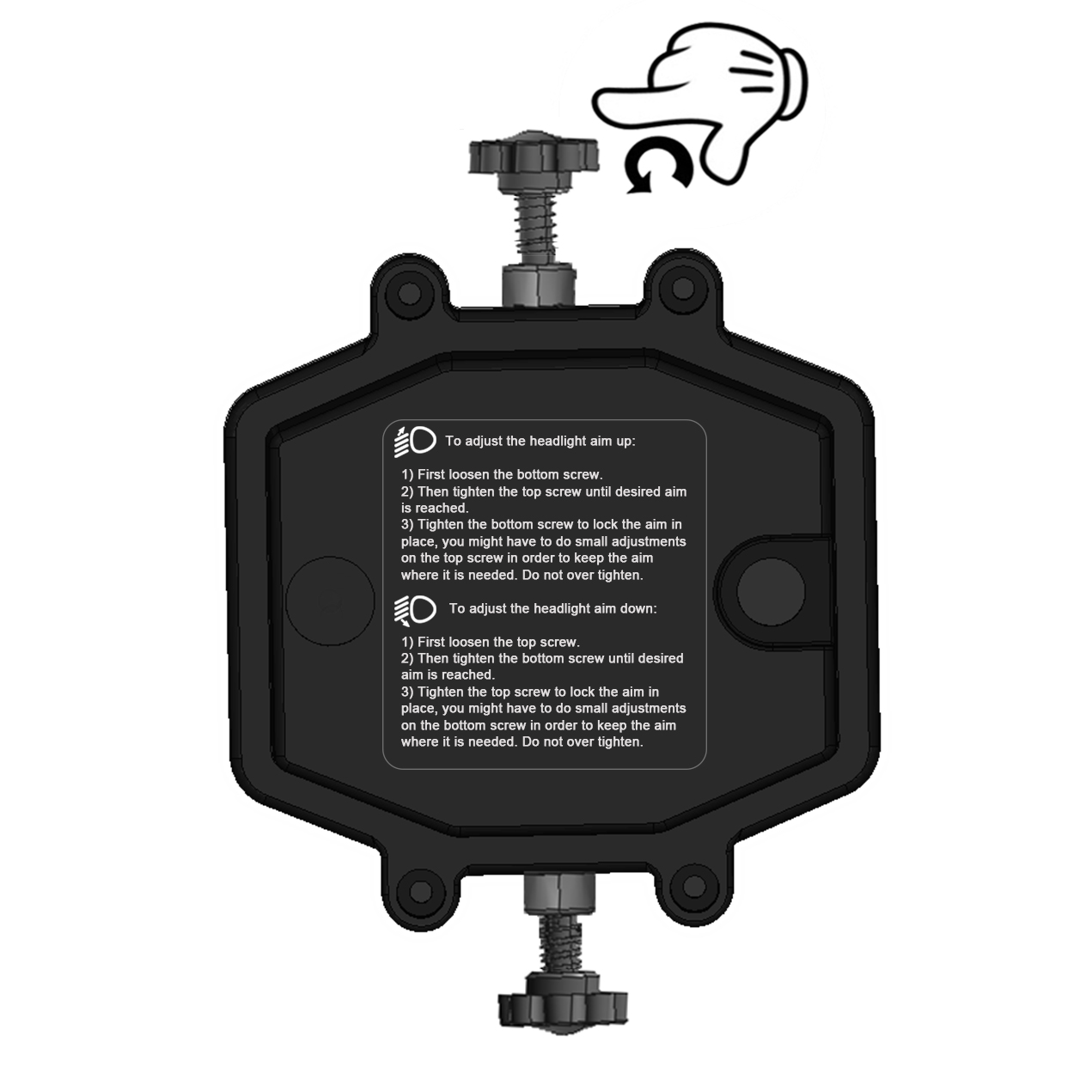

Light Pattern: Driving light/ Hi-lo beam (Adjustable aim)
Lumens: 9,000 lm raw each side
Wattage: 60W each
Chips: 15W x 2 Osram LEDs & 10W x 4 USA CREE LEDs
Amps: 5.0 A x 2 lights
Volt: 12-24V DC
Color temperature: 5500K
14.87" x 9.94" x 7.21" (W x H x D)
Plug and Play
Anti-fog breathers
Replaces the entire headlights on newer CIH tractors and sprayers
Specifically designed for road travel, but spread enough for fieldwork
Fits and looks like OEM
Waterproof rate: IP65
Durable Poly-carbonate lens and aluminum housing for each attached light
Includes 1 left headlight, 1 right headlight, foam seal and Plug & Play Connection per kit

HA87309032 KIT, HA87309031 KIT, HA87309032 KIT1, LED9307, TL6160L, TL6160R, TL6160, 6160, HA87309031, HA87309032, TL6150, 87309030, 87309029

LED-9307 for Case IH, Headlight kit,

Set of right and left headlights for most of the 2008 and newer CIH tractors, & Sprayers. Now with a built-in side light for extra light to the sides.

Product Specs

Light Pattern: Driving light/ Hi-lo beam (Adjustable aim)
Lumens: 9,000 lm raw each side
Wattage: 60W each
Chips: 15W x 2 Osram LEDs & 10W x 4 USA CREE LEDs
Amps: 5.0 A x 2 lights
Volt: 12-24V DC
Color temperature: 5500K
14.87" x 9.94" x 7.21" (W x H x D)
Plug and Play
Anti-fog breathers
Replaces the entire headlights on newer CIH tractors and sprayers
Specifically designed for road travel, but spread enough for fieldwork
Fits and looks like OEM
Waterproof rate: IP65
Durable Poly-carbonate lens and aluminum housing for each attached light
Includes 1 left headlight, 1 right headlight, foam seal and Plug & Play Connection per kit

HA87309032 KIT, HA87309031 KIT, HA87309032 KIT1, LED9307, TL6160L, TL6160R, TL6160, 6160, HA87309031, HA87309032, TL6150, 87309030, 87309029

Product tags

hi-lo (42)

Use On Below Models (Click to expand)

Case IH

Sprayer: 2240 Patriot Tier 4B 2250 Patriot Tier 4B (NA) (10/15 - ) 3240 Patriot Tier 4B (02/14 - ) 3340 Patriot Tier 4B (02/14 - ) 4440 Patriot Tier 4B (08/14 - ) 5550 Trident Tier 4B

Tractor: 170 Puma 170 Puma CVT 170 PumaCVX 180 Magnum Tier 4, Small Frame 180 Puma 180 Puma CVT 180 Puma CVX 185 Puma Tier 4B, Includes MY15, MY18, & Stage V Models 185 Puma CVT Tier 4B, Includes MY15, MY18, & Stage V Models 185 Puma CVX Tier 4B, Includes MY15, MY18, & Stage V Models 190 Magnum Tier 4, Small Frame 195 Puma 195 Puma CVT 195 Puma CVX 200 Magnum Tier 4B 200 Puma Tier 4B, Includes MY15 & Stage V Models 200 Puma CVT Tier 4B, Includes MY15 & Stage V Models 200 Puma CVX Tier 4B, Includes MY15 & Stage V Models 210 Magnum Tier 4, Small Frame 210 Puma 210 Puma CVT 210 Puma CVX 215 Magnum 215 Puma 215 Puma CVT 215 Puma CVX 220 Magnum Tier 4B 220 Puma Tier 4B, Includes MY15 & Stage V Models 220 Puma CVT Tier 4B, Includes MY15 & Stage V Models 220 Puma CVX Tier 4B, Includes MY15 & Stage V Models 225 Magnum Tier 4, Small Frame 230 Puma CVT Tier 4B, Includes MY15, MY18, & Stage V Models 230 Puma CVX Tier 4B, Includes MY15, MY18, & Stage V Models 235 Magnum Tier 4A 240 Magnum Tier 4B 240 Puma CVT Tier 4B, Includes MY15, MY18, & Stage V Models 240 Puma CVX Tier 4B, Includes MY15, MY18, & Stage V Models 245 Magnum 250 Magnum Tier 4B 255 Magnum 260 Magnum Tier 4A 275 Magnum 280 Magnum Tier 4B 290 Magnum Tier 4A 305 Magnum 310 Magnum Tier 4B 315 Magnum Tier 4A 335 Magnum 340 Magnum Tier 4A 370 Magnum Tier 4A 370 Quadtrac 380 Magnum Tier 4B 420 Quadtrac 450 Quadtrac 470 Quadtrac Tier 4B 500 Quadtrac 540 Quadtrac Tier 4B 550 Quadtrac 580 Quadtrac Tier 4B 600 Quadtrac 620 Quadtrac Tier 4B Magnum 180 MX215 MX245 MX275 MX305

Steiger

Tractor: 350 370 Tier 4B 400 Oil cooler lines might interfere - can be cut to fit 420 Tier 4B 450 Models with Dual Center Lamps Only 450 470 Tier 4B, Models with Dual Center Lamps Only 470 Tier 4B 500 Tier 4B 540 550 580 600 620
