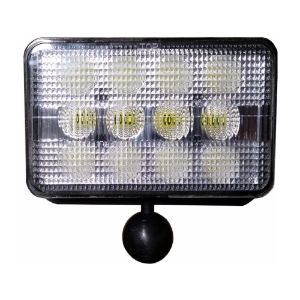

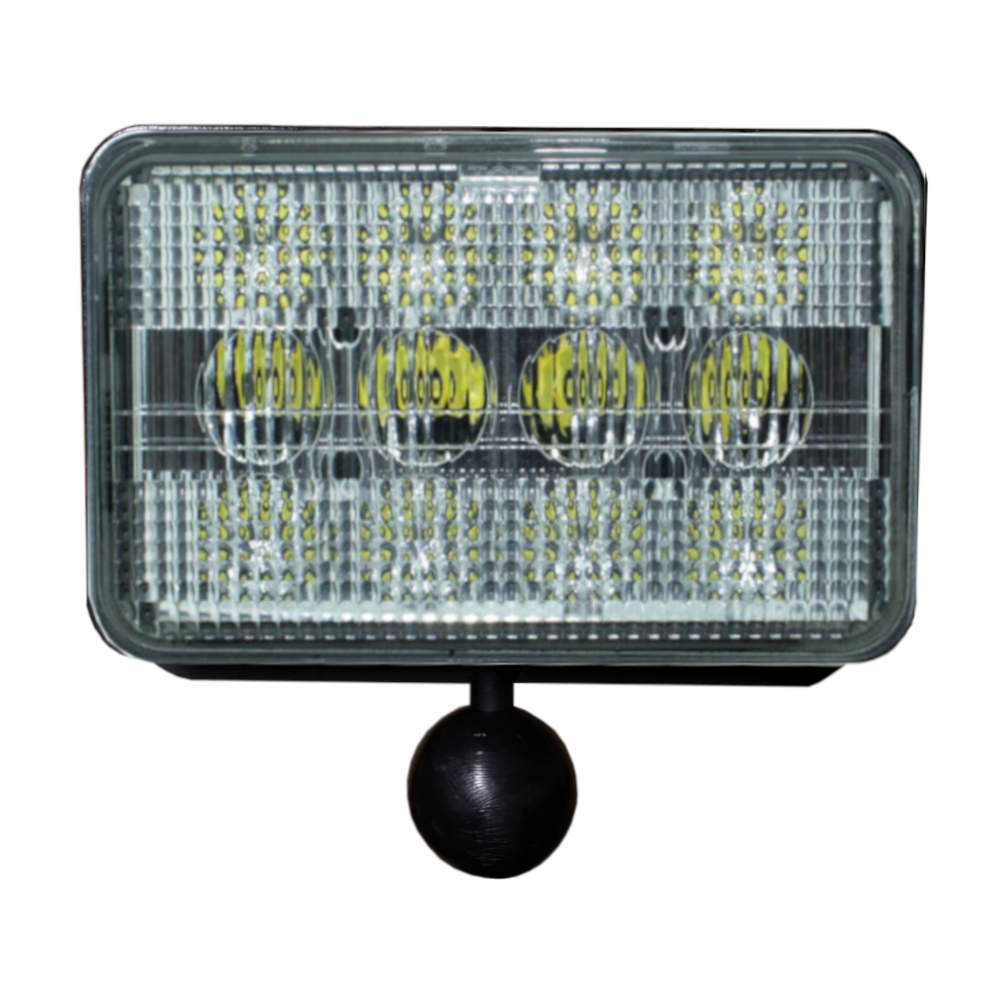

LED-2398 - w/ 1.5" ball mount
Combo beam/Hi-Lo or Flood beam light for Gleaner Rx2 series of combines. R42/52/62/72 early models and lower cab lights on all C / Rx2 using the 1.5" ball mount system. Please verify the serial number below in the fitments guide.

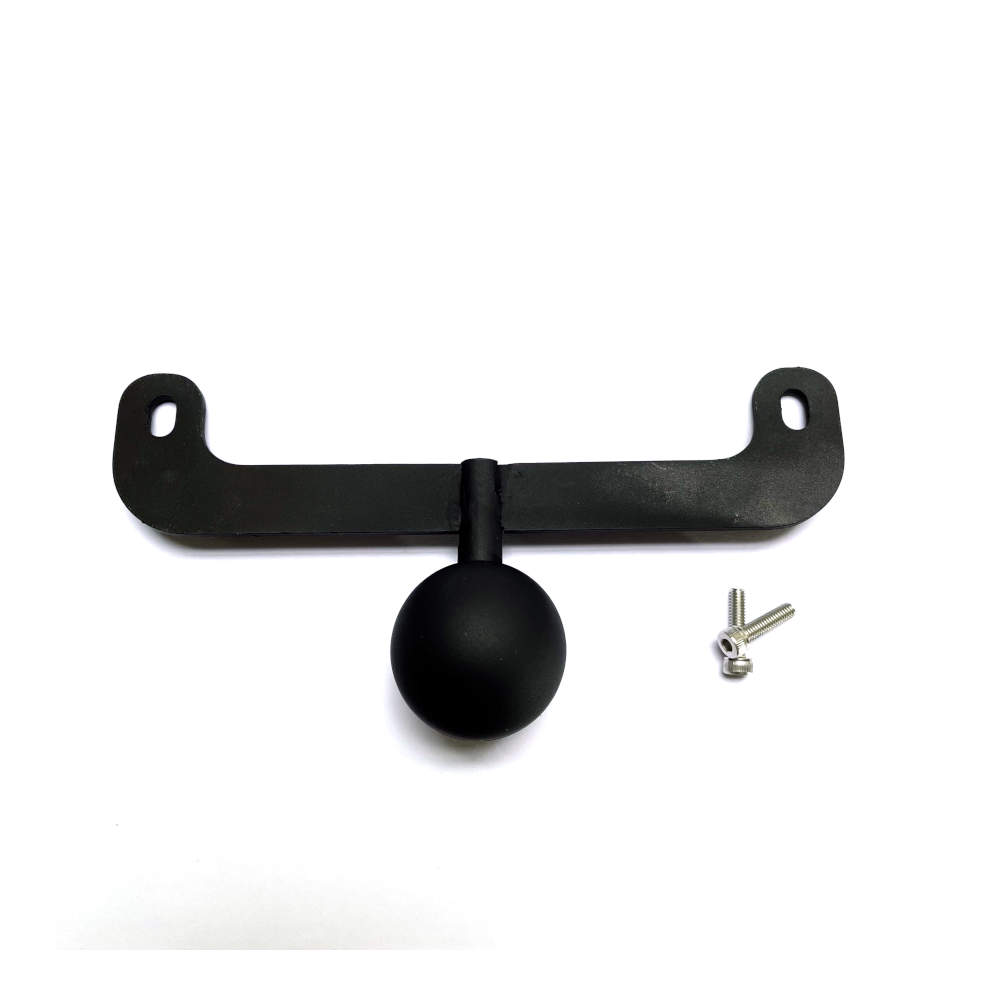

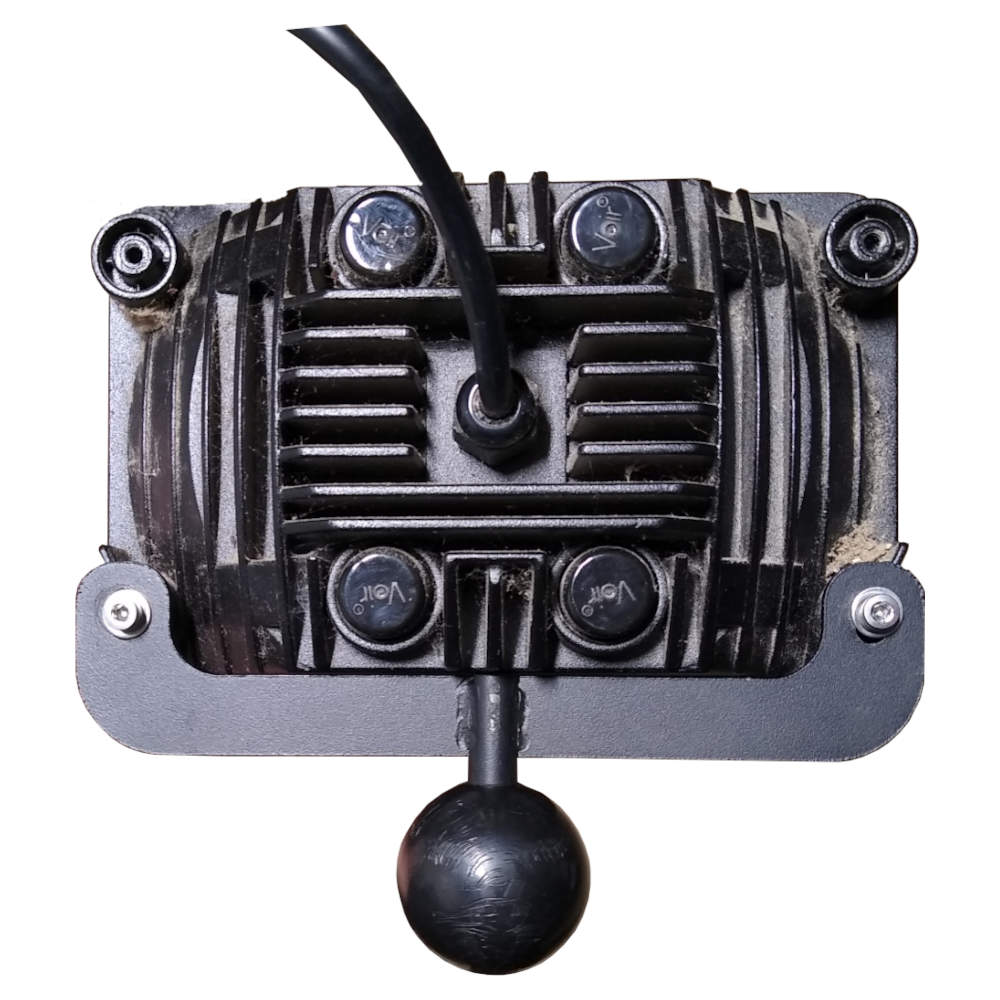

This light kit is the LED-2388 series light and the TBL6 bracket set - please install the bracket on the light using the 2 bolts, then install it on the combine using the 1.5" ball mount system.
R42 (PRIOR S/N 43001) / R52 (PRIOR S/N 53001) COMBINE
R62 (PRIOR S/N 63001) / R72 (PRIOR S/N 73001) COMBINE - note that some newer models might use this setup - (EFF S/N 63001-68000) / R72 (EFF S/N 73001-78000)
Specs :
LED Power : 12 CREE LED x 5 watt each
Operating Volt: 10-30Volt DC
Lumen : 3850 each
Power used : 42 watt / 3.5 amp @ 12 volt
Lens : PMMA
Color temp : 5200k ( white light, no blue light)
Material : die cast aluminum housing
Beam : Combo / Hi-Lo
LED2398, ball, 1.5" ball, ball mount
