Larsen Monitor VPM9002Q - 9 inch monitor

Larsen Monitor VPM9002Q - 9 inch monitor
SKU: LL1013
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$146.00
+ -
Product Files
Notes:

LED-660 60° out of stock until mid - late January. All prices USD. If imported into Canada there will be brokerage costs collected by UPS. Check the"Canada/World" link at the top of the page for more info.

Larsen Monitor VPM9002Q - 9 inch monitor, quad view - see up to 4 cameras on the screen.

  • TFT LCD Monitor with wide angle view and high resolution.
  • Multiple video formats available: PAL/NTSC/AUTO.
  • 4 video inputs, 4 audio inputs.
  • Operates from 10~32, Support 12V or 24V automobile battery.
  • Auto switch to back-up, left or right camera view.
  • Multiple languages available for user operation.
  • Image adjustable for Horizontal, Vertical, Mirror and Normal view.
  • Built in speaker.
  • Single, Dual, Triple and Quad image mode optional.
  • Full function remote control.

LCD size: 9"
TV System: PAL / NTSC
Resolution: 800 x 3 (RGB) x 480
Contrast: 500:1
Brightness: 400 cd/m²
Viewing angle: U: 50 / D: 60, R/L: 70
Operating temperature: -20~+70ºC, RH 90%
Storage temperature: -30~+80ºC, RH 90%
Power inputs: DC 10~32 V
Power consumption: Max. 25W
Power for cameras: Max. 4 x 300mA, 12V
Video inputs: 4 inputs
Audio inputs: 4 inputs
Tirgger signal: 4 tirgger wires







Write your own review
*
*
  • Bad
  • Excellent
*
*
*
*

Larsen Monitor VPM9002Q - 9 inch monitor, quad view - see up to 4 cameras on the screen.

  • TFT LCD Monitor with wide angle view and high resolution.
  • Multiple video formats available: PAL/NTSC/AUTO.
  • 4 video inputs, 4 audio inputs.
  • Operates from 10~32, Support 12V or 24V automobile battery.
  • Auto switch to back-up, left or right camera view.
  • Multiple languages available for user operation.
  • Image adjustable for Horizontal, Vertical, Mirror and Normal view.
  • Built in speaker.
  • Single, Dual, Triple and Quad image mode optional.
  • Full function remote control.

LCD size: 9"
TV System: PAL / NTSC
Resolution: 800 x 3 (RGB) x 480
Contrast: 500:1
Brightness: 400 cd/m²
Viewing angle: U: 50 / D: 60, R/L: 70
Operating temperature: -20~+70ºC, RH 90%
Storage temperature: -30~+80ºC, RH 90%
Power inputs: DC 10~32 V
Power consumption: Max. 25W
Power for cameras: Max. 4 x 300mA, 12V
Video inputs: 4 inputs
Audio inputs: 4 inputs
Tirgger signal: 4 tirgger wires







Customers who bought this item also bought
LL1010

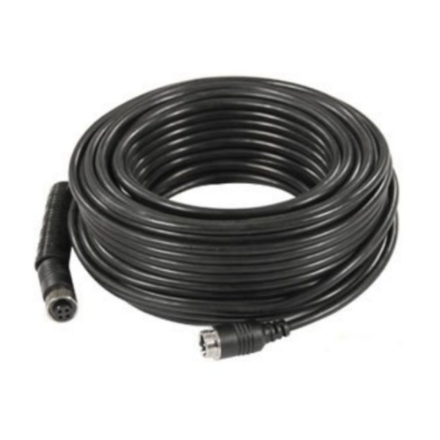

Cables for cameras / monitors. 50' (15m) 15', 30' & 65' lengths. 4 pin connector, also fit Cabcam.
$15.00
LL1005

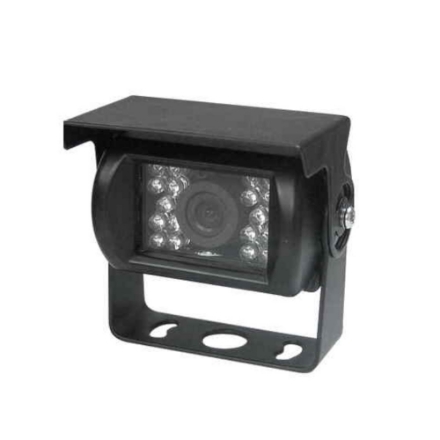

HD CMOS REAR VIEW CAMERA, IR-Cut technology, Built-in Microphone, 10g vibration test. 90° view. Infrared LEDs for night vision.
