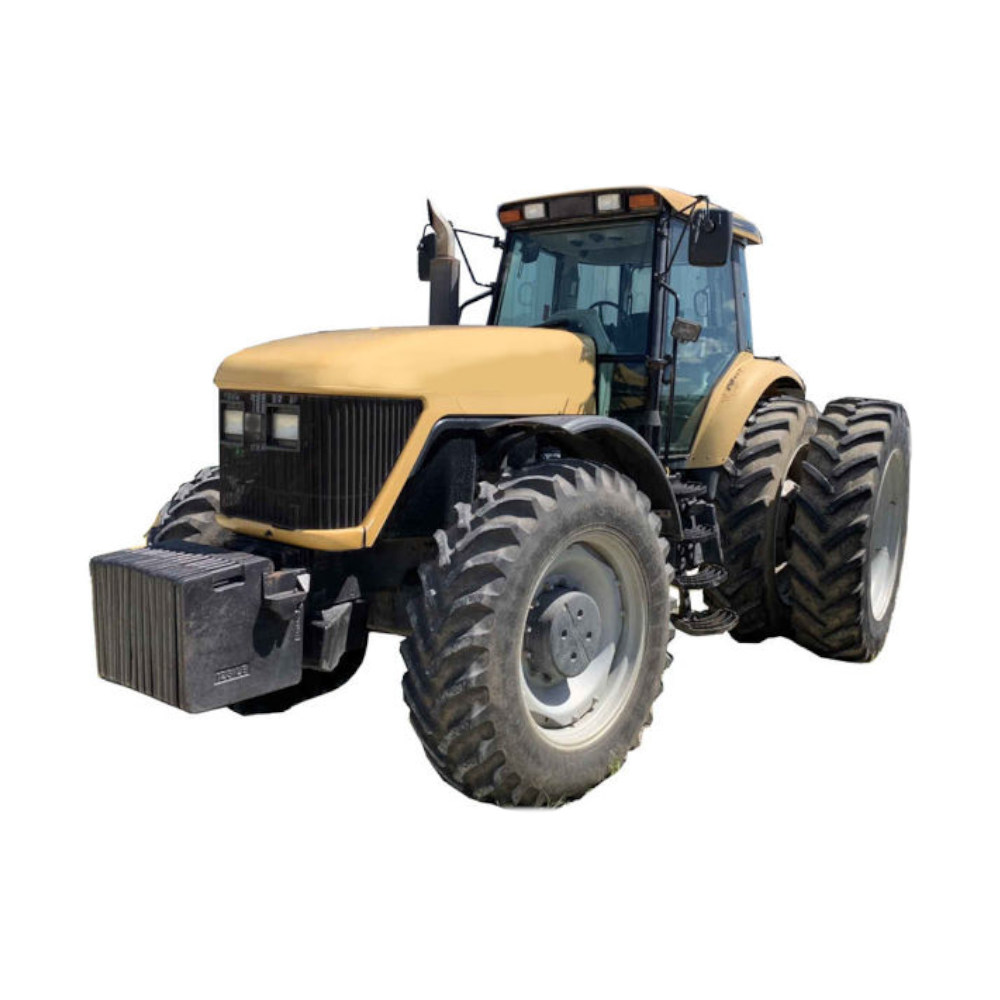

Larsen LED kit for MT6xx series

LED light kit for the MT6xx series tractors
Availability: Please select required attribute(s)
SKU: MT6xx
  • All prices in US $. If importing into Canada there will be brokerage cost collected by UPS. Check the "Canada/World" link on the homepage.
Full Description

Larsen LED kit for MT6xx series.

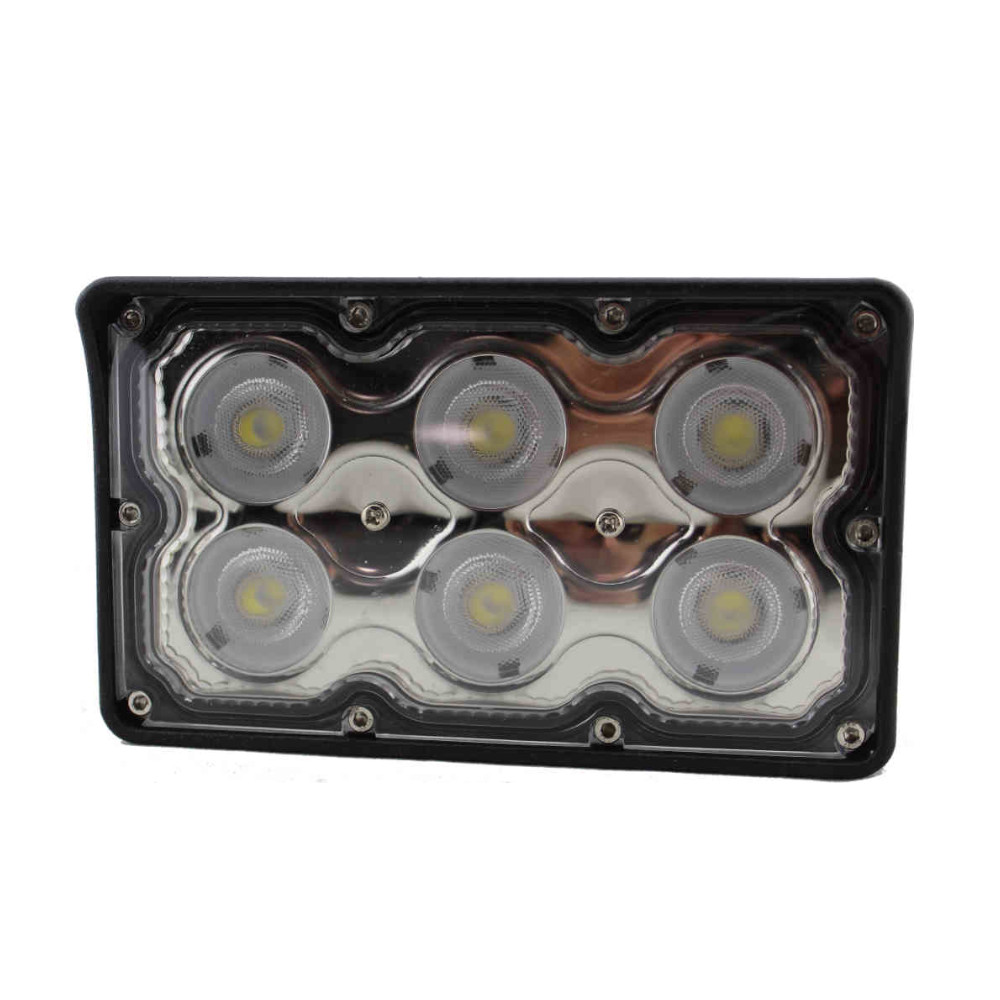

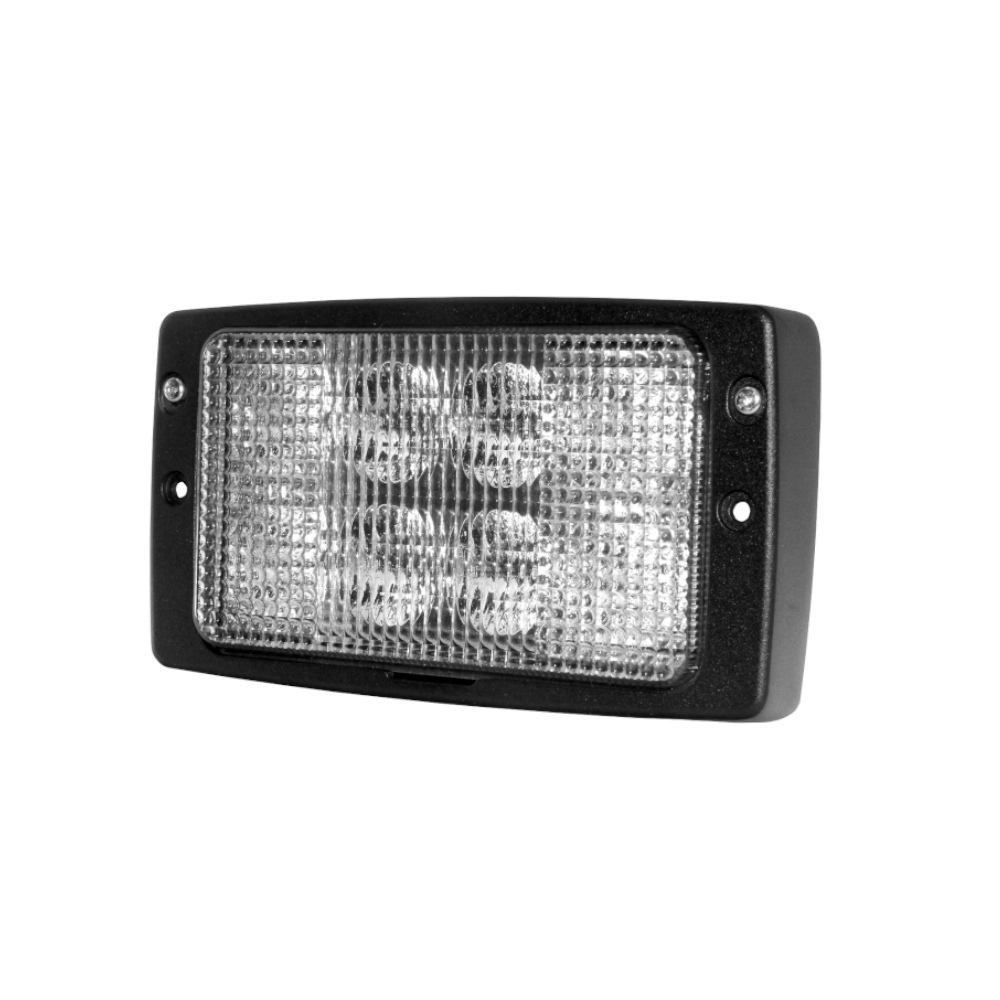

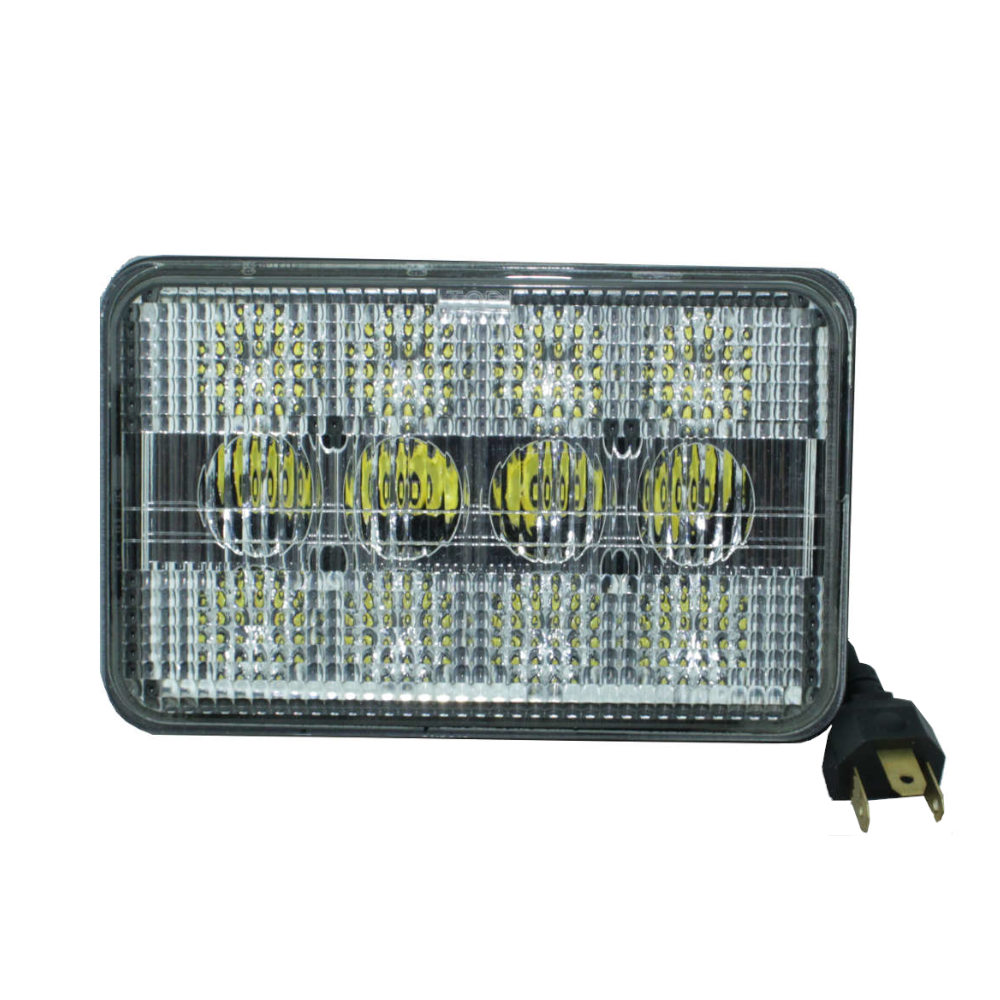

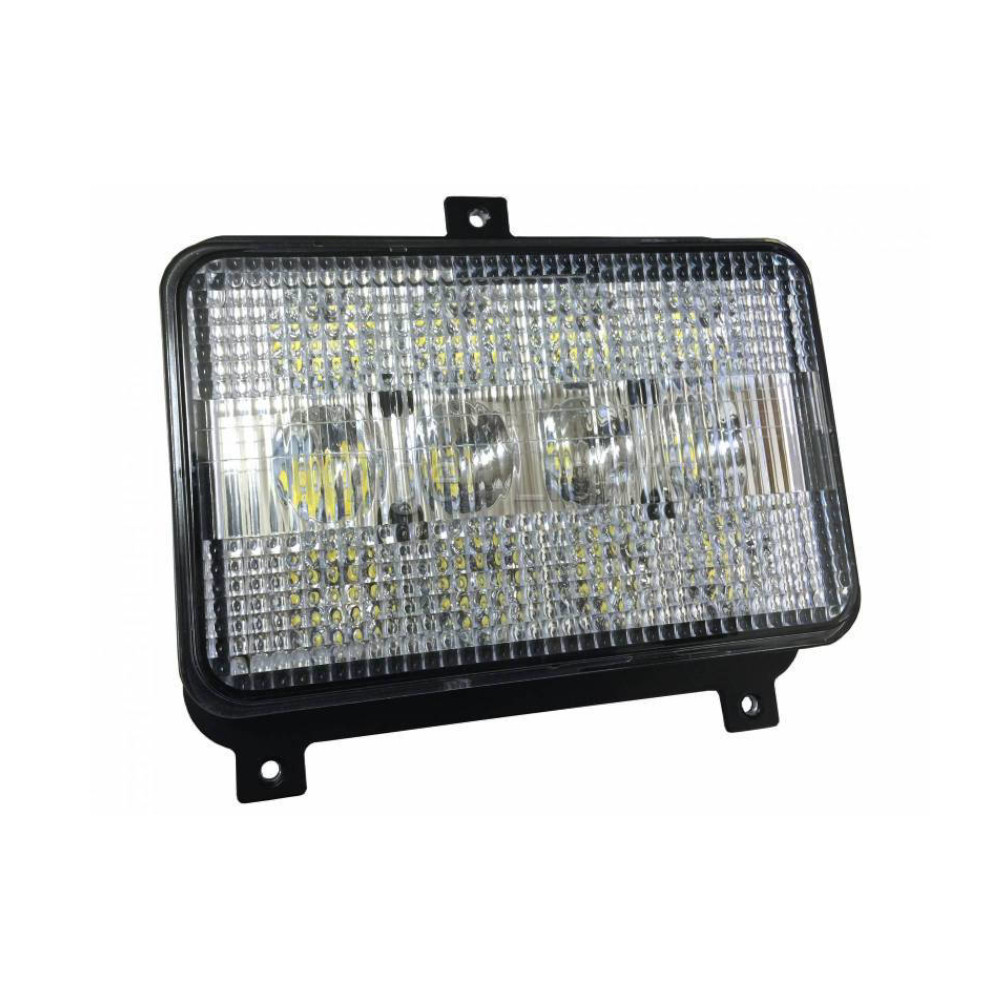

Included in this kit : 2 x TL9090 top front cab lights, 2 x LED-660 60° for front cab belt line lights, 2 x LED-660 80° for rear fenders, 2 x LED-660 60° for rear cab top lights. Add headlights if needed.

Note that the TL9090 top cab lights only work on serial numbers <M126039 - if your tractor does not have the same style lights, this kit will not work.

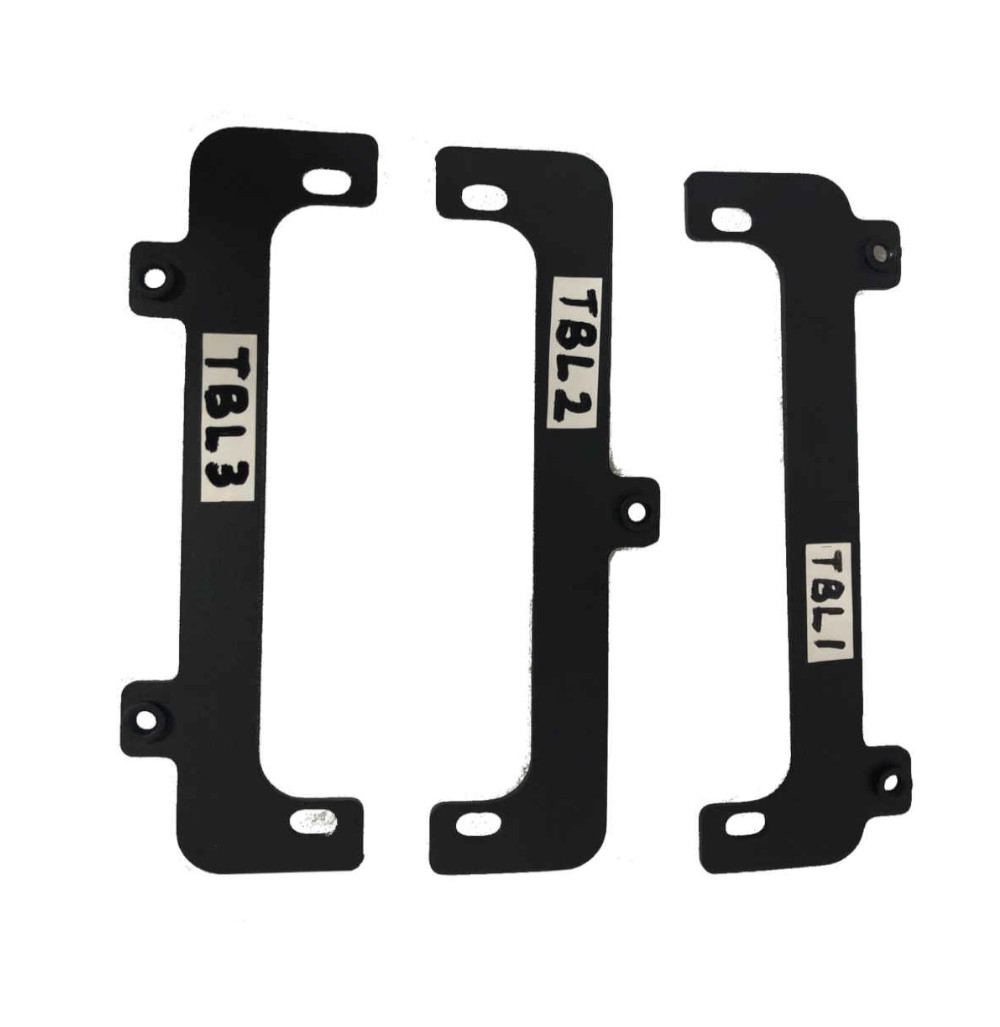

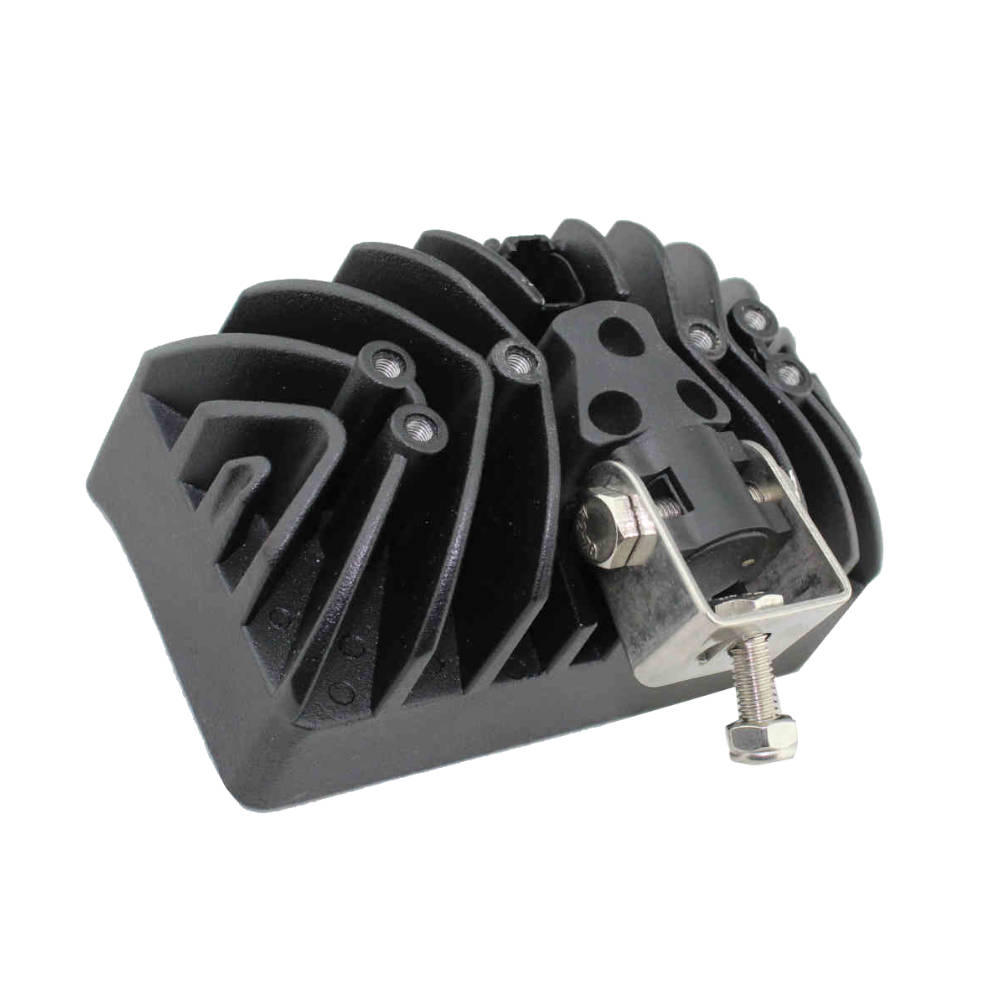

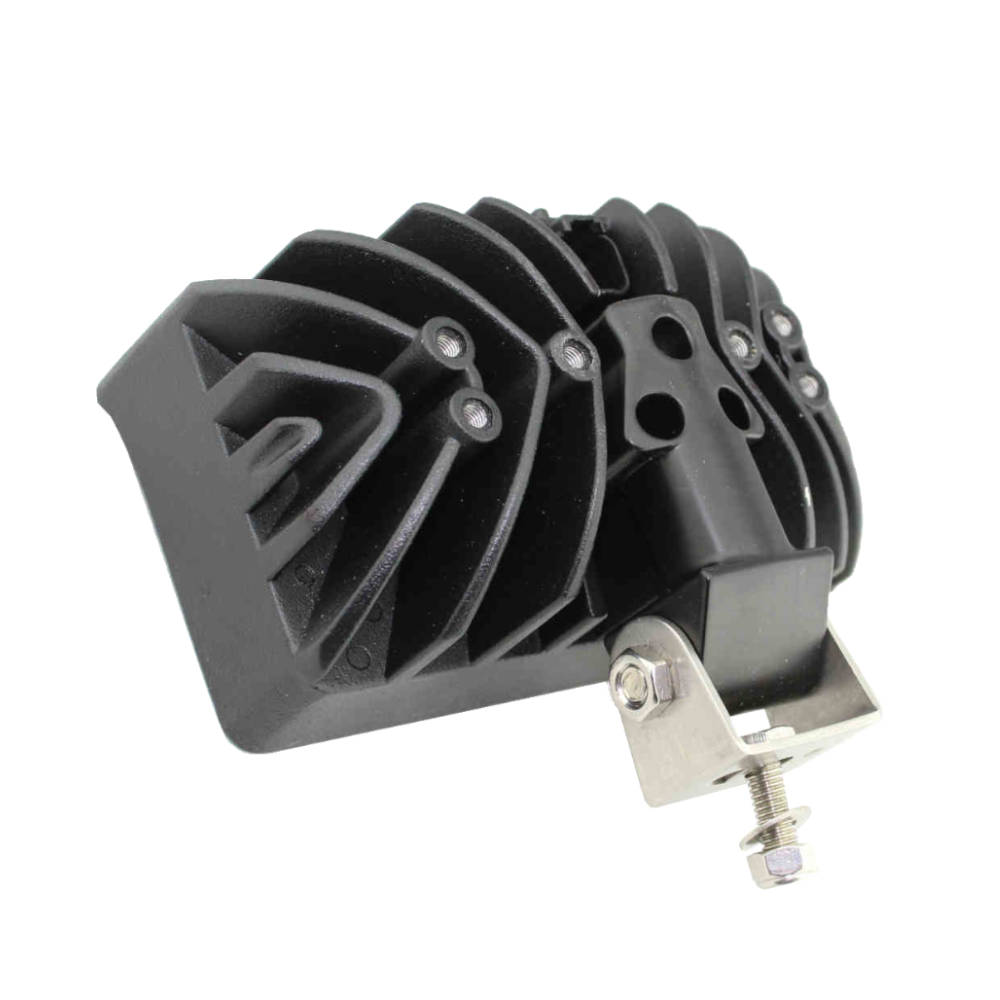

2 extra "solid" mounts included in case they work better on rear top cab lights.

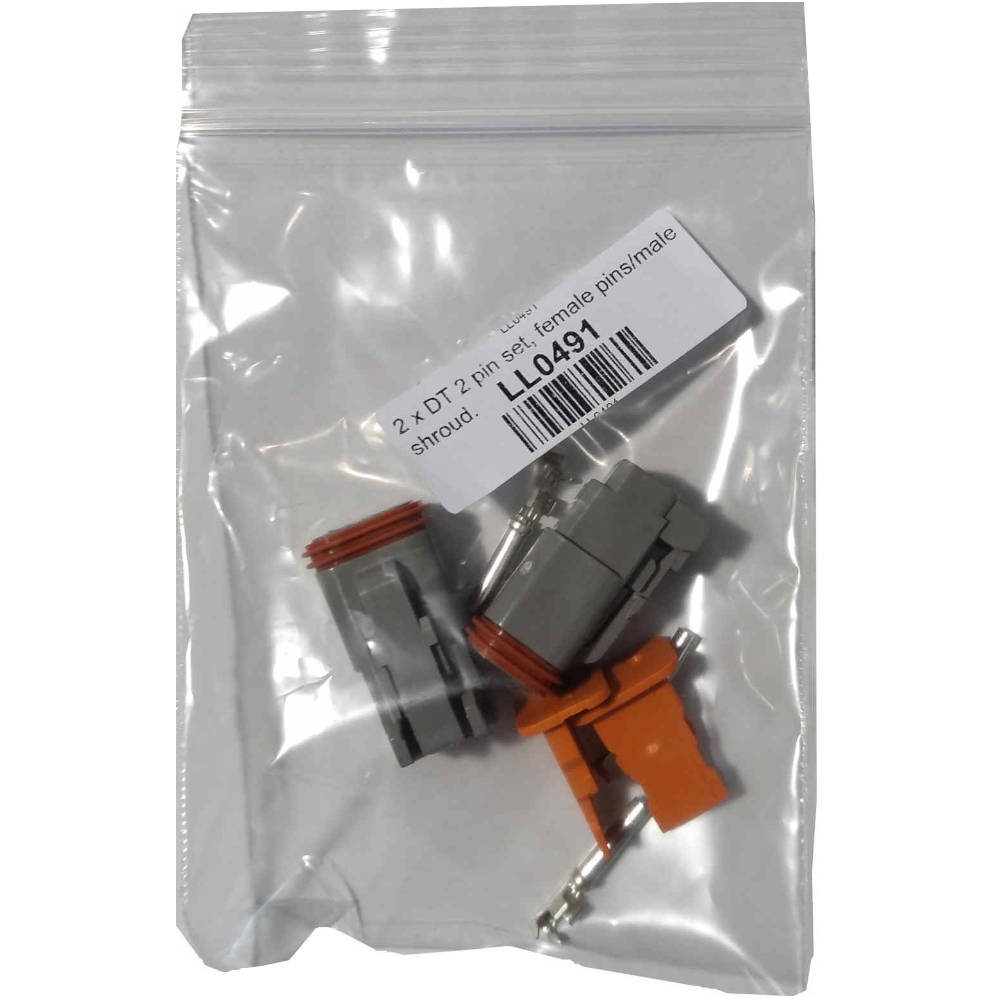

The electrical connectors will not work with our light kit on this model, we have included DT connectors for customer install on the wires - cut the wires on the OEM light right as it enters the light housing, then combine the 2 positive wires and crimp on the new included pin, and do this for the negative wire also. Then install pins/wires into the included DT connector (making sure the polarity is correct) and lock in place with the wedge lock. Now you can connect to the LED light.
