JD 7760
JD 7760 LED-6075 LED-765 LED-765 Dt to WP adapter

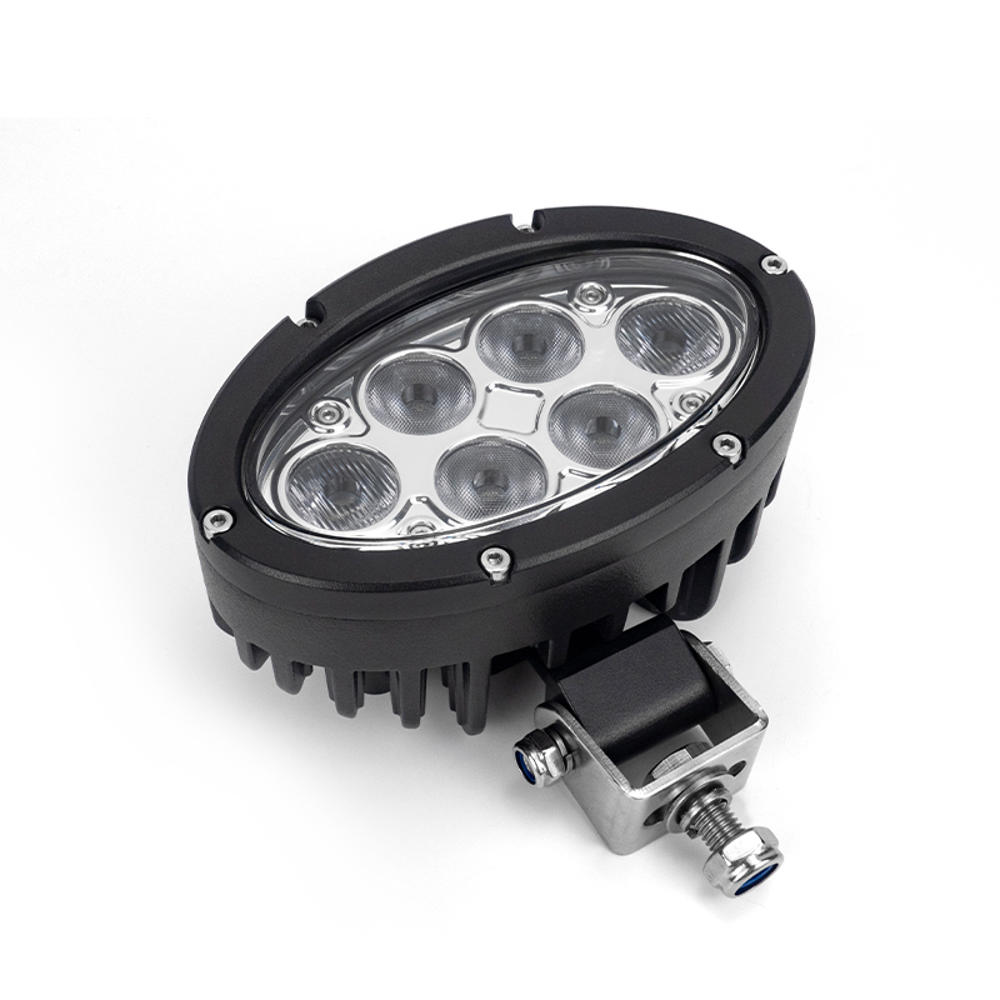

Larsen LED kit for JD Cotton picker using Oval cab lights.

Be the first to review this product
LED light kit for the JD cotton picker/stripper with oval cab lights. This kit will replace the 6 cab lights with the oval LED-6075 series lights - a 6000 lumen, 5500k light. and 6 x LED-765 (4800 lm) oval work lights included for the rest of the lights on this machine - add more if needed. If your machine has HID lights on the cab, we suggest not changing them, you can de-select those in the kit if not required.
SKU: JD Cotton-6075
*
$0.00
+ -
Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

Larsen LED kit for JD Cotton stripper with OVAL cab lights.



LED light kit for the JD cotton picker/stripper with oval cab lights. This kit will replace the 6 cab lights with the oval LED-6075 series lights - a 6000 lumen, 5500k light. and 6 x LED-765 oval work lights included for the rest of the lights on this machine - add 2 more if needed. Use the pigtail included with the LED-765 for the cab lights and the LL0449 adapter wires for the work lights.

If your machine has HID lights on the cab, we suggest not changing them - if you want to update those to LED, you will have to lift the cab roof to by-pass the HID ballast.

Adapters for 2-pin weather pack connectors are included for the LED-765 lights.

7760,



Larsen LED kit for JD Cotton stripper with OVAL cab lights.



LED light kit for the JD cotton picker/stripper with oval cab lights. This kit will replace the 6 cab lights with the oval LED-6075 series lights - a 6000 lumen, 5500k light. and 6 x LED-765 oval work lights included for the rest of the lights on this machine - add 2 more if needed. Use the pigtail included with the LED-765 for the cab lights and the LL0449 adapter wires for the work lights.

If your machine has HID lights on the cab, we suggest not changing them - if you want to update those to LED, you will have to lift the cab roof to by-pass the HID ballast.

Adapters for 2-pin weather pack connectors are included for the LED-765 lights.

7760,



Write your own review
*
*
  • Bad
  • Excellent
Related products / Used in kit
LED-6075 60°

LED-6075 Oval LED Light

LED-6075
LED-6075 Oval LED Light . This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power. Select from 20° / 40° / 60° / 80° beam types. If used on a JD combine, please add adapter wire LL0451.
From $98.00
LED-765

LED-765 Oval LED Light

LED-765 series
LED-765 is a 4x6 style Oval LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5000-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-665.
$76.00
Solid mount for LED-760 / 765

"Solid" Mount Bracket for LED-760/765

LL0721
"Solid" Mount Bracket LED-LED-760/765, for high vibration and JD 20/30 series tractors and 60/70 /"S" series combines, and many others using a 1 3/8" "U" clamp.
$3.00
Deutsch DT compatible to 2 pin Weather Pack 15"

2 pin Deutsch DT compatible to 2 pin Weather Pack 15" adapter cable

LL0449
Cable for connecting the Thomas HP and the LED-765 Oval / 760 Rectangular to tractors and combines that previously used a weather pack 2 pin connector.
$4.50
Customers who bought this item also bought
LED-765

LED-765 Oval LED Light

LED-765 series
LED-765 is a 4x6 style Oval LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5000-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-665.
$76.00
Deutsch DT compatible to 2 pin Weather Pack 4"

2 pin Deutsch DT compatible to 2 pin Weather Pack 4" adapter cable

LL0452
Cable for connecting the Thomas HP and the LED-765 Oval / 760 Rectangular to tractors and combines that previously used a weather pack 2 pin connector.
$3.50
Deutsch DT compatible to 2 pin Weather Pack 15"

2 pin Deutsch DT compatible to 2 pin Weather Pack 15" adapter cable

LL0449
Cable for connecting the Thomas HP and the LED-765 Oval / 760 Rectangular to tractors and combines that previously used a weather pack 2 pin connector.
$4.50
