High Compression Major Overhaul Kit, John Deere 6-404D Diesel Engine

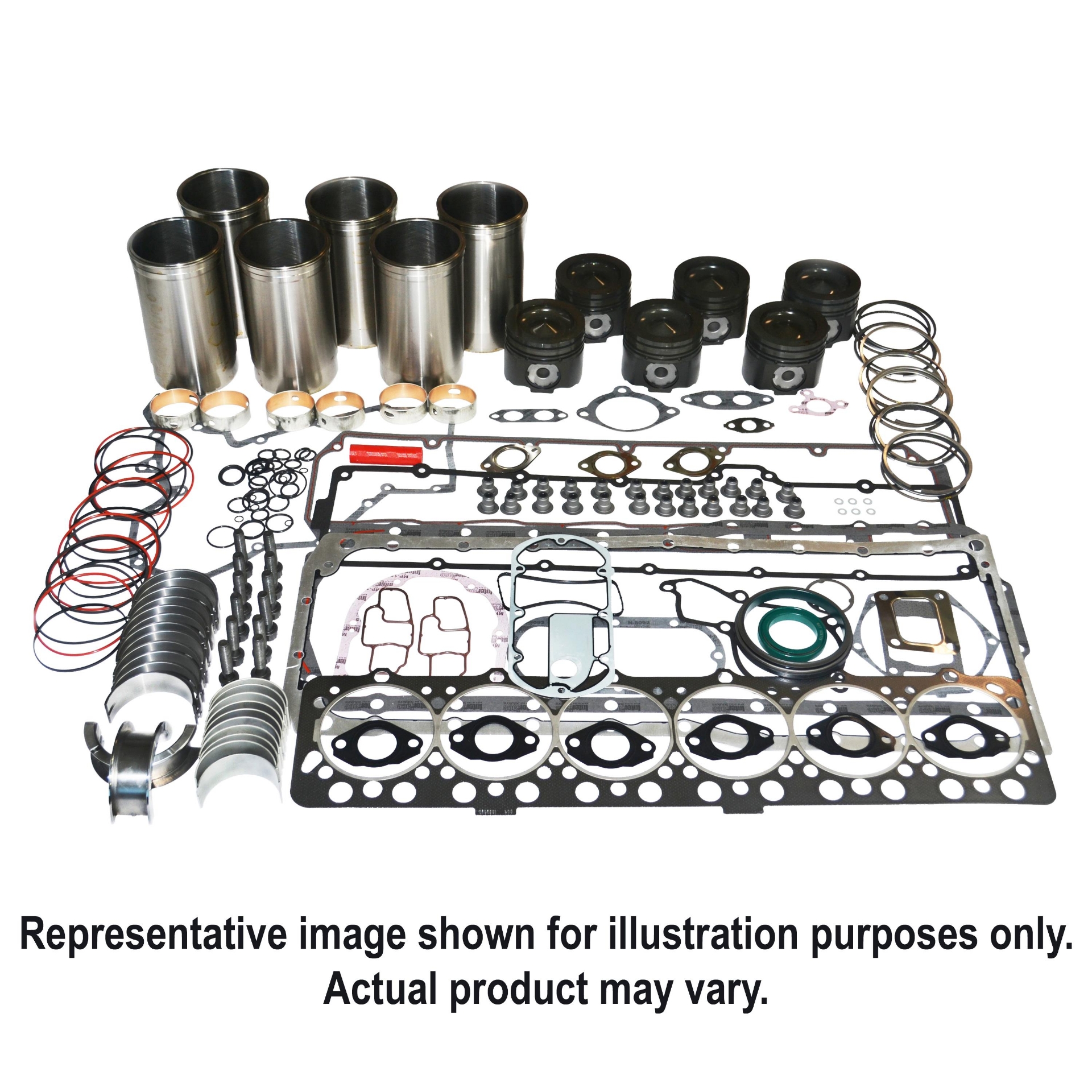

This Overhaul Kit contains Pistons made of hypereutectic aluminum alloy, which makes the piston inherently stronger. It is also more resistant to expansion and contraction, as well as scuff and corrosion resistant. Efficiency improves due to a better seal between the rings and cylinder wall.Includes: (6) HCTRE23173HC Cylinder Kits (6) HCTAR45723 Rod Bearings (6) HCTAR49243 Main Bearings (1) HCTAR49242 Thrust Bearing (1) HCTAR53626 Overhaul Gasket Set (1) HCNAR49025 Front Crank Seal (1) HCNRE520036 Rear Crank Seal (6) HCTR30939 Piston Pin Bushings (4) HCTR46903 Cam Bushings (12) HCTR66452 Connecting Rod BoltsThe HCTRG17901HC High Compression Major Overhaul Kit, John Deere 6-404D Diesel Engine fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCTRG17901HC

Vendor: Hy-Capacity

Availability:

In stock

$1,621.02

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R26070, R33180, R34340, R40890, R40900
Connecting Rod Marked	R26047, R52225, R58880, R69923
Engine Notes	1.500" Piston Pin Diameter, Naturally Aspirated, Original Block
Piston Pin Dia.	1.500"
Engine CID	404
Fuel Type	Diesel
Cylinder Count	6
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R26070, R33180, R34340, R40890, R40900
Connecting Rod Marked	R26047, R52225, R58880, R69923
Engine Notes	1.500" Piston Pin Diameter, Naturally Aspirated, Original Block
Piston Pin Dia.	1.500"
Engine CID	404
Fuel Type	Diesel
Cylinder Count	6
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

HCR17901HC (1)

Use On Below Models (Click to expand)

John Deere

ENGINE: 400 Series 6404 Diesel

TRACTOR: 4000 6404 Diesel, S/N <-214,999, w/ Original Block Marked - R26070, R33180, R34340, R40890, R40900, Connecting Rod Marked - R26047, R58880, R66923, R52225 4010 6404 Diesel, S/N <-214,999, w/ Original Block Marked - R26070, R33180, R34340, R40890, R40900, Connecting Rod Marked - R26047, R58880, R66923, R52225 4020 6404 Diesel, S/N <-214,999, w/ Original Block Marked - R26070, R33180, R34340, R40890, R40900, Connecting Rod Marked - R26047, R58880, R66923, R52225
