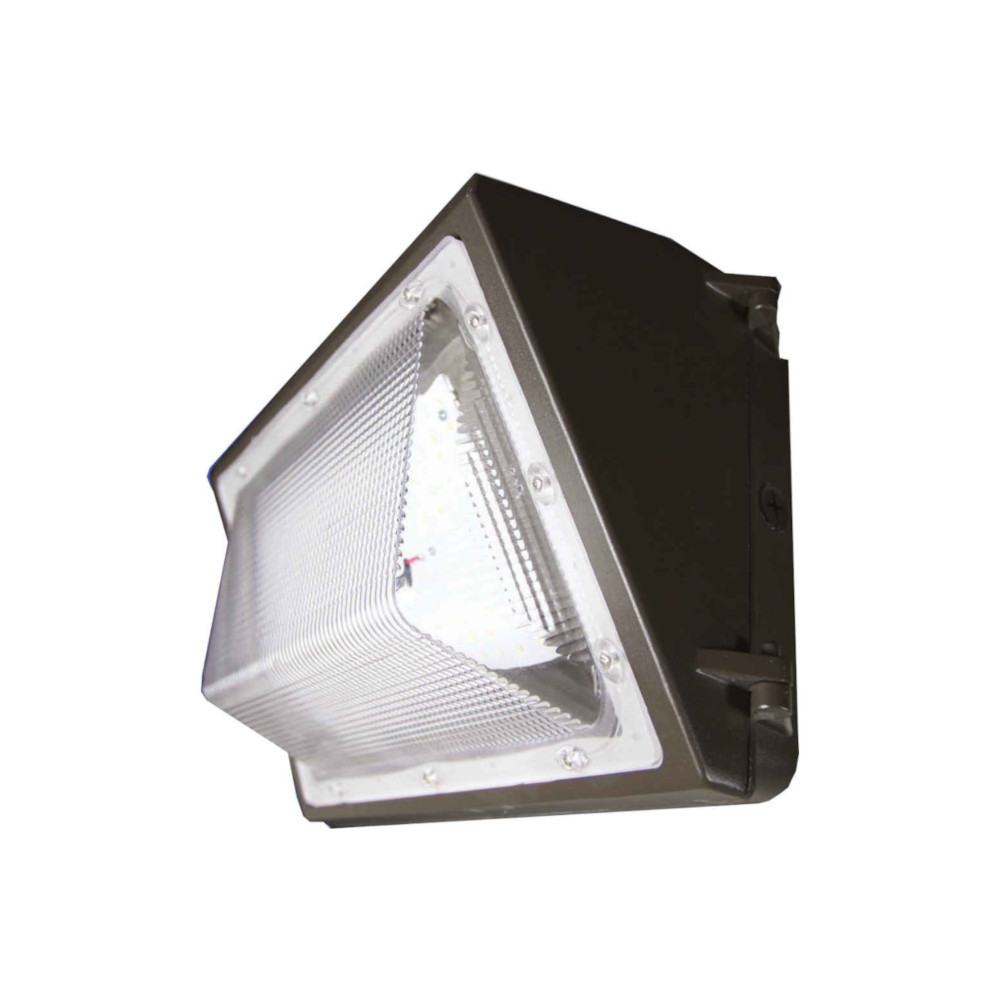

LED Wall Pack by TCP.

Reasons to choose the LED Wall Pack from TCP:

• Energy efficient – Uses less energy than traditional fixtures, resulting in instant energy savings
• Long 50,000 hour rated life minimizes replacements and reduces overall labor costs throughout the life of the fixture
• UL approved for wet locations
• Durable die-cast aluminum housing with impactresistant polycarbonate lens protects the LED in harsh environments

Ideal Applications:

• Site Lighting
• Security Lighting
• Entrances
• Perimeters

See PDF for more info

Input Line Voltage............................ 120V-277V, 120V-347V
Input Line Frequency (Hz)......................................50/60HZ
Wattage(W).............35/45/55W Selectable & 115W Fixed
Lumens(L).......4725/6075/7425L Selectable & 15525L Fixed
Lumens per Watt (LPW)...........................................135LPW
CCT............................................. 2950K, 4000K, 5000K
Rated Life......................................................50,000 hours
Minimum Starting Temperature...........................-40°C (-40°F)
Maximum Operating Temperature......................50°C (122°F)
CRI...........................................................................>80
Power Factor...........................................................>0.95
THD........................................................................<20%
Surge Protection.................................... 4KV (Line to Ground)
Ratings........................................... cULus wet location rated
Controls........... 0-10V Dimming (standard), PC option available
