Sorry - this product is no longer available

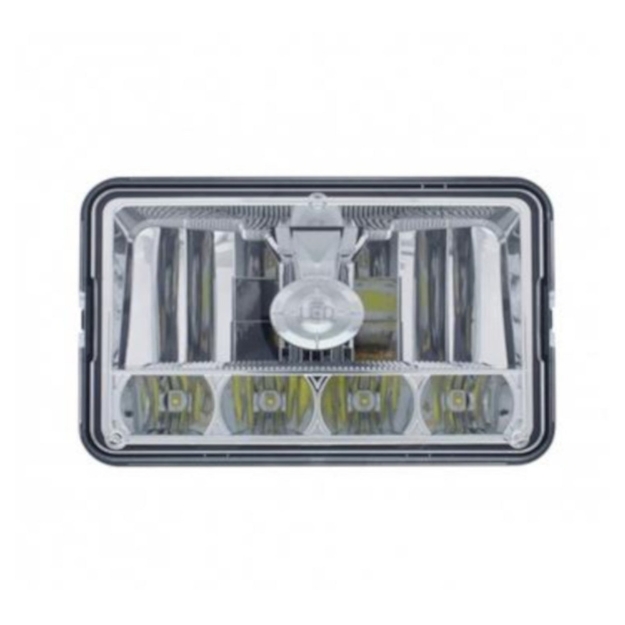

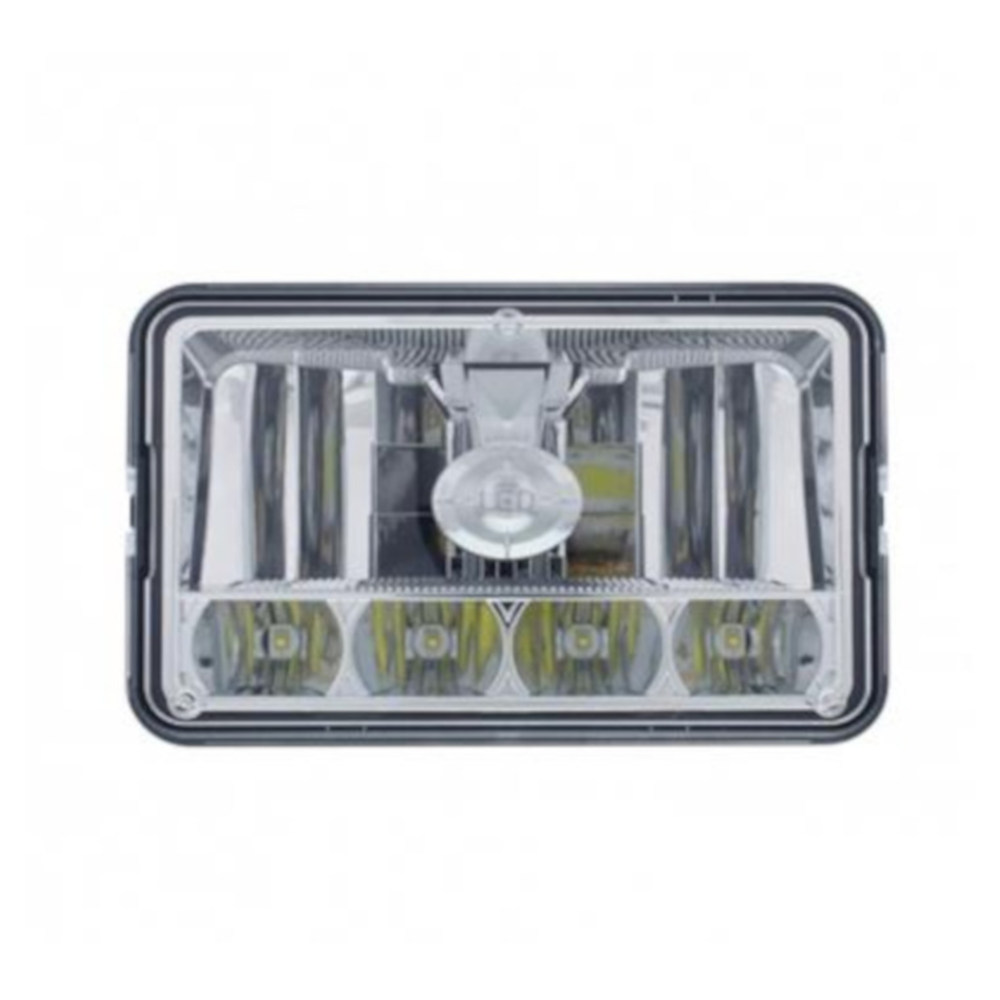

4x6 LED Headlight Hi-Lo, model 31365

DOT approved United Pacific LED headlight, Hi-Lo beam.
SKU: 31365 Hi-Lo SPE
$159.00
+ -
Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

DESCRIPTION



  • 4" x 6” Rectangular Headlight with 1 High Power Cree LED
  • Hi-Lo Beam
  • Solid State Design Resists Shock and Vibration, Impact Resistant Polycarbonate Lens Provides Unparalleled Protection from Road Hazards
  • Improves Visibility with Whiter Light Output that is Closer to Daylight
  • Die-Cast Aluminum Housing Provides Maximum Protection from the Elements

Load Resistor May be Required for Proper Installation

  • SAE/DOT FMVSS108



Technical Specifications

Hi-Lo Beam Version,   4" x 6” One High Power LED Headlight -

  • 12-24V DC Input
  • 0.80 Amps @ 12.8V DC (10.1W)
  • 0.35 Amps @ 28.0V DC (8.96W)
  • Lumen Output: 700 low, and 800 on hi





DETAILS

Dimensions 4" x 6" (165 mm x 100 mm)
Warranty 3 Years
Pack 1 Pc/Card









WARRANTY: 3 YEARS


WARRANTY
General Policy
UPI offers a NO HASSLE WARRANTY RETURN policy. Warranty claims can only be submitted through an authorized UPI Distributor. UPI warranty is not transferable and applies to the original installation and purchase only. UPI warranty varies by product and each item’s warranty period is stated on UPI’s product web page. In no event shall UPI be liable for incidental or consequential damages, nor shall UPI be liable for any claims or damages arising out of or connected with the UPI warranty which exceed the purchase price of the products.

There are no warranties, expressed or implied (including any warranty of merchantability or fitness) that extend beyond this warranty. The warranty does not apply to costs associated with the loss of use of the product, loss of time, inconvenience, commercial loss, incidental or consequential damages. The warranty does not apply to products which are damaged or made defective by faulty or incorrect installation. UPI reserves the right to alter the designs of products without assuming any obligation to modify previously manufactured products and will only replace warrantied products with redesigned products.

Warranty does not apply to merchandise that has been drilled, cut, welded, modified in any way or installed contrary to normal installation and usage. In addition, UPI cannot be held liable for damages caused by road hazards, accidents, misuse, neglect, water intrusion, abuse or corrosive environments including acid washes and highway snow/ice chemicals which can cause discoloration and corrosion in aluminum, chrome, stainless steel, and light products. UPI reserves the right to credit returned merchandise at the initial purchase price or at the current selling price, which price ever is lower.

Aluminum / Chrome / Stainless Steel Products
Aluminum, chrome, and stainless-steel products carry either a limited 6-month warranty, or a limited 1-year warranty (from invoice date) against defects in material or workmanship. Check the product page on our website for specific warranty period.

All Grill Guards (Item # 80000): A) Stainless-steel materials and factory workmanship of the product itself carry a Limited Lifetime warranty. B) The stainless-steel polish and finish have a 12-month warranty. C) This warranty is provided only to the original purchaser/consumer, and on the original installation. Warranty is not transferable. Product failure or breakage due to accident/wreck or improper installation is not covered.

All mounting kits (Item # 80001, 80002, 80003, 80004, 80005): A) Steel Materials and factory workmanship on the sub-assembly bracket carry a Lifetime warranty. B) The painted or zinc finish has a 12-month warranty. C) Any ancillary components and parts (e.g., washers, bolts, spacers, etc.) which are not part of the sub-assembly carry a 12-month warranty. D) This Warranty is provided only to the original purchaser/consumer, and on the original installation. Warranty is not transferable. Product failure or breakage due to accident/wreck or improper installation is not covered.

Lighting Products
Incandescent Lighting:
All incandescent lighting products carry a limited 12-month warranty (from invoice date) against defects in material or workmanship. The limited 12-month warranty does not apply to several applications, such as, buses, construction equipment, and off-road vehicles.

LED Lighting:
All LED lighting products carry a specific Limited Warranty (from invoice date) against defects in material or workmanship.
LED with vehicle-specific application is limited lifetime warranty to an original purchaser with receipt. Examples of lifetime warranty product: CTL5720LED CTL5720LED for 1957 Chevy, FTL3201LED-L for 1932 Ford.
LED Marker, 2”, 2-1/2”, 4”, 7”, Oval & Square Lights - Varies from 2 years to 10 years to Limited Lifetime, depending on specific item. The housing, bezel or mounting base on any light made from Chrome/Stainless carries a 6-month limited warranty.
LED Cab Lights and Kits, Double/Single Stud Turn Signal and PB/ KW/FL/VL or non-make Turn Signals and any/all Strip Lights - Varies from 2 years to 10 years to Limited Lifetime, depending on specific item. The housing, bezel or mounting base on any light made from Chrome/Stainless carries a 6-month limited warranty.
LED Beacon, Driving, Headlights, Work & Warning Lights - Varies from 6 months to 3 years. The housing, bezel or mounting base on any light made from Chrome/Stainless carries a 6-month limited warranty.
All LED Accessory Lights (Honda, Stainless Steel Double/Single face Lights, Interior Lights, License Plate Lights, and any Accent Lights. The housing, bezel or mounting base on any light made from Chrome/Stainless carries a 6-month limited warranty.
For any product that contains any type of light or LED, whether it is a stand-alone light or LED, or part of a larger assembled item (e.g.. Rear light panel), modifying electrical wiring, sockets, lighting pigtails and any electrical connection from the original configuration will void the warranty of both wiring, pigtail and the light or LED unit and cannot be warrantied.
NOTE: Dealers are responsible for shipping charges on warranty replacement items (Exemption: UP will cover shipping cost on Dropship replacement orders the first 12 months of original purchase date).


RETURN
General Policy
All returns must be authorized by UPI. All return requests must be faxed or e-mailed ([email protected]).

An RMA number (Return Merchandise Authorization Number) will be provided. Returns not possessing a valid RMA number are subject to rejection and will be returned to sender at the dealer's expense.All dealers are encouraged to use the Warranty RMA Claim Form and Dealer Portal Dashboard.

Defective Goods / Warranty Return
UPI offers our dealers a No Hassle Warranty Return. Please follow the instructions below for requesting an RMA for defective goods:

1. If any warranty issues occur, simply contact the UPI for RMA number. To make it easy for you we have three acceptable methods for requesting the RMA.
Dealer Portal Dashboard
Email: [email protected]
Fax: 888-986-5988
Note: To ensure you receive a timely RMA credit, we cannot accept RMA requests by phone.

2. You will be required to provide the following information:
Your business name
Contact name and telephone number (in case we have questions)
A list of the defective item number and quantity with the nature/reason of the defect
Special instructions you have for us
The enclosed fax form may be used for your convenience to request an RMA
3. UPI will review the request to ensure the products are within the stated warranty period.

4. Once we have validated the warranty items, an RMA confirmation, listing the items and cost will be faxed to the dealer within 3 business days. UPI will process the credit to your account within 30 days.

Note: The majority of the time there will be no need to return the warranty product to us. However, from time to time, UPI may require some warranty products to be shipped back so we may analyze the cause of the failure. All warranty products that are required to be shipped back will be freight prepaid by UPI.

Stock Return - USA Only
United Pacific Industries encourages all dealers to regularly monitor the sales volume and stock level of their inventory items. As sales trends may slow the movement of specific items, our hope is that those items are featured as "close-out specials" as to minimize stock returns. We also understand that the dealer, from time to time, may accumulate over-stock items and desire to return those. Therefore, we have adopted the following policy.

NOTE:
Items must have been purchased by the United States dealer requesting the stock return.
Items must have been purchased within the preceding 12 months.
Items that have been discontinued will not be considered for return.

1. Contact the United Pacific for RMA number. We have 3 acceptable methods for requesting the RMA:
Dealer Portal Dashboard
Email: [email protected]
Fax: 888-986-5988
Note: To ensure you receive a timely RMA credit, we cannot accept RMA requests by phone.

2. You will be required to provide the following information:
Your business name
Contact name and telephone number (in case we have questions)
A list of the defective item number and quantity with the nature/reason of the defect
Special instructions you have for us
3. Your claim will be reviewed within 5 business days, and you will be contacted by your sales representative who will discuss solutions to liquidate these slow-moving items.

4. In the event United Pacific and the dealer agree to a credit in lieu of returning the items, this credit will be issued within 10 business days.

5. In the event items are returned by the dealer, United Pacific will issue an RMA number to the dealer. Once the RMA is issued, the following conditions will apply:
Returned items are subject to a 20% re-stocking fee.
Return shipping costs are the responsibility of the dealer.
Items must not have any retail/price sticker on exterior package/box/card, or they will be returned to the dealer at dealer's expense and no credit given.
Items must be in good condition with original packaging intact, unblemished and in re-sellable condition, or they will be returned to the dealer at dealer's expense and no credit given.
Allow up to 30 days for the credit to be issued from the time the returned items are received.
6. Stock returns may be requested throughout the year and are subject to final approval by United Pacific.




CLOSEOUT / DISCONTINUE
UPI will not warranty or accept returns on Closeout/Discontinued items.

Procedure:
An inventory of the merchandise being returned must accompany each return. The RMA number should be prominently displayed on each carton/box.

All Returns must be returned freight prepaid.

Ship Returns to:
United Pacific Industries
Attn: Returns Department
3788 E. Conant St.
Long Beach, CA 90808

RMA:
Outstanding RMA's will be automatically cancelled if not used within 30 days of issuance.




DISCLAIMER
United Pacific Industries reserves the right to amend or update our Policies & Procedures without notice.

United Pacific Industries is not responsible for typographical, product information or graphic errors. Specifications on this website may be changed without advance notice. Products may look different from those in the photos on this catalog due to printing quality.



DESCRIPTION



  • 4" x 6” Rectangular Headlight with 1 High Power Cree LED
  • Hi-Lo Beam
  • Solid State Design Resists Shock and Vibration, Impact Resistant Polycarbonate Lens Provides Unparalleled Protection from Road Hazards
  • Improves Visibility with Whiter Light Output that is Closer to Daylight
  • Die-Cast Aluminum Housing Provides Maximum Protection from the Elements

Load Resistor May be Required for Proper Installation

  • SAE/DOT FMVSS108



Technical Specifications

Hi-Lo Beam Version,   4" x 6” One High Power LED Headlight -

  • 12-24V DC Input
  • 0.80 Amps @ 12.8V DC (10.1W)
  • 0.35 Amps @ 28.0V DC (8.96W)
  • Lumen Output: 700 low, and 800 on hi





DETAILS

Dimensions 4" x 6" (165 mm x 100 mm)
Warranty 3 Years
Pack 1 Pc/Card
