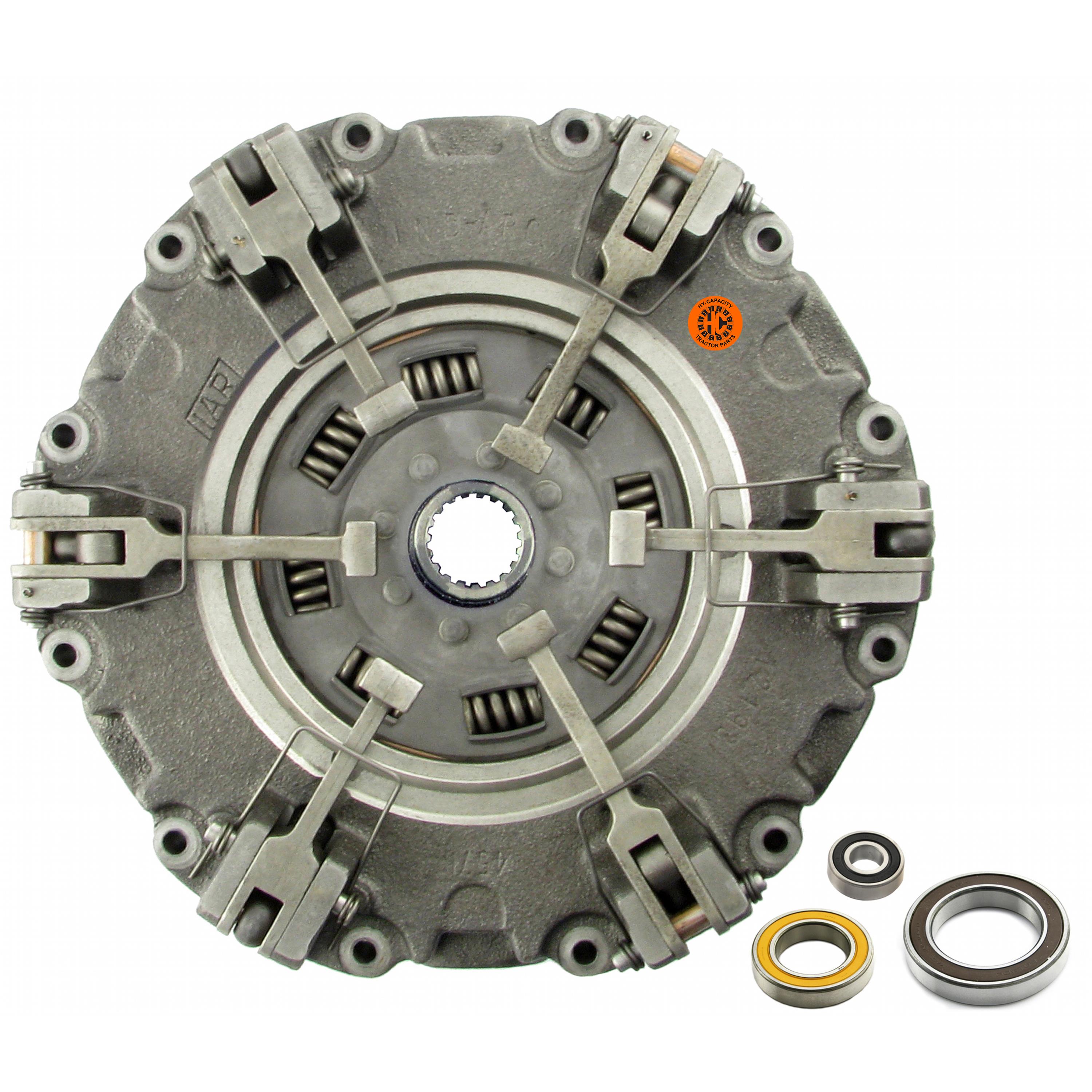

11" Dual Stage Clutch Kit, w/ Bearings - New

Be the first to review this product

Check that the flywheel disc is free after installation.Includes: R42515N (PPA w/ Transmission and PTO Discs), 830701 (Transmission Release Bearing), 830664 (PTO Release Bearing) & 836203 (Pilot Bearing)The R42515N KIT 11" Dual Stage Clutch Kit, w/ Bearings - New fits equipment brands such as: John DeereThe R42515N KIT is a substitute for the following discontinued products: R42515R KIT

Manufacturer: Hy-Capacity

SKU: R42515N KIT

Vendor: Hy-Capacity

Availability:

In stock

$755.94

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	Self Contained
PPA Levers	6
Captive Disc Spec	5 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec	Woven; 1" 13 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	Self Contained
PPA Levers	6
Captive Disc Spec	5 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec	Woven; 1" 13 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

PG200635 (3)
,
RE42515 (3)
,
RE66695 (3)
,
R42515NKIT (1)
,
RE42515 (3)
,
RE66695 (3)

Use On Below Models (Click to expand)

John Deere

Tractor: 5200 w/ Collarshift, TSS or Synchronized Reverser Transmissions 5210 Prior S/N 321726, w/ Collarshift or Synchshuttle Transmission 5300 w/ Collarshift, TSS or Synchronized Reverser Transmissions 5310 Prior S/N 332930, w/ Collarshift or Synchshuttle Transmission 5310N Prior to S/N 337354, w/ Collarshift, TSS or Synchronized Reverser Transmissions, Positively Identify Clutch before ordering 5400 w/ Collarshift, TSS or Synchronized Reverser Transmissions 5400N w/ Collarshift, TSS or Synchronized Reverser Transmissions 5410 Prior S/N 342473, w/ Collarshift or Synchshuttle Transmission 5415 S/N <-002287 w/ Collarshift or Synchshuttle Transmission, Positively Identify Clutch before ordering 5500 w/ Collarshift, TSS or Synchronized Reverser Transmissions 5500N w/ Collarshift, TSS or Synchronized Reverser Transmissions, Positively Identify Clutch before ordering 5510 Prior S/N 351742, w/ Collarshift or Synchshuttle Transmission 5510N Prior to S/N 357402, w/ Collarshift, TSS or Synchronized Reverser Transmissions 5600 Positively Identify Clutch Before Ordering 5615 S/N <-002318 w/ Collarshift or Synchshuttle Transmission, Positively Identify Clutch before ordering 5700 Positively Identify Clutch before ordering 5715 S/N <-003600 w/ Collarshift or Synchshuttle Transmission, Positively Identify Clutch before ordering
