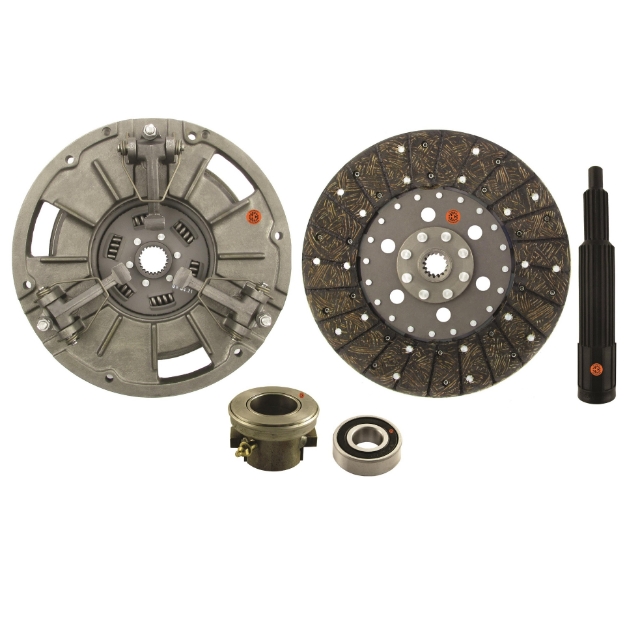

11" Dual Stage Clutch Kit, w/ Bearings - New

The clutch alignment tool is for installation purposes & is not returnable.Includes: R55140N (PPA), R66923 (Disc), R830696 (Greaseable Release Bearing & Carrier), 836202 (Pilot Bearing) & 8301567 (Clutch Alignment Tool)Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross ShaftThe R55140N KIT 11" Dual Stage Clutch Kit, w/ Bearings - New fits equipment brands such as: John DeereThe R55140N KIT is a substitute for the following discontinued products: R55140

Manufacturer: Hy-Capacity

SKU: R55140N KIT

Vendor: Hy-Capacity

Availability:

In stock

$629.74

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	2.200" - 2.210"
PPA Levers	3
Captive Disc Spec	Woven; 1-1/2" 23 Spline Hub; Spring Center
Flywheel Disc Spec	Woven; 1" 15 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	2.200" - 2.210"
PPA Levers	3
Captive Disc Spec	Woven; 1-1/2" 23 Spline Hub; Spring Center
Flywheel Disc Spec	Woven; 1" 15 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

R55140N - Instruction Guide (3)

Use On Below Models (Click to expand)

John Deere

Tractor: 1020 Mannheim Germany Tractor, Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 1030 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 1040 Kit includes Release Bearing w/ Continuous Running PTO 1120 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 1130 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 1140 Kit includes Release Bearing w/ Continuous Running PTO 1630 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 1640 Kit includes Release Bearing w/ Continuous Running PTO 2020 Mannheim Germany Tractor, Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 2030 Mannheim Germany Tractor, Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 2040 USA Tractor Prior S/N 350000 & Mannheim Germany Tractor All S/N, Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 2120 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 2130 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 2150 Kit includes Release Bearing w/ Continuous Running PTO 2155 Kit includes Release Bearing w/ Continuous Running PTO 2240 Prior S/N 350000, Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 2350 Kit includes Release Bearing w/ Continuous Running PTO 2355 Kit includes Release Bearing w/ Continuous Running PTO 820 USA Tractor, Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 830 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 840 Kit includes Release Bearing w/ Continuous Running PTO 930 Kit includes Carrier used with Clutch Forks that are Roll Pinned to the Cross Shaft 940 Kit includes Release Bearing w/ Continuous Running PTO
