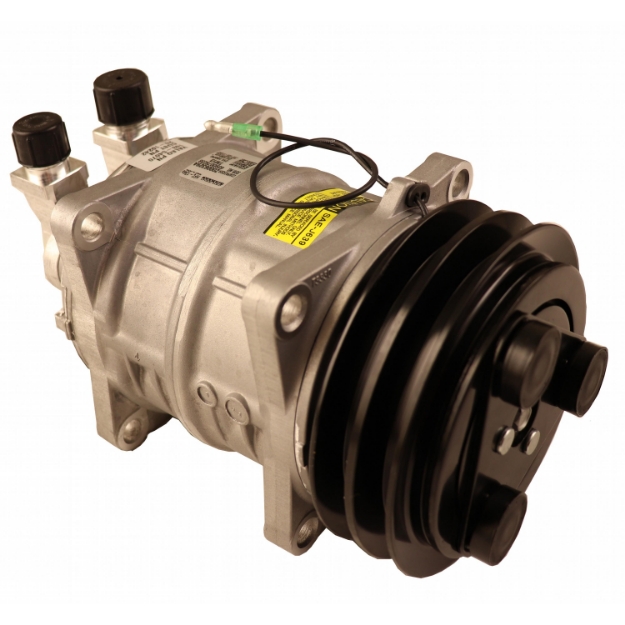

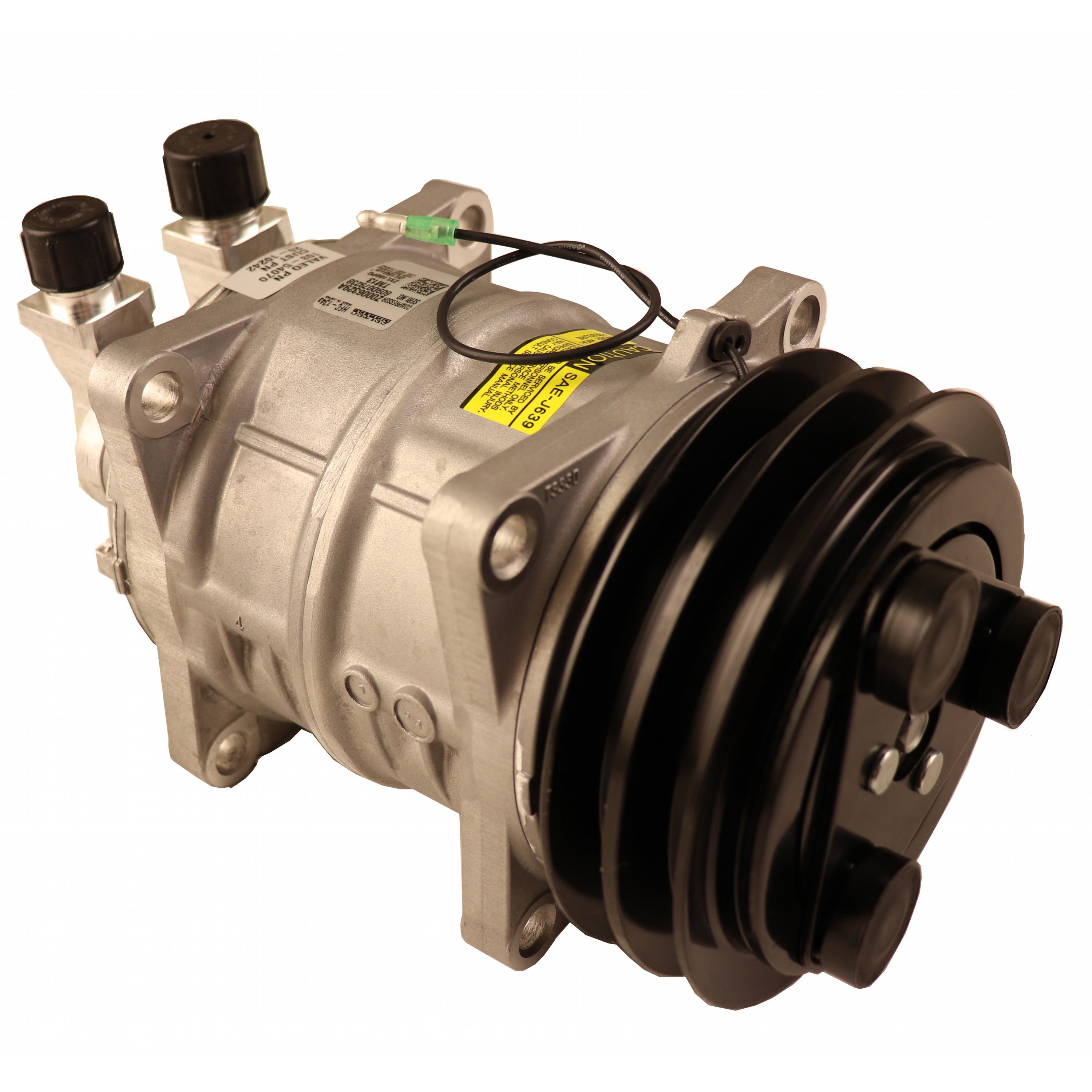

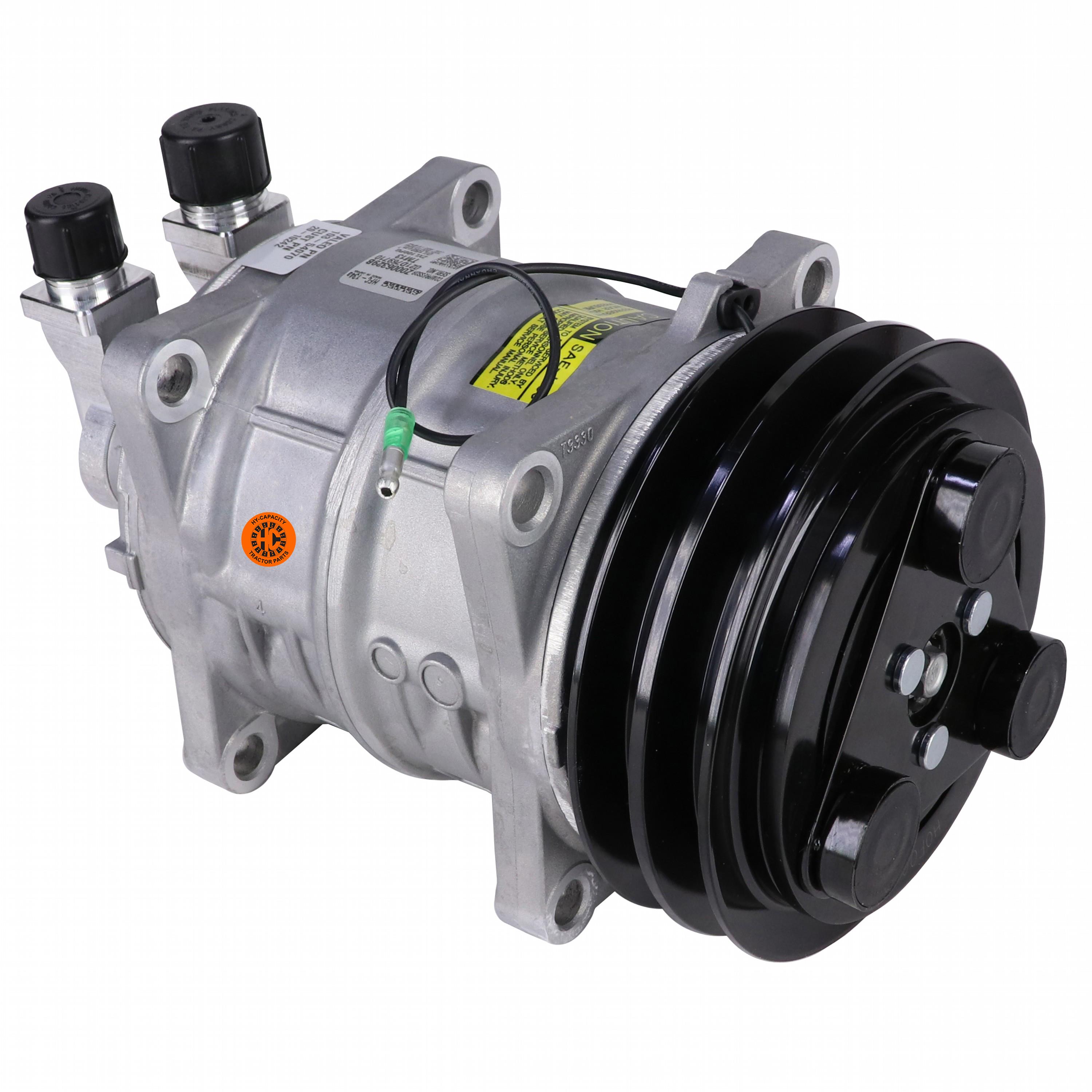

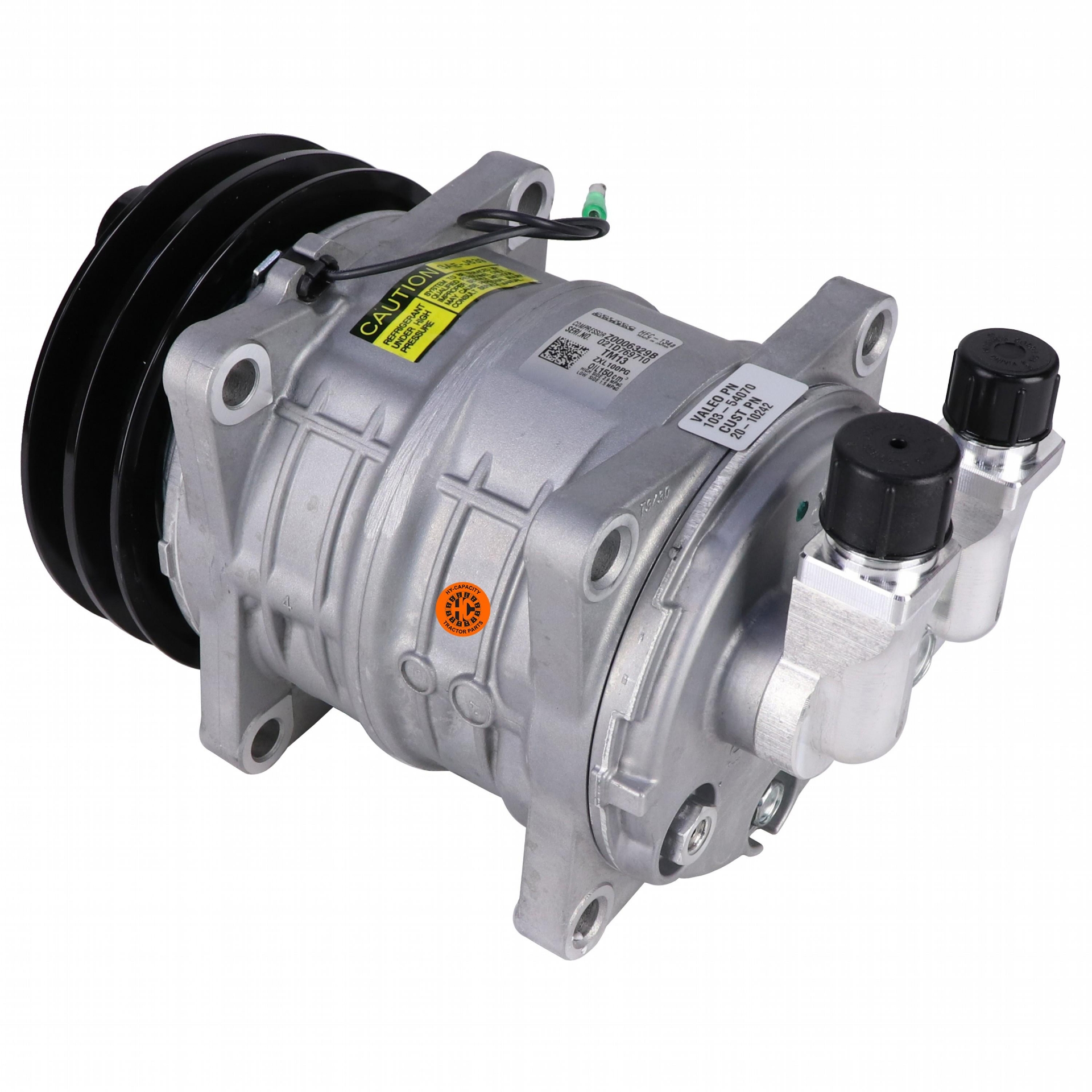

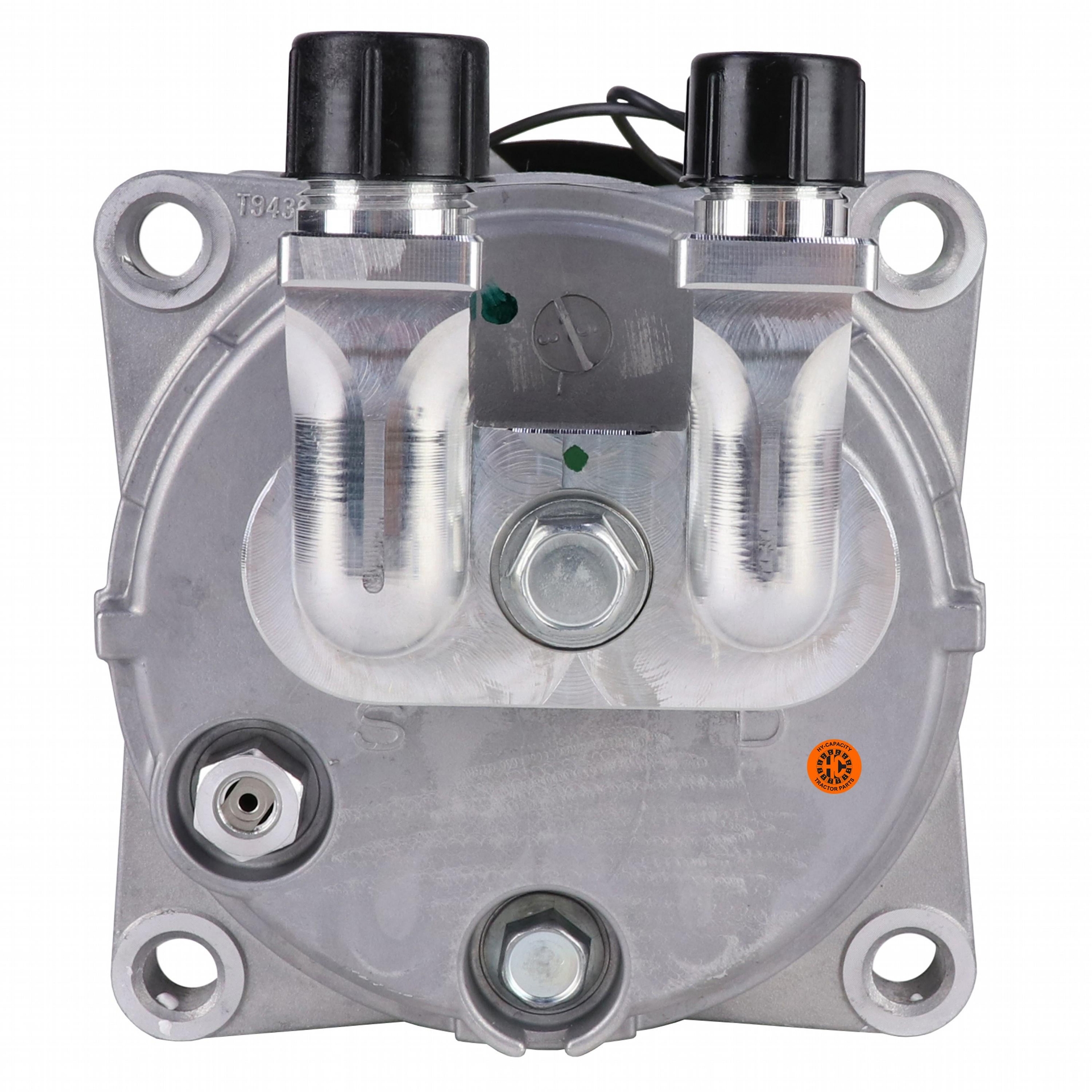

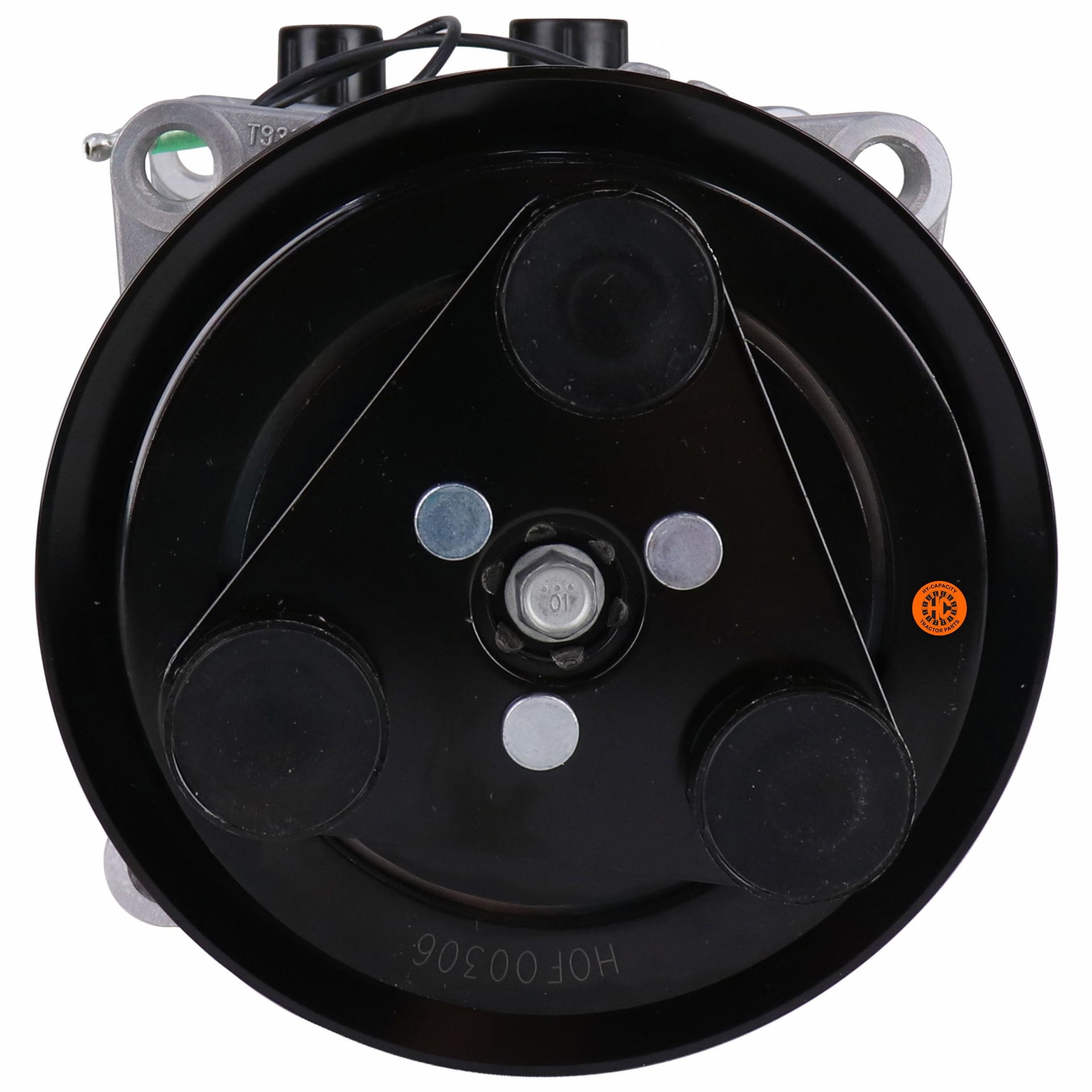

Seltec/Tama TM13-HD Compressor, w/ 2 Groove Clutch - New

Be the first to review this product

Manifold w/ charging ports (##88141F##) needed if using as an option for ##88351224##.

Manufacturer: Vendor: Hy-Capacity

SKU: 8810242

Availability:

Out of stock

$396.68

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Compressor Type	Seltec/Tama
Compressor Model	TM13-HD
Cylinder Head	BO
Grooves	2
Clutch Diameter	5.25"
Fittings	Horizontal Pad
Mount Type	Ear
Coil Position	12:00
Volts	12V
Oil Type	PAG 46 Oil / SP10 (Pre-Filled 5 oz.)
Refrigerant	R134A
New/Reman	New
Quality	Aftermarket
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Compressor Type	Seltec/Tama
Compressor Model	TM13-HD
Cylinder Head	BO
Grooves	2
Clutch Diameter	5.25"
Fittings	Horizontal Pad
Mount Type	Ear
Coil Position	12:00
Volts	12V
Oil Type	PAG 46 Oil / SP10 (Pre-Filled 5 oz.)
Refrigerant	R134A
New/Reman	New
Quality	Aftermarket
Sold As	Each
Warranty	1 Year

Product tags

Use On Below Models (Click to expand)

Ag-Chem

Sprayer: RoGator 654 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## RoGator 654 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F

Bobcat

Skid Steer Loader: S160 Must re-use OE Manifold or order Hy-Cap Manifold ##88142## S185 Must re-use OE Manifold or order Hy-Cap Manifold ##88142## S205 Must re-use OE Manifold or order Hy-Cap Manifold ##88142## T180 Must re-use OE Manifold or order Hy-Cap Manifold ##88142## T190 Eff. S/N A3LN11001 & Above, Eff. S/N A3LP11001 and Above, Must re-use OE Manifold or order Hy-Cap Manifold ##88142##

Case IH

Tractor: CS110 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor CS120 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor CS130 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor CS150 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor CS75 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor CS78 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor CS86 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor CS94 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor

Windrower: 8820 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 8820 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 8830 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 8830 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 8840 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 8840 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F##

Claas

Telehandler: Targo Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor

Deutz

Tractor: D5207 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## D5207 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F

Ford

Tractor: FW20 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F FW20 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## FW30 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## FW30 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F FW40 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F FW40 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## FW60 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## FW60 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F

Gehl

Skid Steer Loader: 7810 Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor 7810E Also Order 88141 Manifold if Charging Ports Are Needed On The Compressor

Hagie

Sprayer: 8370 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 8370 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 8380 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 8380 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F

Hesston-Fiat

Windrower: 6450 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 6450 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 6455 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 6455 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 6550 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 6550 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 6555 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 6555 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 6650 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 6650 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 6655 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 6655 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 7600 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 7600 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 8100 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 8100 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F

JCB

Wheel Loader: 145 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 145 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 155 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 155 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 165 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 165 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 185 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 185 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F

SpraCoupe

Sprayer: 220 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 220 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 230 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 230 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 3450 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 3450 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 4650 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## 4650 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 4655 R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F 4655 R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F##

Steiger

Tractor: Bearcat Series I Bearcat Series I R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Bearcat Series I R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Bearcat Series II R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Bearcat Series II R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Bearcat Series II Bearcat Series III Bearcat Series III R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Bearcat Series III R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Bearcat Series IV R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Bearcat Series IV R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Bearcat Series IV CM225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F CM225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## CM225 Bearcat CM250 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F CM250 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## CM280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F CM280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## CM325 Panther CM325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## CM325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F CM360 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F CM360 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## CM360 Panther Cougar Series Series I, II, III, IV Cougar Series I R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Cougar Series I R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Cougar Series II R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Cougar Series II R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Cougar Series III R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Cougar Series III R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Cougar Series IV R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Cougar Series IV R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## CS280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F CS280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## KM225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F KM225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## KM225 Bearcat KM280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F KM280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## KM325 Panther KM325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## KM325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F KM360 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F KM360 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## KM360 Panther Panther Series I Panther Series I R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Panther Series I R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Panther Series II R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Panther Series II R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Panther Series II Panther Series III Panther Series III R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Panther Series III R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Panther Series IV R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Panther Series IV R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Panther Series IV PT225 Bearcat PT225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PT225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PT250 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PT250 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PT270 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PT270 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PT350 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PT350 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PT350 Panther PTA251 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PTA251 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PTA270 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PTA270 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PTA280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PTA280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PTA297 Panther PTA297 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PTA297 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PTA310 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PTA310 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PTA310 Panther PTA325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F PTA325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## PTA325 Panther RC200 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## RC200 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F RC210 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F RC210 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## RC225 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## RC225 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F SM325 Panther SM325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## SM325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST200 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST200 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST210 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST210 Wildcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST220 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST220 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST220 Bearcat ST225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST225 Bearcat R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST225 Bearcat ST250 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST250 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST251 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST251 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST270 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST270 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST280 Cougar R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST310 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST310 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST310 Panther ST320 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST320 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST320 Panther ST325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST325 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST325 Panther ST350 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F ST350 Panther R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## ST350 Panther Super Wildcat Series I R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Super Wildcat Series I R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Super Wildcat Series II R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Super Wildcat Series II R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Tiger Series I R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Tiger Series I R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Tiger Series I Tiger Series II Tiger Series II R134A Seltec Compressor, w/o Charging Ports, Optional For ##88351224##, Also Order ##88141F## Tiger Series II R134A Seltec Compressor, w/o Charging Ports, Optional For 88351224, Also Order 88141F Wildcat Series Series III Wildcat Super Series Series I, II

Willmar

Sprayer: Air-Ride 745 R134A Compressor, w/o Charging Ports Air-Ride 765 R134A Compressor, w/o Charging Ports Air-Ride 765HT R134A Compressor, w/o Charging Ports Eagle 8100 R134A Compressor, w/o Charging Ports Eagle 8200 R134A Compressor, w/o Charging Ports Eagle 8400 R134A Compressor, w/o Charging Ports Eagle 8500 R134A Compressor, w/o Charging Ports Ranger 7200 R134A Compressor, w/o Charging Ports Ranger 7400 R134A Compressor, w/o Charging Ports
