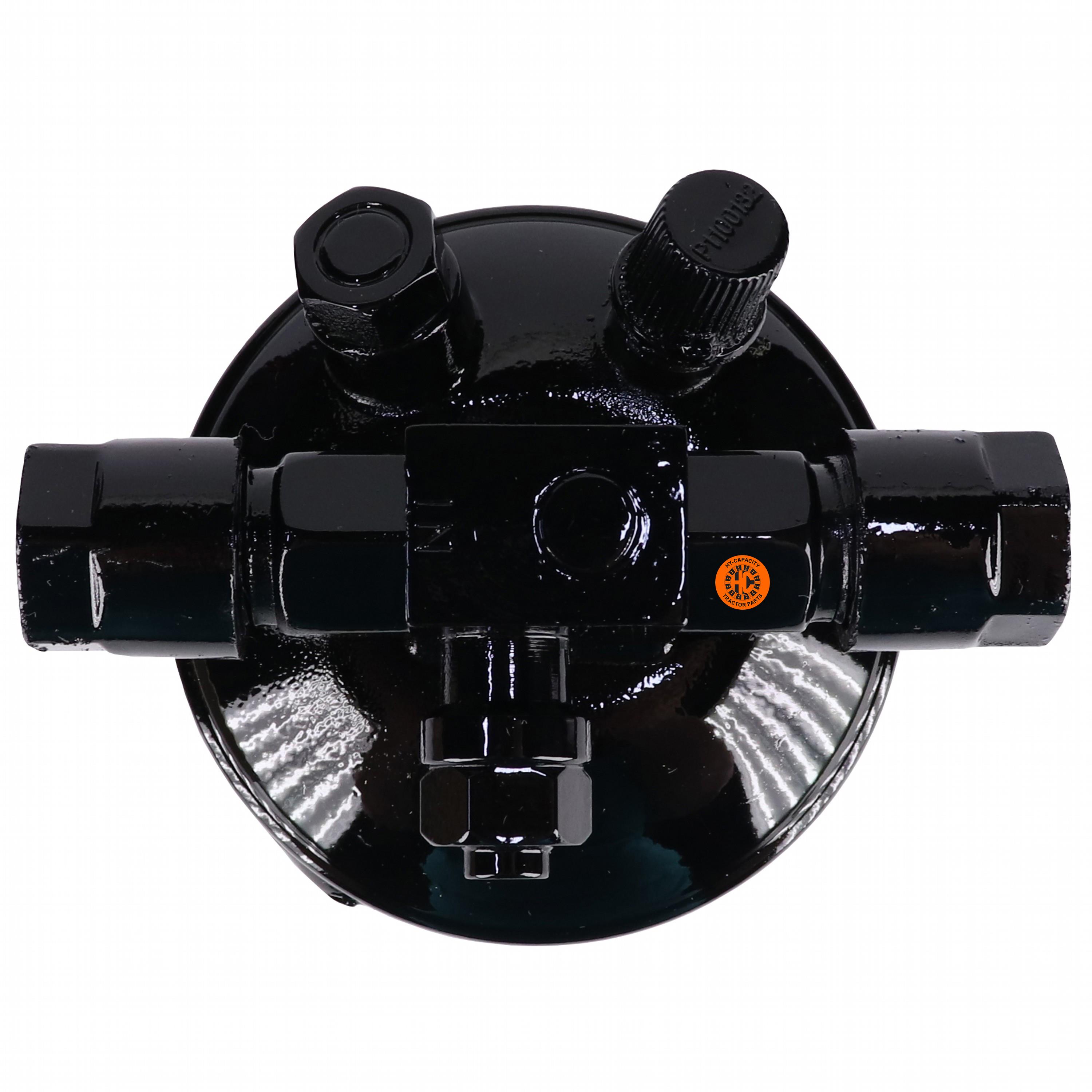

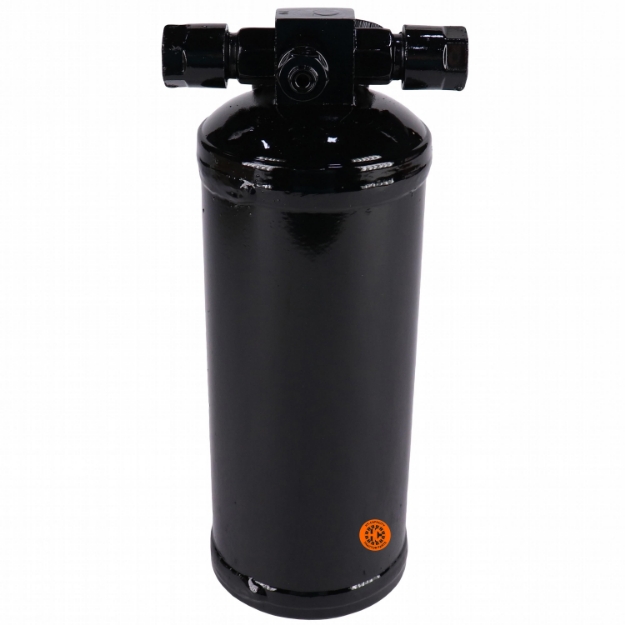

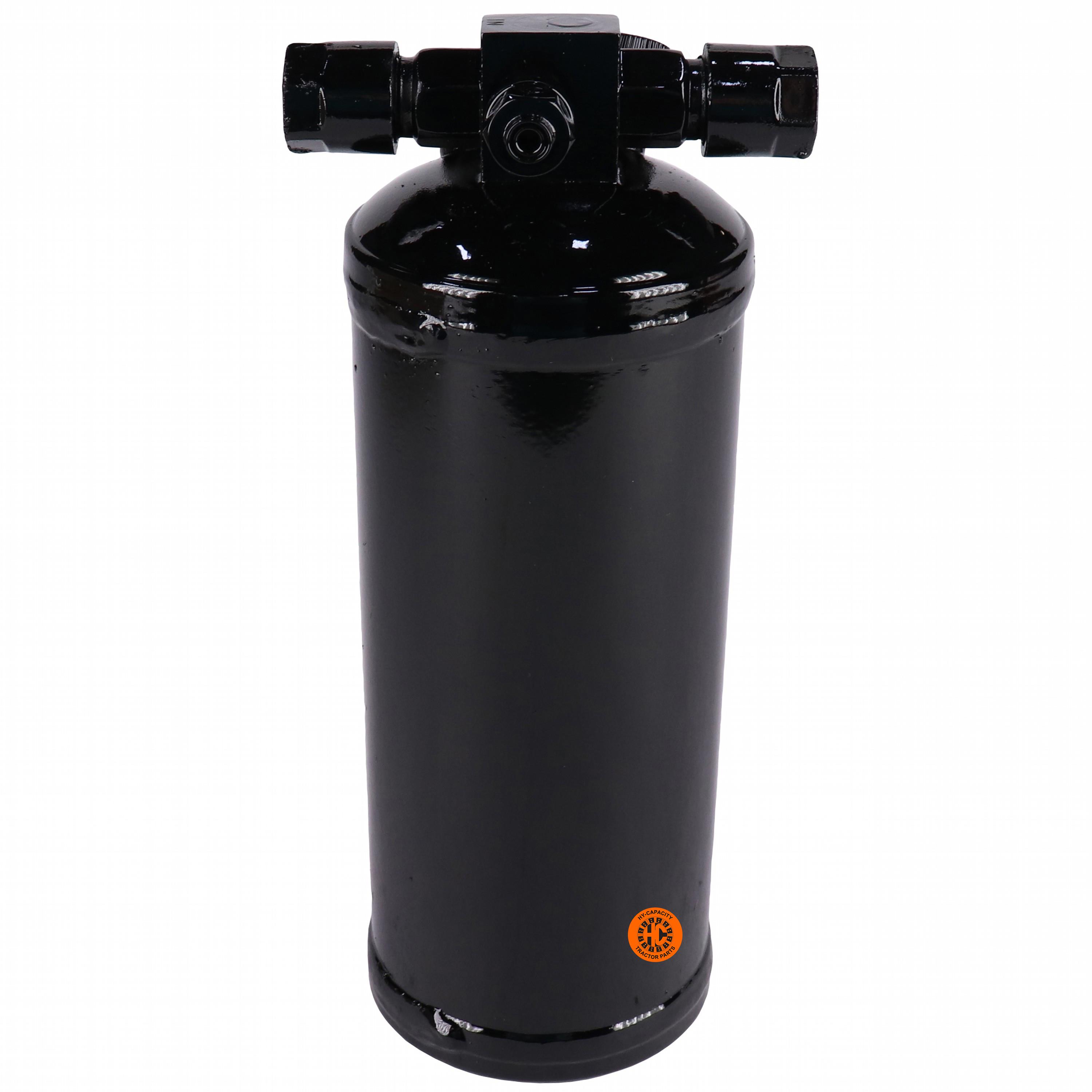

Receiver Drier, w/ High Pressure Relief Valve

Inlet is on the right hand side with the male 1/4" R12 switch port towards you.This Receiver Drier is featured in our blog post, "Make Spraying Season Successful: Spring Maintenance for Sprayers." Read it here.The 88AG519278 Receiver Drier, w/ High Pressure Relief Valve fits equipment brands such as: Ag-Chem, Challenger

Manufacturer: Hy-Capacity

SKU: 88AG519278

Vendor: Hy-Capacity

Availability:

In stock

$40.86

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Drier Type	Male O-Ring
Inlet Fitting	#6 (3/8" Male Insert O-Ring)
Length	9-1/4"
New/Reman	New
OD	3"
Outlet Fitting	#6 (3/8" Male Insert O-Ring)
Pressure Relief	HPRV
Quality	Aftermarket
Service Valve	Top
Sight Glass	Top
Sold As	Each
Switch/Service Port	Male (1/4" R12) & Female (1/4")
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Drier Type	Male O-Ring
Inlet Fitting	#6 (3/8" Male Insert O-Ring)
Length	9-1/4"
New/Reman	New
OD	3"
Outlet Fitting	#6 (3/8" Male Insert O-Ring)
Pressure Relief	HPRV
Quality	Aftermarket
Service Valve	Top
Sight Glass	Top
Sold As	Each
Switch/Service Port	Male (1/4" R12) & Female (1/4")
Warranty	1 Year

Product tags

AG519278 (1)

Use On Below Models (Click to expand)

Ag-Chem

Sprayer: RG1100 RG1300 RG900 RoGator 1054 RoGator 1064 RoGator 1064C RoGator 1074 RoGator 1074C RoGator 1084 Eff. S/N UXX1001 RoGator 1184 Eff. S/N VXX1001 RoGator 1184H Eff. S/N VXX1001 RoGator 1254 RoGator 1254C RoGator 1264 RoGator 1264C RoGator 1274C RoGator 1286C Eff. S/N SXX1001 RoGator 1386 Eff. S/N VXX1001 RoGator 554 RoGator 854 RoGator 864 RoGator 874 RoGator 884 Eff. S/N UXX1001 RoGator 984 Eff. S/N VXX1001 RoGator 984H Eff. S/N VXX1001 RoGator SS1074 RoGator SS1084 RoGator SS874 RoGator SS884 Eff. S/N UXX1001 RoGator SSC1074 Eff. S/N SXX1001 RoGator SSC1084 Eff. S/N UXX1001 TerraGator 1803 1996, w/ Turbo-Torq Boost TerraGator 1844 Eff. S/N VXX1001, 1997 w/ Terra-Shift, 300 Cummins TerraGator 2204 1996 w/ 13 Speed Transmission TerraGator 2505 1996 - 00 w/ 20 Speed Transmission TerraGator 3104 TerraGator 3244 Eff. S/N TXX1001 TerraGator 6103 TerraGator 6203 TerraGator 8103 TerraGator 8104 TerraGator 8144 TerraGator 8203 TerraGator 8204 TerraGator 8244 TerraGator 9103 TerraGator 9105 TerraGator 9203 TerraGator 9205 Eff. S/N SXX1001 TG7300 TG8300

Challenger

Sprayer: 2244
