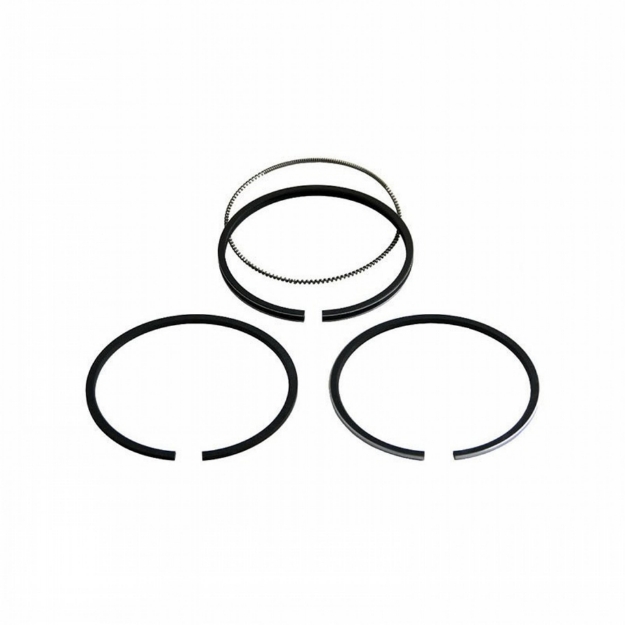

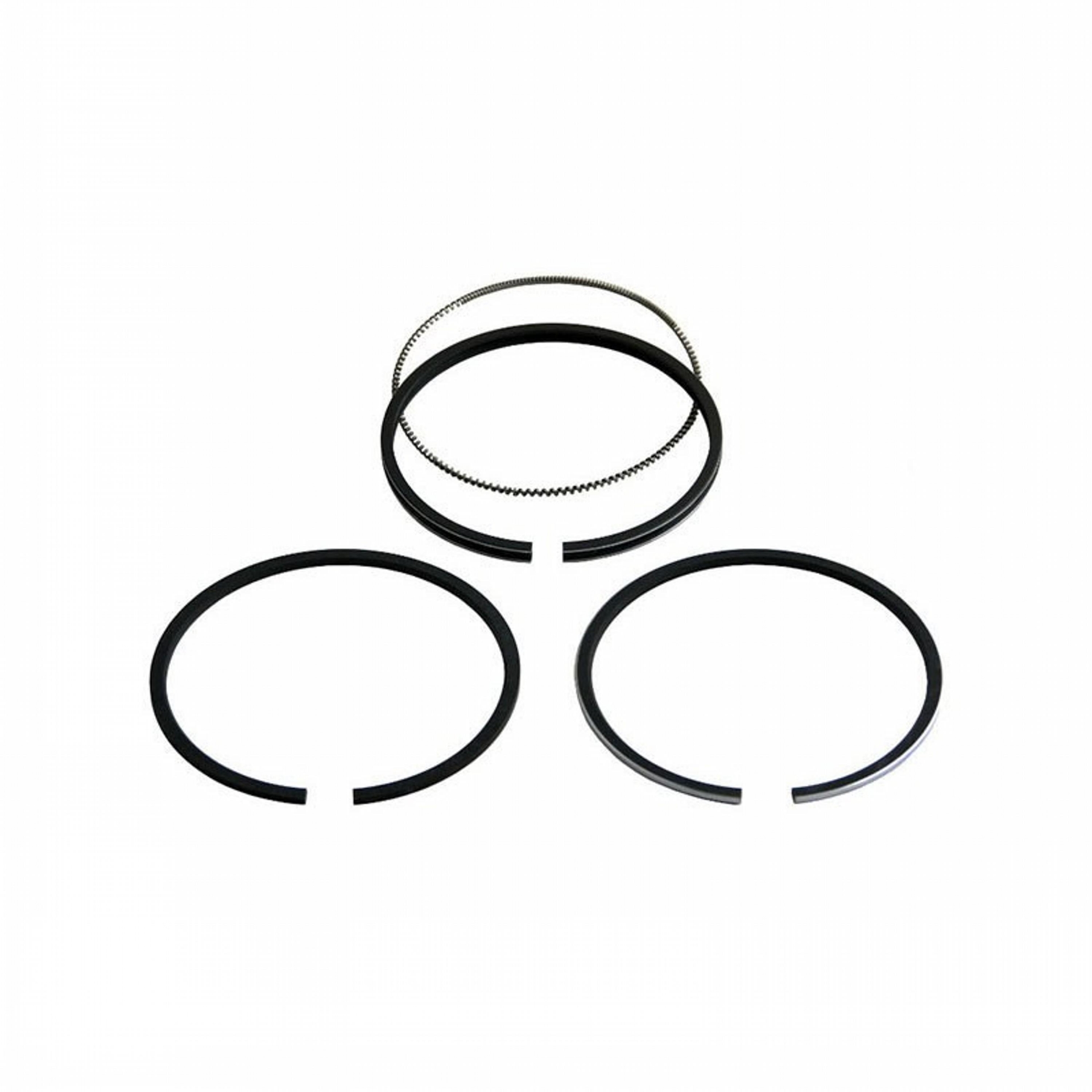

Piston Ring Set, 2)3/32", 1)1.5mm, 3.858" Bore, 1 Cylinder Set

Be the first to review this product

-The HCRNAR70633 Piston Ring Set, 2)3/32", 1)1.5mm, 3.858" Bore, 1 Cylinder Set fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCRNAR70633

Vendor: Hy-Capacity

Availability:

In stock

$12.02

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Bore	3.858"
New/Reman	New
Ring Thickness	1)1.5mm, 2)3/32"
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Bore	3.858"
New/Reman	New
Ring Thickness	1)1.5mm, 2)3/32"
Sold As	Each
Warranty	1 Year

Product tags

AR70633 (1)

Use On Below Models (Click to expand)

John Deere

COMBINE: 3300 John Deere 202 Gas 45 John Deere 180 Gas 55 John Deere 303 Gas; John Deere 6303 Diesel 6600 John Deere 303 Gas 95 John Deere 303 Gas; John Deere 6303 Diesel

COTTON PICKER: 699 John Deere 303 Gas; John Deere 6303 Diesel

CRAWLER/DOZER: 350 John Deere 135 Gas; John Deere 3152 Diesel 350B John Deere 135 Gas; John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 350C John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 450 John Deere 180 Gas; John Deere 4202 Diesel

FORKLIFT: 380 John Deere 135 Gas; John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 480 John Deere 180 Gas; John Deere 4202 Diesel 480A John Deere 180 Gas; John Deere 4202 Diesel, block marked T32342, R53250, R55034, R72973, o-ring grooves in block

LOADER BACKHOE: 300B John Deere 135 Gas; John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 410 John Deere 202 Gas, After ESN 157353, block marked T32348, has o-ring grooves in block

MOTOR GRADER: 570 John Deere 6303 Diesel

POWER UNIT: 152DN01 John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 202DE01 John Deere 4202 Diesel, block marked T32342, R53250, R55034, R72973, o-ring grooves in block EA202D John Deere 4202 Diesel HA303D John Deere 6303 Diesel HB303D John Deere 6303 Diesel JD135G John Deere 135 Gas JD180G John Deere 180 Gas JD202G John Deere 202 Gas JD303G John Deere 303 Gas NA152D John Deere 3152 Diesel NA303D John Deere 6303 Diesel

SKIDDER: 440 John Deere 180 Gas; John Deere 4202 Diesel, block marked T23406, T24961, T26933, no o-ring grooves in block 540 John Deere 6303 Diesel

SPRAYER: 600 John Deere 135 Gas; John Deere 3152 Diesel, block marked T24963, T26935, no o-ring grooves in block 600A John Deere 135 Gas 700 John Deere 135 Gas; John Deere 3152 Diesel, block marked T24963, T26935, no o-ring grooves in block 734 John Deere 135 Gas; John Deere 3152 Diesel, block marked T24963, T26935, no o-ring grooves in block

TRACTOR: 1020 John Deere 135 Gas; John Deere 3152 Diesel 2020 John Deere 180 Gas; John Deere 4202 Diesel 2510 John Deere 180 Gas; John Deere 4202 Diesel 2520 John Deere 202 Gas 300 John Deere 135 Gas; John Deere 3152 Diesel 301 John Deere 135 Gas; John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 301A John Deere 135 Gas; John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 310 John Deere 3152 Diesel, block marked T24963, T26935, no o-ring grooves in block 3120 John Deere 6303 Diesel 400 John Deere 180 Gas; John Deere 4202 Diesel 401 John Deere 180 Gas; John Deere 4202 Diesel, block marked T32342, R53250, R55034, R72973, o-ring grooves in block 4030 John Deere 303 Gas, After ESN 157228, block marked T32346, R55036, R55351, R79280, o-ring grooves in block 510 John Deere 3152 Diesel, block marked T24963, T26935, no o-ring grooves in block 820 John Deere 3152 Diesel 830 John Deere 3152 Diesel, block marked T32339, R53240, R55100, R72967, o-ring grooves in block 920 John Deere 3152 Diesel

WHEEL LOADER: 544 John Deere 6303 Diesel

WINDROWER: 215A John Deere 135 Gas 880 John Deere 135 Gas; John Deere 180 Gas; John Deere 4202 Diesel
