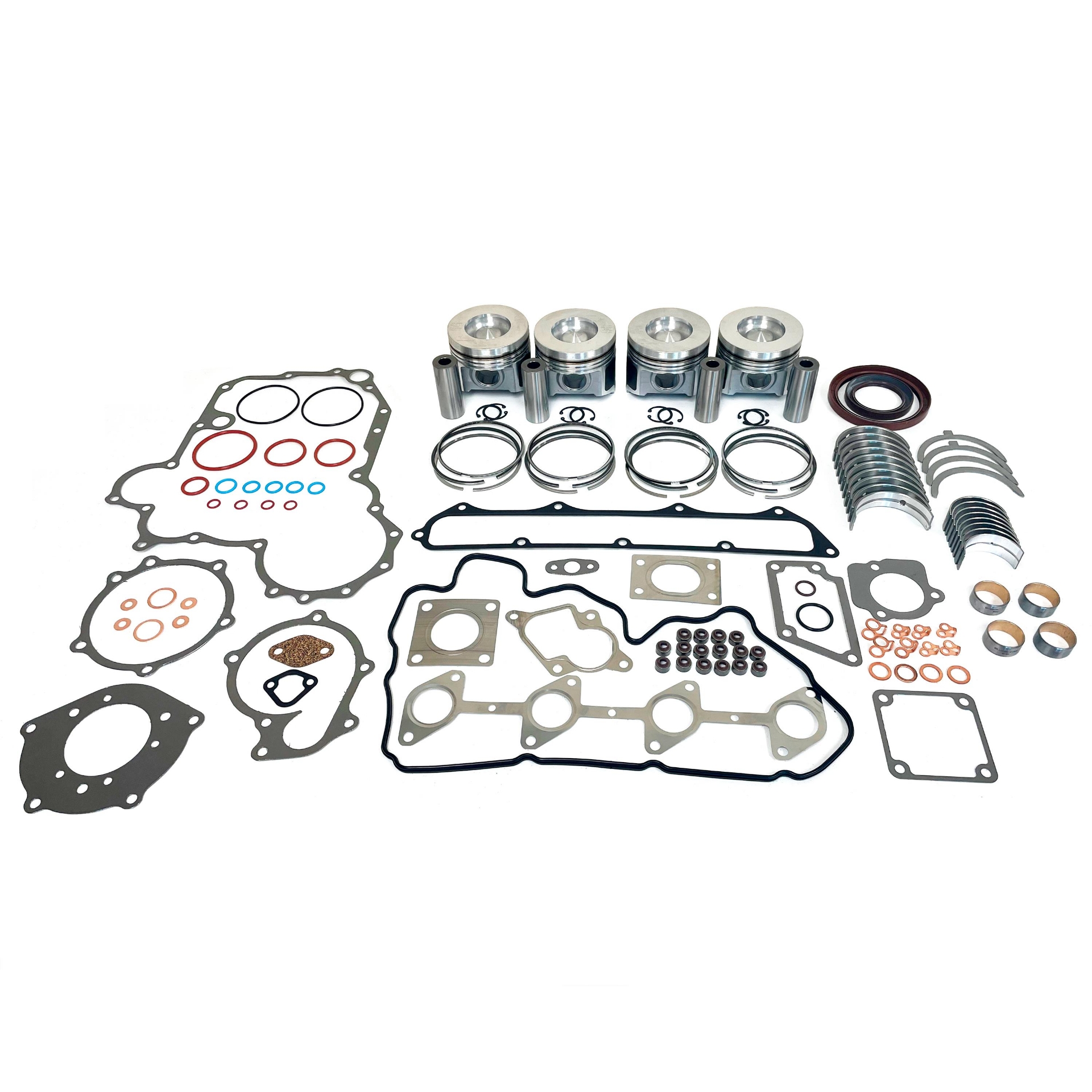

Overhaul Kit w/ Standard Piston & Ring Kits

Includes:• (4) HCK1G549-21772 Piston & Ring Kits• (4) HCK1C020-22312 Rod Bearings• (4) HCK1C020-23470 Main Bearings• (1) HCK1C010-2353040 Thrust Washer Set• (1) HCK1G556-99352 Top Gasket Set, does not include Head Gasket• (1) Bottom Gasket Set• (4) HCK1C010-21980 Connecting Rod BushingsHead gasket thickness or notches must be verified and correct head gasket must be purchased separatelyThe HCKV3800DI Overhaul Kit w/ Standard Piston & Ring Kits fits equipment brands such as: Bobcat, Kubota

Manufacturer: Hy-Capacity

SKU: HCKV3800DI

Vendor: Hy-Capacity

Availability:

In stock

$1,056.65

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Kubota
Engine Notes	Direct Injection, Pencil Fuel Injector
Engine CID	230
Fuel Type	Diesel
Cylinder Count	4
Bore	3.936"
Stroke Length	4.724"
Rod Journal Dimensions	2.0857" - 2.0862"
Main Journal Dimensions	2.9518" - 2.9524"
New/Reman	New
Sold As	Each
Warranty	1 Year
Dimensions	Standard

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Kubota
Engine Notes	Direct Injection, Pencil Fuel Injector
Engine CID	230
Fuel Type	Diesel
Cylinder Count	4
Bore	3.936"
Stroke Length	4.724"
Rod Journal Dimensions	2.0857" - 2.0862"
Main Journal Dimensions	2.9518" - 2.9524"
New/Reman	New
Sold As	Each
Warranty	1 Year
Dimensions	Standard

Product tags

Kubota Identification Guide (21)

Use On Below Models (Click to expand)

Bobcat

Skid Steer Loader: T770 V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately

Kubota

Tractor: M105SC V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M105SDSL V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M105SDTC V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M105SH V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M105XDTC V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540DT V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540DTC V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540F V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540FC V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540HD V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540HD12 V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540HDC V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540HDC-LTD V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540HDC12 V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540HDC24-1 V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately M9540HDL V3800-DI Diesel, Direct Injection, Pencil Fuel Injector, Head gasket thickness or notches must be verified and correct head gasket must be purchased separately
