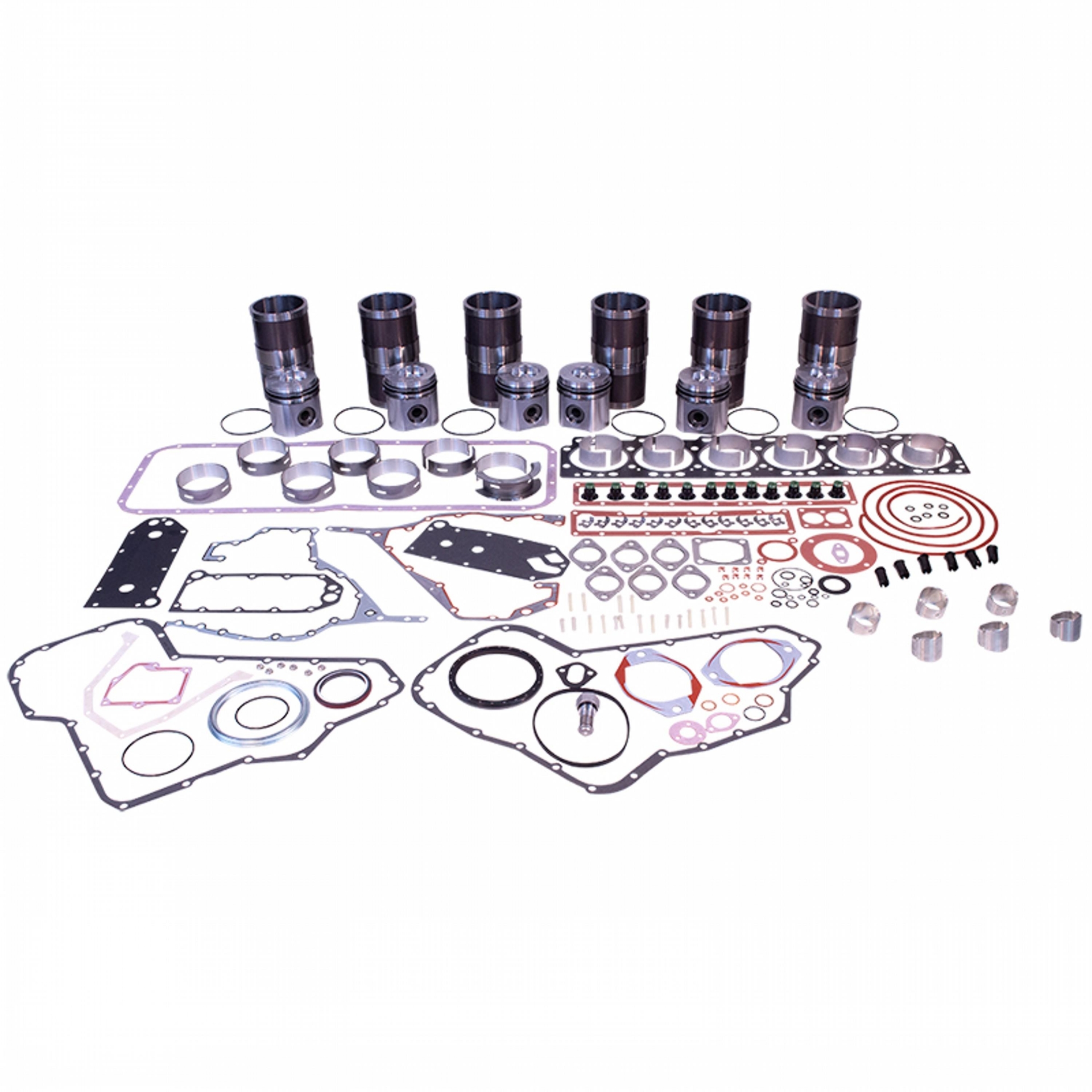

Out-of-Frame Overhaul Kit, Cummins 6T830 Diesel

Be the first to review this product

Includes: (6) HCRK3970951 Boreable Piston Pin Bushings (1) HCRK3800558 Conversion Gasket Set (6) HCRK3802403 Cylinder Kits (1) HCRK4025271 Head Gasket Set (1) HCRK3945917 Main Bearing Set, Standard (6) HCRK3901430 Rod Bearings, StandardThe HCRRP1085 Out-of-Frame Overhaul Kit, Cummins 6T830 Diesel fits equipment brands such as: Case, Case IH, Gleaner, White

Manufacturer: Hy-Capacity

SKU: HCRRP1085

Vendor: Hy-Capacity

Availability:

Out of stock

$1,249.10

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Cummins
Piston Marked	3163, 8749, 9564, 9928
Engine CID	505
Fuel Type	Diesel
Cylinder Count	6
Bore	4.488"
Stroke Length	5.315"
Rod Journal Dimensions	2.9916" - 2.9926"
Main Journal Dimensions	3.8568-3.8588"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Cummins
Piston Marked	3163, 8749, 9564, 9928
Engine CID	505
Fuel Type	Diesel
Cylinder Count	6
Bore	4.488"
Stroke Length	5.315"
Rod Journal Dimensions	2.9916" - 2.9926"
Main Journal Dimensions	3.8568-3.8588"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

Case

Crawler/Dozer: 1150E Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 1155E Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

Excavator: 9040 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

EXCAVATOR: 9040B Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

Wheel Loader: 721 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 821 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

WHEEL LOADER: 721B Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 821B Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

Case IH

Combine: 1660 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 1666 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 2166 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

Tractor: 7110 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 7120 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 7130 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 7210 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 7220 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 7230 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 9210 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 9310 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

Gleaner

Combine: R42 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928 R52 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928

White

Tractor: 6175 Cummins 6T830 Diesel, 9.33" Long, 5.155" Flange O.D., Piston Marked 3163, 8749, 9564, 9928
