PreviousLED-408-4 Flood - version 1
NextLarsen LED PAR-36 kit for J...

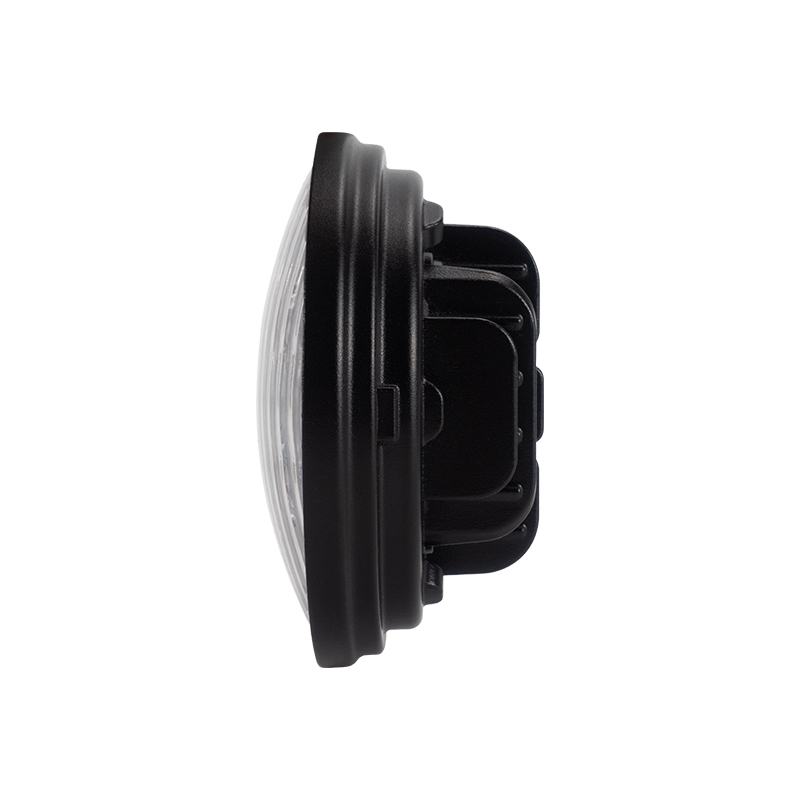

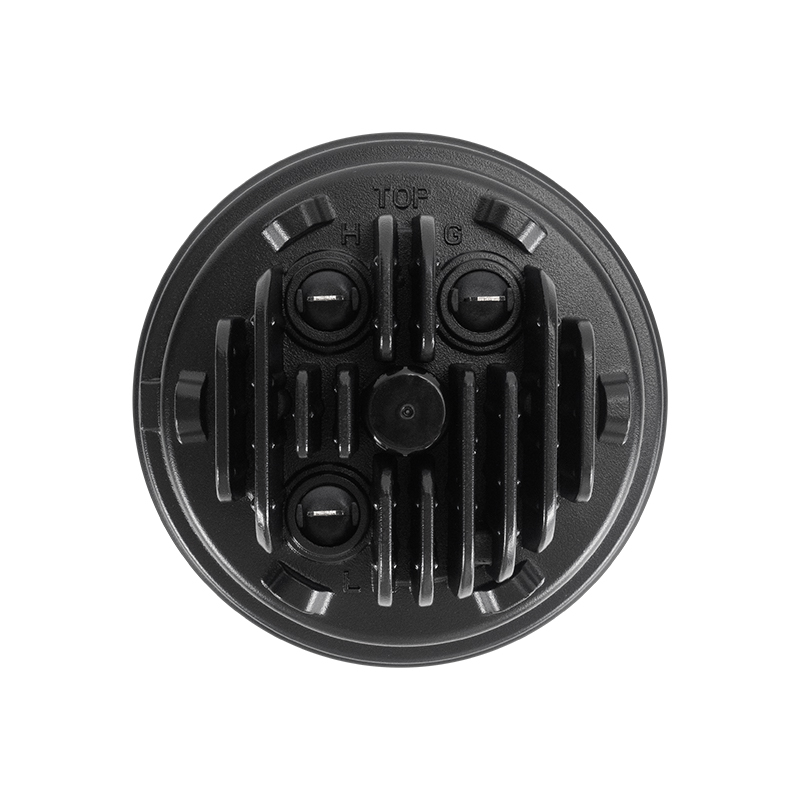

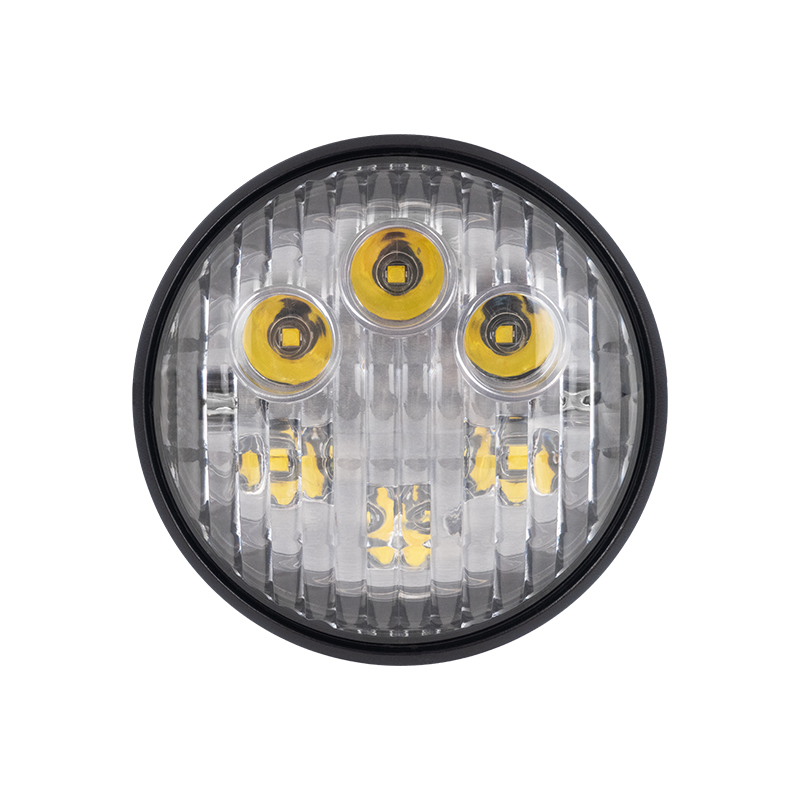

Picture of "OEM Look" PAR-36 kit.
Picture of "OEM Look" PAR-36 kit. Picture of "OEM Look" PAR-36 kit. Picture of "OEM Look" PAR-36 kit. Picture of "OEM Look" PAR-36 kit. Picture of "OEM Look" PAR-36 kit. LED-91 LED-92

"OEM Look" PAR-36 kit.

Be the first to review this product
This is a kit for you if you like to keep the OEM appearance of the lights. The lens is made so that it is as close to the OEM appearance as we can make it - the Hi-Lo lens still has the 3 spot beam reflectors, but it looks better than the more modern LED bulb appearance, if you are trying to keep it OEM looking... The PAR-36 sealed beam bulbs used are the 30 watt models we have used for years, tested and trusted, with an almost a 0 % failure rate. 1700 lumen each. 4 lights in the kit - add more if needed.
SKU: "OEM Look" PAR-36 kit.
*
$150.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

"OEM Look"  PAR-36 kit.



This is a kit for you if you like to keep the OEM appearance of the lights. The lens is designed to closely resemble the OEM appearance. The Hi-Lo lens retains the 3-spot beam reflectors, but it looks better than the more modern LED bulb appearance, if you are trying to maintain an OEM look. The PAR-36 sealed beam bulbs used are the 30 watt models we have used for years, tested and trusted, with an almost a 0 % failure rate. 1700 lumen each.

Currently, we only have 2 models, flood beam, and Hi-Lo beam.

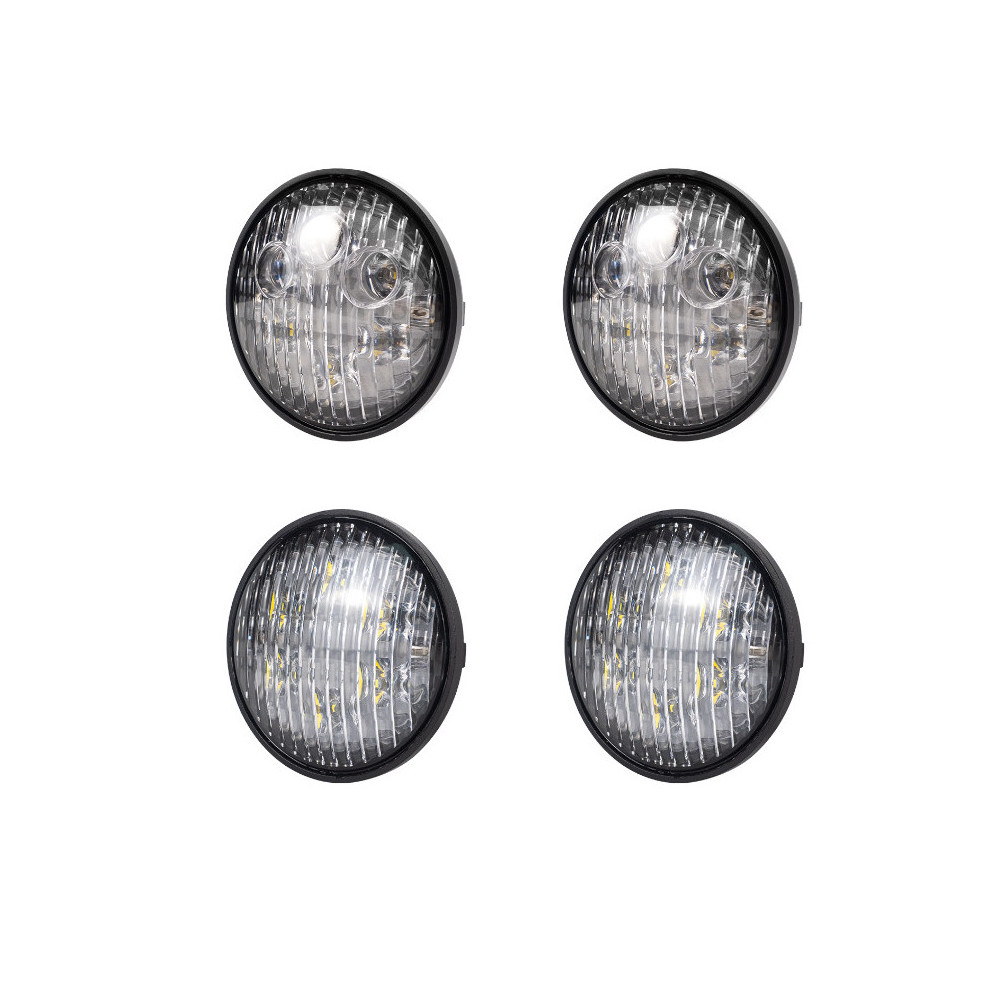

Base kit is 2 x Hi-Lo and 2 x Flood, add 2 or 4 extra flood beam lights if needed.

"OEM Look"  PAR-36 kit.



This is a kit for you if you like to keep the OEM appearance of the lights. The lens is designed to closely resemble the OEM appearance. The Hi-Lo lens retains the 3-spot beam reflectors, but it looks better than the more modern LED bulb appearance, if you are trying to maintain an OEM look. The PAR-36 sealed beam bulbs used are the 30 watt models we have used for years, tested and trusted, with an almost a 0 % failure rate. 1700 lumen each.

Currently, we only have 2 models, flood beam, and Hi-Lo beam.

Base kit is 2 x Hi-Lo and 2 x Flood, add 2 or 4 extra flood beam lights if needed.

Product tags

Use On Below Models (Click to expand)
Write your own review
*
*
  • Bad
  • Excellent

Related products / Used in kit

Picture of 30 watt PAR-36 Flood, Frosted Lens

30 watt PAR-36 Flood, Frosted Lens

LL0026
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
$37.00
Picture of 30 watt PAR-36 Hi-Lo, Frosted Lens

30 watt PAR-36 Hi-Lo, Frosted Lens

LL0028
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
$38.00
40W PAR36

40 watt PAR-36

40w Par-36
High power 40 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 4 x 10 watt LED chips. This light will only fit in normal full size housings with rubber grommets due to large cooling fins. Also it will NOT fit in the new plastic housings used on some later model JD's. This light has a temperature sensor that will limit the power of the light if the temperature gets too high. Max effective lumen 2800 - minimum effective lumen 2200.
$34.00
30 watt Par-36 Hi-Lo

30 watt PAR-36

HO Par-36
30 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. Available beam types are 60° flood, 40° beam, Hi-Lo beam, and Spot beam. This light has a chrome background, the picture does not show it well.
$36.00
Par-36 Flood

PAR-36, 4.5 LED light, Standard model.

Par-36
PAR-36 size replacement LED light for the old style sealed beam halogen light. 5-watt CREE LED chips. Actual power use is around 18 watts, effective lumen around 1400, raw lumen around 2200.
$27.00
Par-36 Rubber Housing

PAR-36 rubber housing

LL0034
PAR-36 size rubber housing. Simple rubber housing with a steel mounting bracket. No rubber grommet needed.
$10.90
Bolt on housing

Par-36 Bolt on Housing

LL0030
A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$19.00

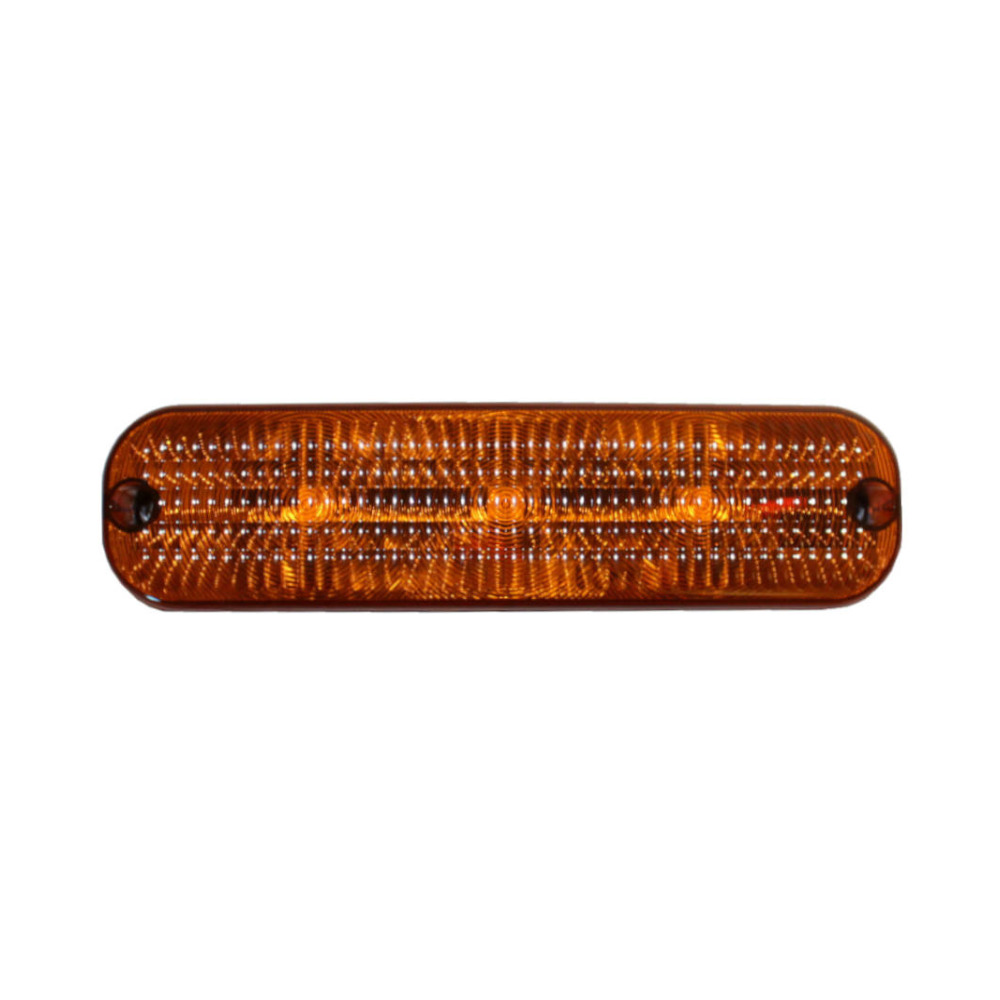

LED-91 amber

LED-91 with built in resistor.

LL0541
LED-91, amber with a built-in resistor. No need for special LED flasher relays! This model fits Sound guard cabs and older Steigers.
$33.00

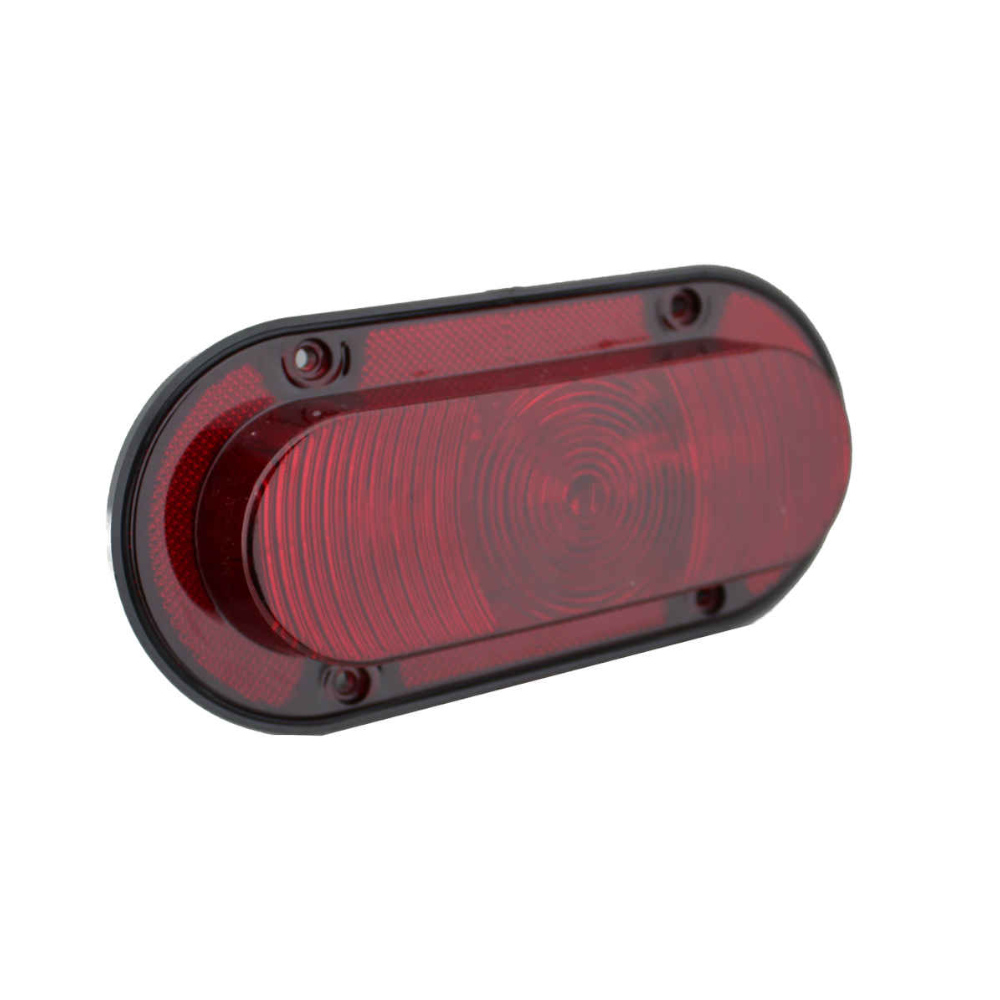

LED-92, LED Red Oval Tail Light

LED-92, LED Red Oval Tail Light.

LL0325
LED Tail Light for John Deere Tractors. 3 wire light, including tail and stop light function. The eyelet is the ground, the brown wire is the tail light, and the yellow wire is for the stop light (if equipped). OEM Replacement: John Deere: AR78825, RE39223.
$33.00
