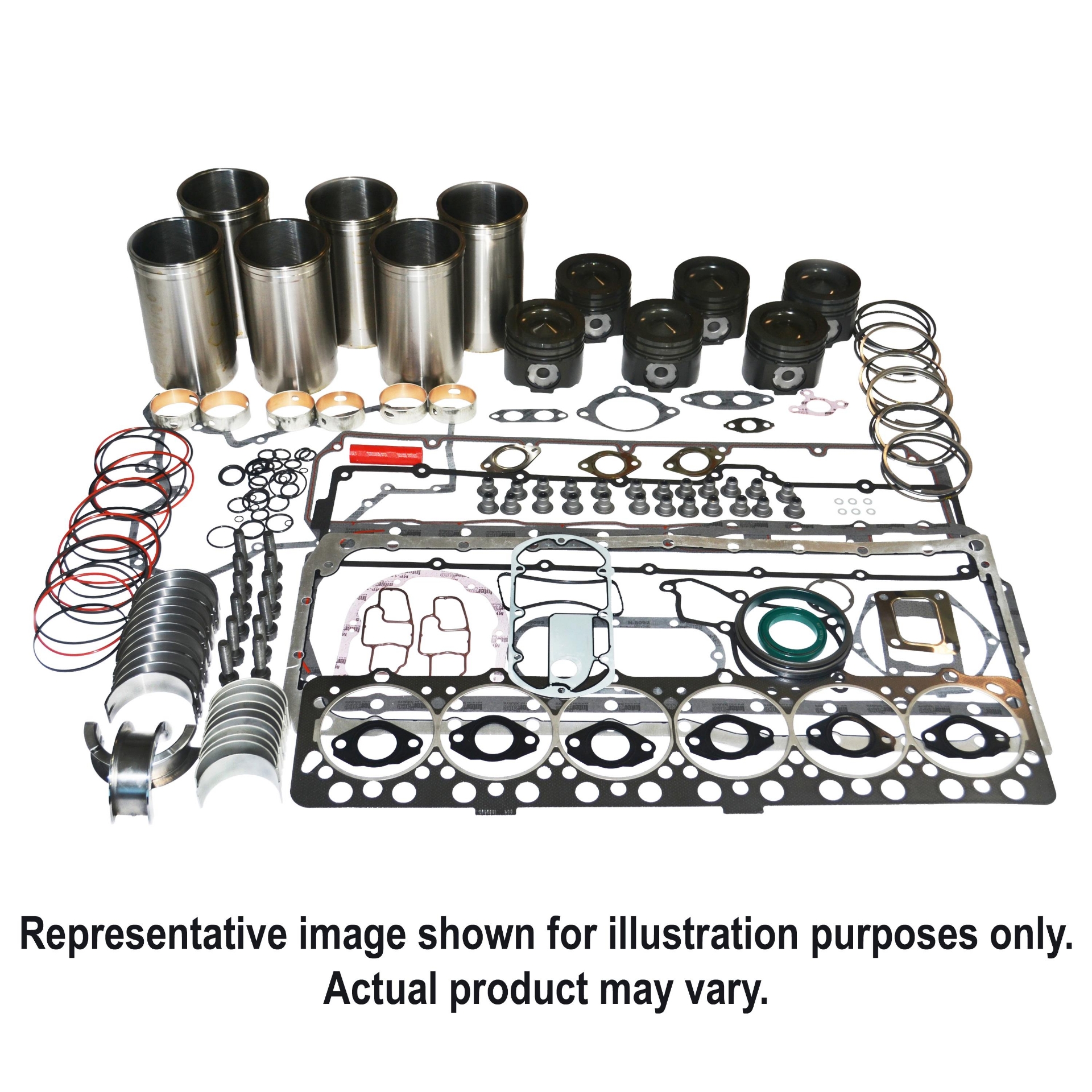

Major Overhaul Kit, John Deere 6-404D Diesel Engine

Includes:• (6) HCTRE23173 Cylinder Kits• (6) HCTAR45723 Rod Bearings• (6) HCTAR49243 Main Bearings• (1) HCTAR49242 Thrust Bearing• (1) HCTAR53626 Overhaul Gasket Set• (1) Front Crank Seal• (6) HCTR30939 Piston Pin Bushings• (1) Rear Crank Seal• (4) HCTR46903 Cam Bushings• (12) HCTR66452 Connecting Rod BoltsThe HCTRG17901 Major Overhaul Kit, John Deere 6-404D Diesel Engine fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCTRG17901

Vendor: Hy-Capacity

Availability:

In stock

$1,302.13

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R26070, R33180, R34340, R40890, R40900
Connecting Rod Marked	R26047, R52225, R58880, R69923
Engine Notes	1.500" Piston Pin Diameter, Naturally Aspirated, Original Block
Piston Pin Dia.	1.500"
Engine CID	404
Fuel Type	Diesel
Cylinder Count	6
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R26070, R33180, R34340, R40890, R40900
Connecting Rod Marked	R26047, R52225, R58880, R69923
Engine Notes	1.500" Piston Pin Diameter, Naturally Aspirated, Original Block
Piston Pin Dia.	1.500"
Engine CID	404
Fuel Type	Diesel
Cylinder Count	6
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

RG27843 (2)
,
RG23433 (2)
,
RE524374 (2)
,
RE524345 (2)
,
FP404DEOHK (1)

Use On Below Models (Click to expand)

John Deere

ENGINE: 400 Series 6404 Diesel

TRACTOR: 4000 6404 Diesel, S/N <-214,999, w/ Original Block Marked - R26070, R33180, R34340, R40890, R40900, Connecting Rod Marked - R26047, R58880, R66923, R52225 4010 6404 Diesel, S/N <-214,999, w/ Original Block Marked - R26070, R33180, R34340, R40890, R40900, Connecting Rod Marked - R26047, R58880, R66923, R52225 4020 6404 Diesel, S/N <-214,999, w/ Original Block Marked - R26070, R33180, R34340, R40890, R40900, Connecting Rod Marked - R26047, R58880, R66923, R52225
