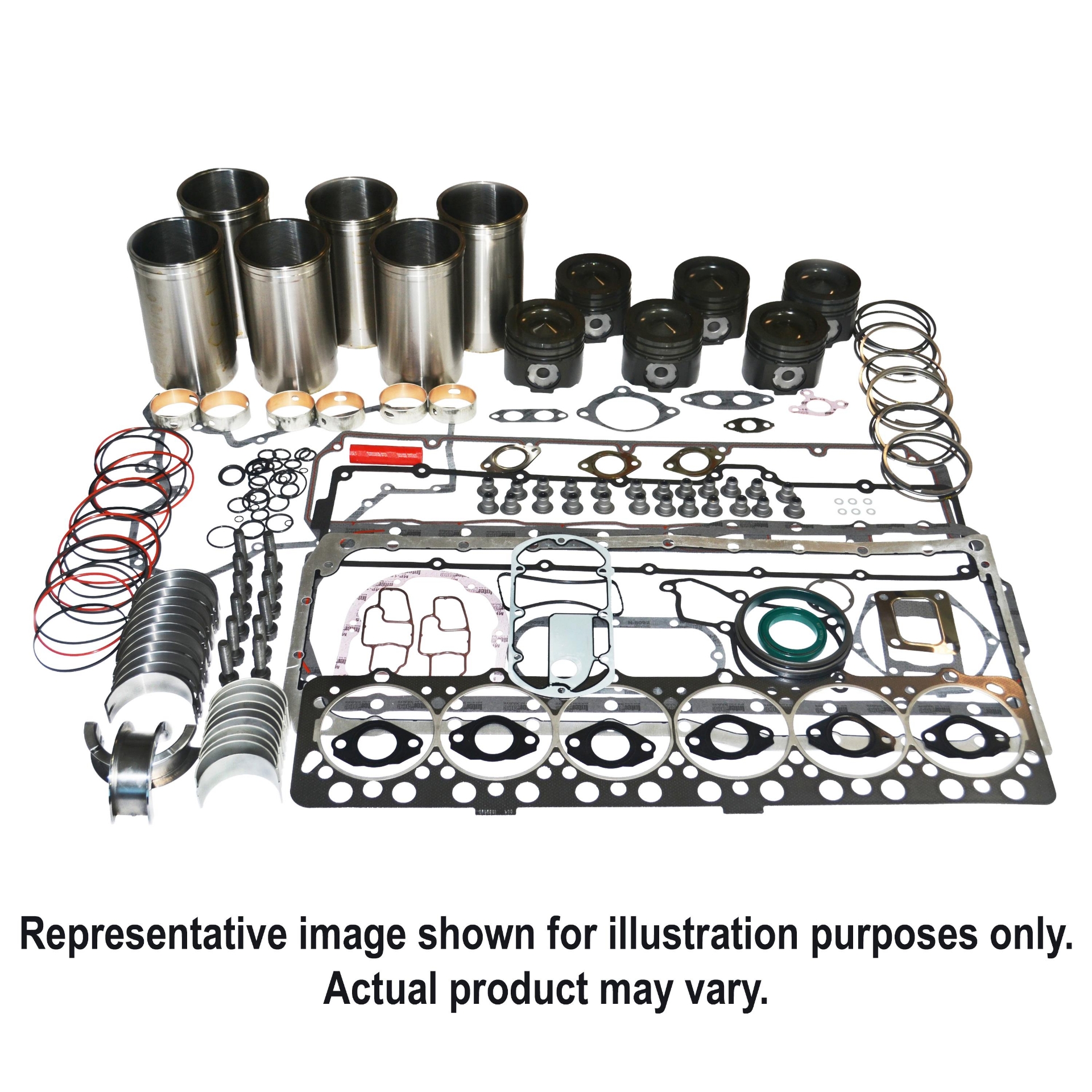

Major Overhaul Kit, John Deere 6-404D Diesel Engine

Includes:• (6) HCNRE23160 Cylinder Kits• (6) HCTAR45723 Rod Bearings• (6) HCTAR74814 Main Bearings• (1) HCTAR77748 Thrust Bearing• (1) HCTAR77747 Thrust Washer Set• (1) HCTAR63269 Overhaul Gasket Set• (1) HCNAR49025 Front Crank Seal• (6) HCTR30939 Piston Pin Bushings• (1) HCNRE520036 Rear Crank Seal• (4) HCTR46903 Cam Bushings• (12) HCTR66452 Connecting Rod BoltsThe HCTRG17897 Major Overhaul Kit, John Deere 6-404D Diesel Engine fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCTRG17897

Vendor: Hy-Capacity

Availability:

In stock

$1,414.59

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R49470, R49650, R59850, R72128, R87558
Connecting Rod Marked	R26047, R52225, R58880, R69923
Engine Notes	1.500" Piston Pin Diameter, Naturally Aspirated
Piston Pin Dia.	1.500"
Engine CID	404
Fuel Type	Diesel
Cylinder Count	6
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R49470, R49650, R59850, R72128, R87558
Connecting Rod Marked	R26047, R52225, R58880, R69923
Engine Notes	1.500" Piston Pin Diameter, Naturally Aspirated
Piston Pin Dia.	1.500"
Engine CID	404
Fuel Type	Diesel
Cylinder Count	6
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

RG27842 (1)
,
RE525511 (1)
,
FP404DLOHK (1)
,
RG27841 (2)
,
RG23429 (1)

Use On Below Models (Click to expand)

John Deere

COMBINE: 6600 6404 Diesel, S/N 335,846-> 7700 6404 Diesel, S/N 335,846->

Engine: 400 Series Engine 6.404D

TRACTOR: 4000 6404 Diesel, S/N 335,846-> 4020 6404 Diesel, S/N 335,846-> 4040 6404 Diesel, S/N 335,846-> 4230 6404 Diesel, S/N 335,846->
