Major Overhaul Kit, John Deere 4219 Diesel, Standard Compression

Be the first to review this product

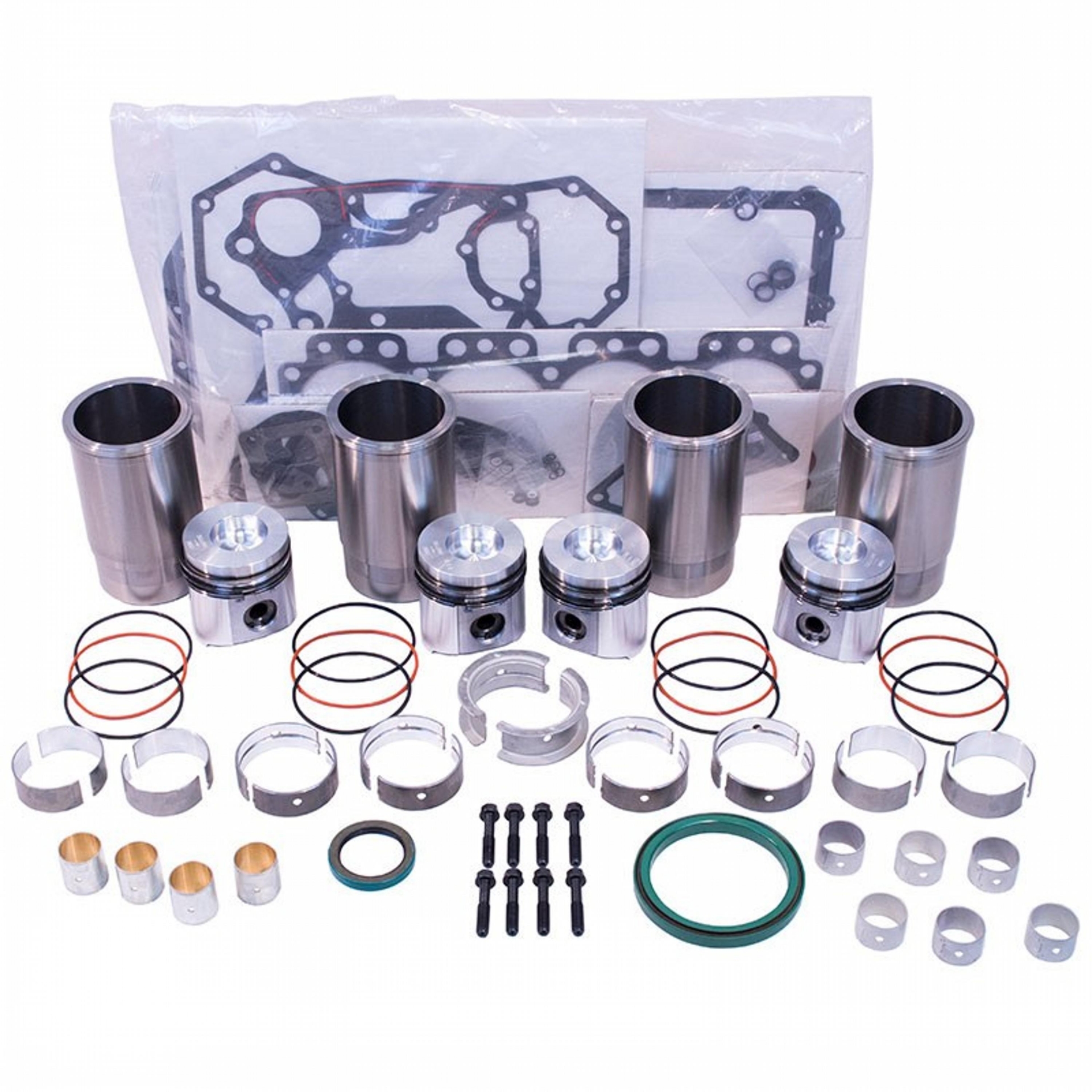

Includes: (6) HCRNR57160 Balancer Shaft Bushings (8) HCRNR74194 Connecting Rod Bolts (4) HCRNRE53321 Cylinder Kits (1) HCRNAR67942 Front Crankshaft Seal (1) HCRRP251266 Main Bearing Set, Standard (1) HCRNRE501579 Overhaul Gasket Set (4) HCRNR55647 Honeable Piston Pin Bushings or HCRNR55647S Boreable Piston Pin Bushings, choose when ordering (1) HCRNRE44574 Rear Crankshaft Seal w/ Sleeve (4) HCRNRE27348 Rod Bearings, StandardThe HCRRP206 Major Overhaul Kit, John Deere 4219 Diesel, Standard Compression fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCRRP206

Vendor: Hy-Capacity

Availability:

Out of stock

$642.92

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Engine CID	219
Fuel Type	Diesel
Cylinder Count	4
Bore	4.0157"
Stroke Length	4.330"
Rod Journal Dimensions	2.7480" - 2.7488"
Main Journal Dimensions	3.1236-3.1244"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Engine CID	219
Fuel Type	Diesel
Cylinder Count	4
Bore	4.0157"
Stroke Length	4.330"
Rod Journal Dimensions	2.7480" - 2.7488"
Main Journal Dimensions	3.1236-3.1244"
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

AT86984 (1)
,
RE527001 (1)
,
RG27857 (1)

Use On Below Models (Click to expand)

John Deere

COMBINE: 3300 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 4400 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

COTTON PICKER: 499 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

CRAWLER/DOZER: 450B John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 450C John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 450D John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 455D John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

FORKLIFT: 480B John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 480C John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

KNUCKLEBOOM LOADER: 7610 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 7620 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 7630 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

LOADER BACKHOE: 310A John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 310B John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 401B John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 401C John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 410 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 410B John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

SPRAYER: 6000 Hi-Cycle John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

TRACTOR: 1830 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 2030 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 2120 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 2440 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 401D John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block

WINDROWER: 2270 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 2280 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block 2420 John Deere 4219 Diesel, Naturally Aspirated/Turbo, Late, 1.375" pin, o-ring grooves in block
