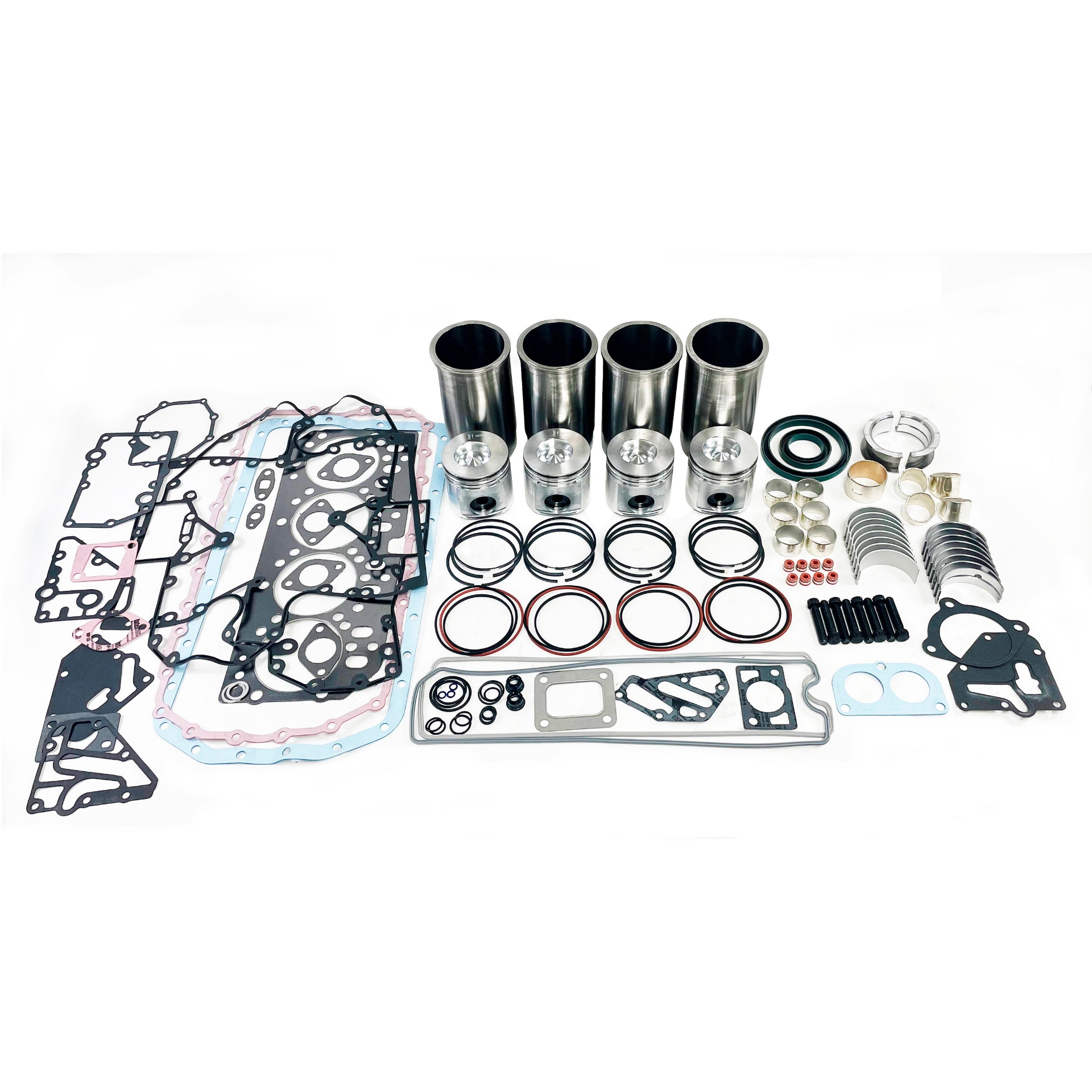

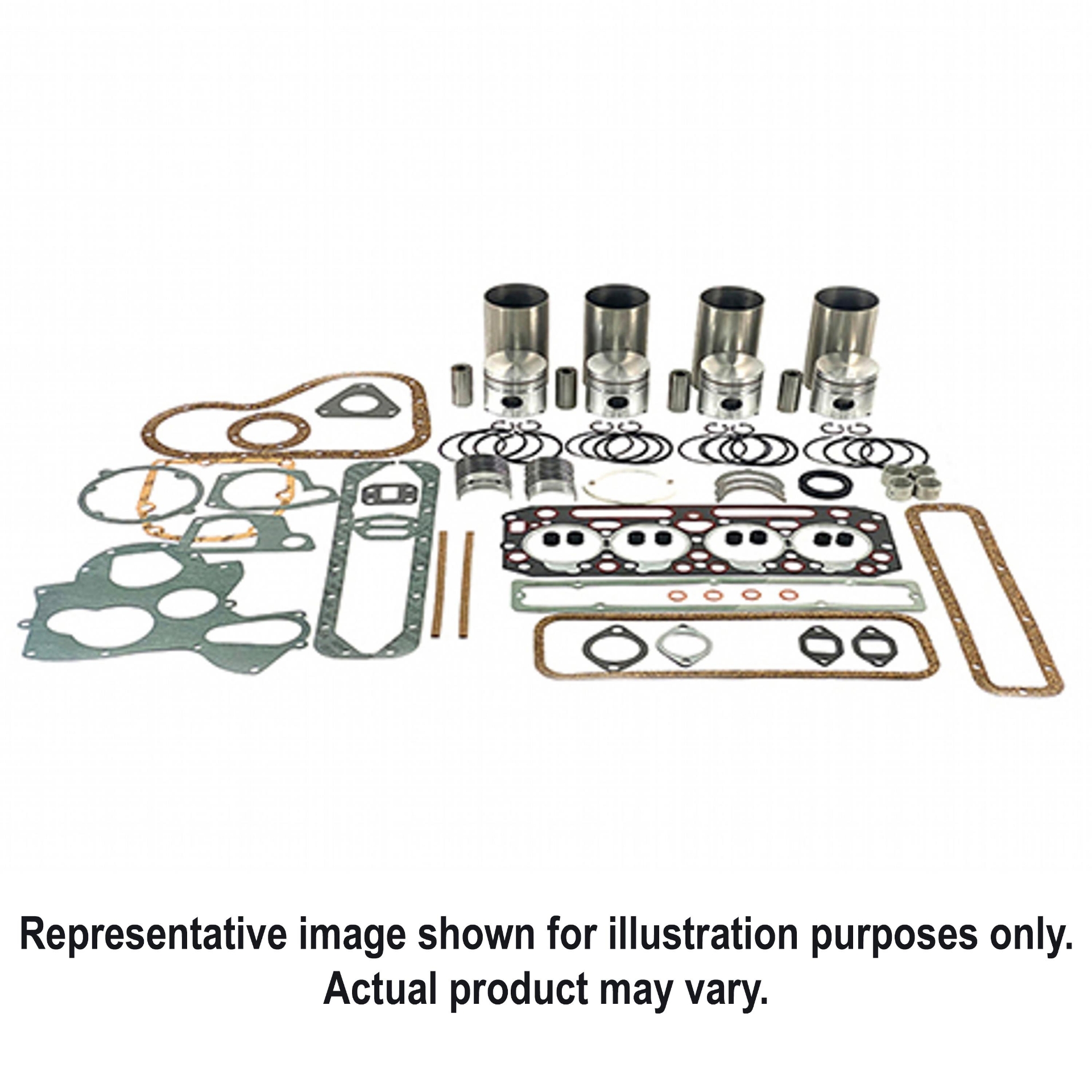

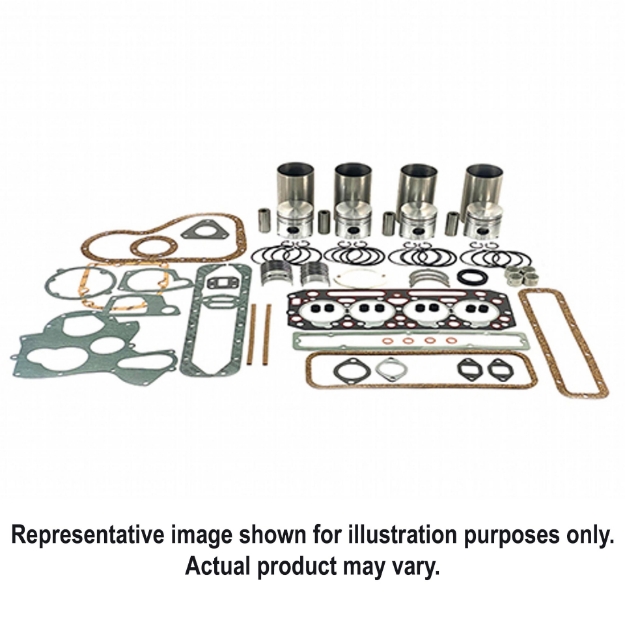

Major Overhaul Kit, John Deere 4045T PowerTech Diesel Engine

Be the first to review this product

Engines equipped w/ a Fractured Split Rod. For engine w/ 2 valves per cylinder.Includes:• (4) HCTRE507850 Cylinder Kits• (4) HCTRE65908 Rod Bearings• (4) HCTRE65165 Main Bearings• (1) HCTRE65168 Thrust Bearing• (1) HCTRE501455 Overhaul Gasket Set• (1) HCTRE505515 Front Crank Seal• (4) HCTR114082 Piston Pin Bushings• (1) Rear Crank Seal• (1) HCTR119874 Cam Bushings• (6) HCTR115299 Balancer Shaft Bushing• (8) HCTR501124 Connecting Rod Bolts• (1) HCTMX504 Grommet Kit• (8) HCTRE31617 Valve Stem SealsThe HCTRE66094A Major Overhaul Kit, John Deere 4045T PowerTech Diesel Engine fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCTRE66094A

Vendor: Hy-Capacity

Availability:

In stock

$894.02

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R500335
Engine Notes	Turbocharged
Piston Marked	RE505102, RE55512
Piston Pin Dia.	1.625"
Engine CID	276
Fuel Type	Diesel
Cylinder Count	4
Bore	4.193"
Stroke Length	5.000"
Rod Journal Dimensions	3.0630" - 3.0640"
Main Journal Dimensions	3.1230" - 3.1240"
New/Reman	New
Piston Code	4809, 4822
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R500335
Engine Notes	Turbocharged
Piston Marked	RE505102, RE55512
Piston Pin Dia.	1.625"
Engine CID	276
Fuel Type	Diesel
Cylinder Count	4
Bore	4.193"
Stroke Length	5.000"
Rod Journal Dimensions	3.0630" - 3.0640"
Main Journal Dimensions	3.1230" - 3.1240"
New/Reman	New
Piston Code	4809, 4822
Sold As	Each
Warranty	1 Year

Product tags

Use On Below Models (Click to expand)

John Deere

Crawler/Dozer: 450G 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 455G 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 550G 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 555G 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 650G 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

CRAWLER/DOZER: 605C 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TF278

Engine: PowerTech 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

Excavator: 110 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 120 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 120C 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 160LC 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

EXCAVATOR: 160C 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TT055 160CLC 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HP051

Forestry Equipment: 330B 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

FORWARDER: 1010D 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HTJ76

HARVESTER: 5720 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TL273 5820 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TL274

Loader Backhoe: 335 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

MOTOR GRADER: 770D 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HTJ77

Telehandler: 3800 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

TELEHANDLER: 3215 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HZ275 3220 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HZ275 3415 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HZ275 3420 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HZ275 ML1335 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TF276

Tool Carrier: TC44H 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

Tractor: 5820 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6020 4045 PowerTech Diesel, Use For Engines With Fractured Split Rods 6100D 4045T/H PowerTech Diesel Engine, Tier 2 & 3, Engine Code 4045HP053, 4045TP060, 4045TP070, 4045TP071, Piston Marked RE509540, RE55512, RE505102 6110 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TL050, 4045TL054, 4045TL063 6110L 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6115D 4045T/H PowerTech Diesel Engine, Tier 2 & 3, Engine Code 4045HP053, 4045TP060, 4045TP070, 4045TP071, Piston Marked RE509540, RE55512, RE505102 6120 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6130D 4045T/H PowerTech Diesel Engine, Tier 2 & 3, Engine Code 4045HP053, 4045TP060, 4045TP070, 4045TP071, Piston Marked RE509540, RE55512, RE505102 6210 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6210L 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6215 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6220 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6310 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6310L 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6310S 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6320 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6403 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6405 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6410 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6410L 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6410S 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6415 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6420 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6510L 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 6510S 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335

TRACTOR: 3200 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TZ250 3400 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TZ250 6110D 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TP071 6120L 4045T PowerTech Diesel, Use For Engines With Fractured Split Rods 6125D 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HP053 6125J 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045HBM01 6205 4045T PowerTech Diesel, Use For Engines With Fractured Split Rods 6220L 4045T PowerTech Diesel, Use For Engines With Fractured Split Rods 6320L 4045T PowerTech Diesel, Use For Engines With Fractured Split Rods 6420L 4045T PowerTech Diesel, Use For Engines With Fractured Split Rods 6420S 4045T PowerTech Diesel, Use For Engines With Fractured Split Rods 6520L 4045T PowerTech Diesel, Use For Engines With Fractured Split Rods SE6120 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Codes 4045TL070, 4045TL271 SE6220 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Codes 4045TL071, 4045TL272 SE6320 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Codes 4045HL073, 4045HL270 SE6420 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Codes 4045HL070, 4045HL271

Wheel Loader: 444H 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 444HLL 4045T PowerTech Diesel Engine, Connecting Rod Marked R500335 444J 4045T/H PowerTech Diesel, Tier 2 & 3, Use For Engines With Fractured Split Rods
