Major Overhaul Kit, John Deere 4-239D; 4039D Diesel Engine, High Ring Piston

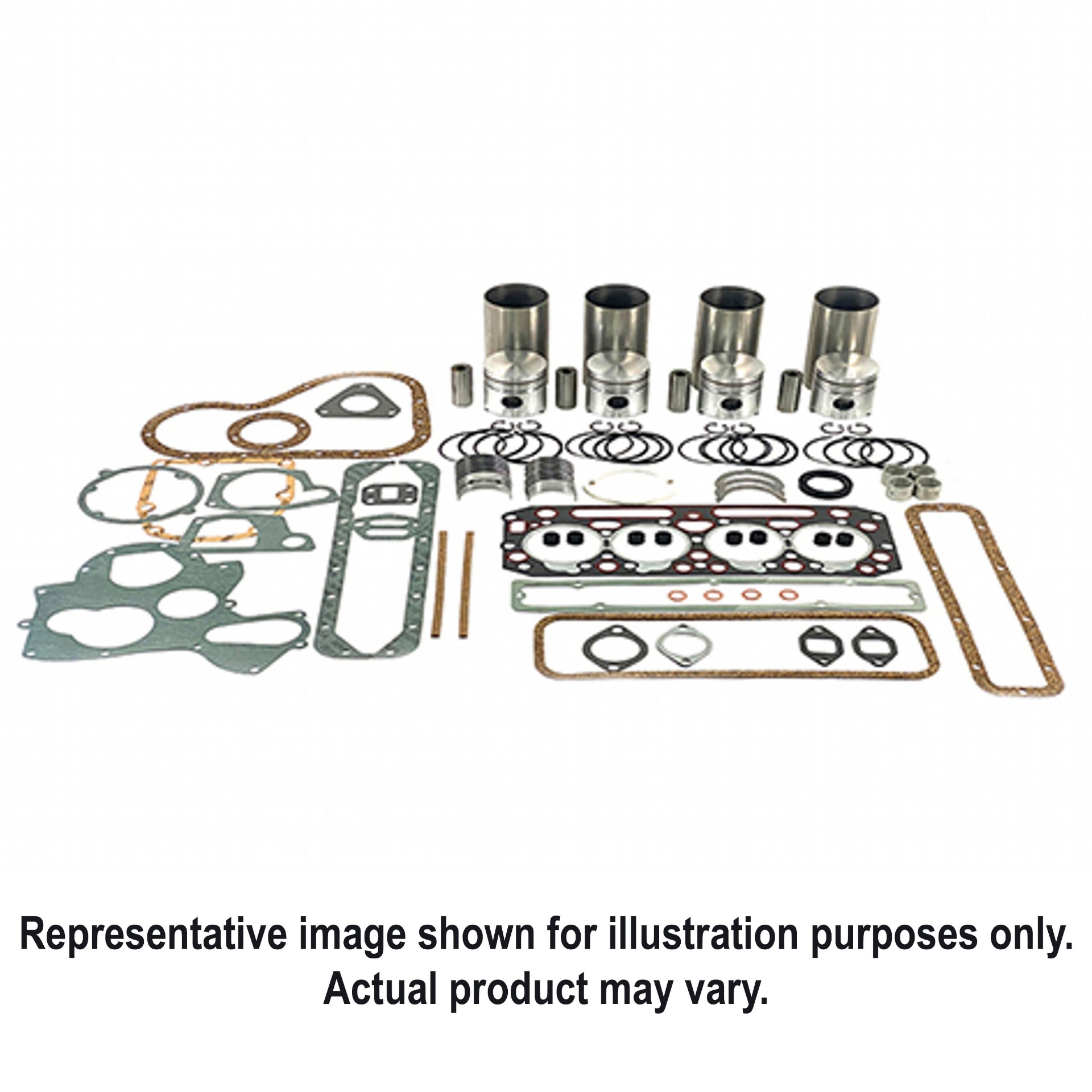

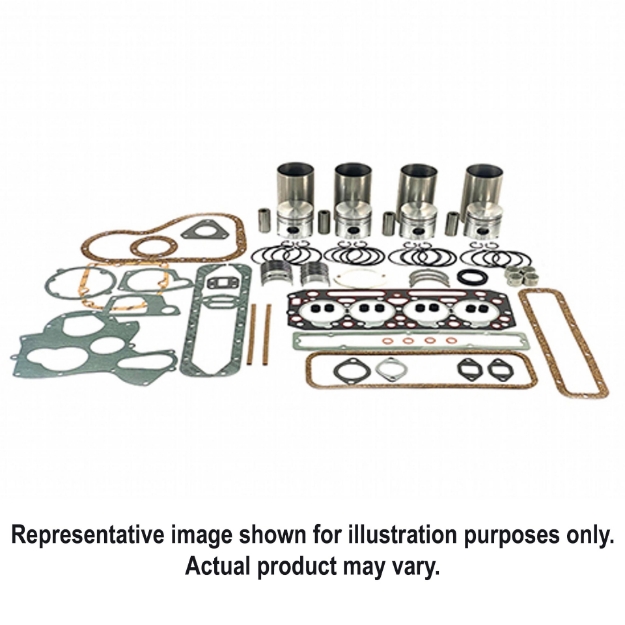

For Engine 4239D use connecting rod #R80034, R51727 & piston #RE30250. For engine 4039D use connecting rod #R80034, blocked marked R88984 & piston #RE30250, RE18697. If your connecting rod is marked R58979 or R51727, you MUST order HCTR74194 capscrews separately.Includes: (4) HCTRE30250 Cylinder Kits (4) HCTRE27348 Rod Bearings (4) HCTRE27352 Main Bearings (1) HCTAT21139 Thrust Bearing (1) HCTRE501579 Overhaul Gasket Set (1) HCTAR67942 Front Crank Seal (1) HCNRE44574 Rear Crank Seal (4) HCTR55647 Piston Pin Bushings (1) HCTMX504 Grommet Kit (6) HCTR57160 Balancer Shaft Bushing (8) HCTR80033 Connecting Rod Bolts (8) HCTRE31617 Valve Stem Seals  The HCTAT86992 Major Overhaul Kit, John Deere 4-239D; 4039D Diesel Engine, High Ring Piston fits equipment brands such as: John Deere
Manufacturer: Hy-Capacity
SKU: HCTAT86992
Vendor: Hy-Capacity
In stock
$797.18
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

Products specifications
Attribute name Attribute value
Engine Manufacturer John Deere
Connecting Rod Marked R51727
Engine Notes 1.375" Piston Pin Diameter, High Ring Piston, Naturally Aspirated
Piston Marked RE18697, RE30250
Piston Pin Dia. 1.375"
Engine CID 239
Fuel Type Diesel
Cylinder Count 4
Bore 4.193"
Stroke Length 4.331"
Rod Journal Dimensions 2.7480" - 2.7488"
Main Journal Dimensions 3.1230" - 3.1240"
New/Reman New
Sold As Each
Warranty 1 Year
Products specifications
Attribute name Attribute value
Engine Manufacturer John Deere
Connecting Rod Marked R51727
Engine Notes 1.375" Piston Pin Diameter, High Ring Piston, Naturally Aspirated
Piston Marked RE18697, RE30250
Piston Pin Dia. 1.375"
Engine CID 239
Fuel Type Diesel
Cylinder Count 4
Bore 4.193"
Stroke Length 4.331"
Rod Journal Dimensions 2.7480" - 2.7488"
Main Journal Dimensions 3.1230" - 3.1240"
New/Reman New
Sold As Each
Warranty 1 Year
