Major Overhaul Kit, John Deere 3-164D Diesel Engine, O-Rings on Liner, w/ 1.19" Piston Pin Diameter

Be the first to review this product

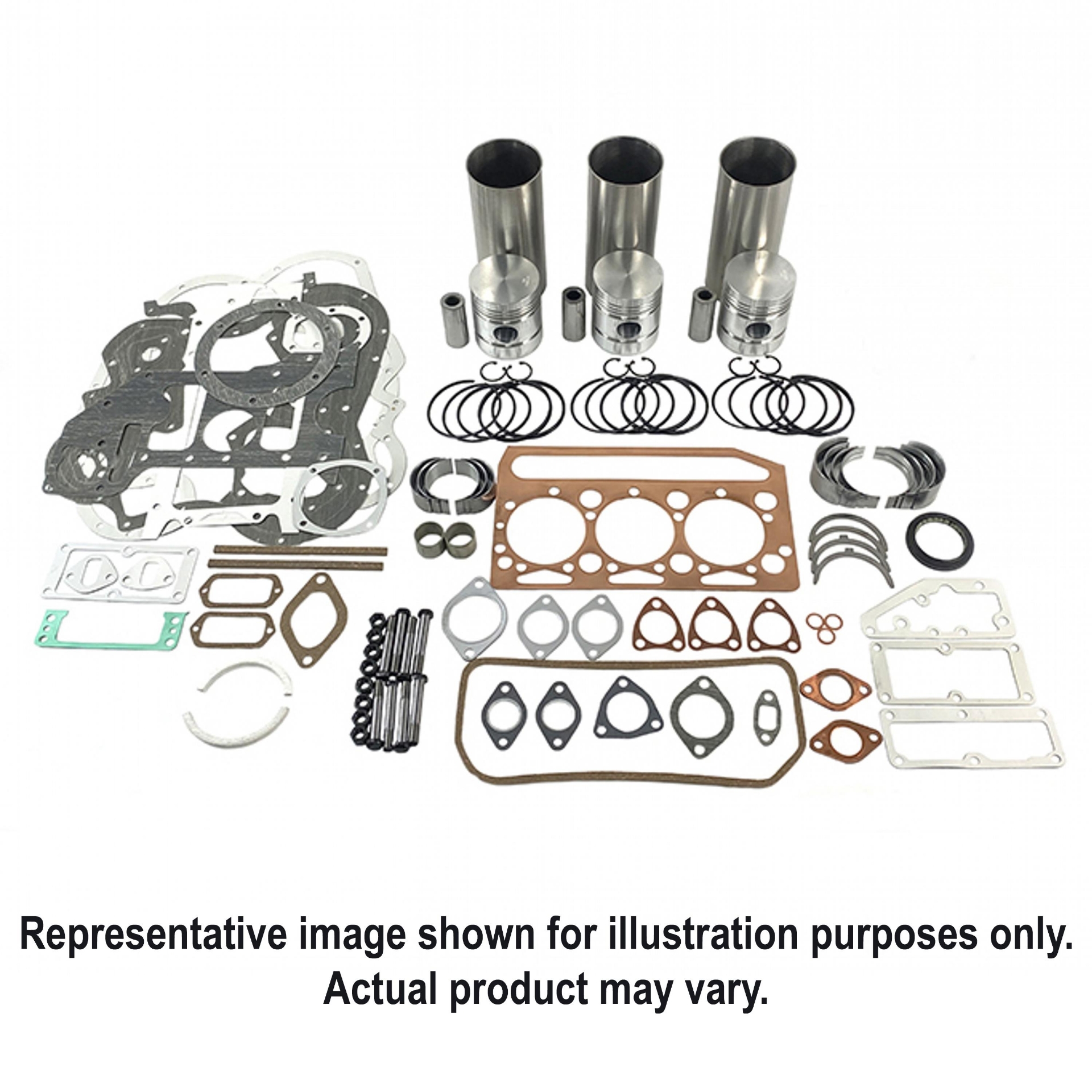

Includes:• (3) HCTPLK310 Cylinder Kits• (3) HCTRE27348 Rod Bearings• (3) HCTRE27352 Main Bearings• (1) HCTAT21139 Thrust Bearing• (1) HCTRE501578 Overhaul Gasket Set• (1) HCTAR67942 Front Crank Seal• (3) HCTT23471 Piston Pin Bushings• (1) Rear Crank Seal• (6) HCTR74194 Connecting Rod Bolts• (1) HCTMX504 Grommet KitThe HCTOK3310 Major Overhaul Kit, John Deere 3-164D Diesel Engine, O-Rings on Liner, w/ 1.19" Piston Pin Diameter fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCTOK3310

Vendor: Hy-Capacity

Availability:

In stock

$696.35

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R81410
Engine Notes	1.19" Piston Pin Diameter, Naturally Aspirated, O-Rings on Liner
Piston Marked	AR78310
Piston Pin Dia.	1.190"
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235" - 3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R81410
Engine Notes	1.19" Piston Pin Diameter, Naturally Aspirated, O-Rings on Liner
Piston Marked	AR78310
Piston Pin Dia.	1.190"
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235" - 3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

John Deere

Crawler/Dozer: 350B 3-164 Diesel, S/N <-179,601, O-Rings on Liner

Engine: 300 Series Engine 3.164, To ESN 179,601, O-Rings on Liner 300 Series Engine 3.164, S/N <-179,601, O-Rings on Liner

Tractor: 1030 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1120 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1130 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1520 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1530 3-164 Diesel, S/N <-179,601, O-Rings on Liner 2040 3-164 Diesel, S/N <-179,601, O-Rings on Liner 830 3-164 Diesel, S/N <-179,601, O-Rings on Liner 930 3-164 Diesel, S/N <-179,601, O-Rings on Liner

TRACTOR: 1120 3164 Diesel, S/N <-179,601, O-Rings on Liner 1520 3164 Diesel, S/N <-179,601, O-Rings on Liner
