LED-1220 - Kubota headlight set (L series)

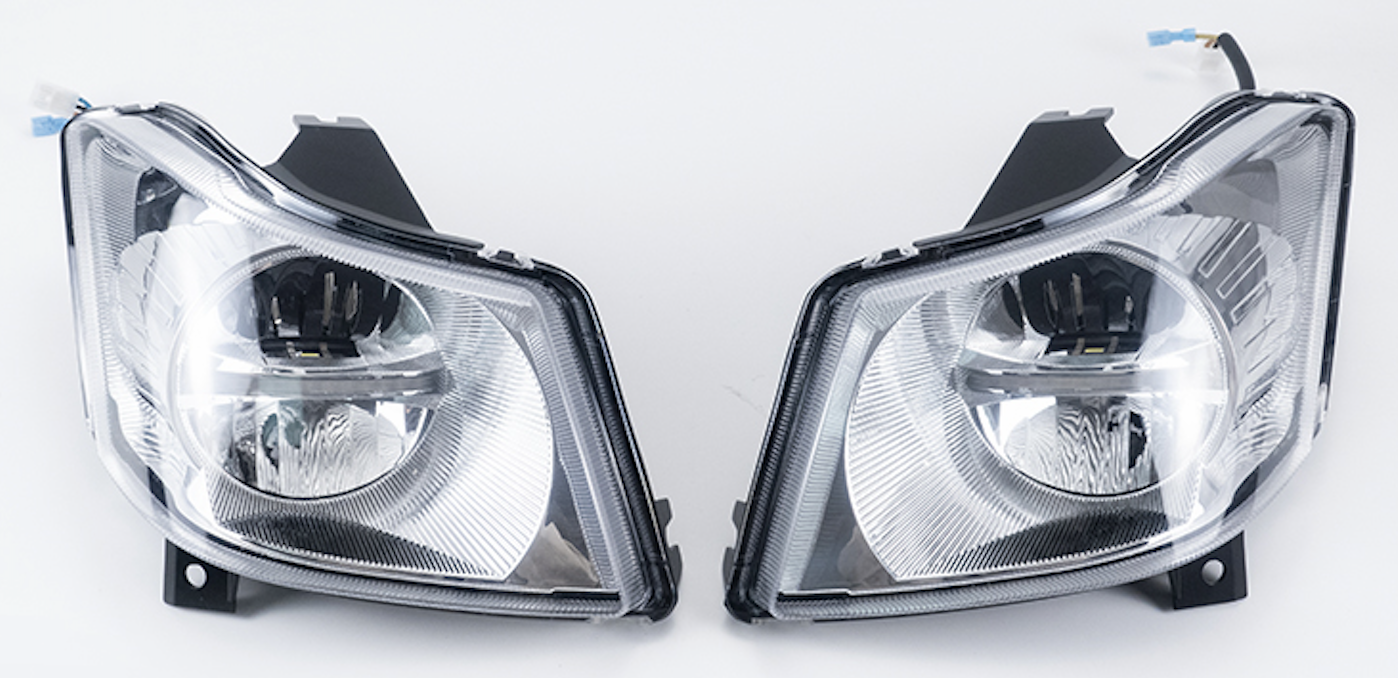

Name: LED-1220 - Kubota headlight set (L series)
SKU: LL1220
Price: 209.00 USD
Availability: OutOfStock

Be the first to review this product

LED-1220 - Kubota headlight set (L series). Replaces OEM Number: TC422-30013, TC422-30014, TC422-30015, TC422-30016, TC422-30025, TC422-30026

Manufacturer: Larsen Lights

SKU: LL1220

Availability:

Out of stock

Inbound QTY: 12 ETA around 12/21/2026.

$209.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-1220 - Kubota headlight set

Details:

. Operating Voltage: 10-30 Volt DC

. LED Power: 72 Watt LED

. Effective Power: Low beam 15W, High beam 30W, Position 1.5W

. Effective Output: Low beam 2000 Lumen, High beam 4000 lumen

. Color Temperature: 5700K

. Operating Temperature: -40℃~80℃

. Waterproof Rate: IP68

. Beam: High/Low Beam + Position

. Material: diecast aluminum housing, stainless steel bracket

. LENS: PC

. Housing Color: black

. Life Time: about 50,000 hours

. EMC: ECE R10, CISPR 25 Class 4

For Kubota L2501 L3301 L3200 L3608 L3800 L3901 L4600 L4701 L4708

L 2501 2WD/4WD/4WD HST, L 3301 2WD/4WD/4 WD HST, L 3200 4WD/4WD HST, L 3608, L3800 4WD/4WD HST, L 3901 2WD, L 4600 2WD/4WD/4 WD HST, L 4701 4WD/4WD HST, L 4708

Ref# TC422-30013,TC422-30014,TC422-30015,TC422-30016, TC422-30025,TC422-30026
