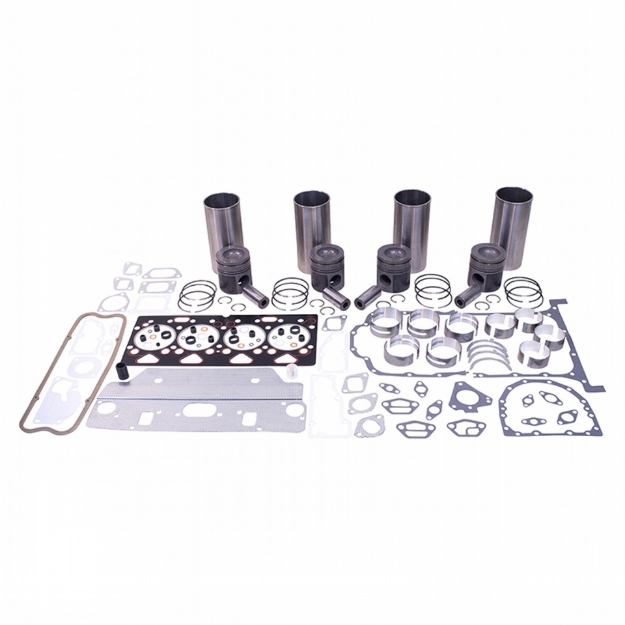

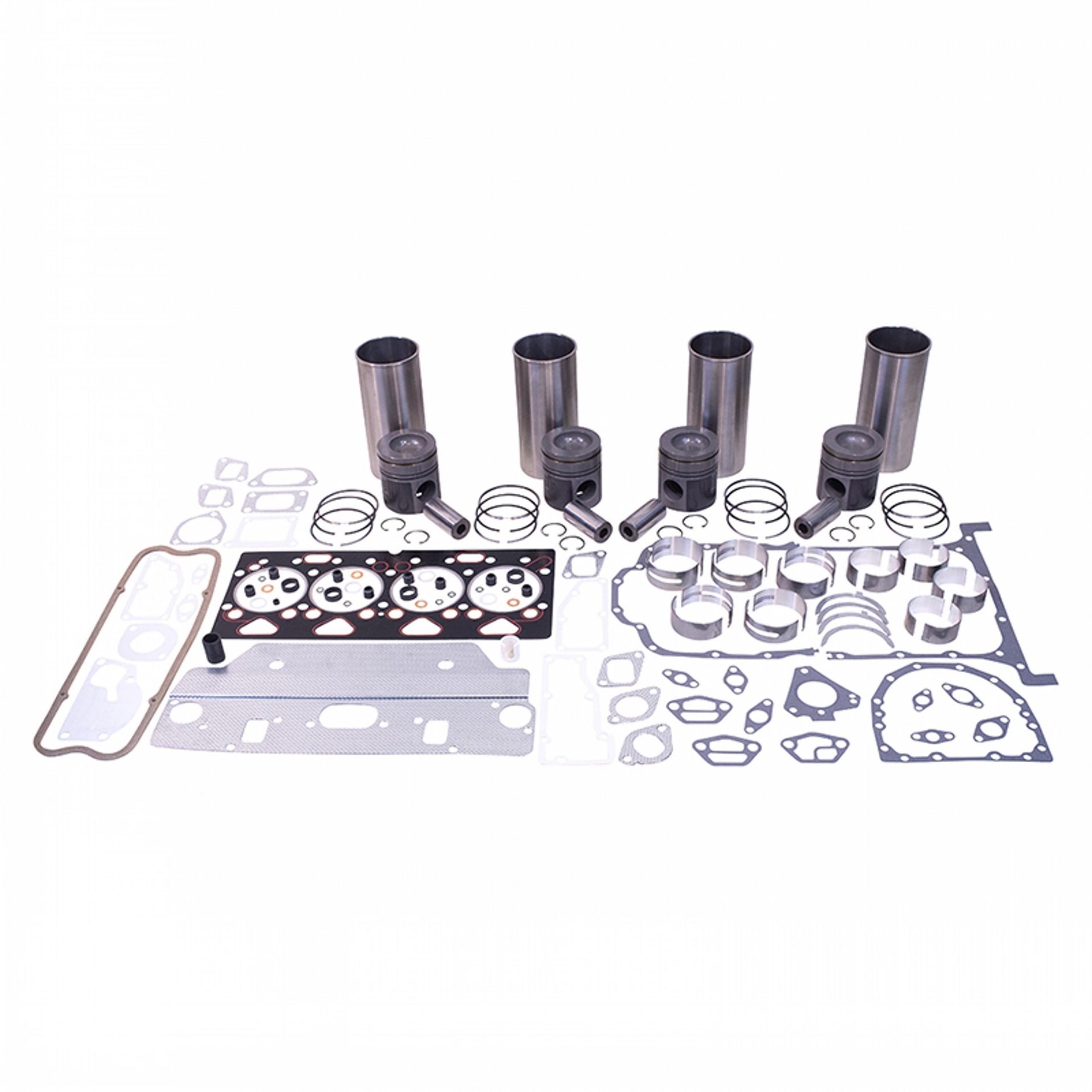

Inframe Overhaul Kit, Perkins 236T Diesel

Be the first to review this product

Includes: (4) HCRMU5MK0169 Cylinder Kits (1) HCRMU5LT1006 Head Gasket Set (1) HCRM81558 Main Bearing Set, Standard (1) HCRM3681K003 Oil Pan Gasket (1) HCRMU5ME0006 Rod Bearing Set, Standard (1) HCRMU5TW0002 Thrust Washer SetThe HCRRP974184 Inframe Overhaul Kit, Perkins 236T Diesel fits equipment brands such as: Caterpillar, Gradall, Massey Ferguson

Manufacturer: Hy-Capacity

SKU: HCRRP974184

Vendor: Hy-Capacity

Availability:

In stock

$600.35

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Perkins
Engine CID	236
Fuel Type	Diesel
Cylinder Count	4
Bore	3.877"
Stroke Length	5.000"
Rod Journal Dimensions	2.4988" - 2.4996"
Main Journal Dimensions	2.9984-2.9992"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Perkins
Engine CID	236
Fuel Type	Diesel
Cylinder Count	4
Bore	3.877"
Stroke Length	5.000"
Rod Journal Dimensions	2.4988" - 2.4996"
Main Journal Dimensions	2.9984-2.9992"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

Caterpillar

Compactor: CP433B Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 6 bolt balancer

Gradall

Telehandler: 534B Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, no balancer

Massey Ferguson

Telehandler: 25T Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 4 bolt balancer

Tractor: 3065 Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 6 bolt balancer 3070 Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 6 bolt balancer 390T Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 6 bolt balancer 393 Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 6 bolt balancer 398 Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 6 bolt balancer 698 Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 6 bolt balancer MF60HX Perkins 236T Diesel, After U083371N, 3 ring piston, 1.5" pin, flanged liners no fire dam, 4 bolt balancer
