Inframe Overhaul Kit, John Deere 4045T PowerTech Diesel Engine

Be the first to review this product

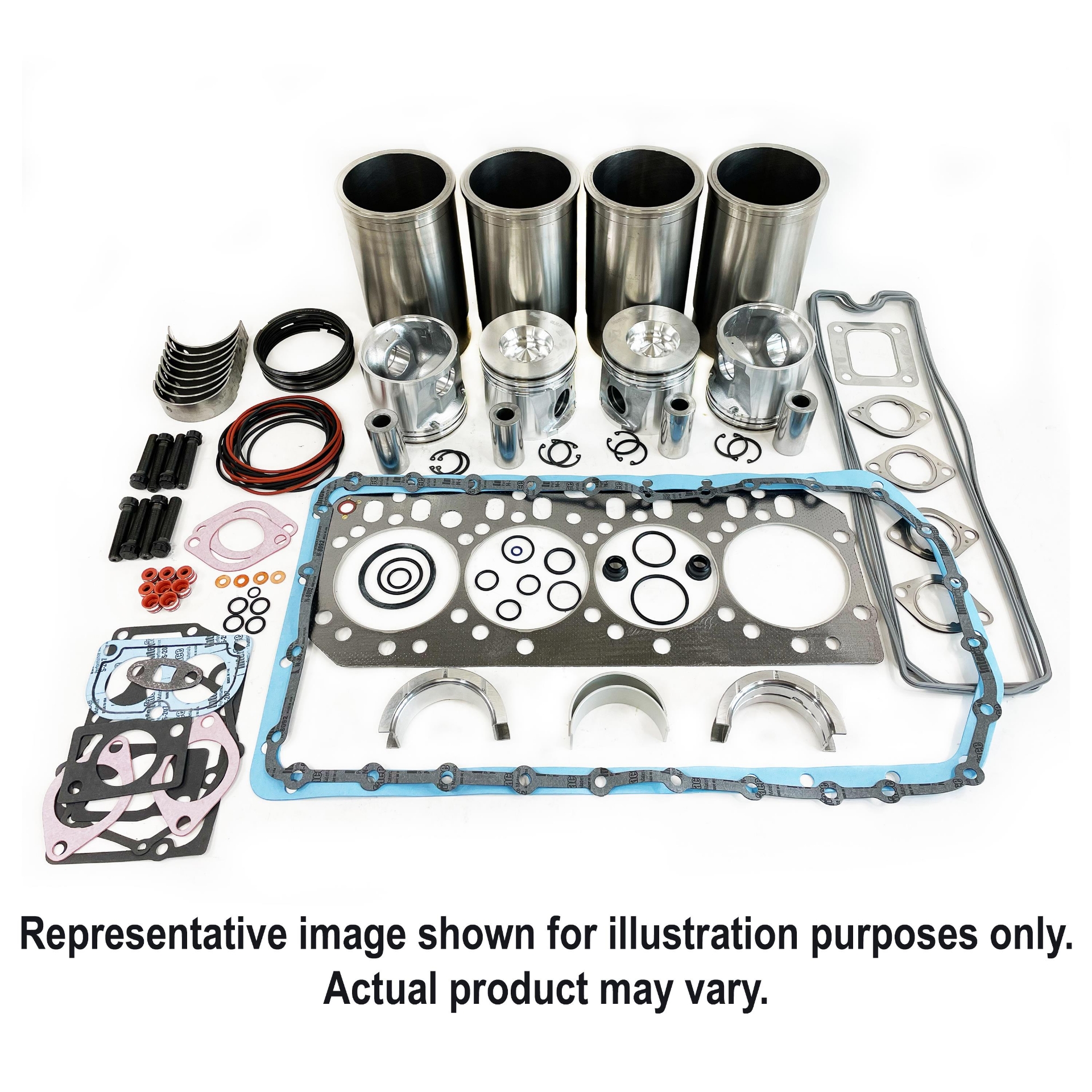

Engines equipped w/ a machined split rod. For engine w/ 2 valves per cylinder.Includes:• (4) HCTRE507920 Cylinder Kits• (4) HCTRE65908 Rod Bearings• (4) HCTRE65165 Main Bearings• (1) HCTRE65168 Thrust Bearing• (1) HCTRE66082 Head Gasket Set• (1) HCTR97342 Oil Pan Gasket• (1) HCTR123352 Oil Pan Gasket• (8) HCTR114083 Connecting Rod Bolts• (8) HCTRE31617 Valve Stem SealsThe HCTIK66093 Inframe Overhaul Kit, John Deere 4045T PowerTech Diesel Engine fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCTIK66093

Vendor: Hy-Capacity

Availability:

In stock

$787.51

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R123959
Piston Marked	RE505100, RE59277
Piston Pin Dia.	1.375"
Engine Notes	Turbocharged
Engine CID	276
Fuel Type	Diesel
Cylinder Count	4
Bore	4.193"
Stroke Length	5.000"
Rod Journal Dimensions	3.0630" - 3.0640"
Main Journal Dimensions	3.1230" - 3.1240"
New/Reman	New
Piston Code	4803, 4823
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R123959
Piston Marked	RE505100, RE59277
Piston Pin Dia.	1.375"
Engine Notes	Turbocharged
Engine CID	276
Fuel Type	Diesel
Cylinder Count	4
Bore	4.193"
Stroke Length	5.000"
Rod Journal Dimensions	3.0630" - 3.0640"
Main Journal Dimensions	3.1230" - 3.1240"
New/Reman	New
Piston Code	4803, 4823
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

John Deere

Crawler/Dozer: 450H 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 450J 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045HT050, 4045HT051, 4045TT090, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 550H 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 550J 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045HT050, 4045HT051, 4045TT090, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 650H 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 700H 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959

CRAWLER/DOZER: 650J 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Codes 4045HT050, 4045TT090

Engine: PowerTech 4045T PowerTech Diesel Engine, For Engines with Machined Split Rods, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823

Excavator: 230LCR 4045T PowerTech Diesel Engine, Use For Engines With Machined Split Rods

Loader Backhoe: 210LE 4045T PowerTech Diesel, Use For Engines With Machined Split Rods 310G 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 310J 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT094, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 310K 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT094, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 310L 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT094, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 310SE 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 310SG 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 310SK 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT096, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 310SL 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT096, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 315SE 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 315SG 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 315SJ 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT096, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 315SK 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT096, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 410E 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 410G 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 410J 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT096, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823 410K 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT096, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823

LOADER BACKHOE: 310E 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Codes 4045TT050, 4045TT056 310SJ 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TT094 310TJ 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TT094

Sprayer: 6700 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959

Tractor: 3410 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 5415 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 5510 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 5510N 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 5520 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 5520N 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 5615 4045T PowerTech Diesel Engine, Connecting Rod Marked R500000 5715 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 6205 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959

TRACTOR: 3410X 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TRT50 5083E 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV53 5093E 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV54 5101E 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV56 5410N 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TAT50 5425 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV53, 4045TP065, 4045TP066, 4045TP072, 4045TP073, 4045TP079, 4045TP080, 4045TP081 5425N 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Codes 4045TLV53, 4045TP059, 4045TP068, 4045TP079 5525 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV54 5525N 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV54 5603 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV56 5625 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TLV56, 4045TP072, 4045TP073, 4045TP079, 4045TP080, 4045TP081 5725 4045T PowerTech Tier 1 Diesel Engine, w/ Engine Code 4045TP079

Wheel Loader: 344H 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 344J 4045T/H PowerTech Diesel Engine, Tier 2 & 3, For Engines with Machined Split Rods, Engine Code 4045TT096, Piston #RE507920, Marked #RE515372, RE59277, RE505100, Connecting Rod Marked R123959, Turbo, 35mm Pin, Pencil Injectors, Piston Option Code 4803 or 4823

Windrower: 4890 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959 4895 4045T PowerTech Diesel Engine, Piston Marked #RE59277, RE505100, Connecting Rod Marked R123959
