Inframe Overhaul Kit, John Deere 3164 Diesel, Standard Compression

Be the first to review this product

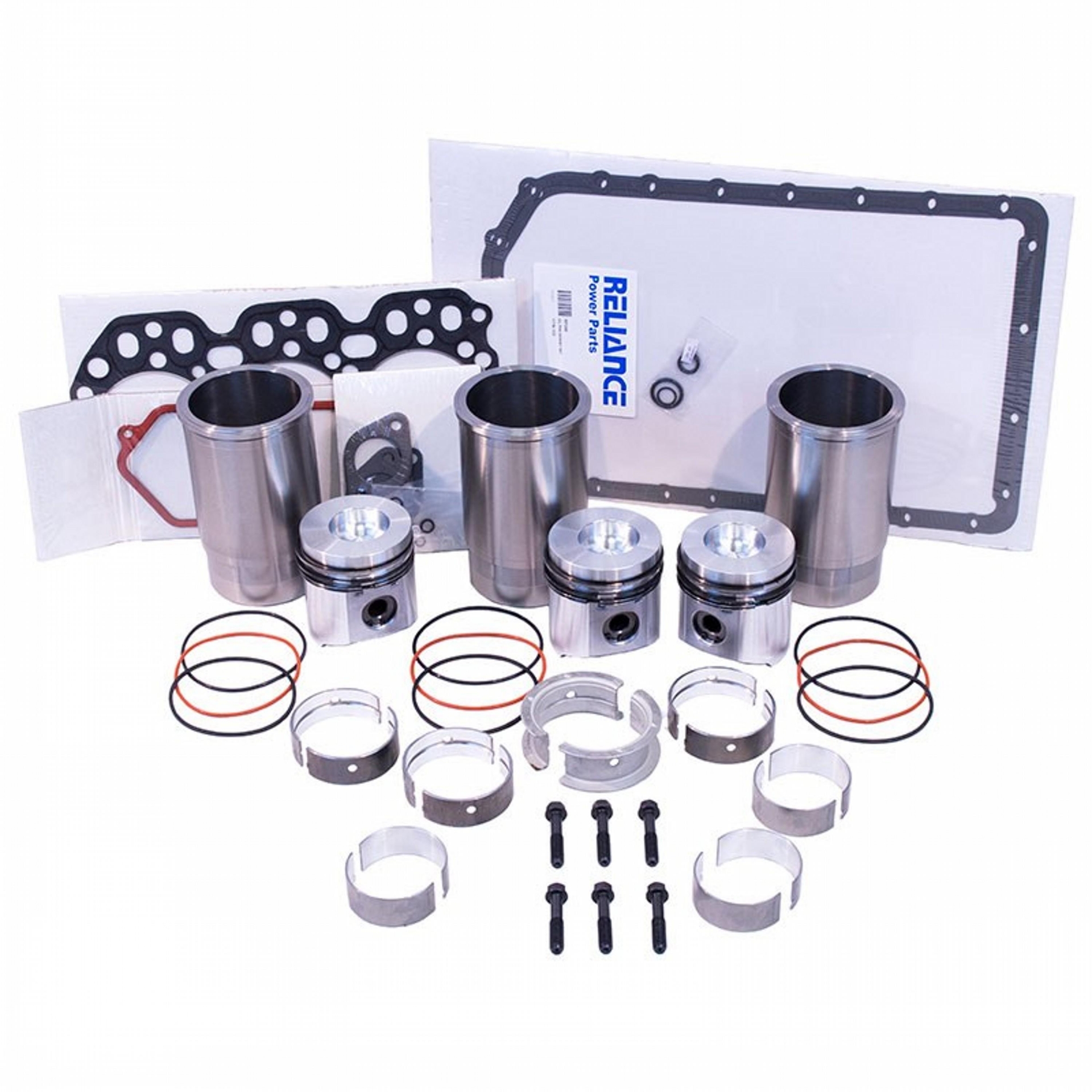

Includes: (6) HCRNR74194 Connecting Rod Bolts (3) HCRNRE53321 Cylinder Kits (1) HCRNRE38850 Head Gasket Set (1) HCRRP251262 Main Bearing Set, Standard (1) HCRRP340 Oil Pan Gasket Set (3) HCRNRE27348 Rod Bearings, StandardThe HCRRP174 Inframe Overhaul Kit, John Deere 3164 Diesel, Standard Compression fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: HCRRP174

Vendor: Hy-Capacity

Availability:

In stock

$389.94

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235-3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235-3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

John Deere

CRAWLER/DOZER: 350C John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block

LOADER BACKHOE: 300B John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 302A John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 310 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block

POWER UNIT: 3164D John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block

TRACTOR: 1020 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 1030 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 1120 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 1130 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 1530 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 2040 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 301A John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 302 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 830 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block 930 John Deere 3164 Diesel, Late, 1.375" Piston Pin, o-ring grooves in block
