Inframe Overhaul Kit, IH D239 Diesel, Dominator

Be the first to review this product

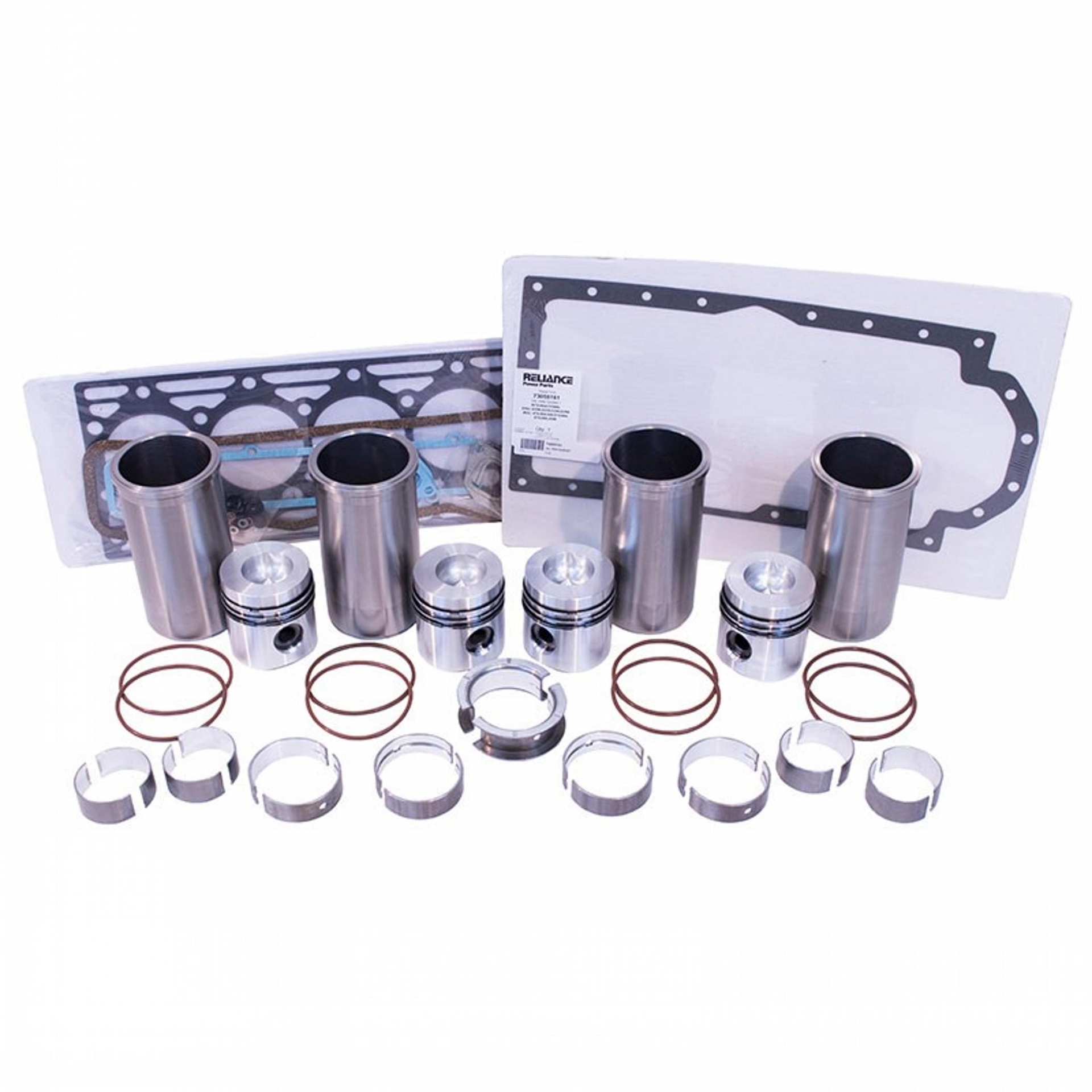

Includes: (4) HCR71806470 Cylinder Kits (1) HCR73136799 Head Gasket Set (1) HCRRP918 Main Bearing Set, Standard (1) HCR73055161 Oil Pan Gasket (4) HCR73055351 Rod Bearings, StandardSpecify LH or RH Tang on Rod Bearing when ordering!The HCRRP944156 Inframe Overhaul Kit, IH D239 Diesel, Dominator fits equipment brands such as: Case IH, International

Manufacturer: Hy-Capacity

SKU: HCRRP944156

Vendor: Hy-Capacity

Availability:

In stock

$575.51

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025. You can order the lights, but the order will not ship before late January. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	International Harvester/Navistar
Engine CID	239
Fuel Type	Diesel
Cylinder Count	4
Bore	3.875"
Stroke Length	5.060"
Rod Journal Dimensions	2.5185" - 2.5193"
Main Journal Dimensions	3.1484-3.1492"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	International Harvester/Navistar
Engine CID	239
Fuel Type	Diesel
Cylinder Count	4
Bore	3.875"
Stroke Length	5.060"
Rod Journal Dimensions	2.5185" - 2.5193"
Main Journal Dimensions	3.1484-3.1492"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

Case IH

Tractor: 4210 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring 685 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring 695 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring

TRACTOR: 4210 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 685 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 695 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering!

International

Backhoe: 250A IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 250A IH D239 Diesel, Neuss 260A IH D239 Diesel, Neuss 260A IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering!

Crawler/Dozer: TD7E IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! TD7E IH D239 Diesel, Neuss TD8C IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! TD8C IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring

Tractor: 2500A IH D239 Diesel, Neuss 2500A IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 2500B IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 2500B IH D239 Diesel, Neuss 2505B IH D239 Diesel, Neuss 2505B IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 2510B IH D239 Diesel, Neuss 2510B IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 2514B IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 2514B IH D239 Diesel, Neuss 2544 IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 2544 IH D239 Diesel, Neuss 3500A IH D239 Diesel, Neuss 3500A IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 3514 IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 3514 IH D239 Diesel, Neuss 514 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 514 IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring 544 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring 544 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 574 IH D239 Diesel, Neuss 574 IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 664 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 664 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring 674 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 674 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring 684 IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 684 IH D239 Diesel, Neuss

Wheel Loader: 100E IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 100E IH D239 Diesel, Neuss 125 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 125 IH D239 Diesel, Neuss, Early, Thru 1979, 5.0 mm liner o-ring 125C IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring, Specify LH or RH Tang on Rod Bearing when ordering! 125C IH D239 Diesel, Neuss, Late, After 1979, 4.75mm liner o-ring

Windrower: 4000 IH D239 Diesel, Neuss 4000 IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 5000 IH D239 Diesel, Neuss 5000 IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 5500 IH D239 Diesel, Neuss, Specify LH or RH Tang on Rod Bearing when ordering! 5500 IH D239 Diesel, Neuss
