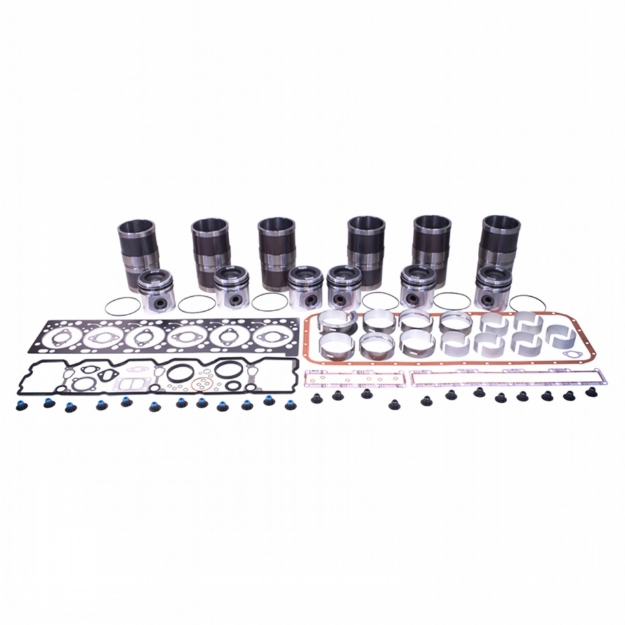

Inframe Overhaul Kit, Cummins QSC 8.3 Diesel

Includes: (6) HCRK3800319 Cylinder Kits (1) HCRK4089958 Head Gasket Set (1) HCRK3945917 Main Bearing Set, Standard (1) HCRK3938160 Oil Pan Gasket (1) Oil Pump Pickup Tube Mounting Gasket (6) HCRK3901430 Rod Bearings, StandardThe HCRRP934148 Inframe Overhaul Kit, Cummins QSC 8.3 Diesel fits equipment brands such as: Case IH

Manufacturer: Hy-Capacity

SKU: HCRRP934148

Vendor: Hy-Capacity

Availability:

In stock

$1,434.91

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Cummins
Piston Marked	3446
Engine CID	505
Fuel Type	Diesel
Cylinder Count	6
Bore	4.488"
Stroke Length	5.315"
Rod Journal Dimensions	2.9916" - 2.9926"
Main Journal Dimensions	3.8568-3.8588"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Cummins
Piston Marked	3446
Engine CID	505
Fuel Type	Diesel
Cylinder Count	6
Bore	4.488"
Stroke Length	5.315"
Rod Journal Dimensions	2.9916" - 2.9926"
Main Journal Dimensions	3.8568-3.8588"
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

A77900 (1)
,
A78019 (1)

Use On Below Models (Click to expand)

Case IH

TRACTOR: MX240 Cummins QSC 8.3 Diesel, Turbo/Aftercooled, CAPS Injection, 24 valve, Piston Marked 3446 MX255 Cummins QSC 8.3 Diesel, Turbo/Aftercooled, CAPS Injection, 24 valve, Piston Marked 3446 MX270 Cummins QSC 8.3 Diesel, Turbo/Aftercooled, CAPS Injection, 24 valve, Piston Marked 3446 STX275 Cummins QSC 8.3 Diesel, Turbo/Aftercooled, CAPS Injection, 24 valve, Piston Marked 3446
