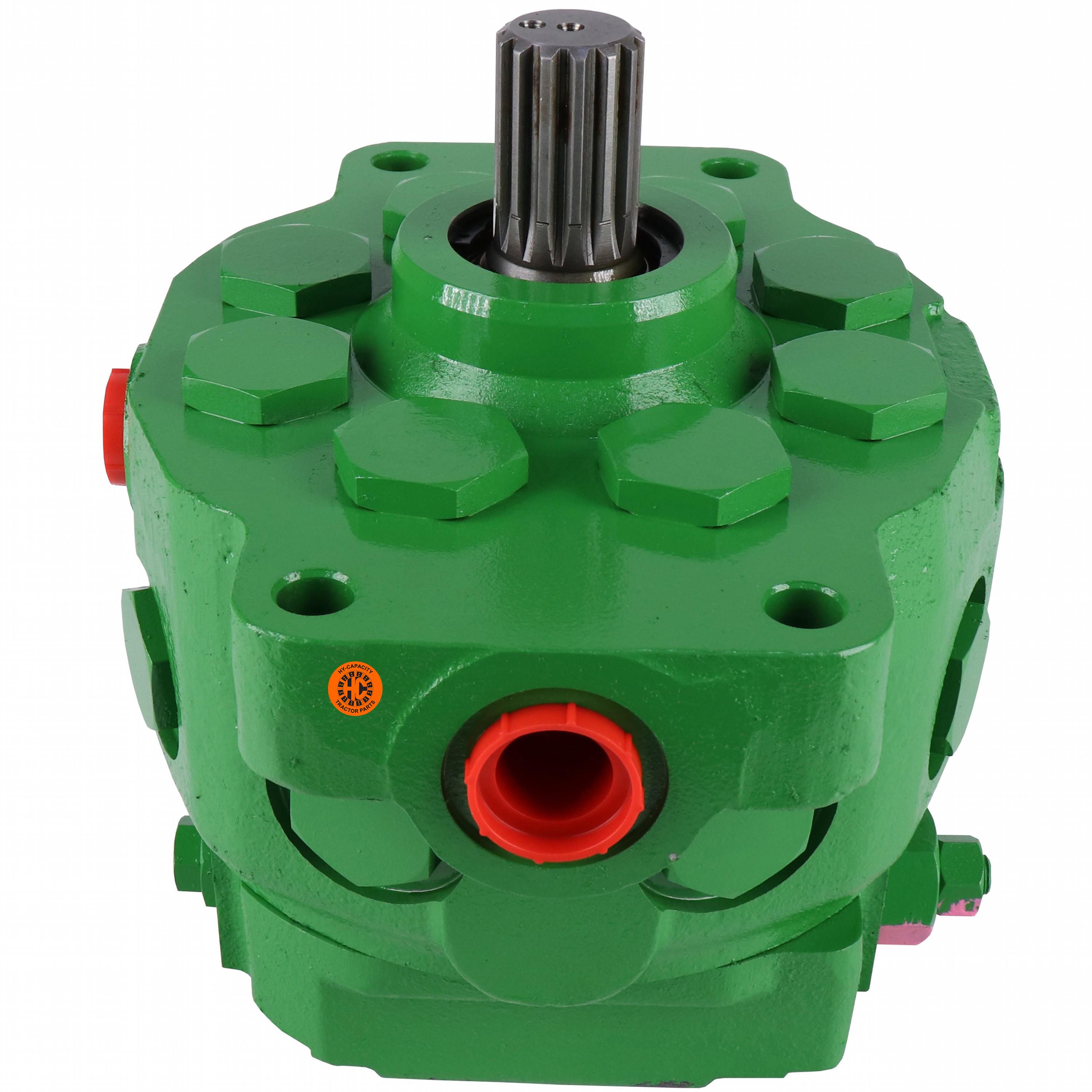

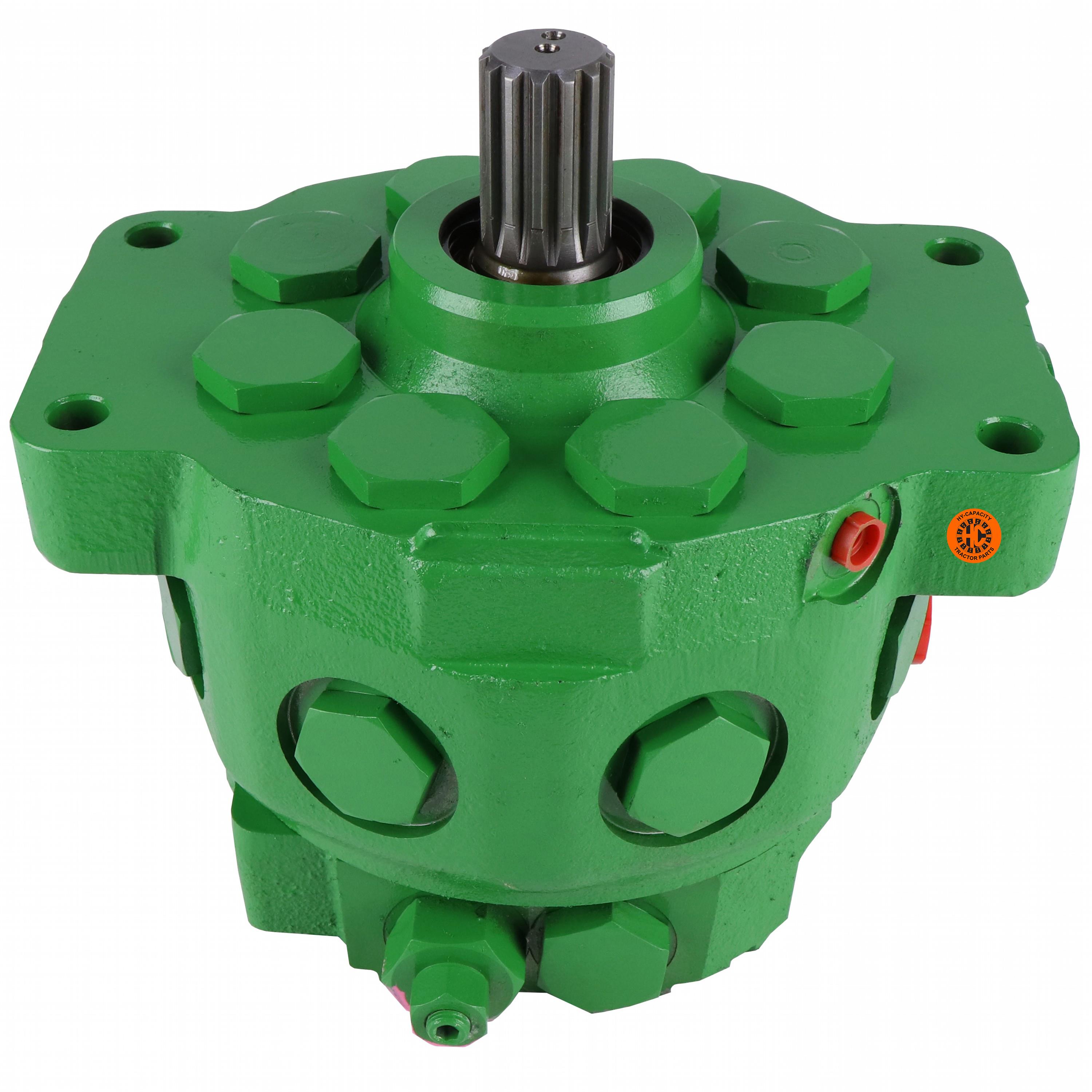

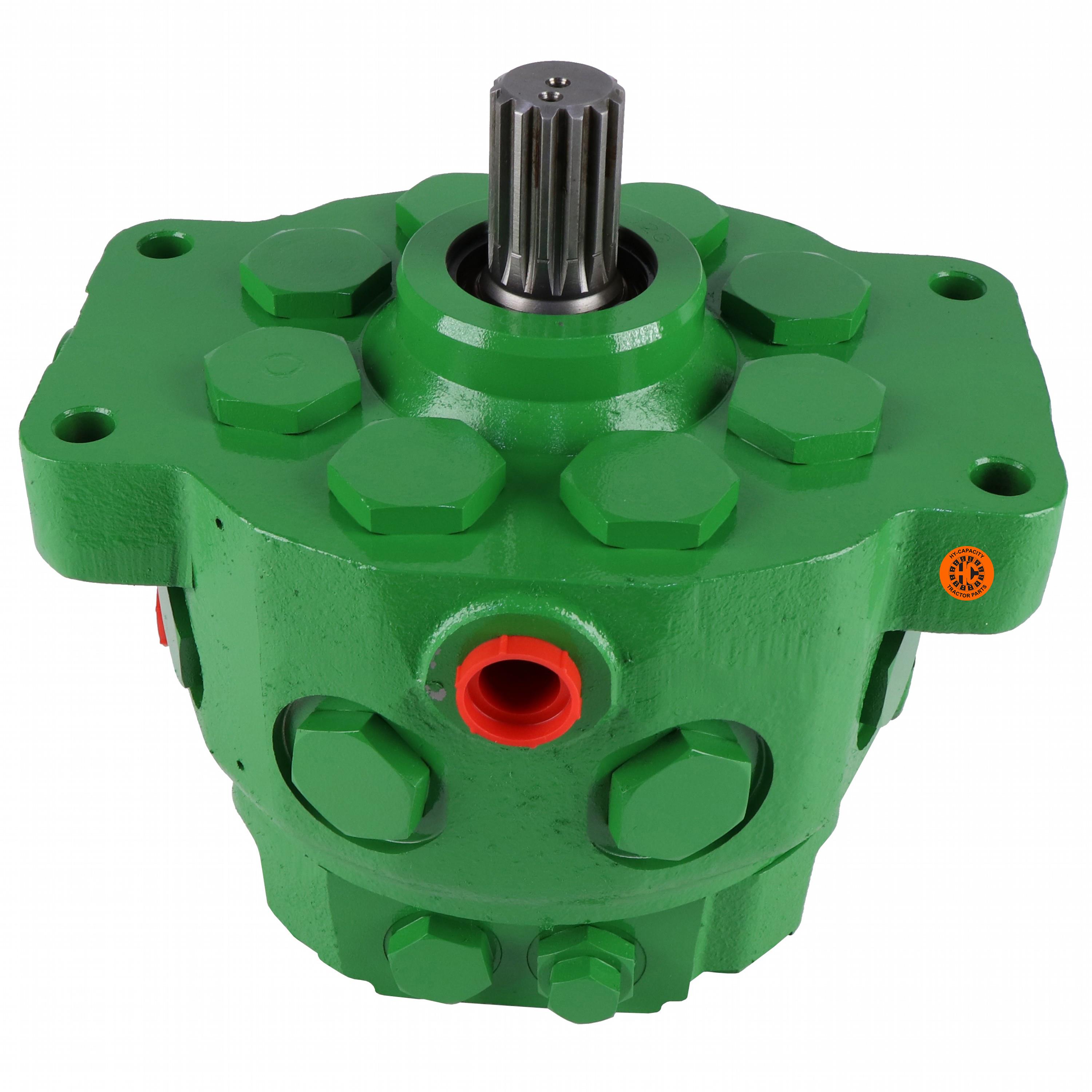

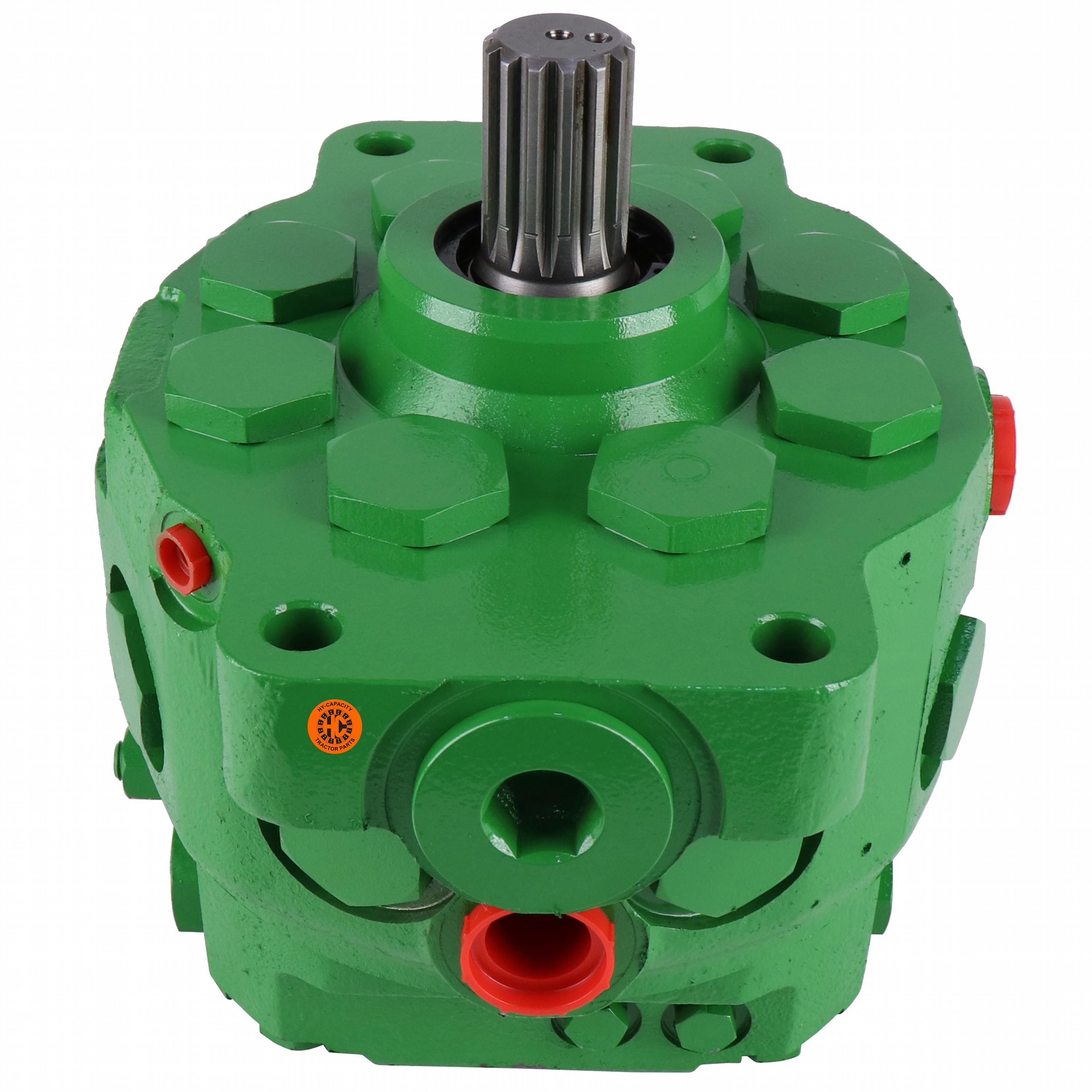

Hydraulic Pump - New

Hydraulic Pump, 19 GPM, Serialized8 piston, serialized pump. Pressure set to OEM specifications, flow tested at operating temperature at our facility in Iowa.Everyone knows how important hydraulics are. Read our blog post, "What Makes Hy-Capacity Hydraulic Pumps so Great?" here.The R94658N Hydraulic Pump - New fits equipment brands such as: John DeereThe R94658N is a substitute for the following discontinued products: R94658NH, R94658

Manufacturer: Hy-Capacity

SKU: R94658N

Vendor: Hy-Capacity

Availability:

In stock

$999.08

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Dimensions	[A] 1-1/16" Suction; [B] 1-5/8" Suction; [C] 1-1/16" Pressure; [D] 7/8" Cooler
Displacement	3.0 CI / REV
Flow Rate	19 GPM
New/Reman	New
Shaft	Splined
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Dimensions	[A] 1-1/16" Suction; [B] 1-5/8" Suction; [C] 1-1/16" Pressure; [D] 7/8" Cooler
Displacement	3.0 CI / REV
Flow Rate	19 GPM
New/Reman	New
Shaft	Splined
Sold As	Each
Warranty	1 Year

Product tags

John Deere Hydraulic Pump Ports (5)

Use On Below Models (Click to expand)

John Deere

Tractor: 1640 Splined Shaft Pump 1830 Splined Shaft Pump 1840 Splined Shaft Pump 2030 Splined Shaft Pump, Tractor Manufactured in Waterloo, Iowa. 2040 Splined Shaft Pump, Models Produced in Mannheim, Germany. 2040S Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2130 Splined Shaft Pump 2140 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2155 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2350 Splined Shaft Pump 2355 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2440 Splined Shaft Pump 2520 Splined Shaft Pump; 4-Piston Splined Shaft Pump is Original Pump for this Model - No Core Credit Will Be Issued on These Pumps. 2550 Splined Shaft Pump 2555 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2630 Splined Shaft Pump 2640 Splined Shaft Pump 2750 Splined Shaft Pump 2755 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2840 Splined Shaft Pump 2855N Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2940 Splined Shaft Pump 2950 Splined Shaft Pump 2955 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 300 Splined Shaft Pump 3010 Splined Shaft Pump; Seal Drain Kit R39810 is required for machines not previously updated. 3020 Synchro-Range & Powershift Models 3030 Splined Shaft Pump 3040 Splined Shaft Pump 3050 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3055 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3130 Splined Shaft Pump 3140 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3150 Splined Shaft Pump 3155 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3255 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3350 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3640 Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 400 Splined Shaft Pump 4000 Synchro-Range & Powershift Models 401 Splined Shaft Pump 4010 Splined Shaft Pump; Seal Drain Kit R39810 is required for machines not previously updated. 4020 Synchro-Range & Powershift Models 4030 Splined Shaft Pump 4040 w/o Power Front Wheel Assist 4050 Splined Shaft Pump 4055 Splined Shaft Pump 4230 w/o Power Front Wheel Drive 4240 w/o Power Front Wheel Assist 4250 Splined Shaft Pump 4255 Splined Shaft Pump 4320 S/N 014560 and Below, w/o Power Front Wheel Drive 4430 w/o Power Front Wheel Drive 4440 w/o Power Front Wheel Assist 4450 Splined Shaft Pump 4455 Splined Shaft Pump 4520 w/o Power Front Wheel Drive 4620 w/o Power Front Wheel Drive 4630 w/o Power Front Wheel Drive 4640 w/o Power Front Wheel Assist 4840 Splined Shaft Pump 5010 Splined Shaft Pump; Seal Drain Kit R39810 is required for machines not previously updated. 5020 Splined Shaft Pump 6030 Splined Shaft Pump 7020 Splined Shaft Pump 7520 1972 - 75. Splined Shaft Pump
