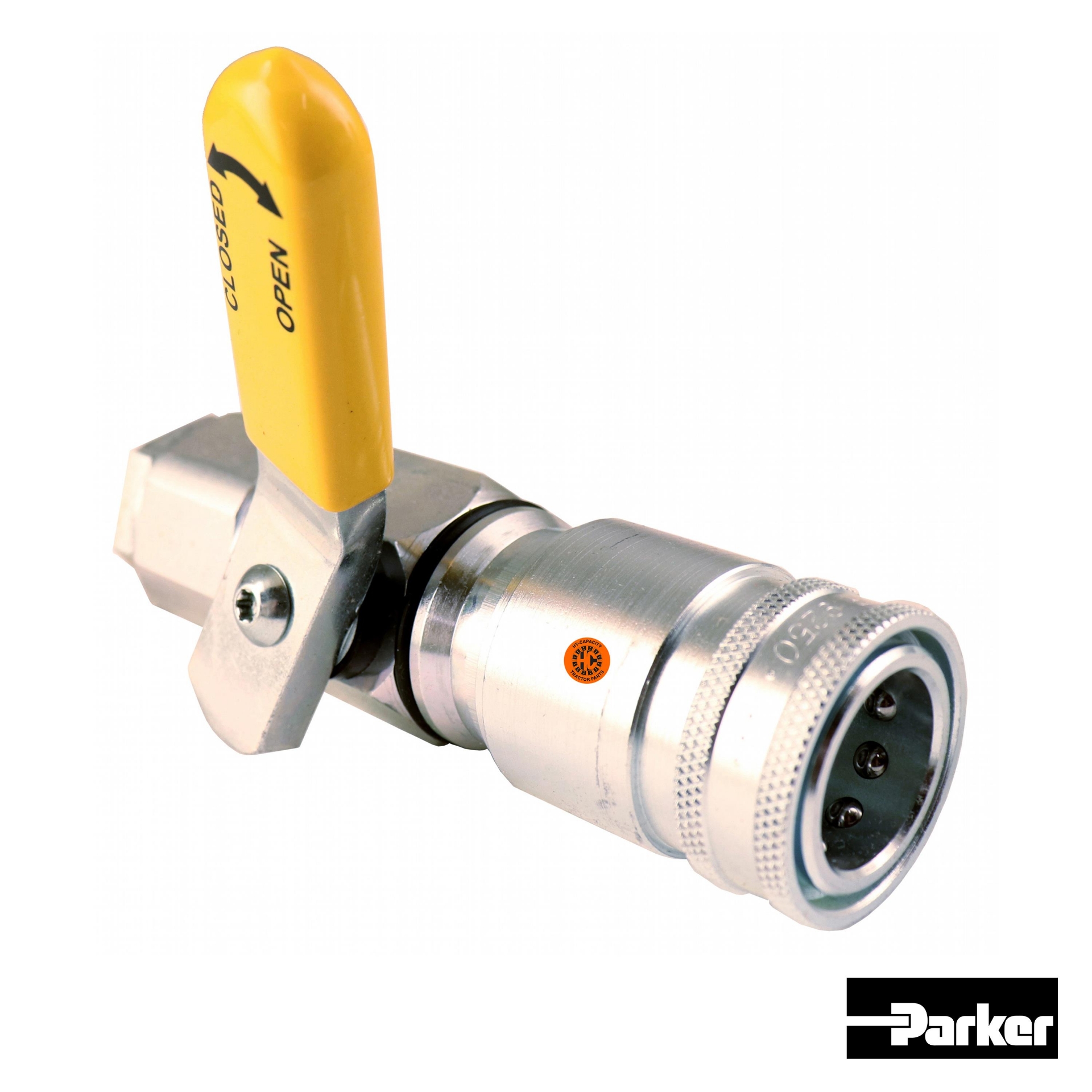

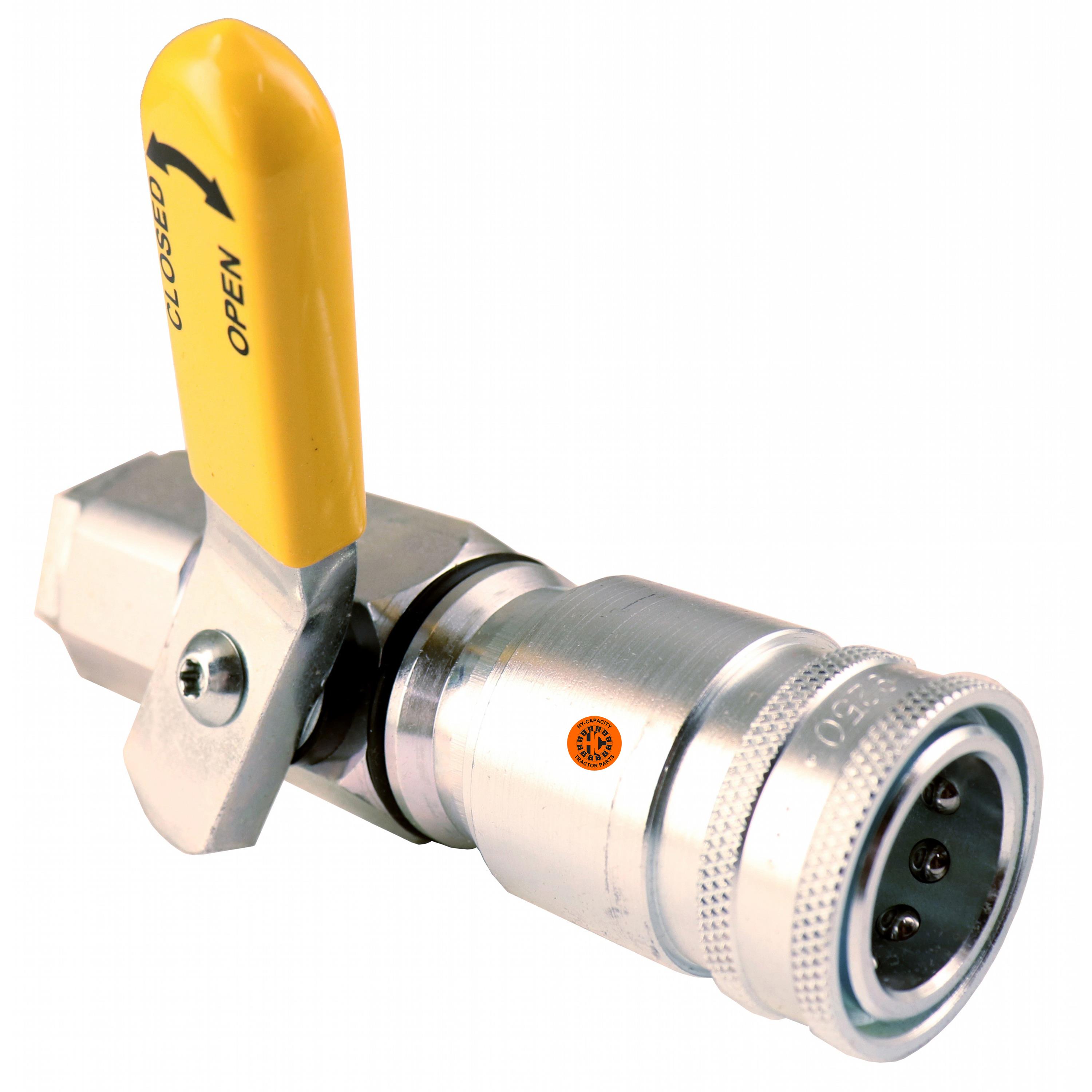

Pioneer Yellow Left Hand Lever Operated Hydraulic Quick Coupler, Breakaway Sleeve, Female, Genuine OEM Style

Left hand lever that is color coded yellow. Helps to easily identify raise and lower lines. Connect and disconnect with minimal effort while lines are under pressure Lever locks valves open to be unaffected by pressure surges and prevent flow checking Lever locks valves closed to enable easy connection and disconnection while lines are under pressure Coupling will disconnect and valves will automatically close in the case of a breakaway Globally connects with Pioneer universal male tips complying to ISO 5675 Functionally can replace a double shut off quick coupling and two high pressure ball valvesThe HA83972419 Pioneer Yellow Left Hand Lever Operated Hydraulic Quick Coupler, Breakaway Sleeve, Female, Genuine OEM Style fits equipment brands such as: Case IH, Steiger, Versatile

Manufacturer: Hy-Capacity

SKU: HA83972419

Vendor: Hy-Capacity

Availability:

In stock

$105.87

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Style	Lever
Max Pressure (PSI)	3000
Body Size	1/2"
ISO	5675
New/Reman	New
Quality	Genuine
Sold As	Each
Thread Size	Female; 7/8" - 14 UNF
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Style	Lever
Max Pressure (PSI)	3000
Body Size	1/2"
ISO	5675
New/Reman	New
Quality	Genuine
Sold As	Each
Thread Size	Female; 7/8" - 14 UNF
Warranty	1 Year

Product tags

83972419 (1)
,
50-1460T91 (1)
,
V58280 (1)
,
83972419 (1)
,
V58280 (1)

Use On Below Models (Click to expand)

Case IH

Tractor: 9110 9130 9150 9170 9180 9190 9210 9230 9240 9250 9260 9270 9280 9310 9330 9350 9370 9380 9390

Steiger

Tractor: Bearcat 1000 Series Bearcat Series III Late Style Bearcat Series IV CM325 Panther CM360 Panther Cougar 1000 Series Cougar Series III Late Style Cougar Series IV CP1325 Panther CP1360 Panther CP1400 Panther CR1225 Cougar CR1280 Cougar CS360 Panther KM225 Bearcat KM280 Cougar KM325 Panther KM360 Panther KP1325 Panther KP1360 Panther KP1400 Panther KP525 Tiger KR1225 Cougar KR1280 Cougar KS280 Cougar KS325 Panther KS360 Panther Lion 1000 Series Panther 1000 Series Panther Series III Late Style Panther Series IV PT225 Bearcat Late Style PT270 Cougar Late Style PTA251 Cougar Late Style PTA270 Cougar Late Style PTA280 Cougar Late Style PTA297 Panther Late Style PTA310 Panther Late Style PTA325 Panther Late Style Puma 1000 Series SM325 Panther ST220 Bearcat Late Style ST225 Bearcat Late Style ST250 Cougar Late Style ST251 Cougar Late Style ST270 Cougar Late Style ST280 Cougar Late Style ST310 Panther Late Style ST320 Panther Late Style ST325 Panther Late Style ST350 Panther Late Style ST450 Tiger Late Style ST470 Tiger Late Style Wildcat 1000 Series

Versatile

Tractor: 1150 1156 756 835 Start Yr. 1-1-1981 & Up 836 846 Start Yr. 1-1-1988 thru 9-30-92 855 Start Yr. 1-1-1981 & Up 856 875 Start Yr. 1-1-1981 & Up 876 Start Yr. 1-1-1985 thru 9-30-92 895 Start Yr. 1-1-1981 & Up 935 Start Yr. 1-1-1981 & Up 936 945 946 Start Yr. 1-1-1987 thru 9-30-92 950 Start Yr. 1-1-1981 & Up 955 956 975 976 Start Yr. 1-1-1985 thru 9-30-92
