High Compression Major Overhaul Kit, John Deere 6404T; 6404A Diesel Engine

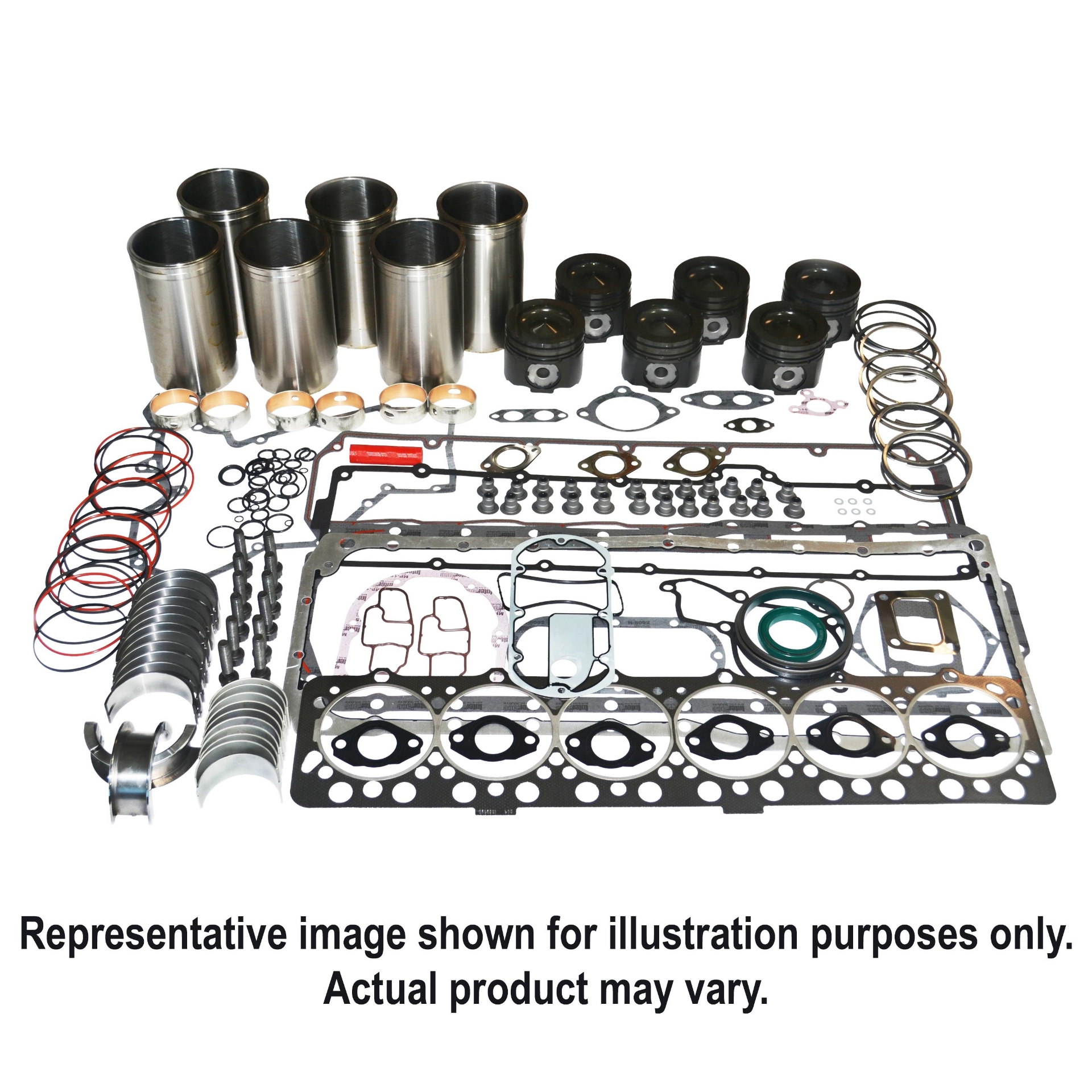

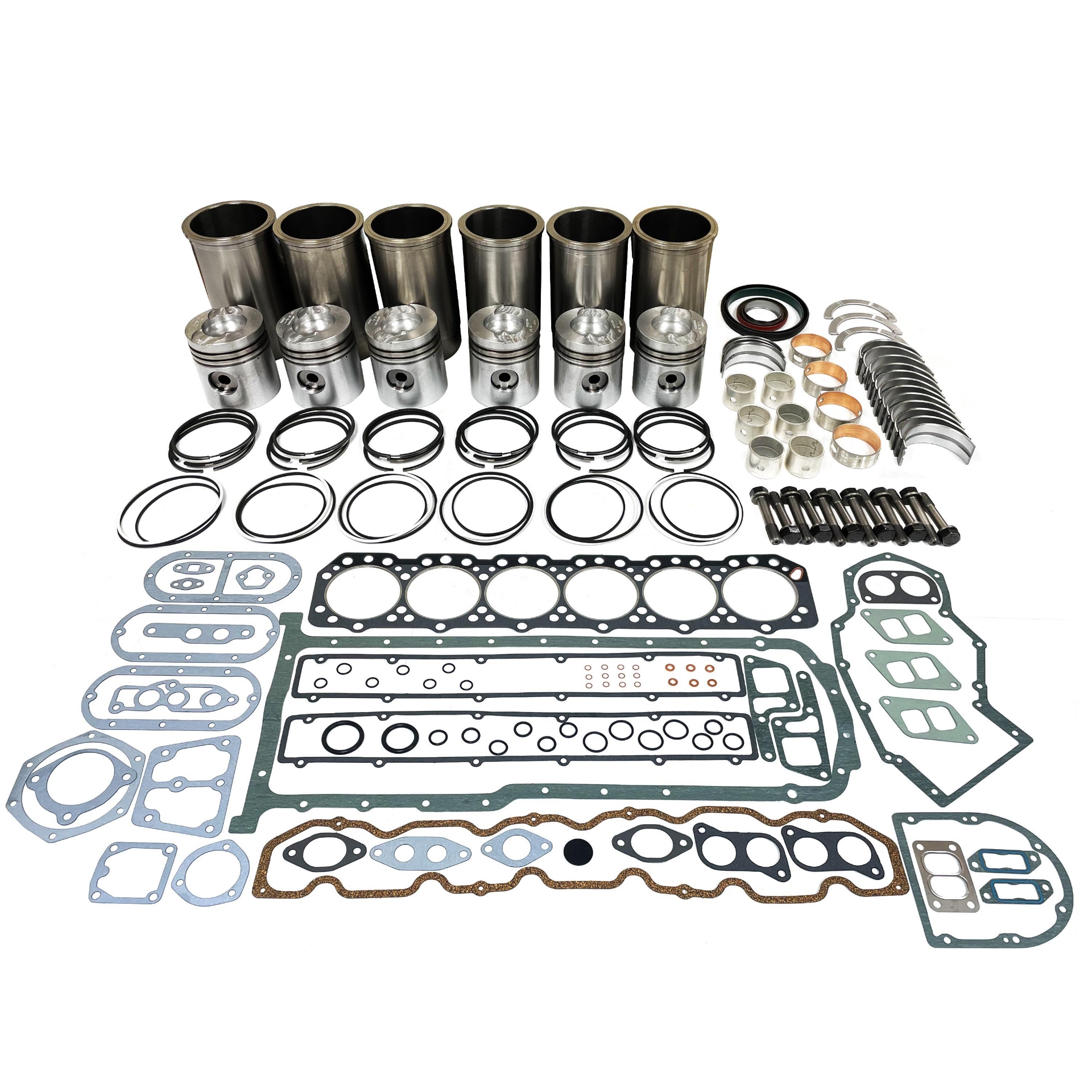

This Overhaul Kit contains Pistons made of hypereutectic aluminum alloy, which makes the piston inherently stronger. It is also more resistant to expansion and contraction, as well as scuff and corrosion resistant. Efficiency improves due to a better seal between the rings and cylinder wall.Includes: (6) HCTAR63272HC Cylinder Kits (6) HCTAR45723 Rod Bearings (6) HCTAR74814 Main Bearings (1) HCTAR77747 Thrust Washer Set (1) HCTAR77748 Thrust Bearing (1) HCTAR63269 Overhaul Gasket Set (1) HCNAR49025 Front Crank Seal (1) HCNRE520036 Rear Crank Seal (6) HCTR42173 Piston Pin Bushings (4) HCTR46903 Cam Bushings (12) HCTR66452 Connecting Rod BoltsThe HCTRG17892HC High Compression Major Overhaul Kit, John Deere 6404T; 6404A Diesel Engine fits equipment brands such as: John Deere
Manufacturer: Hy-Capacity
SKU: HCTRG17892HC
Vendor: Hy-Capacity
Out of stock
$1,900.65
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

Products specifications
Attribute name Attribute value
Engine Manufacturer John Deere
Block Marked R49470, R49650, R59850, R72128, R87558
Connecting Rod Marked R41423, R58882, R66922
Engine Notes 1.610" Piston Pin Diameter, Internal Plate Type Oil Cooler, Turbocharged & Aftercooled
Piston Pin Dia. 1.610"
Engine CID 404
Fuel Type Diesel
Cylinder Count 6
Bore 4.250"
Stroke Length 4.750"
Rod Journal Dimensions 2.9980" - 2.9990"
Main Journal Dimensions 3.3715" - 3.3725"
New/Reman New
Sold As Each
Warranty 1 Year
Products specifications
Attribute name Attribute value
Engine Manufacturer John Deere
Block Marked R49470, R49650, R59850, R72128, R87558
Connecting Rod Marked R41423, R58882, R66922
Engine Notes 1.610" Piston Pin Diameter, Internal Plate Type Oil Cooler, Turbocharged & Aftercooled
Piston Pin Dia. 1.610"
Engine CID 404
Fuel Type Diesel
Cylinder Count 6
Bore 4.250"
Stroke Length 4.750"
Rod Journal Dimensions 2.9980" - 2.9990"
Main Journal Dimensions 3.3715" - 3.3725"
New/Reman New
Sold As Each
Warranty 1 Year
